Cruise Control Main Switch ASSY: Replacement

HINT:

COMPONENTS: See COMPONENTS

1. PRECAUTION
2. SEPARATE BATTERY NEGATIVE TERMINAL (See  AIR BAG RESTRAINT SYSTEMS  )
3. REMOVE STEERING WHEEL COVER LOWER NO.2 (See  STEERING COLUMN ASSY  )
4. REMOVE SWITCH & VOLUME CASE (See  STEERING PAD SWITCH MODULATOR  )
5. REMOVE STEERING PAD SWITCH MODULATOR (See  STEERING PAD SWITCH MODULATOR  )
6. REMOVE HORN BUTTON ASSY (See  AIR BAG RESTRAINT SYSTEMS  )
7. REMOVE STEERING WHEEL ASSY (See  STEERING COLUMN ASSY  )

   SST 09950-50013 (09951-05010, 09952-05010, 09953-05020, 09954-05021)

8. REMOVE CRUISE CONTROL MAIN SWITCH ASSY
   1. Remove the 3 screws.

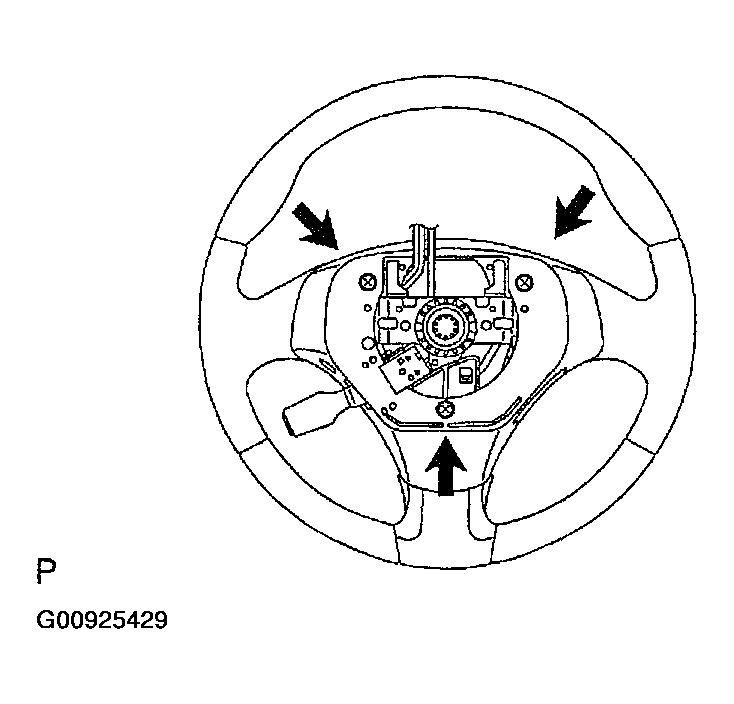

      Fig 1: Removing Cruise Control Main Switch Assy Screws (1 Of 2)

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Reverse the steering wheel and remove the 3 screws.
   3. Remove the steering wheel boss cover lower and cruise control main switch assy.

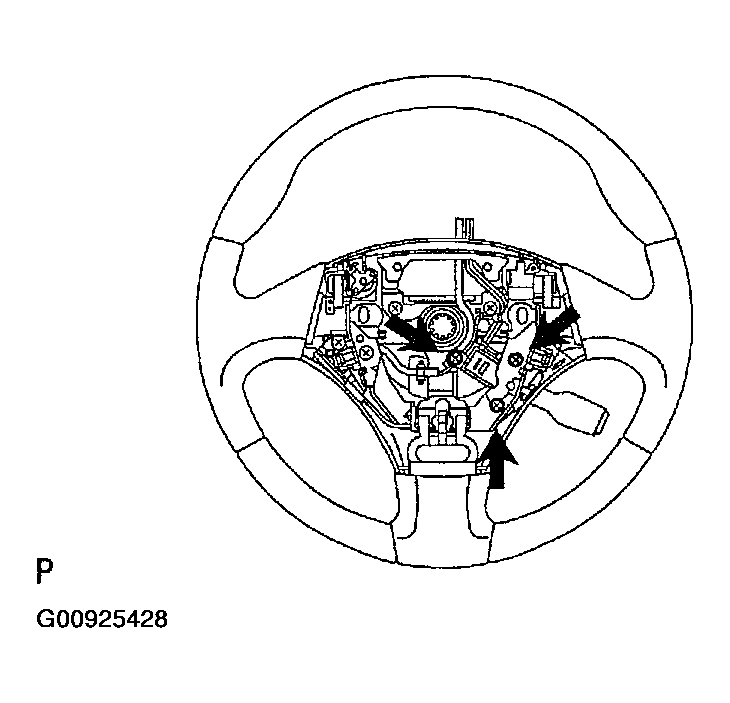

      Fig 2: Removing Cruise Control Main Switch Assy Screws (2 Of 2)

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
9. INSPECT STEERING WHEEL CENTER POINT
10. INSTALL STEERING WHEEL ASSY (See  STEERING COLUMN ASSY  )
11. INSPECT HORN BUTTON ASSY (See  AIR BAG RESTRAINT SYSTEMS  )
12. INSTALL HORN BUTTON ASSY (See  AIR BAG RESTRAINT SYSTEMS  )
13. INSPECT SRS WARNING LIGHT
