Back Up Lamp Lens LH: Replacement

WARNING: This page is about a different car, the 2004 Lexus SC 430. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

COMPONENTS: See LIGHTING

REMOVE BACK UP LAMP LENS LH
1. Disconnect the connector.
2. Remove the 2 bolts and back up lamp lens assy.
3. Remove the bulb socket and back up lamp lens LH.

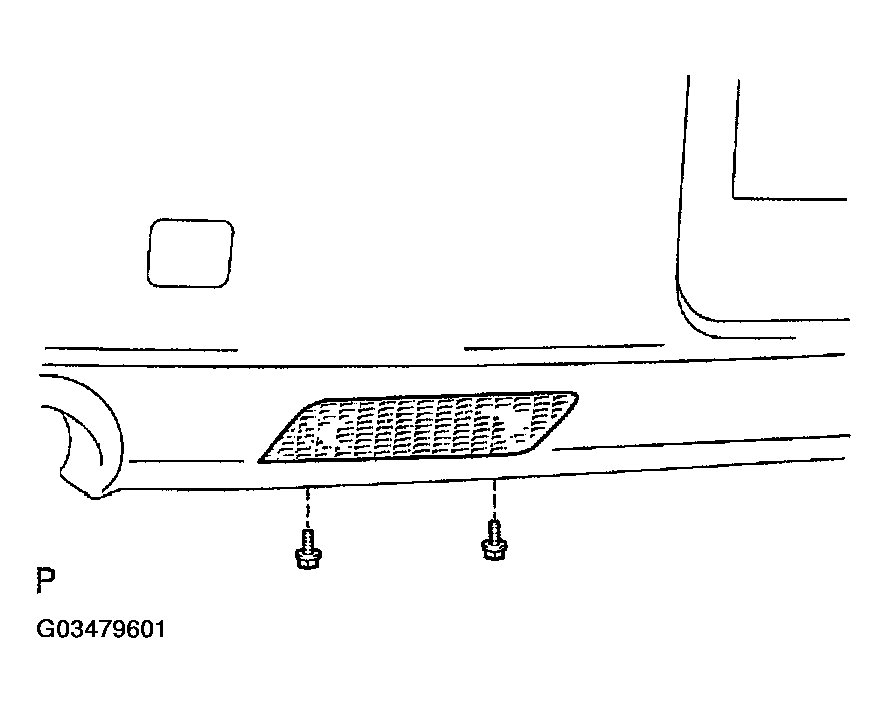

Fig 1: Removing Back Up Lamp Lens Assy
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
