Turn Signal Switch ASSY: Replacement

WARNING: This page is about a different car, the 2004 Lexus SC 430. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

COMPONENTS: See LIGHTING

REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSY (See REPLACEMENT )
REMOVE INSTRUMENT PANEL SAFETY PAD SUB-ASSY NO.1 (See REPLACEMENT )
REMOVE STEERING COLUMN COVER LWR (See OVERHAUL )
REMOVE STEERING COLUMN COVER UPR (See OVERHAUL )
REMOVE TURN SIGNAL SWITCH ASSY
1. Disconnect the connector.
2. Remove the 2 screws.
3. Remove the turn signal switch assy.

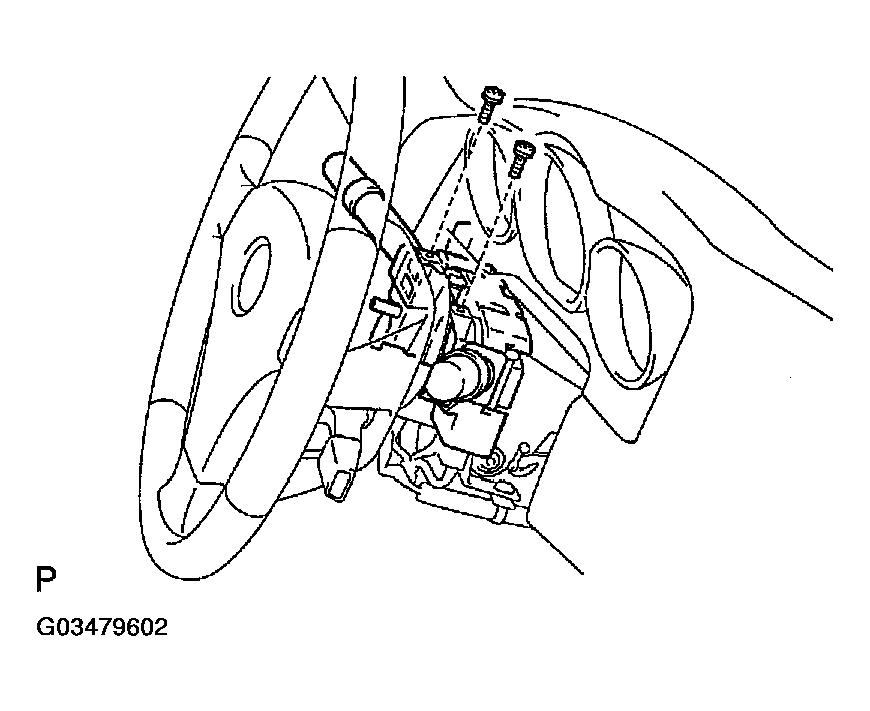

Fig 1: Removing Turn Signal Switch Assy
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL INSTRUMENT CLUSTER FINISH PANEL SUB-ASSY
