Inspection Procedure

WARNING: This page is about a different car, the 2005 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.

CHECK RADIO AND NAVIGATION ASSY
1. Turn the ignition switch to the ACC position.
2. Keep pressing the "DISC" eject switch for 5 seconds and check if the disc is ejected by forced ejection.
OK: The disc is ejected.
1. NG: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
OK: Go to next step.
CHECK CD
1. Check that the CD is not deformed or cracked.
OK: No deformations or cracks appear on the CD.

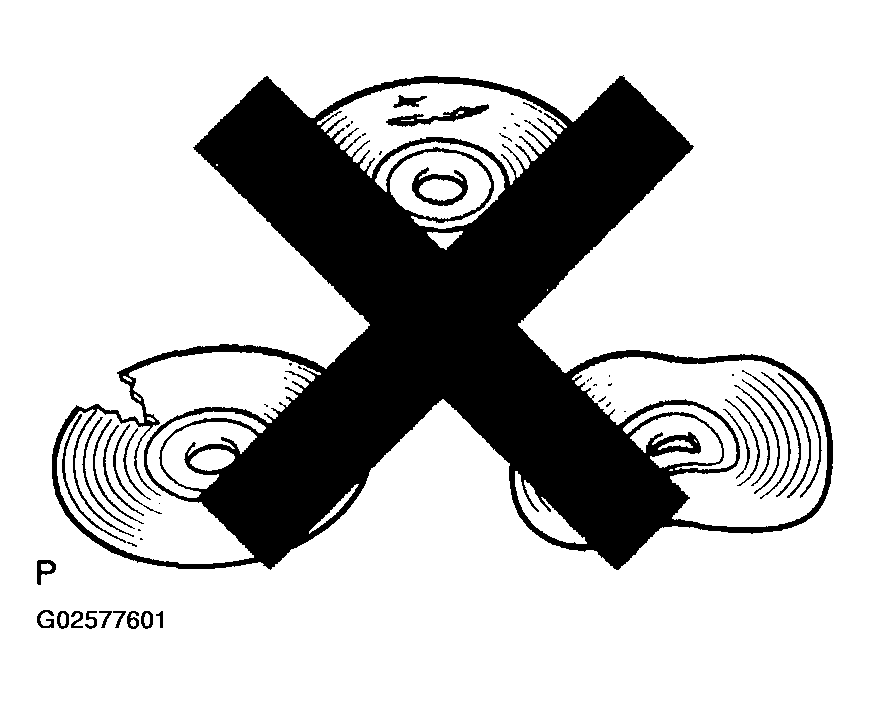

Fig 1: Identifying Deformed Or Cracked CD
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. NG: REPLACE CD
OK: Go to next step.
CHECK RADIO AND NAVIGATION ASSY
1. Insert another CD and check if it is ejected.
OK: The disc is ejected.
1. NG: REPLACE RADIO AND NAVIGATION ASSY (SEE RADIO RECEIVER ASSY )
OK

NORMAL OPERATION
