Display Check Mode (Panel Switch Check)

WARNING: This page is about a different car, the 2005 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

This mode checks the panel switch operation response on the radio and navigation assy.
Illustrations may differ from the actual vehicle depending on the device settings and options. Therefore, some detailed areas may not be shown exactly the same as on the actual vehicle.

Enter diagnostic mode (see DIAGNOSTIC START-UP/FINISH ).
Select "Display Check" from the "Diagnosis MENU" screen.

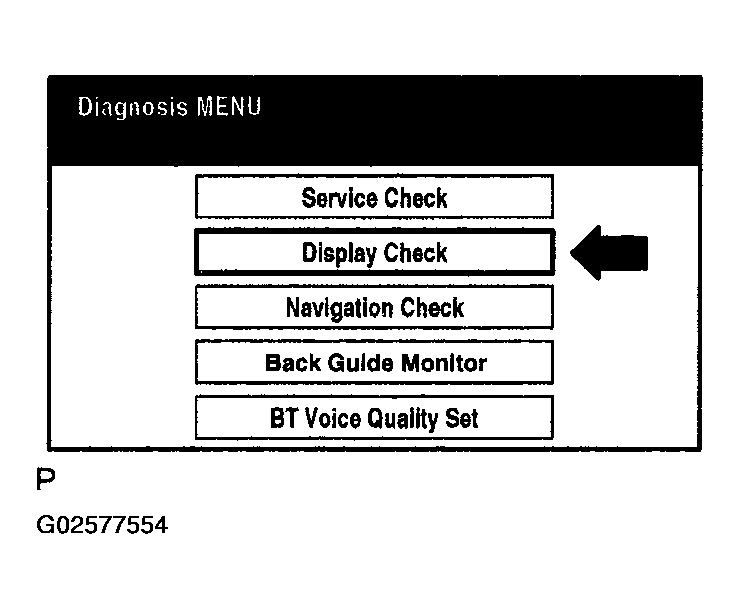

Fig 1: Selecting Display Check From Diagnosis Menu Screen
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Select "Panel Switch Check" from the "Display Check" screen.

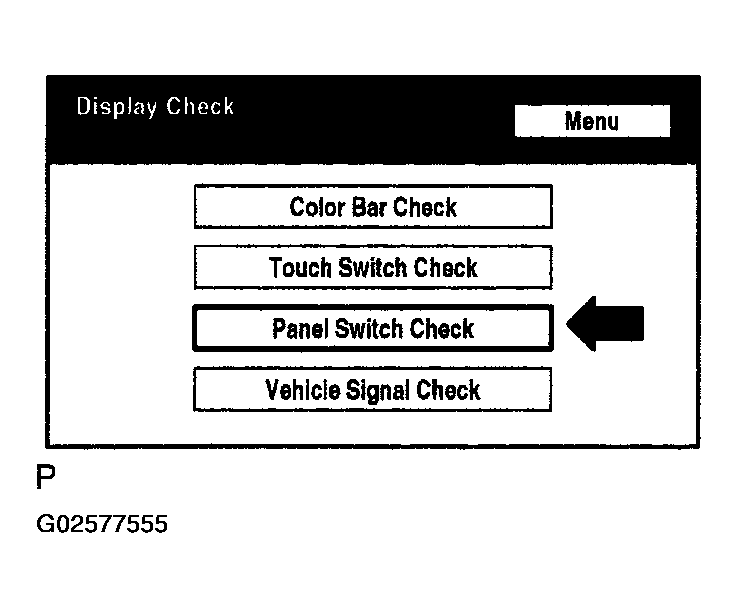

Fig 2: Selecting Panel Switch Check From Display Check Screen
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Operate each switch and check that the switch name and condition are correctly displayed.

HINT:

Pressing the "DISPLAY" switch for 3 seconds will exit the diagnostic mode.
"OPEN" and "TILT" switches are not displayed. To test these switches, they must be operated.

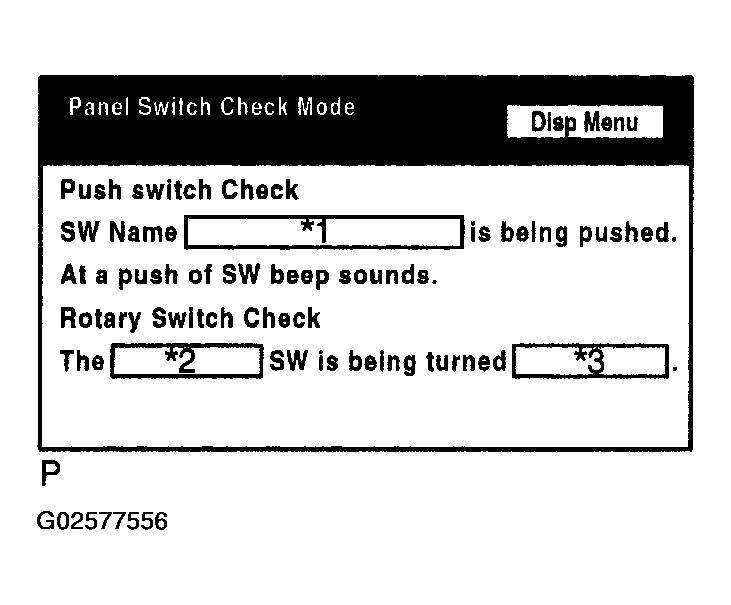

Fig 3: Panel Switch Check Mode Screen
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

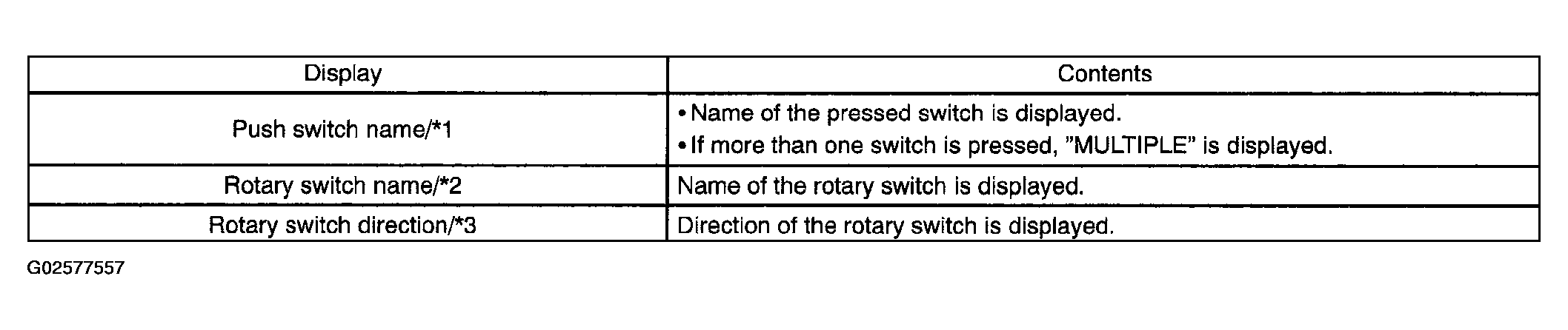

Fig 4: Display Contents Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
