Inspection Procedure

WARNING: This page is about a different car, the 2005 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.

CHECK MAP DISC
1. Check that the map disc is not deformed or cracked.
OK: No deformations or cracks appear on the map disc.

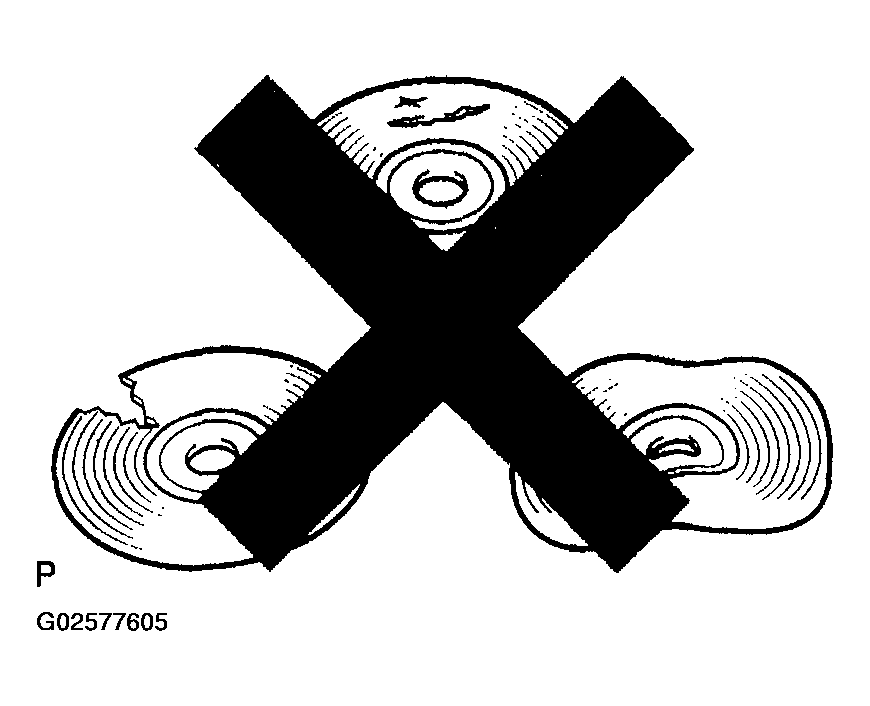

Fig 1: Identifying Cracked Or Deformed Map Discs
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. NG: REPLACE MAP DISC
OK: Go to next step.
CHECK RADIO AND NAVIGATION ASSY
1. Check if the "MAP" indicator near the disc slot is on.
OK: It is not on.

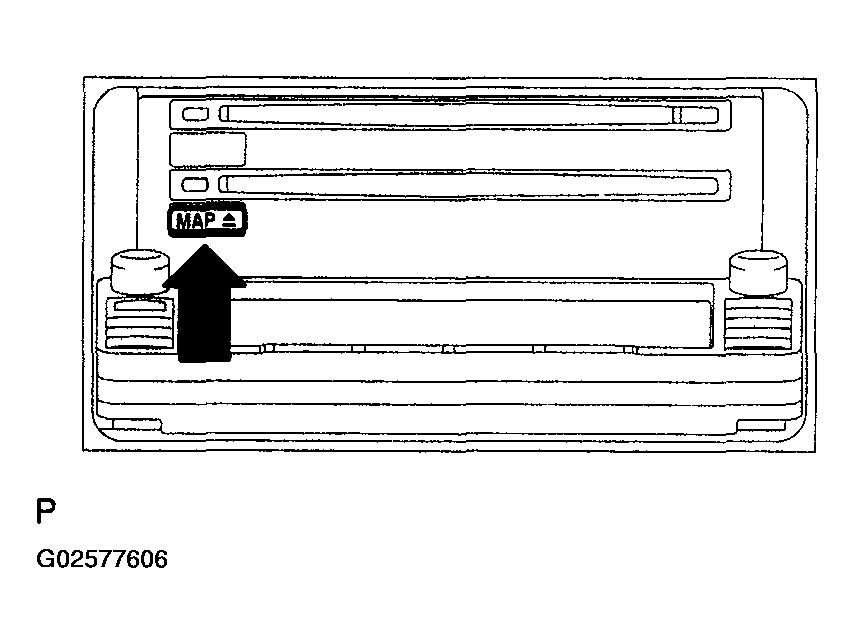

Fig 2: Locating MAP Indicator
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. NG: PRESS EJECT SWITCH TO EJECT DISC
OK: Go to next step.

PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
