Navigation Check Mode (GPS Information)

WARNING: This page is about a different car, the 2005 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

This mode displays GPS satellite information.
Illustrations may differ from the actual vehicle depending on the device settings and options. Therefore, some detailed areas may not be shown exactly the same as on the actual vehicle.

Enter diagnostic mode (see DIAGNOSTIC START-UP/FINISH ).
Select "Navigation Check" from the "Diagnosis MENU" screen.

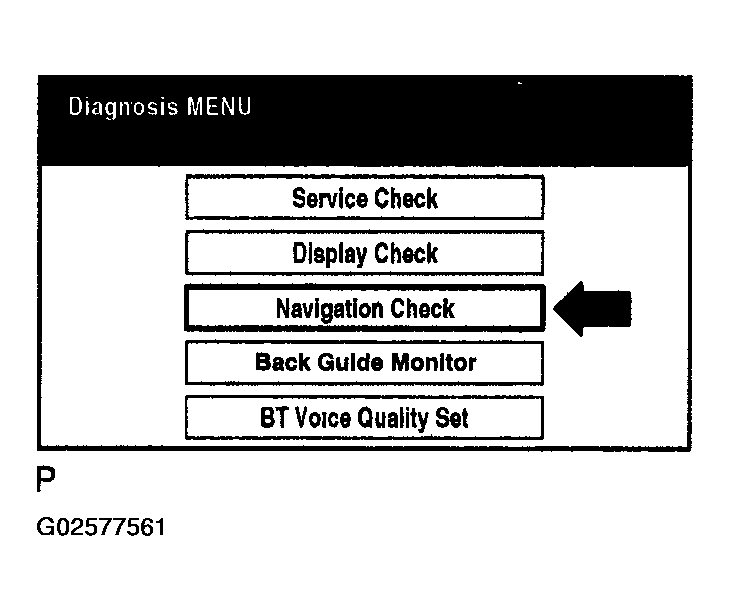

Fig 1: Selecting Navigation Check From Diagnosis Menu Screen
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Select "GPS Information" from the "Navigation Check" screen.

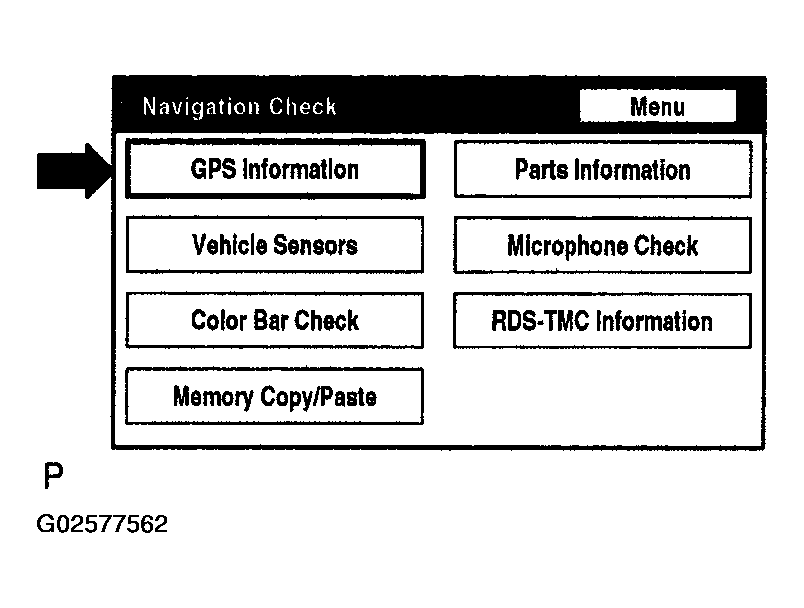

Fig 2: Selecting GPS Information From Navigation Check Screen
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
When GPS information is displayed, check the GPS conditions.

HINT:

This screen is updated once per second when input signals to the vehicle are changed.

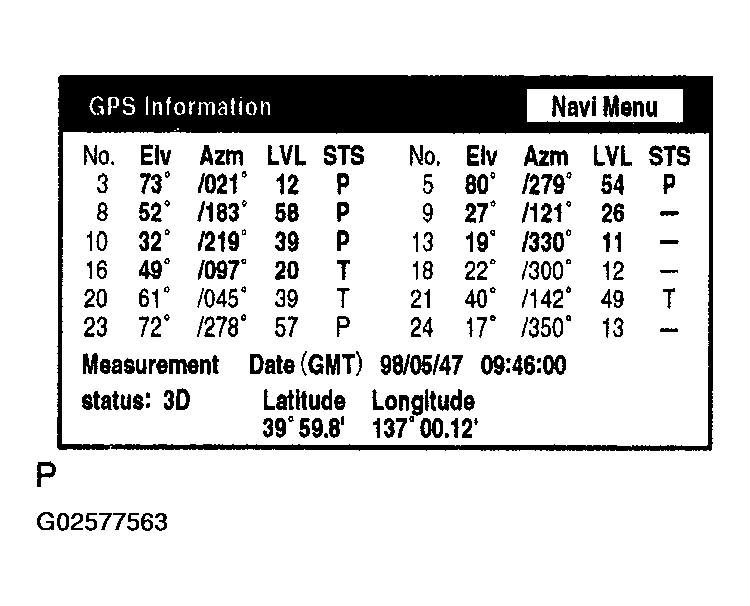

Fig 3: GPS Information Screen
