Problem Symptoms Table

WARNING: This page is about a different car, the 2005 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

Before performing verification listed in the table below, check the fuse and relay.
Methods used to verify the cause of the problem are listed in order of probability in the verification column.

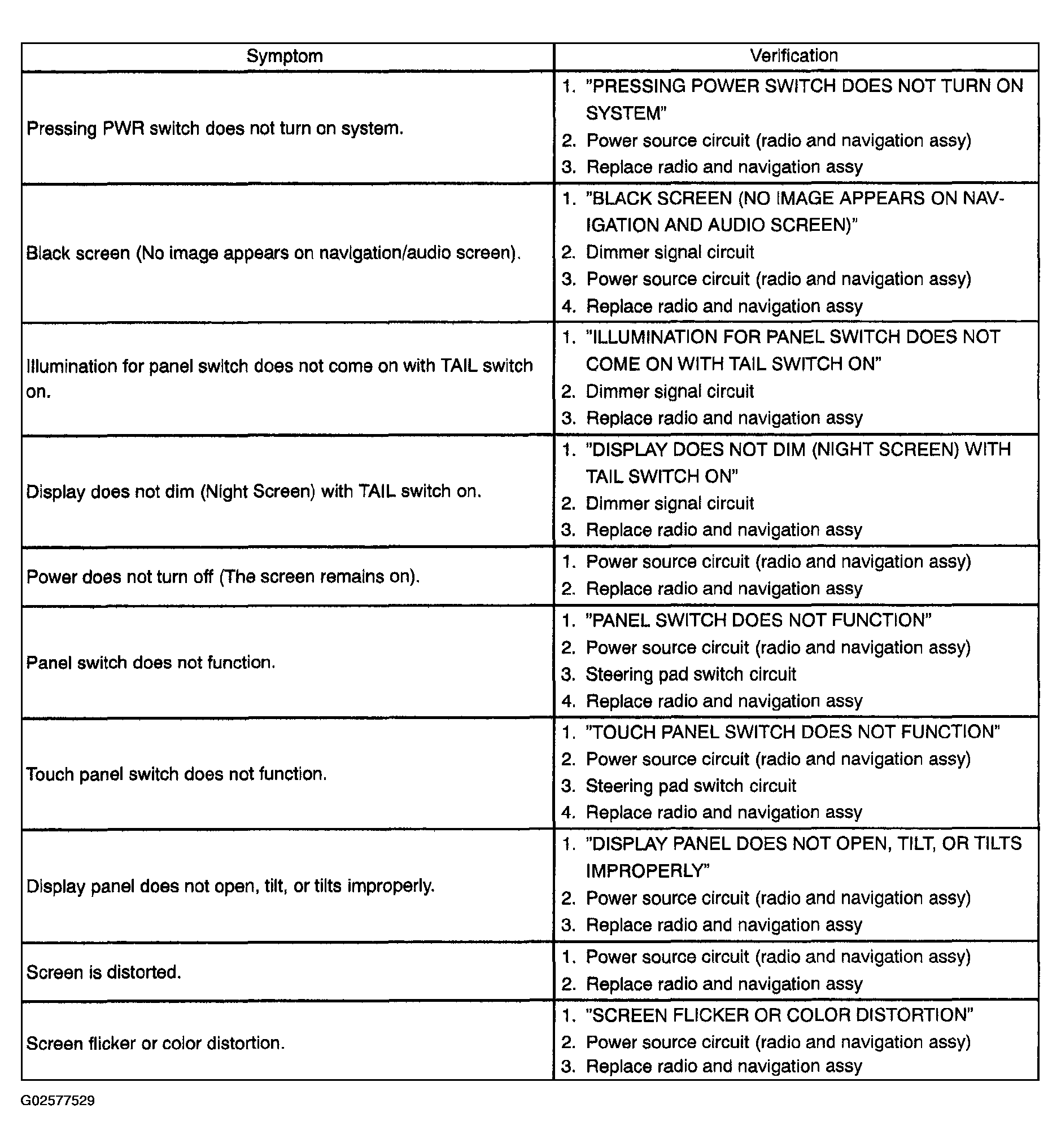

Fig 1: Display Function Problem Symptoms Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Audio Function Problem Symptoms Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

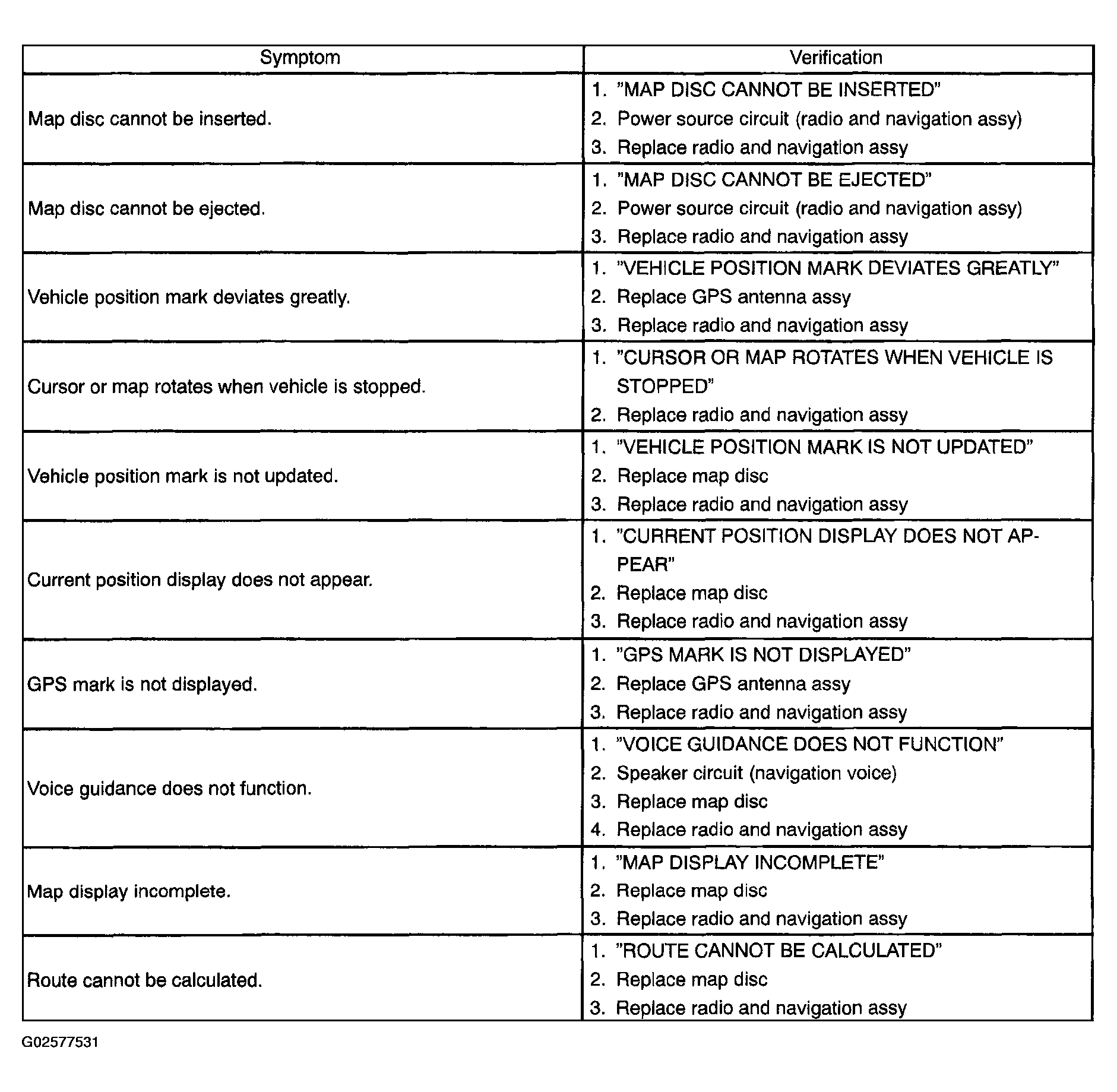

Fig 3: Navigation Function Problem Symptoms Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

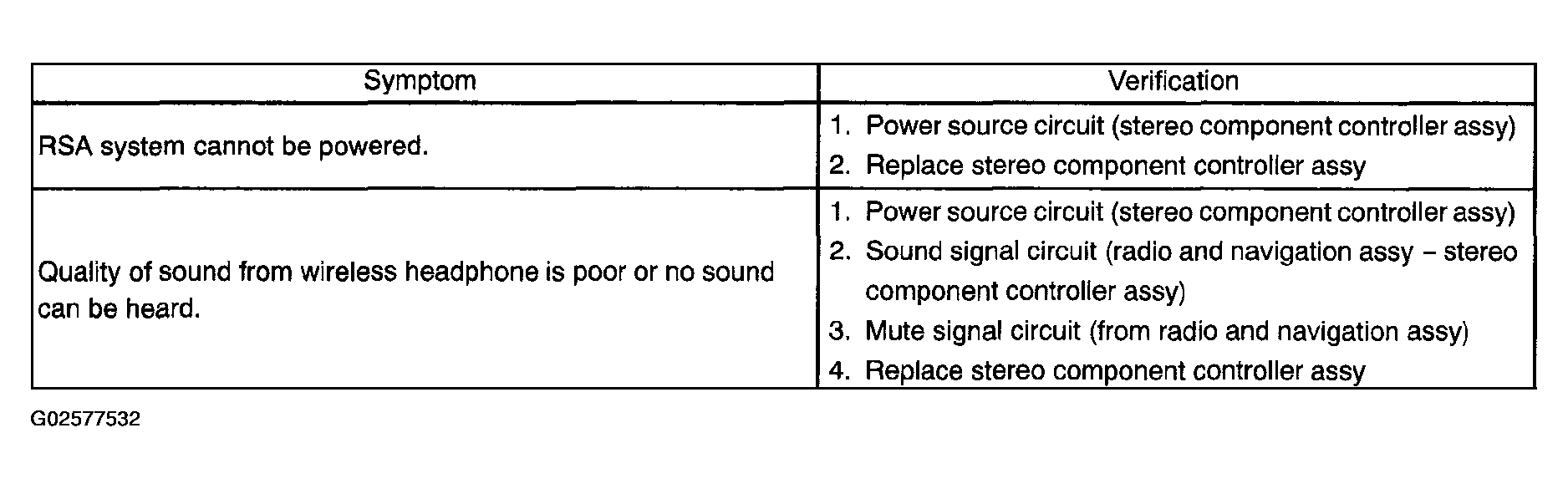

Fig 4: Rear Seat Audio Function Problem Symptoms Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

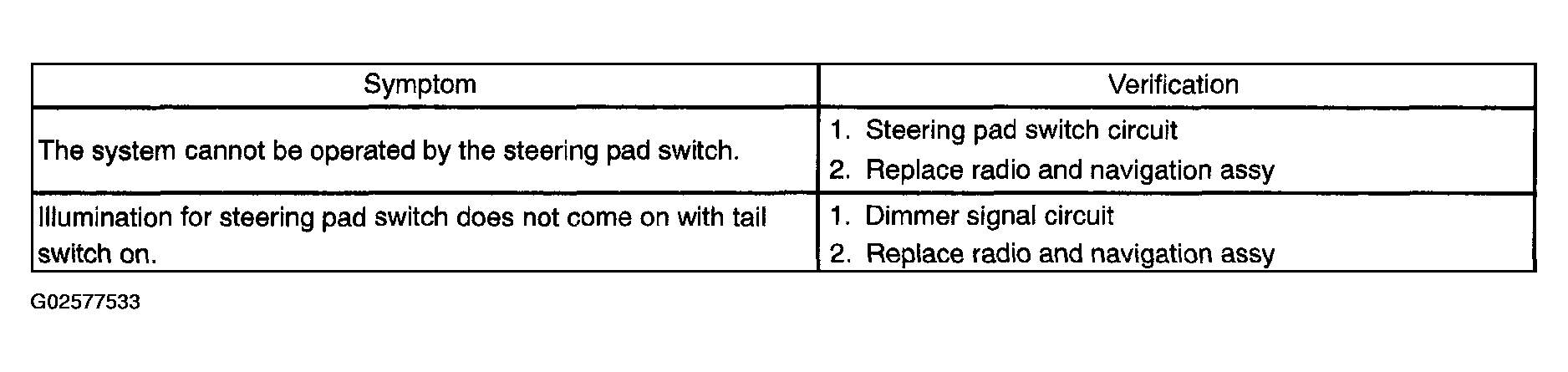

Fig 5: Steering Pad Switch Function Problem Symptoms Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
