Section 913 (Back Monitor System - Diagnostics): Pre-Check

WARNING: This page is about a different car, the 2005 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.

INSPECT TELEVISION CAMERA ASSY:

Standard signal check
1. Using the tester, measure the voltage and the continuity between terminals.
  HINT:

  Leave the connector being connected.
2. Using the oscilloscope, check wave forms between terminals.
  HINT:
  - Leave the connector being connected.
  - The waveform shown is merely an example.
  Noise waveform and chattering waveform are omitted.

  Standard:

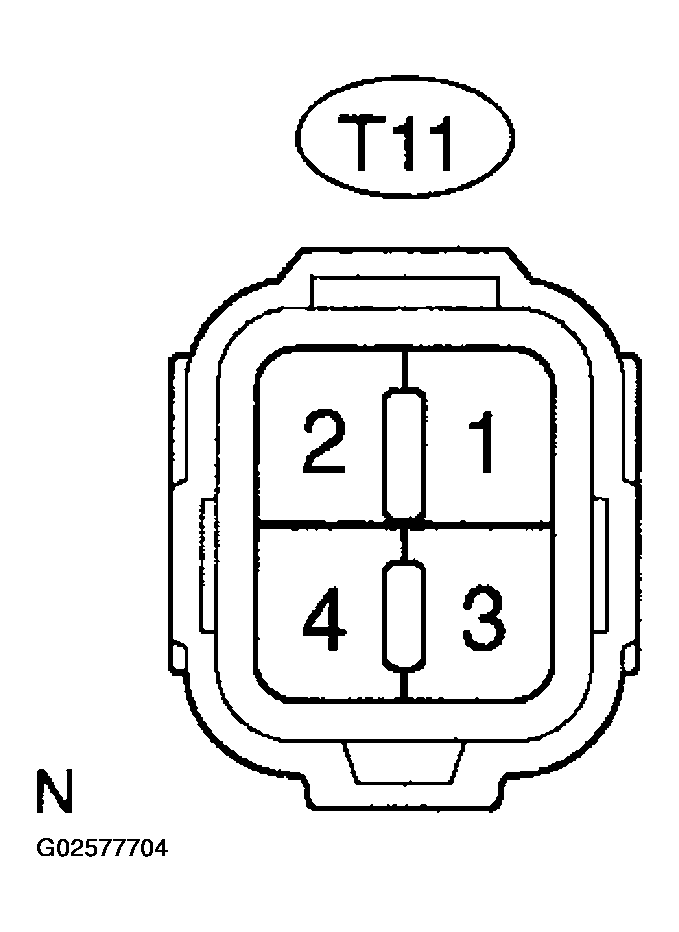

  Fig 1: Identifying Connector Terminal T11
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Connector T11

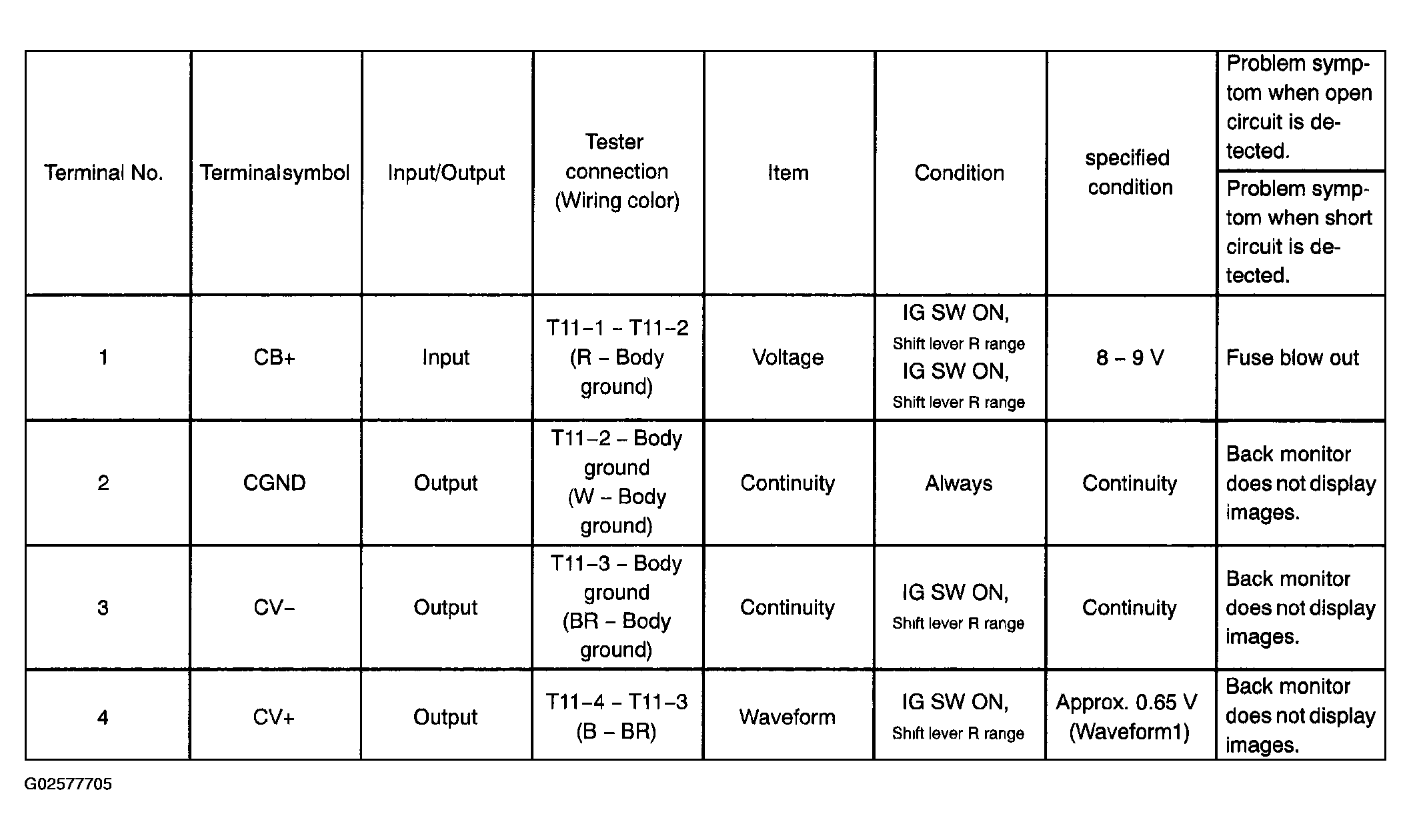

  Fig 2: Problem Symptom Chart (Connector T11)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
< Reference >

Oscilloscope waveform

Waveform 1

Standard:

TERMINAL REFERENCE

Item	Content
Terminal	CV+ <=> CV-
Tool setting	0.2 V/DIV, 0.2 mus/DIV
Condition	IG SW ON, shift lever R range

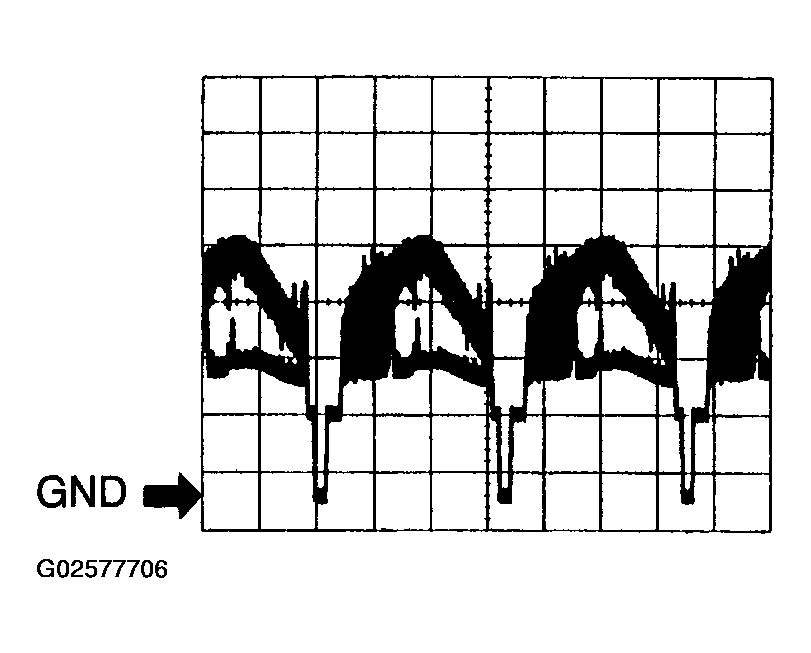

Fig 3: Oscilloscope Waveform Graph

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

INSPECT RADIO RECEIVER ASSY (BACK MONITOR CONTROLLER)

Standard signal check
1. Using the tester, measure the voltage and the continuity between terminals.
  HINT:

  Leave the connectors being connected.
2. Check waveforms between terminals.
  HINT:
  - Leave the connectors being connected.
  - The waveform shown is merely an example. Noise waveform and chattering waveform are omitted.

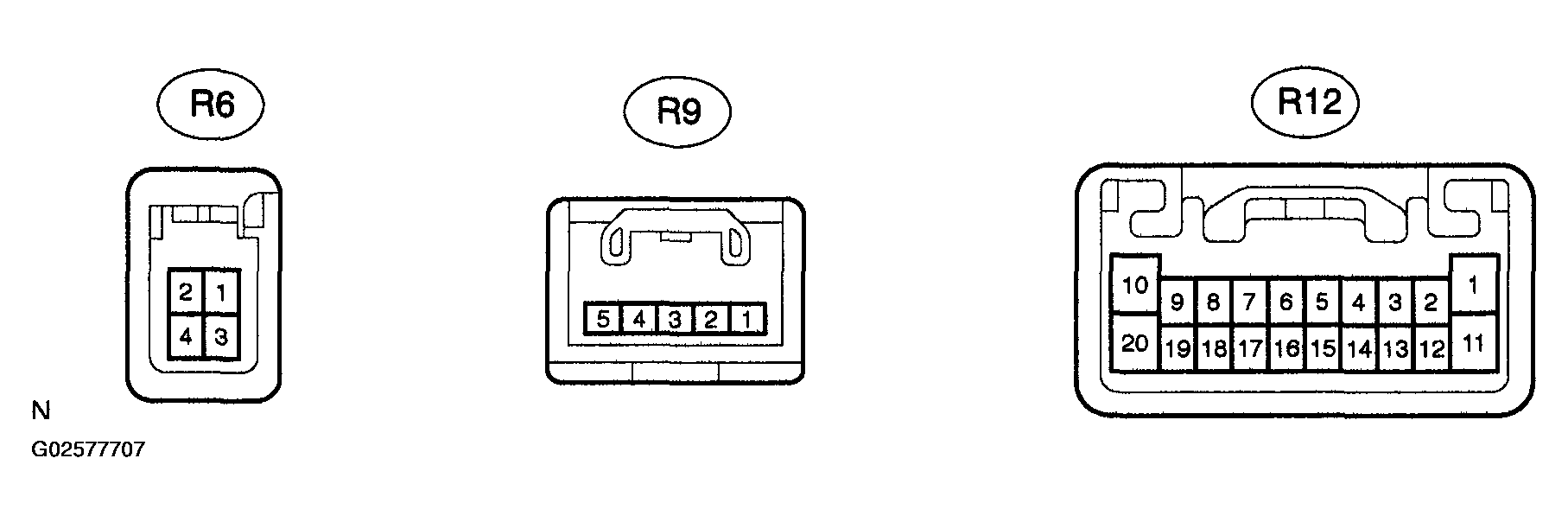

  Fig 4: Checking Waveforms Between Terminals
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Standard:

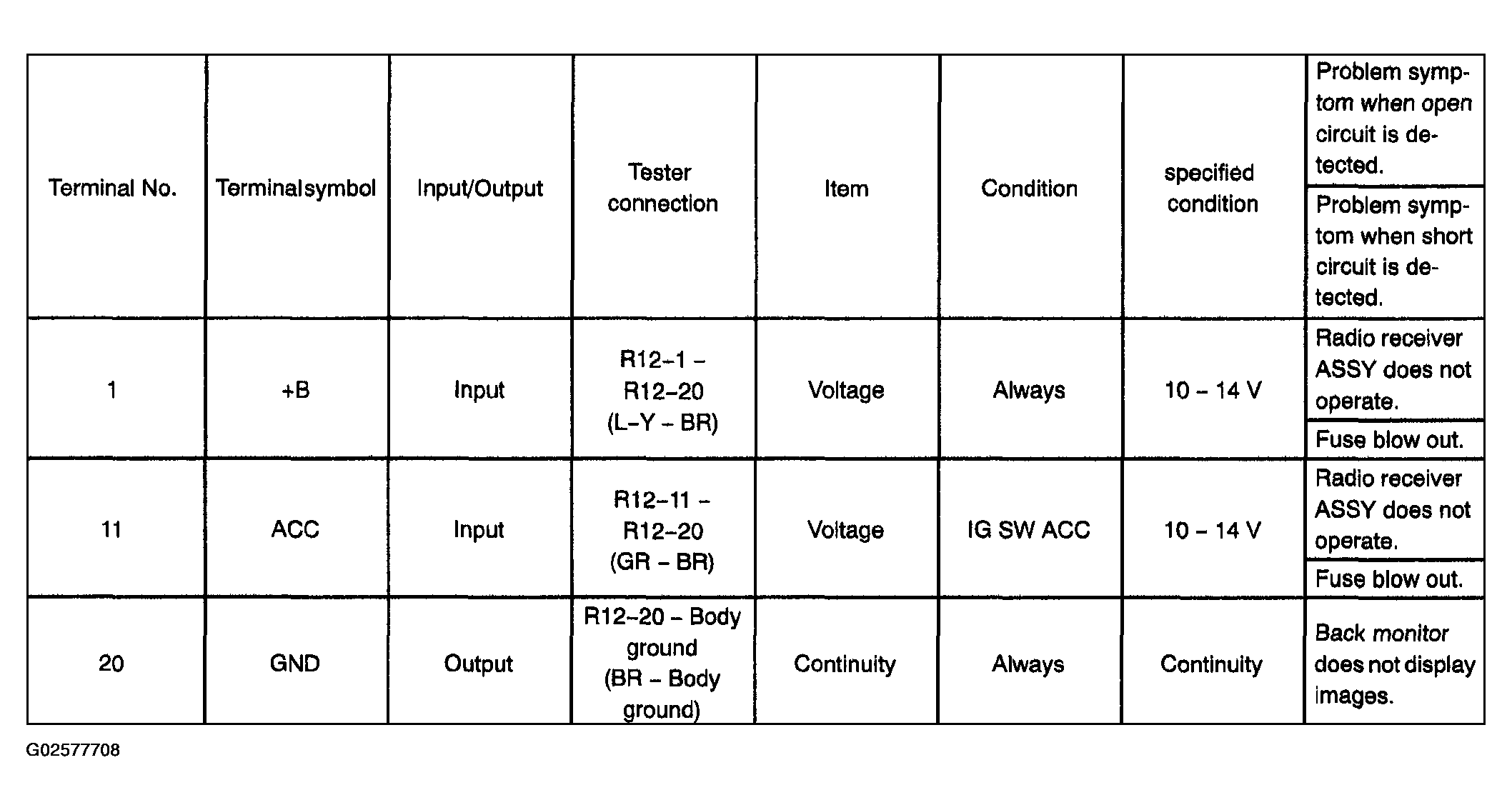

Fig 5: Problem Symptom Chart (Connector R12)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

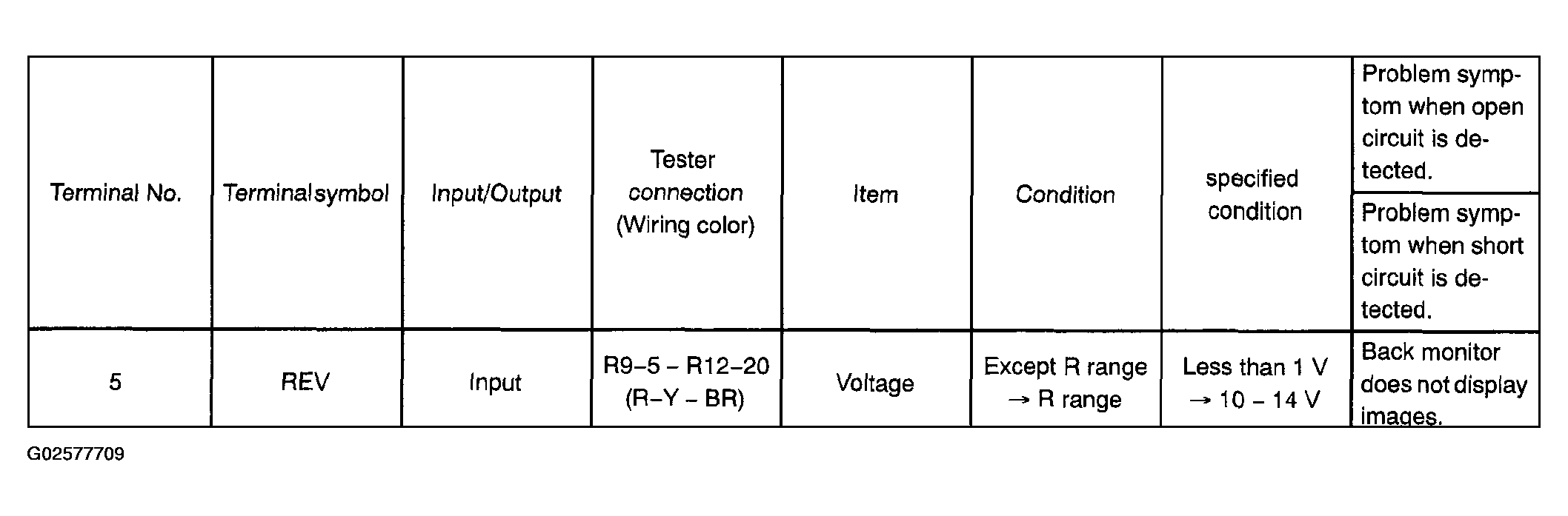

Fig 6: Problem Symptom Chart (Connector R9)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

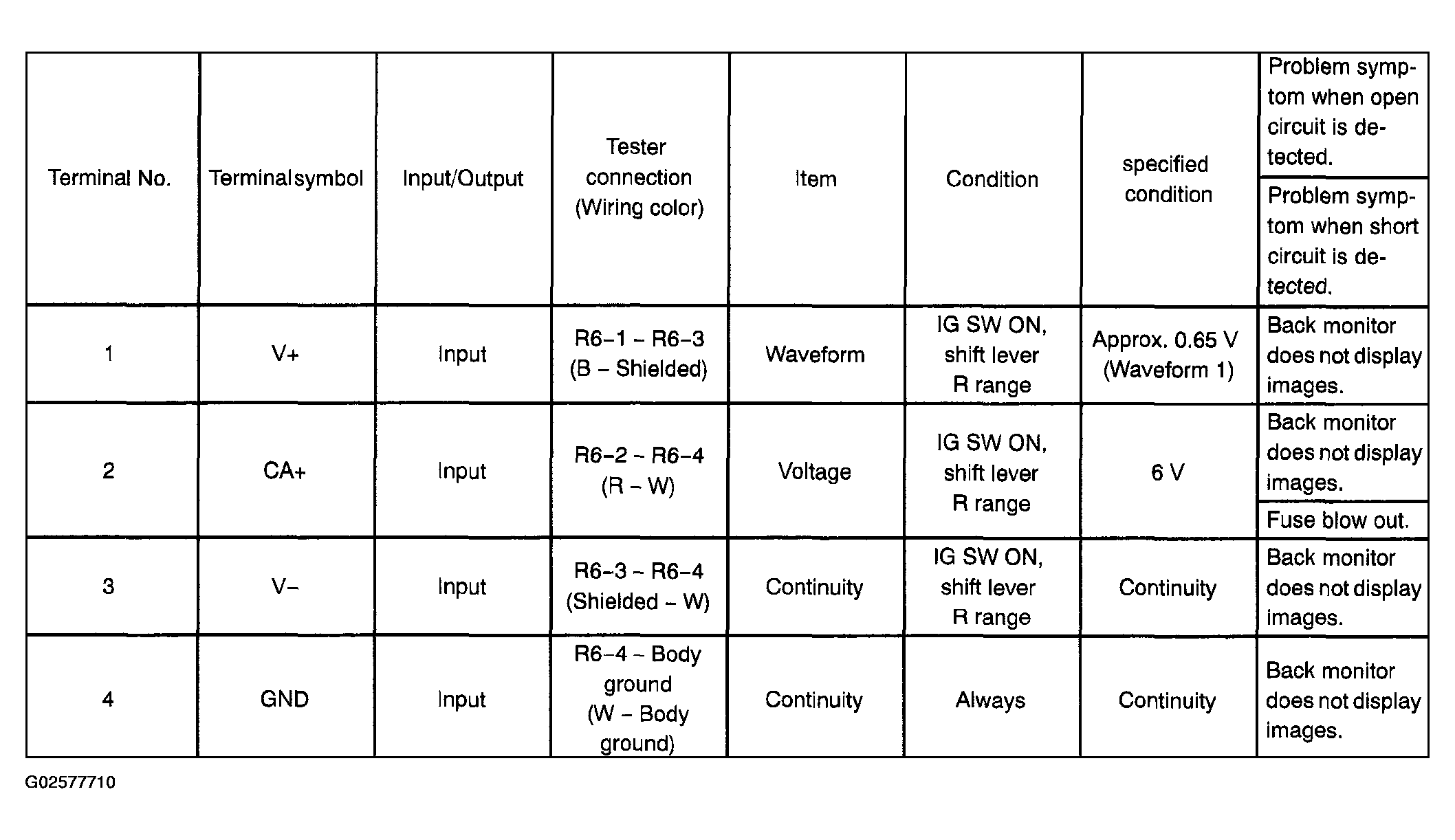

Fig 7: Problem Symptom Chart (Connector R6)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

< Reference >

Oscilloscope waveform

Waveform 1

Standard:

WAVEFORM 1

Item	Content
Terminal	V+ <=> V-
Tool setting	0.2 V / DIV, 0.2 muS DIV
Condition	IG SW ON, shift lever R range

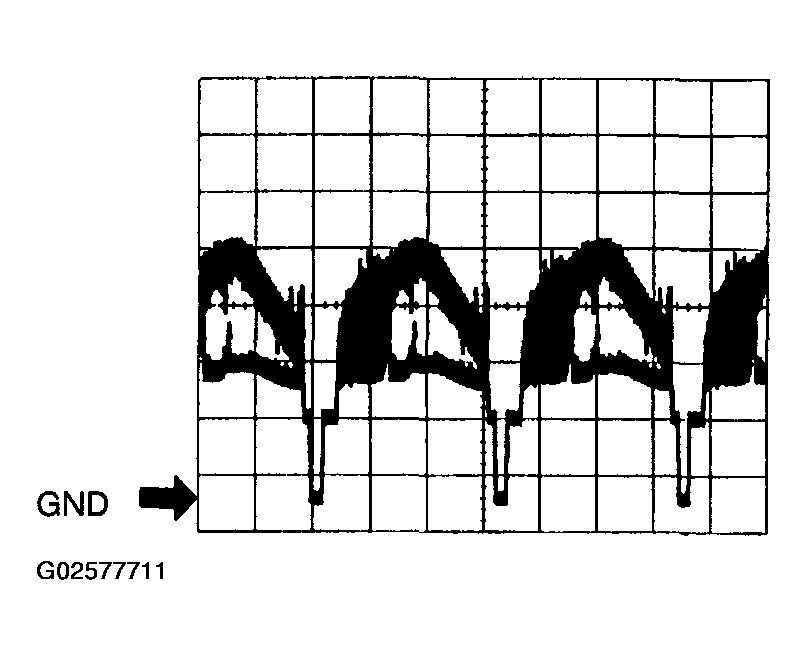

Fig 8: Oscilloscope Waveform Graph

INSPECT BACK MONITOR CAMERA WIRE
1. Continuity check
  1. Using the tester, measure the continuity between terminals.
Standard:

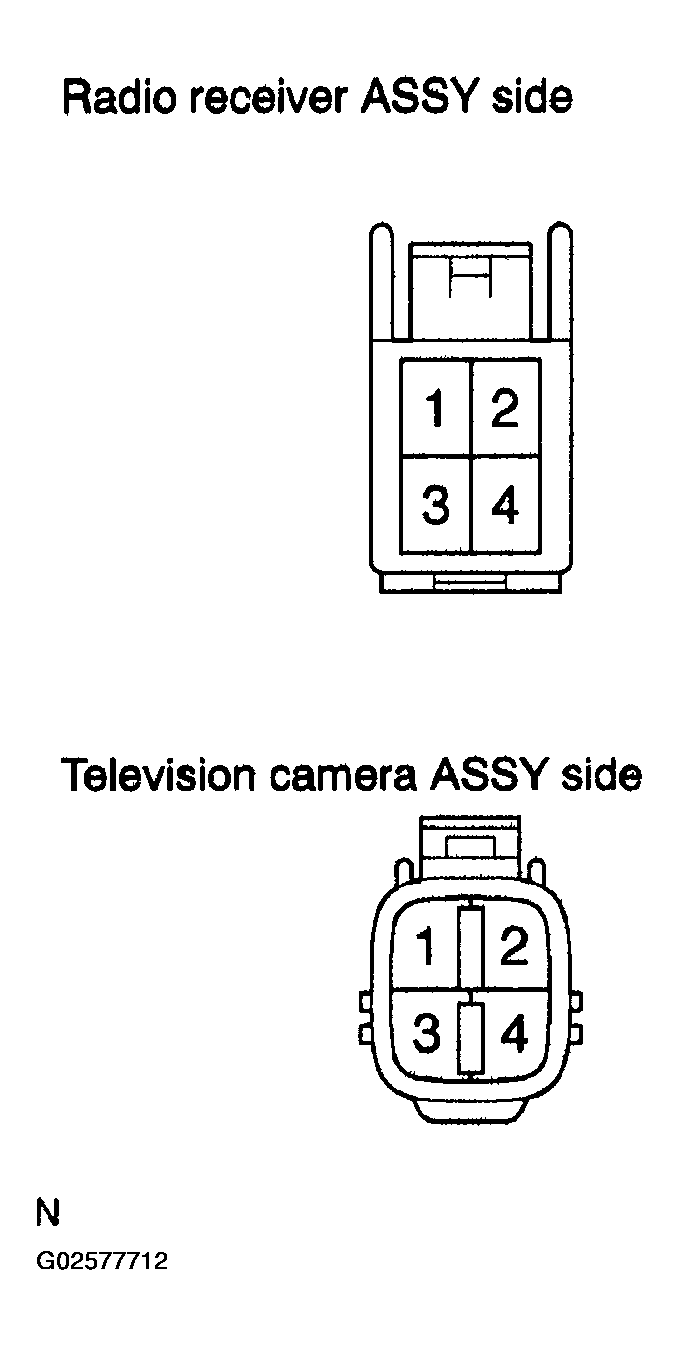

Fig 9: Identifying Radio Receiver And Television Camera Connector Terminal
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

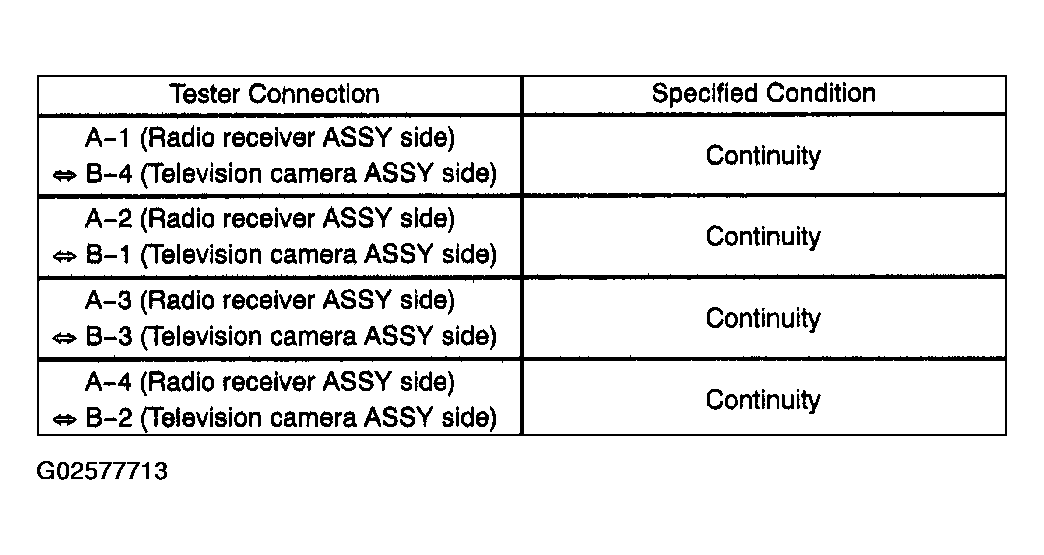

Fig 10: Checking Continuity Between Radio Receiver And Television Camera Table
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
