Inspection Procedure

WARNING: This page is about a different car, the 2005 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.

CHECK WIRE HARNESS (POWER SOURCE)
1. Disconnect the P10 switch connector.
2. Turn the ignition switch ON.
3. Check the voltage between terminal 4 of the wire harness side connector of the switch and the body ground.
  Standard: 10 - 14 V

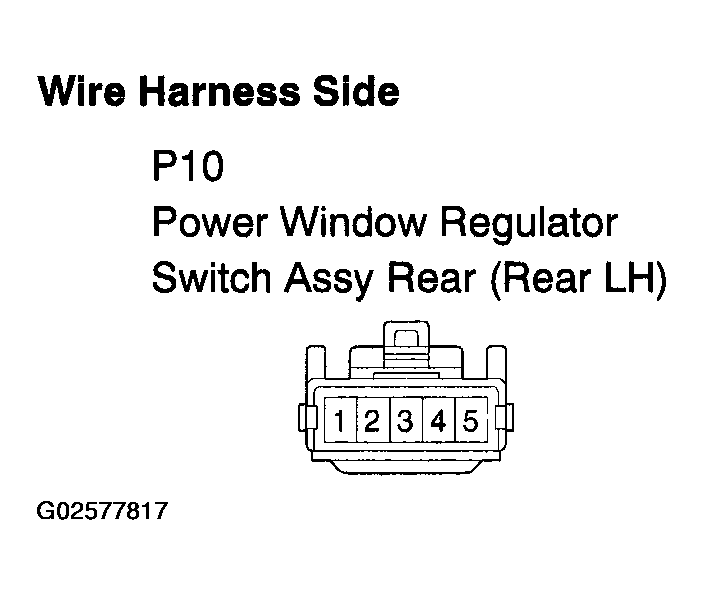

  Fig 1: Identifying Terminals Of P10 Switch Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. NG: REPAIR OR REPLACE HARNESS AND CONNECTOR (SWITCH <=> RELAY)
OK: Go to next step.
INSPECT POWER WINDOW REGULATOR SWITCH ASSY REAR (REAR LH)
1. Remove the power window switch.
2. Check the continuity between the terminals of the switch connector when the switch is operated.

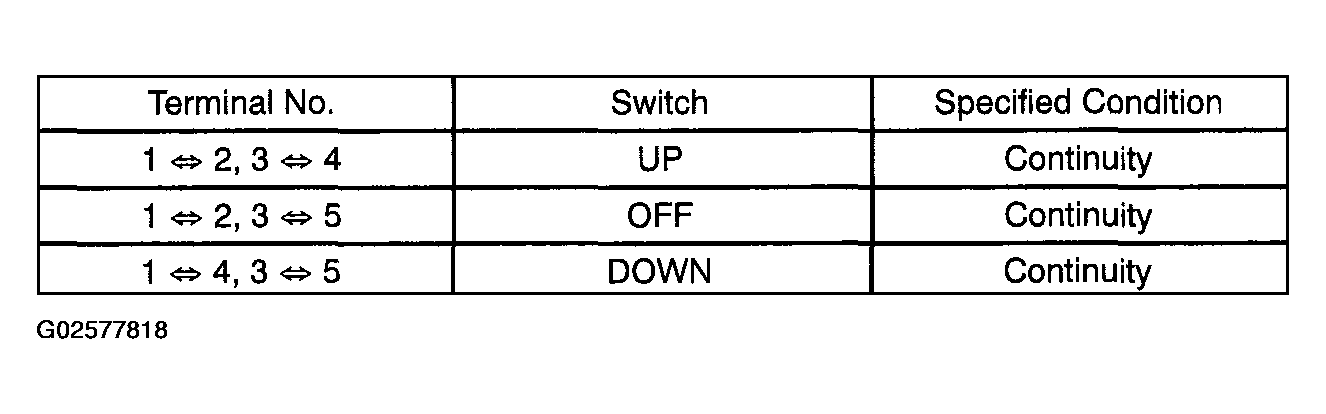

  Fig 2: Power Window Regulator Switch Assy Rear (Rear LH) Continuity Chart
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

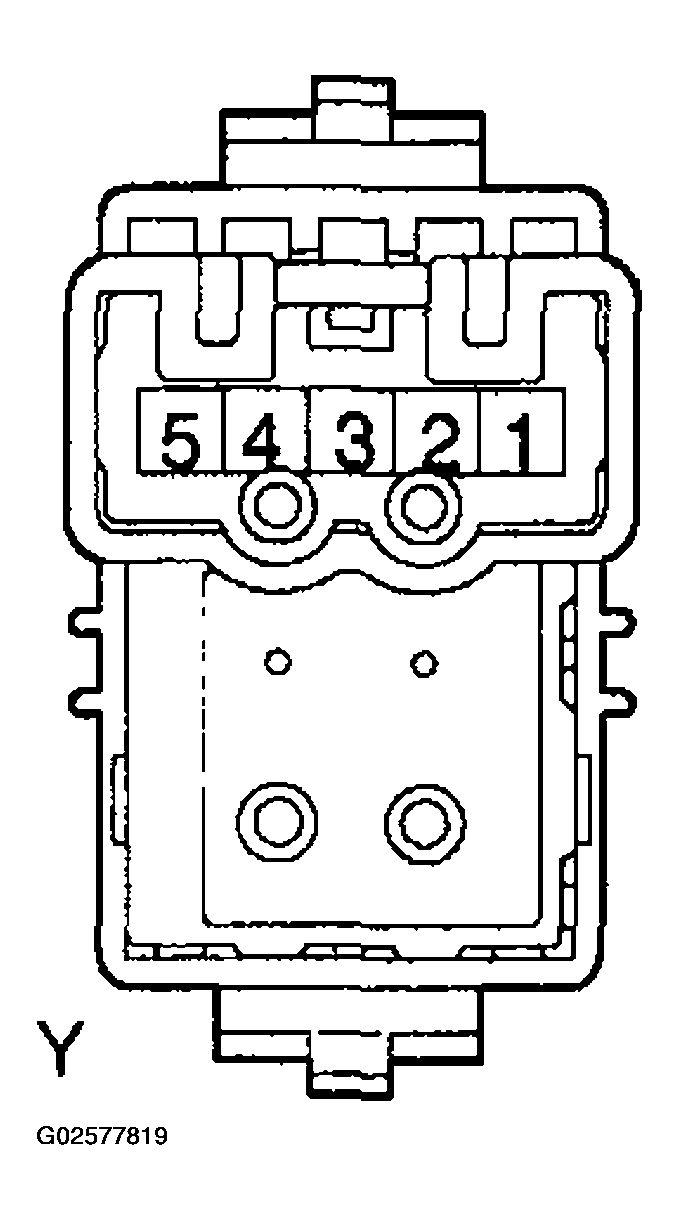

  Fig 3: Identifying Terminals Of Power Window Switch Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. NG: REPLACE POWER WINDOW REGULATOR SWITCH ASSY REAR (REAR LH)
OK: Go to next step.
CHECK WIRE HARNESS (SWITCH <=> MOTOR) (SWITCH <=> BODY GROUND)
1. Disconnect the P14 motor connector.
2. Check the continuity between the wire harness side connectors.

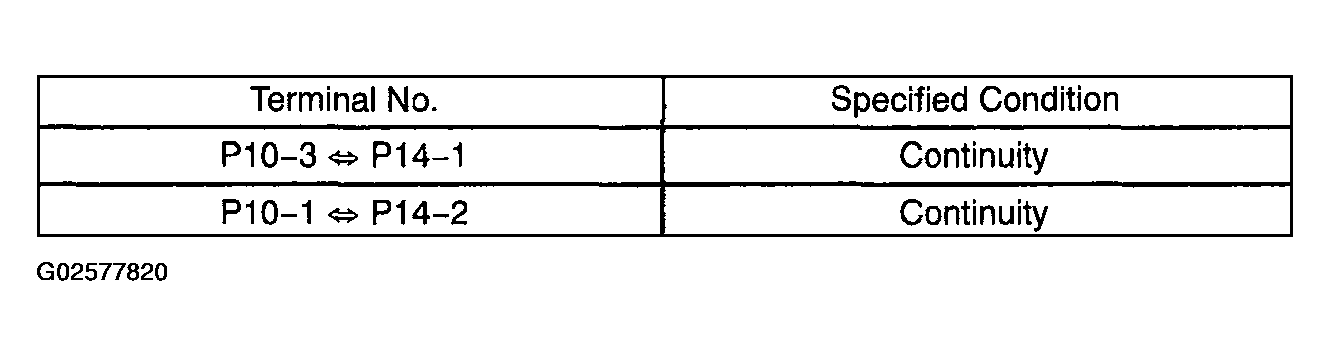

  Fig 4: Switch - Motor Continuity Chart
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Check the continuity between the P10 switch connector and the body ground.

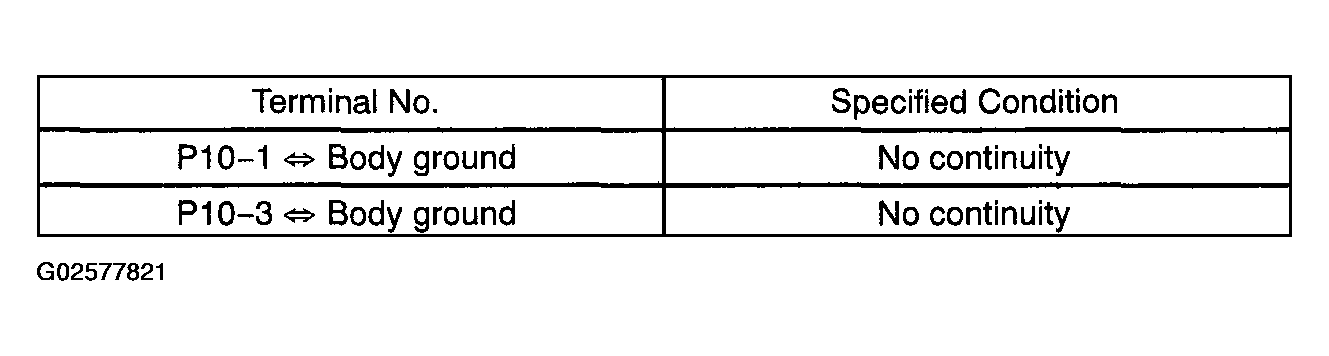

  Fig 5: Switch - Body Ground Continuity Chart
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

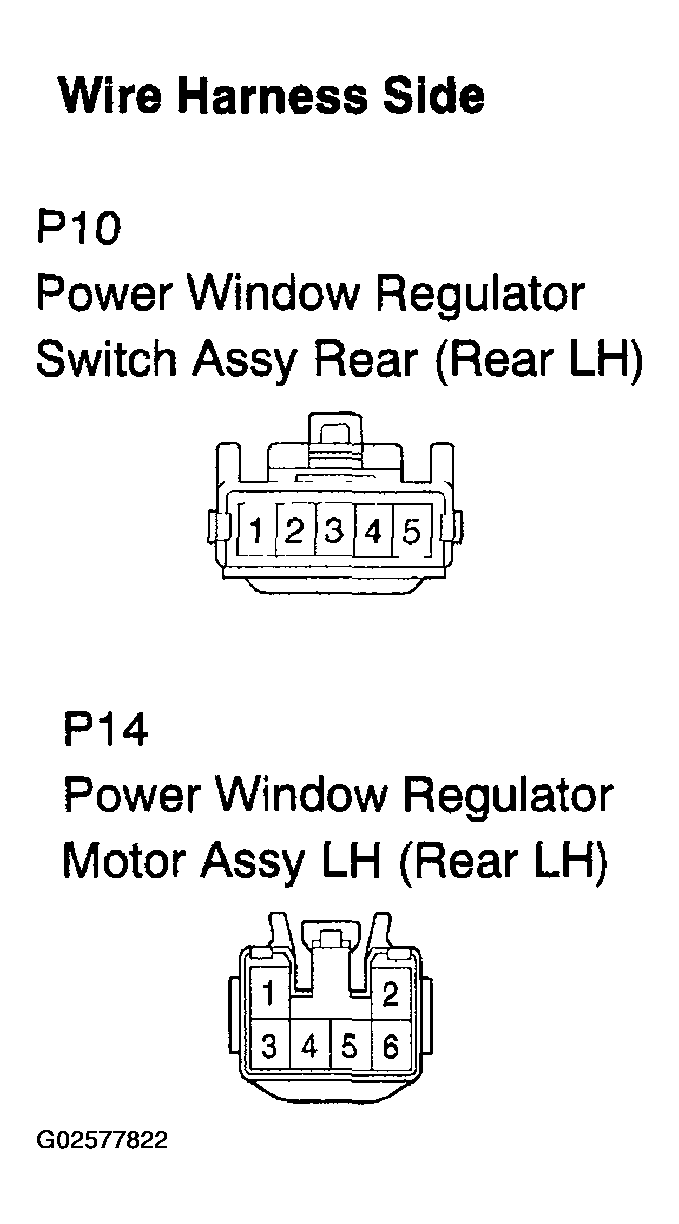

  Fig 6: Identifying Terminals Of P10 And P14 Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. NG: REPAIR OR REPLACE HARNESS AND CONNECTOR
OK: Go to next step.
INSPECT POWER WINDOW REGULATOR MOTOR ASSY LH (REAR LH)
1. Remove the motor (See OVERHAUL ).
2. Apply battery voltage to connector terminals 1 and 2.
3. Check that the motor rotates smoothly.

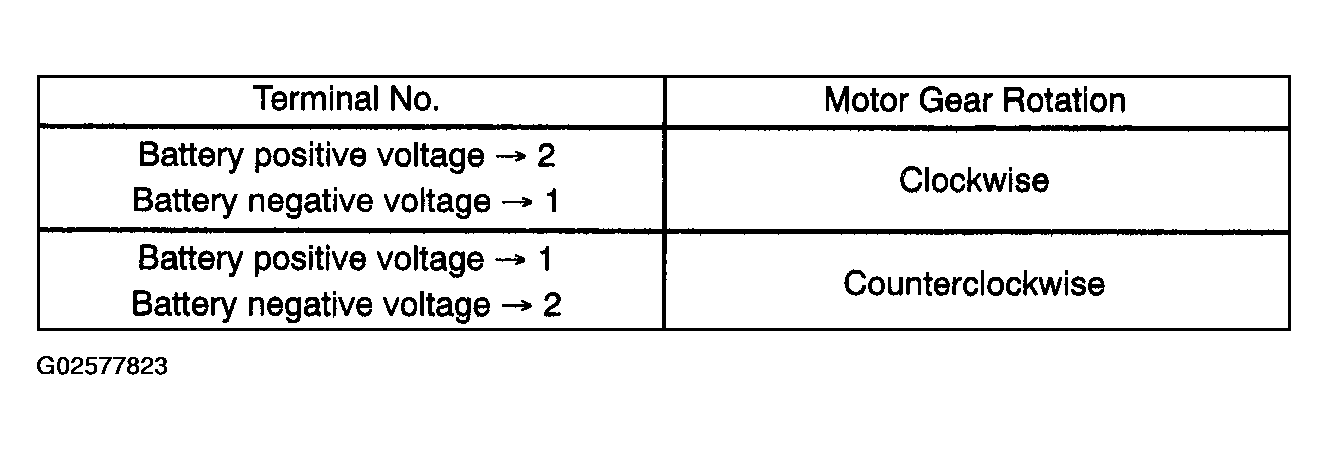

  Fig 7: Power Window Regulator Motor Assy LH (Rear LH) Gear Rotation Chart
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

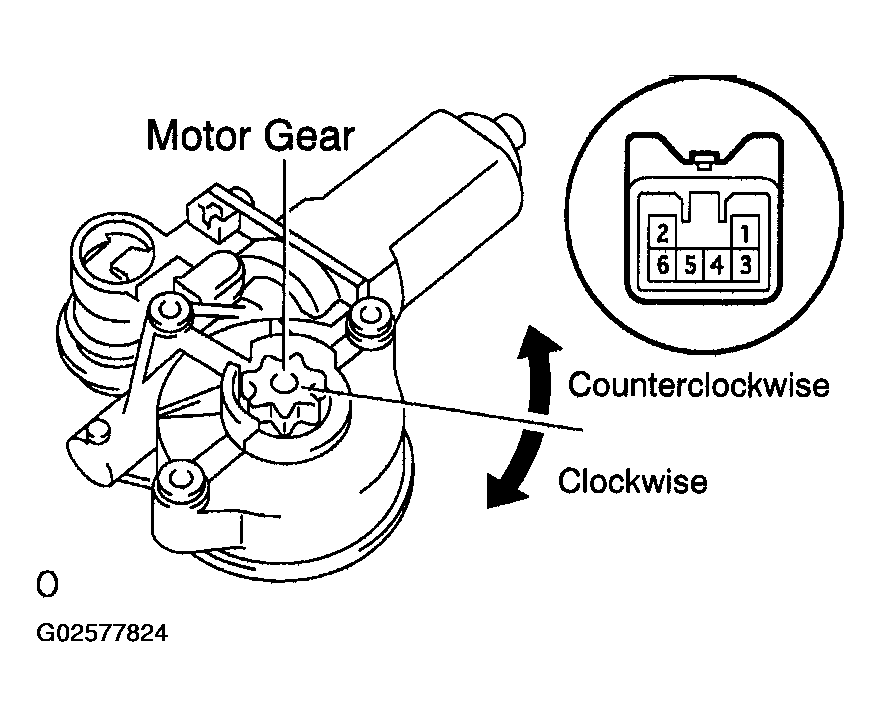

  Fig 8: Inspecting Power Window Regulator Motor Assy LH (Rear LH)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. NG: REPLACE POWER WINDOW REGULATOR MOTOR ASSY LH (REAR LH)
OK

REPAIR OR REPLACE HARNESS AND CONNECTOR (MASTER SWITCH <=> SWITCH)
