Inspection Procedure

WARNING: This page is about a different car, the 2005 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.

INSPECT FUSE (POWER)
1. Remove the fuse from the instrument panel J/B assy.
2. Check the continuity.
  Standard: Continuity
1. NG: REPLACE FUSE
OK: Go to next step.
INSPECT INSTRUMENT PANEL JUNCTION BLOCK ASSY
1. Remove the power window relay.
2. Turn the ignition switch ON.
3. Check the voltage between the J/B terminals 1 and 2.
  Standard: 10 - 14 V

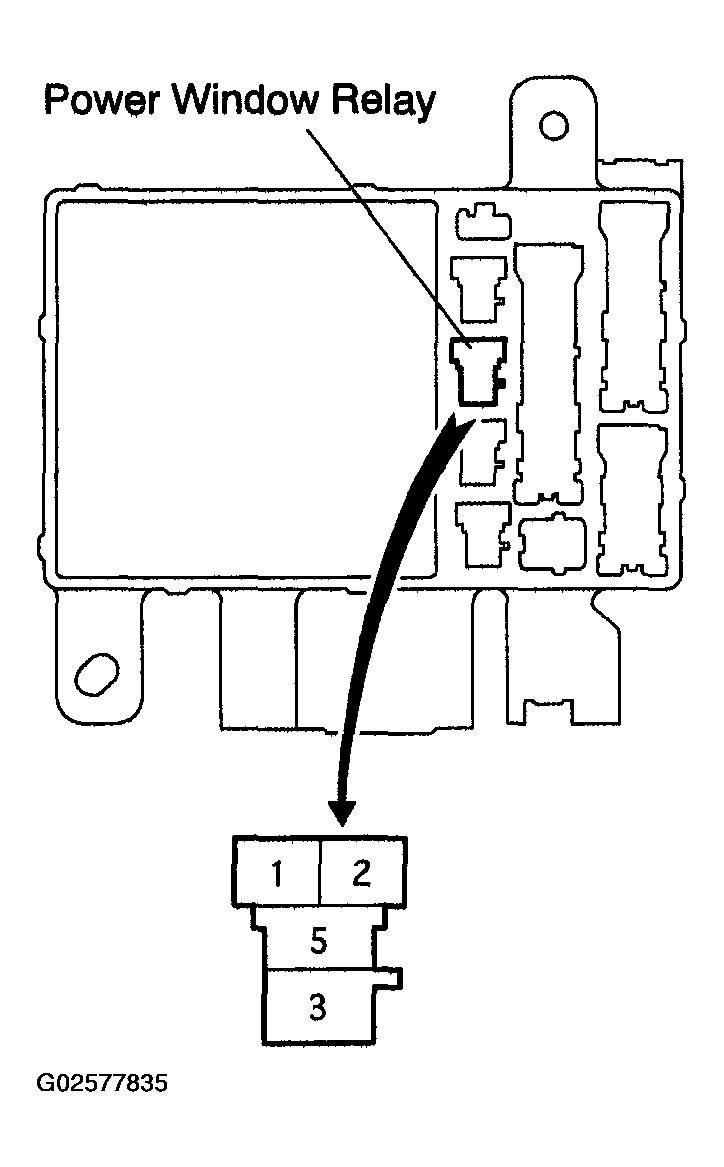

  Fig 1: Removing Power Window Relay
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. NG: REPLACE INSTRUMENT PANEL JUNCTION BLOCK ASSY
OK: Go to next step.
INSPECT POWER WINDOW RELAY (POWER)
1. Remove the relay from the backside of the instrument panel J/B assy.
2. Check the continuity.

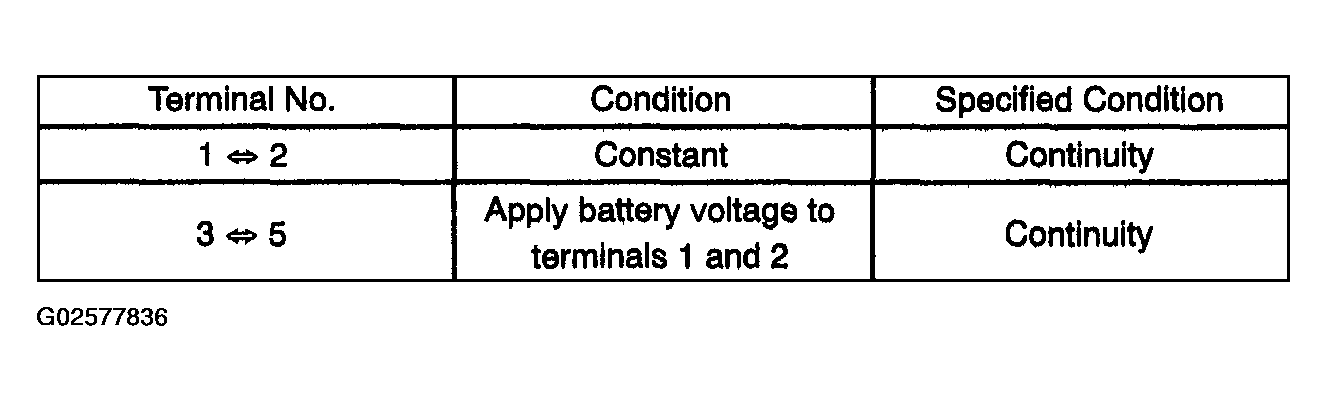

  Fig 2: Power Window Relay (Power) Continuity Chart
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

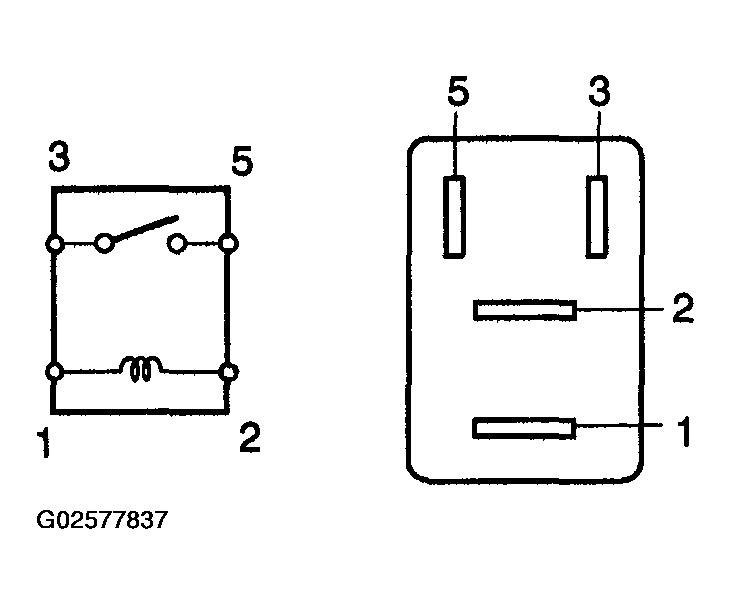

  Fig 3: Inspecting Power Window Relay (Power)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. NG: REPLACE POWER WINDOW RELAY
OK: Go to next step.
CHECK WIRE HARNESS (TERMINAL B2, BW OR E)
1. Disconnect the D17 switch connector.
2. Check the voltage or continuity between each terminal of the wire harness side connector and the body ground.

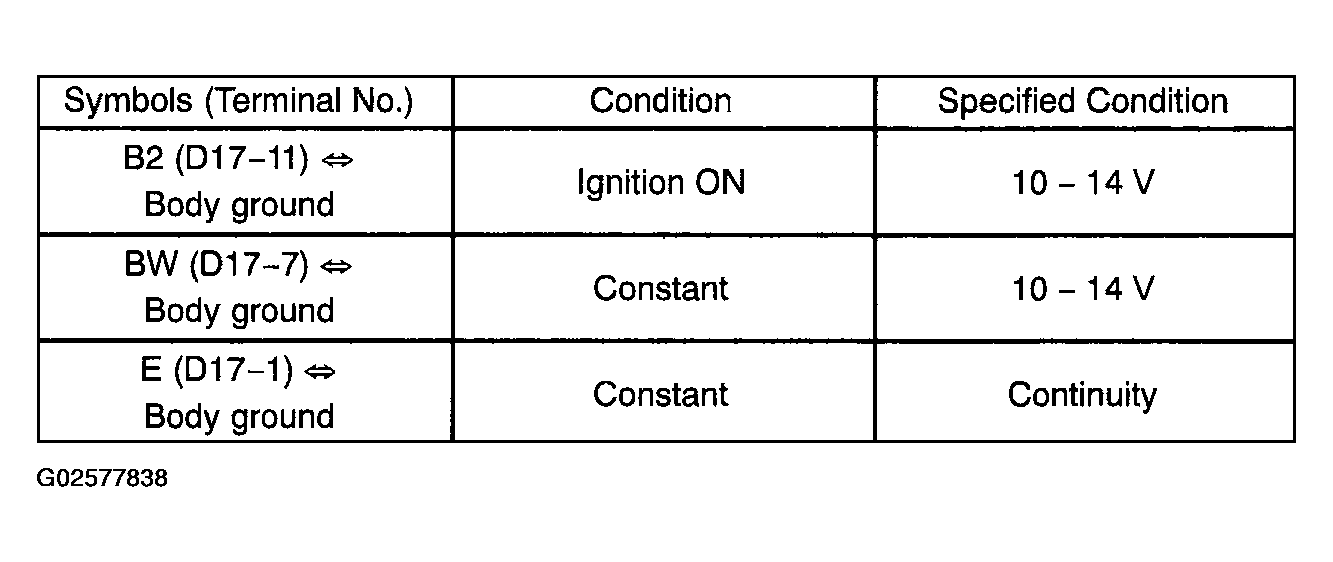

  Fig 4: Wire Harness Side Connector And Body Ground Specified Condition Chart
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

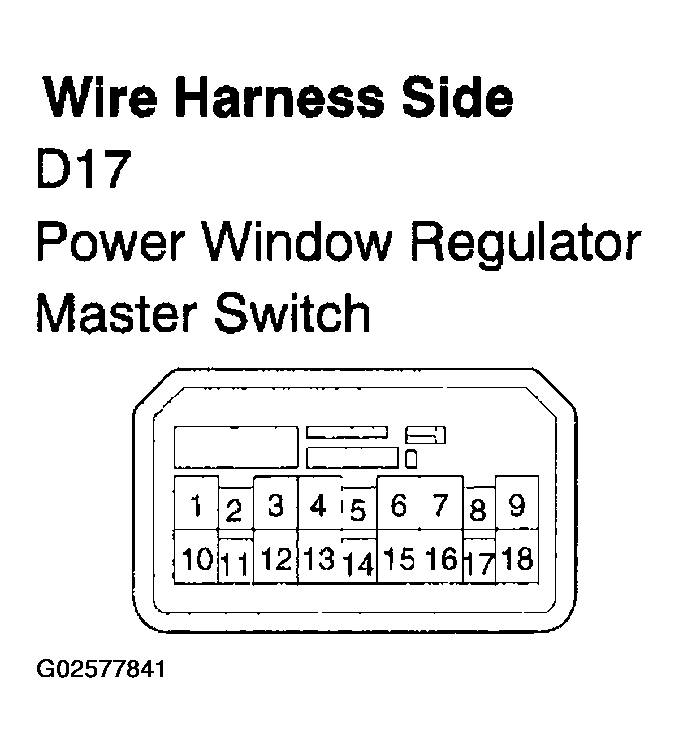

  Fig 5: Identifying Terminals Of D17 Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. NG: REPAIR OR REPLACE HARNESS AND CONNECTOR
OK: Go to next step.
CHECK WIRE HARNESS (TERMINAL B)
1. Turn the ignition switch ON.
2. Check the voltage between terminal 6 of the wire harness side connector and the body ground.

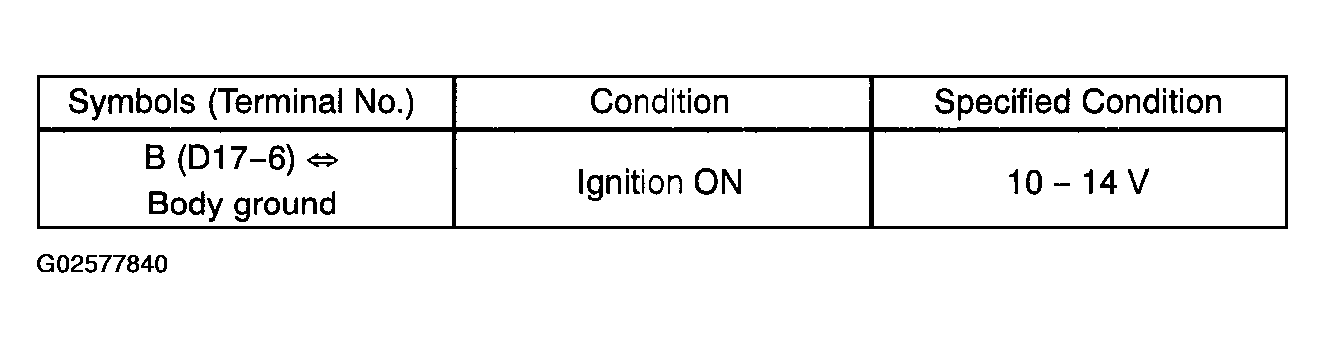

  Fig 6: Wire Harness Side Connector Terminal 6 And Body Ground Voltage Chart
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

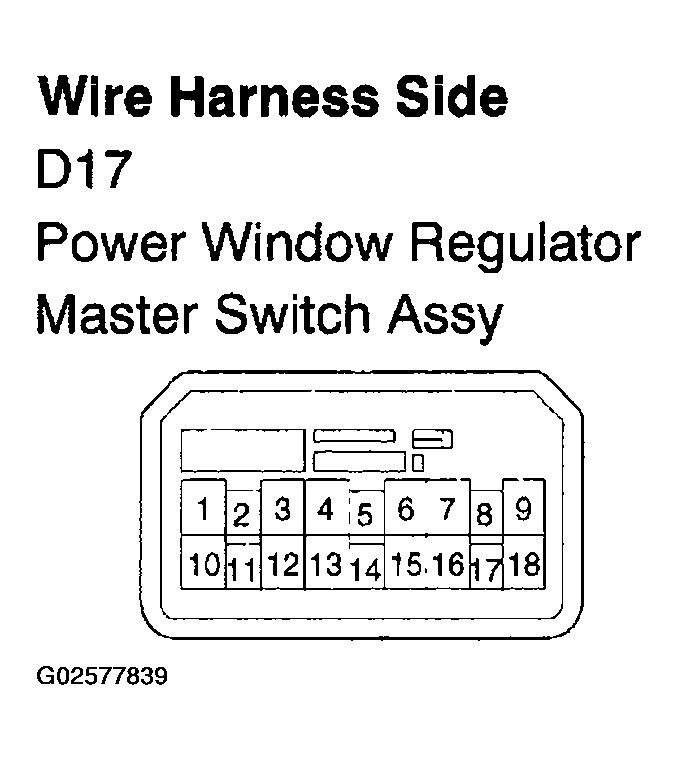

  Fig 7: Identifying Terminals Of D17 Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. OK: REPLACE POWER WINDOW REGULATOR MASTER SWITCH ASSY
NG

REPAIR OR REPLACE HARNESS AND CONNECTOR (POWER WINDOW RELAY <=> MASTER SWITCH)
