Knock Sensor (2UZ-FE): Components

WARNING: This page is about a different car, the 2005 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Identifying Knock Sensor Components (2UZ-FE - 1 Of 2)
G02578079Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

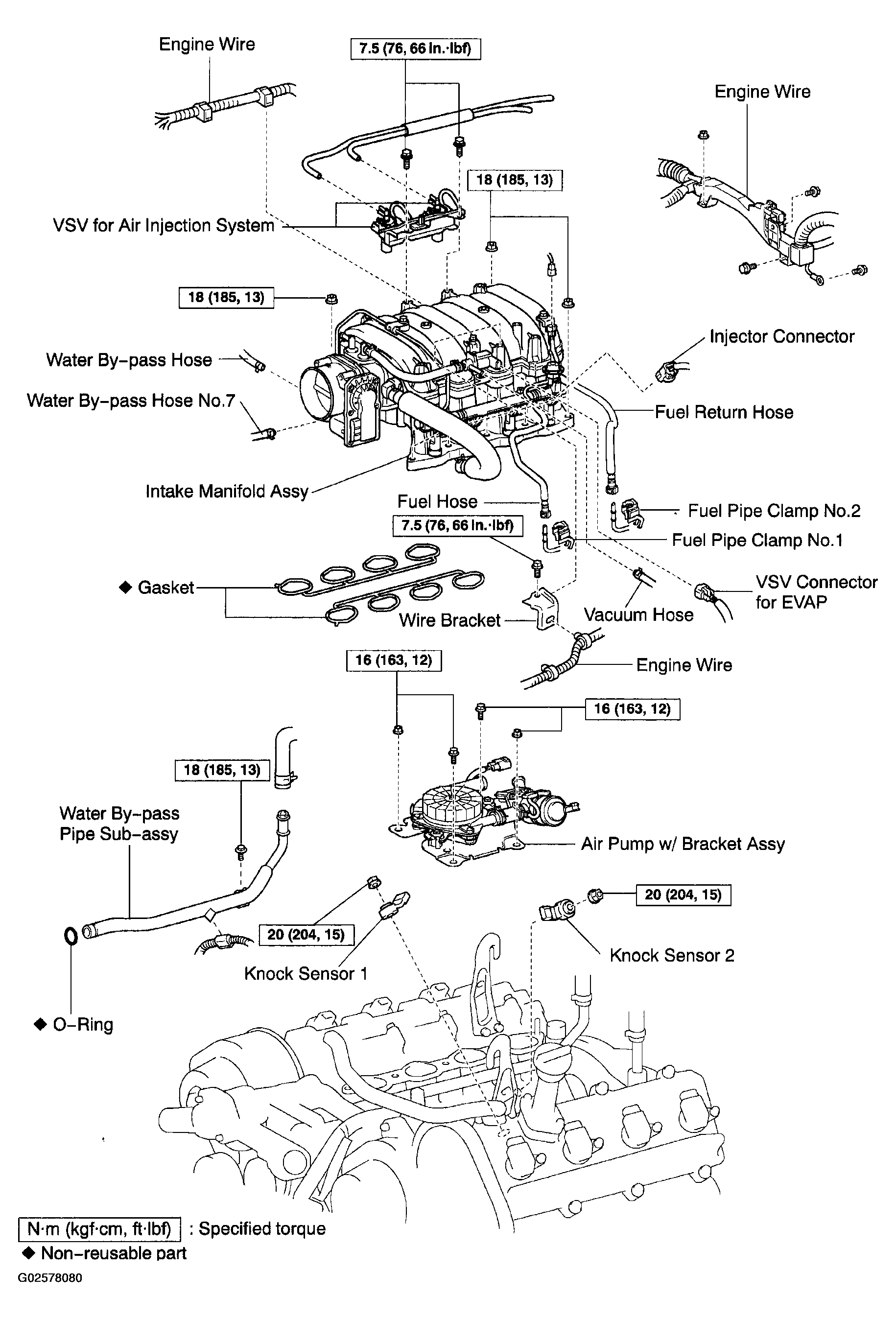

Fig 2: Identifying Knock Sensor Components (2UZ-FE - 2 Of 2)
G02578080Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
