Throttle W/Motor Body ASSY (1GR-FE): Components

WARNING: This page is about a different car, the 2005 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.

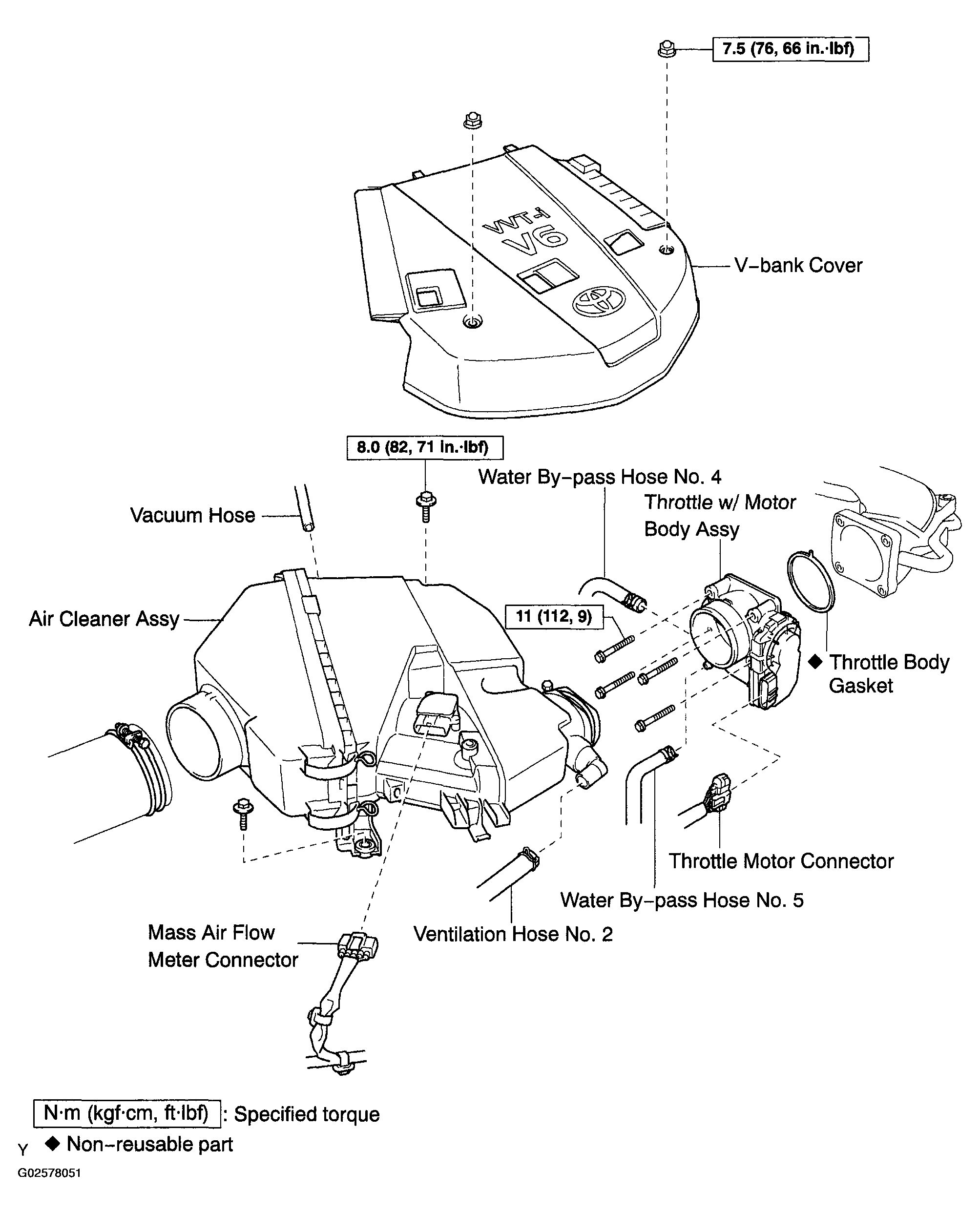

Fig 1: Identifying W/Motor Body Assy Components (1GR-FE)
G02578051Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
