VVT Sensor (1GR-FE): Replacement

WARNING: This page is about a different car, the 2005 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.

DRAIN ENGINE COOLANT (1GR-FE) )
REMOVE V-BANK COVER (SEE REPLACEMENT )
DISCONNECT VENTILATION HOSE NO. 2 (SEE REPLACEMENT )
REMOVE AIR CLEANER ASSY (SEE REPLACEMENT )
REMOVE VVT SENSOR
1. RH bank side VVT sensor.
  1. Disconnect the VVT sensor connector.
  2. Remove the bolt and the VVT sensor.

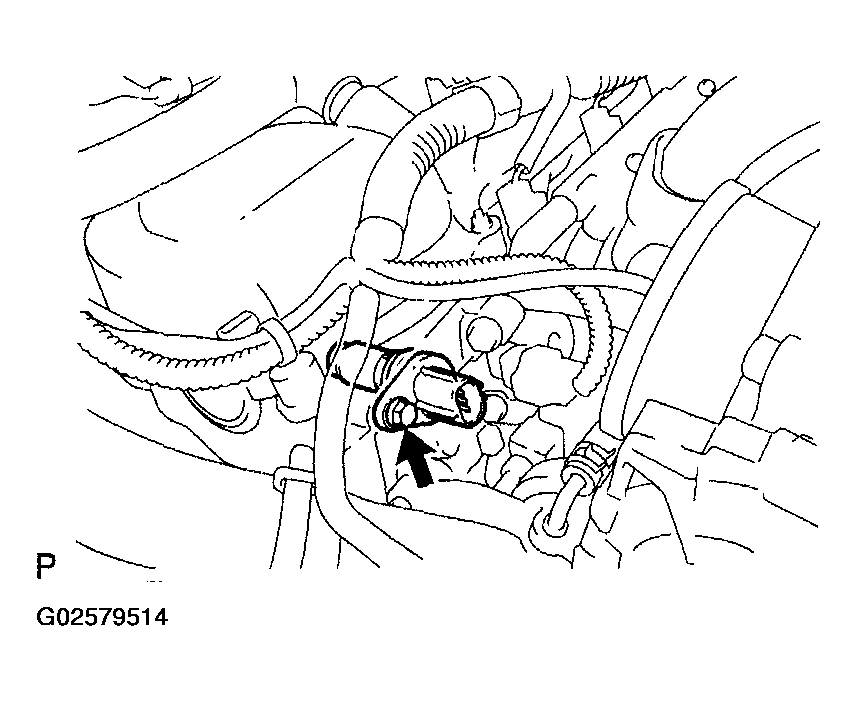

  Fig 1: Removing RH Bank Side VVT Sensor
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. LH bank side VVT sensor.
  1. Disconnect the water by-pass hoses No. 4 and No. 5.
  2. Disconnect the VVT sensor connector.

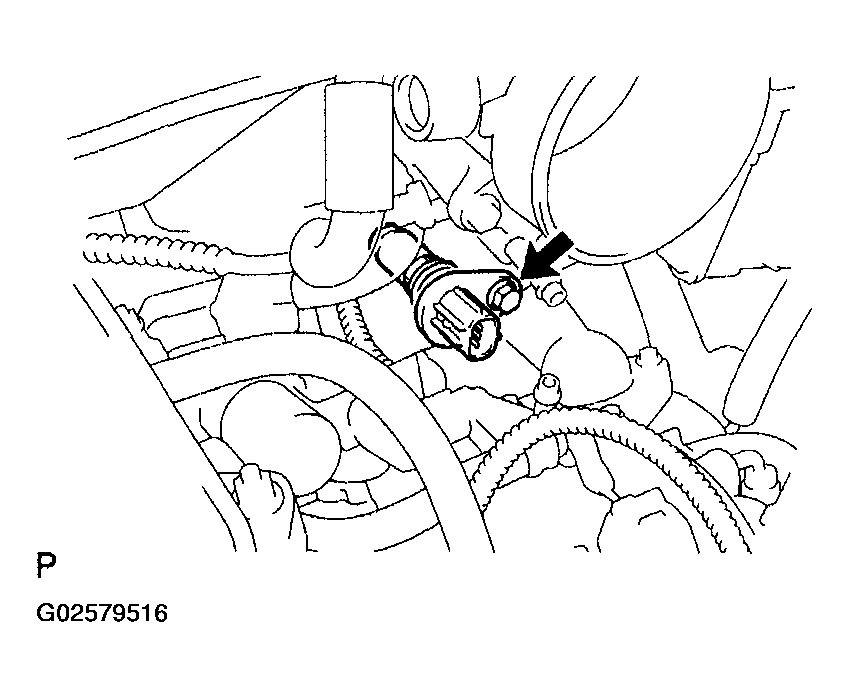

    Fig 2: Removing LH Bank side VVT Sensor
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. Remove the bolt and the VVT sensor.
  Fig 3: Removing VVT Sensor
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL VVT SENSOR
1. LH bank side VVT sensor.
  1. Apply a light coat of engine oil to an O-ring of the VVT sensor.
  2. Install the VVT sensor with the bolt.
    Torque: 8.0 N.m (82 kgf.cm, 71 in.lbf)
  3. Connect the VVT sensor connector.
  4. Connect the water by-pass hoses No. 4 and No. 5.
2. RH bank side VVT sensor.
  1. Apply a light coat of engine oil to an O-ring of the VVT sensor.
  2. Install the VVT sensor with the bolt.
    Torque: 8.0 N.m (82 kgf.cm, 71 in.lbf)
  3. Connect the VVT sensor connector.
INSTALL AIR CLEANER ASSY (SEE REPLACEMENT )
CONNECT VENTILATION HOSE NO.2 (SEE REPLACEMENT )
ADD ENGINE COOLANT (1GR-FE)
CHECK FOR ENGINE COOLANT LEAKS (SEE COOLING SYSTEM (1GR-FE) )
INSTALL V-BANK COVER
1. Install the V-bank cover with the 2 nuts.
  Torque: 7.5 N.m (76 kgf.cm, 66 in.lbf)
