Suspension Control Ecu: Replacement

WARNING: This page is about a different car, the 2005 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

See components in INSTRUMENT PANEL/METER

  1. DISCONNECT BATTERY NEGATIVE TERMINAL
  2. INSTALL FRONT DOOR SCUFF PLATE LH
  3. INSTALL COWL SIDE TRIM BOARD LH
  4. REMOVE INSTRUMENT PANEL UNDER COVER SUB-ASSY NO. 1 (See  REPLACEMENT  )
  5. REMOVE INSTRUMENT PANEL FINISH PLATE (See  REPLACEMENT  )
  6. REMOVE INSTRUMENT PANEL FINISH PANEL SUB-ASSY LOWER (See  REPLACEMENT  )
  7. REMOVE INSTRUMENT PANEL LOWER LH (See  REPLACEMENT  )
  8. REMOVE SUSPENSION CONTROL ECU
    1. Disconnect the 3 suspension control ECU connectors.
    2. Remove the 2 bolts and the suspension control ECU.

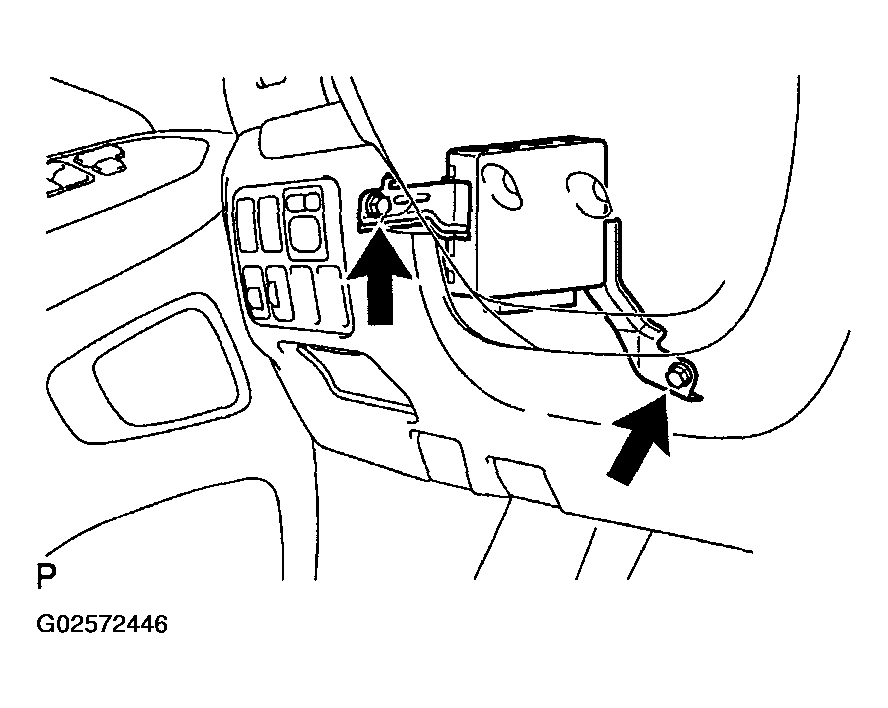

    Fig 1: Removing suspension Control ECU
    G02572446Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. INSTALL SUSPENSION CONTROL ECU
    1. Install the suspension control ECU with the 2 bolts.

      Torque: 7.8 N.m (80 kgf.cm, 69 in..lbf)

    2. Connect the 3 suspension control ECU connectors.
  10. INSTALL INSTRUMENT PANEL LOWER LH
  11. INSTALL INSTRUMENT PANEL FINISH PANEL SUB-ASSY LOWER
  12. INSTALL INSTRUMENT PANEL FINISH PLATE
  13. INSTALL INSTRUMENT PANEL UNDER COVER SUB-ASSY NO.1
  14. INSTALL COWL SIDE TRIM BOARD LH
  15. INSTALL FRONT DOOR SCUFF PLATE LH
