Center Stop Lamp ASSY: Replacement

WARNING: This page is about a different car, the 2005 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE CENTER STOP LAMP ASSY (W/O REAR SPOILER)
1. Release the 5 fitting claws as shown in the illustration.
2. Disconnect the connector and remove the center stop lamp assy.

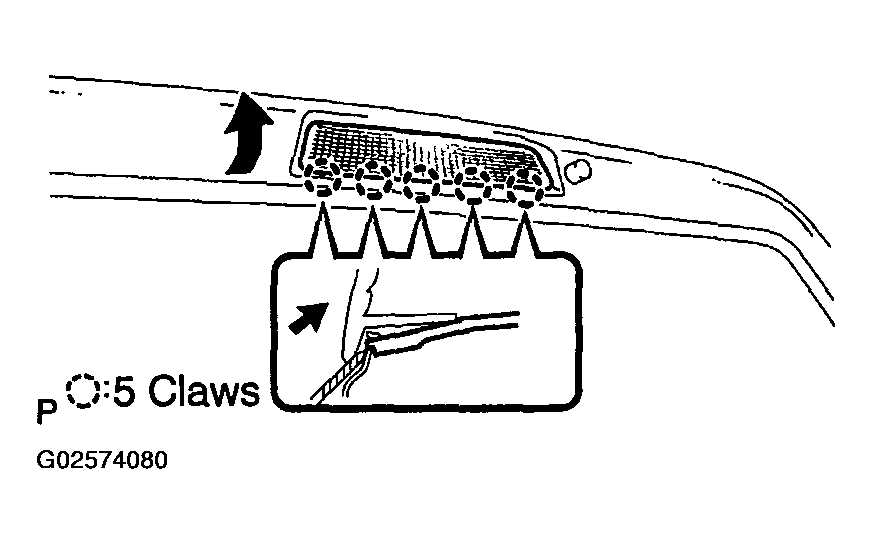

Fig 1: Removing Center Stop Lamp Assy (W/O Rear Spoiler)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE REAR SPOILER SUB-ASSY (W/ REAR SPOILER) (See REPLACEMENT )
REMOVE CENTER STOP LAMP ASSY (W/ REAR SPOILER)
1. Disconnect the connector.

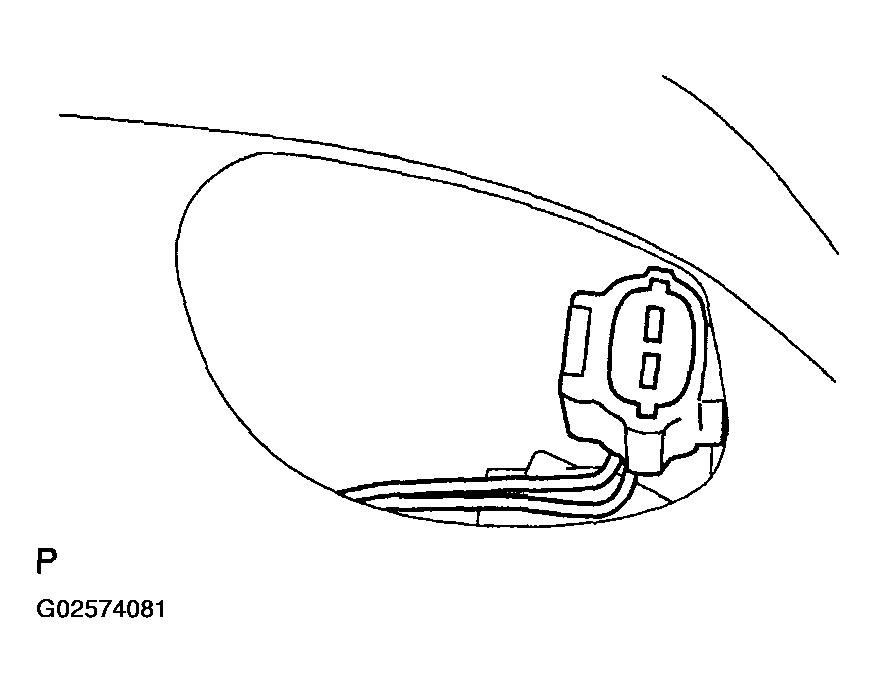

  Fig 2: Disconnecting Connector Of Center Stop Lam
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the strap on the connector of center stop lamp assy.

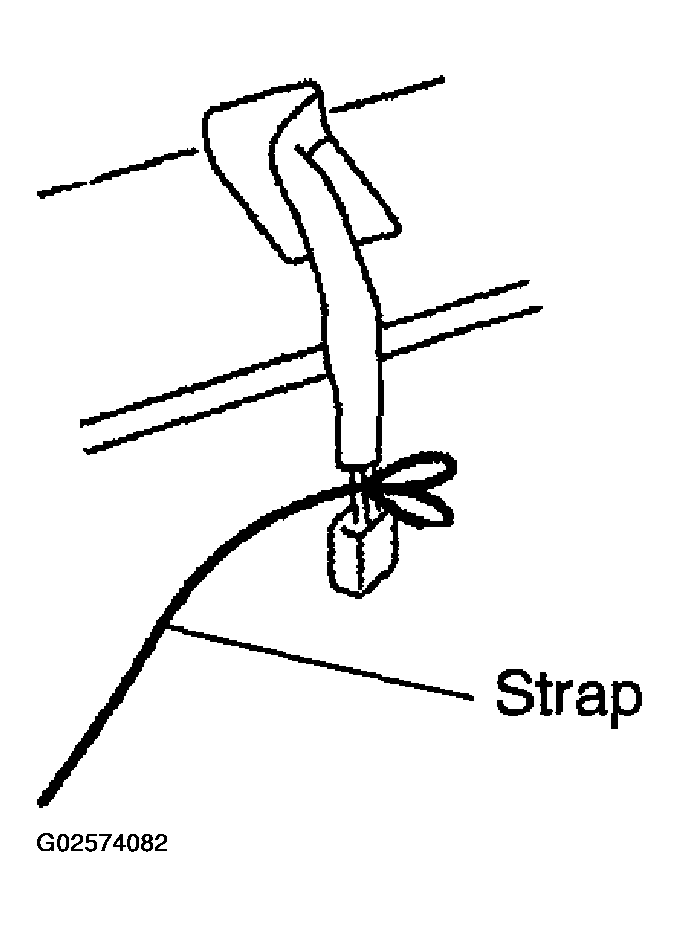

  Fig 3: Installing Strap On Connector Of Center Stop Lamp Assy
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the 2 screws.
4. Pass the connector through the inside the rear spoiler sub-assy and remove the center stop lamp assy w/ bracket.

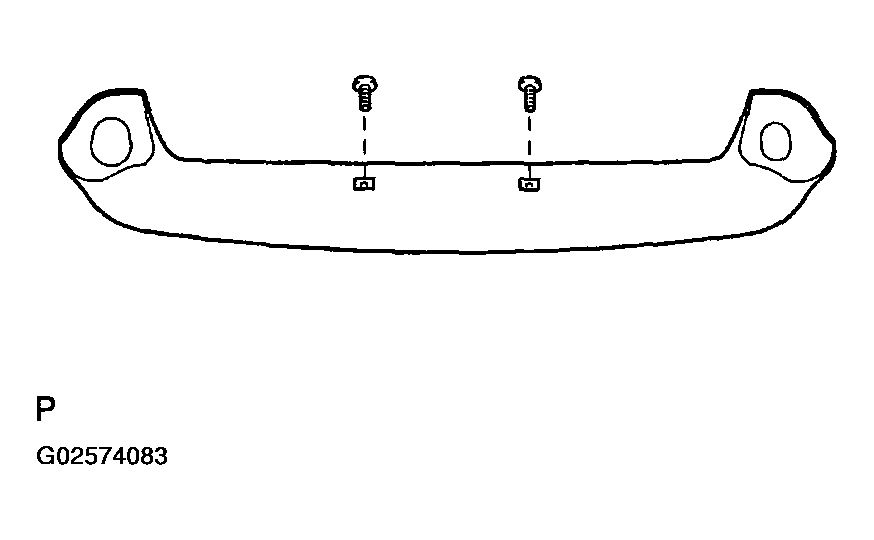

  Fig 4: Removing Center Stop Lamp Assy W/ Bracket
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  HINT:

  Leave the strap inside the rear spoiler sub-assy.
5. Remove the 2 nuts and center stop lamp assy.

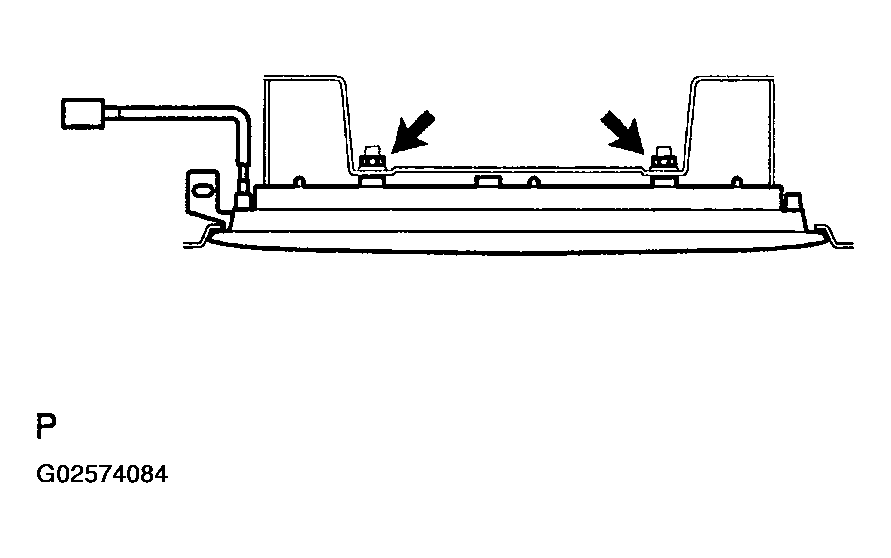

Fig 5: Removing Nuts And Center Stop Lamp Assy
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE CENTER STOP LAMP BULB (W/O REAR SPOILER)
1. Remove the center stop lamp socket and center stop lamp bulb as shown in Fig 6 .
2. Remove the center stop lamp bulb from the center stop lamp socket.

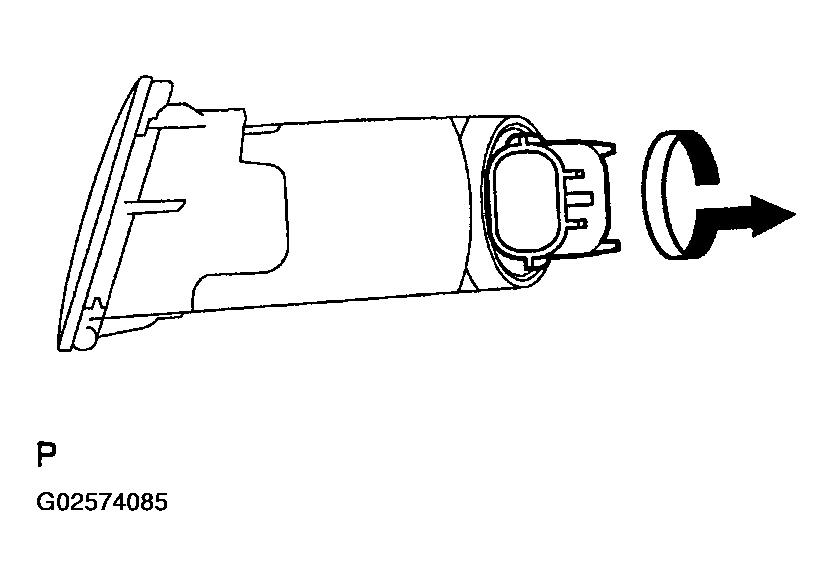

Fig 6: Removing Center Stop Lamp Bulb (W/O Rear Spoiler)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL SPOILER, RR (W/ REAR SPOILER) (See REPLACEMENT )
