Fog Lamp Unit LH: Adjustment

WARNING: This page is about a different car, the 2005 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.

PUT VEHICLE THESE CONDITIONS
1. Tire inflation pressure is in the specified value. (See WHEEL AND TIRE SYSTEM )
2. Start the engine.
ADJUST FOG LIGHT AIM
1. The fog light aim can be adjusted by turning the aiming screw in the vertical direction.
HINT:

The optical aim moves upward when turning a screwdriver clockwise, while it moves downward when turning a screwdriver counterclockwise.

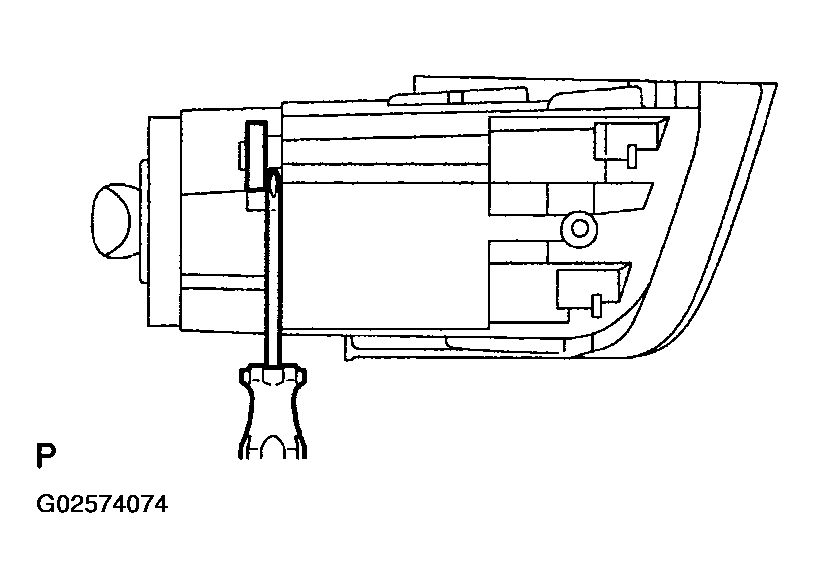

Fig 1: Adjusting Fog Light Aim
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CHECK FOG LIGHT AIM
