Fog Lamp Unit LH: Replacement

WARNING: This page is about a different car, the 2005 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE FRONT TURN SIGNAL LAMP LH (See  FRONT TURN SIGNAL LAMP LENS LH   )
  2. REMOVE FRONT FOG LAMP ASSY LH
    1. Disconnect the connector.
    2. Remove the 2 screws.
    3. Release the 2 claw fittings, then remove the fog lamp assy LH.

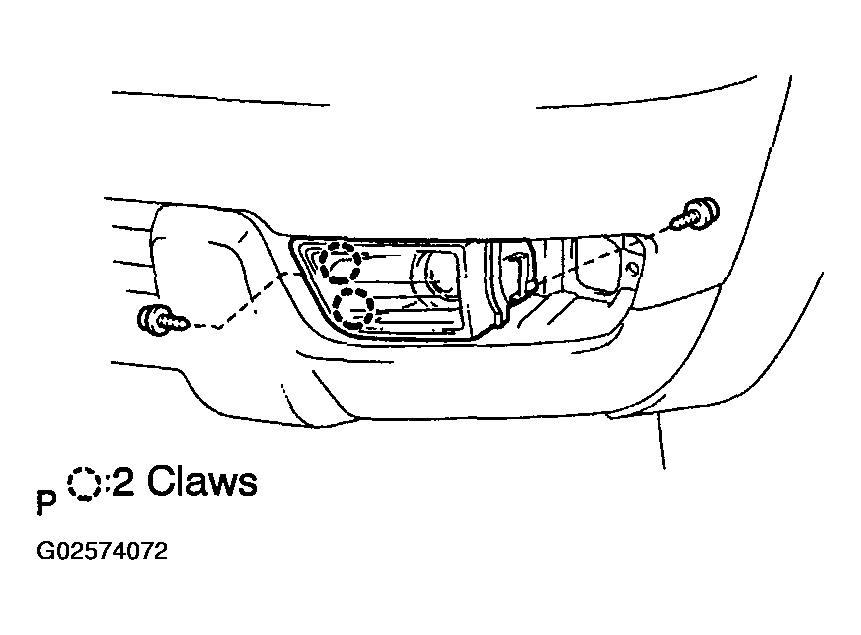

    Fig 1: Removing Front Fog Lamp Assy LH
    G02574072Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE FOG LAMP BULB
    1. Remove the fog lamp bulb as shown in Fig 2 .

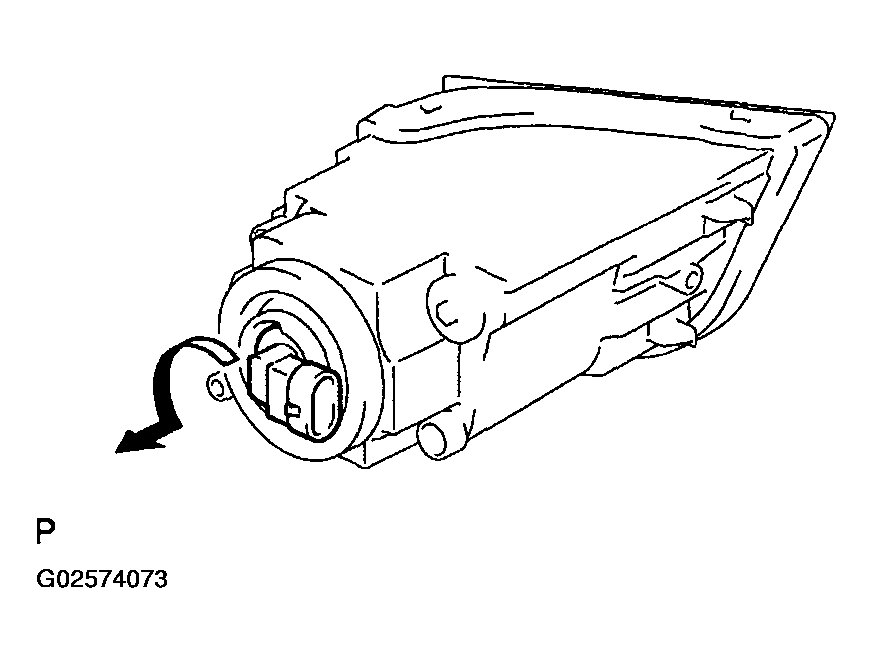

    Fig 2: Removing Fog Lamp Bulb
    G02574073Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE FOG LAMP UNIT LH
  5. PUT VEHICLE THESE CONDITIONS (See  ADJUSTMENT   )
  6. ADJUST FOG LIGHT AIM (See  ADJUSTMENT   )
  7. CHECK FOG LIGHT AIM (See  ADJUSTMENT   )
