Front Turn Signal Lamp Lens LH: Replacement

WARNING: This page is about a different car, the 2005 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE FRONT TURN SIGNAL LAMP LH
    1. Disconnect the connector.
    2. Remove the screw.
    3. Release the claw fitting, remove the front turn signal lamp assy LH.

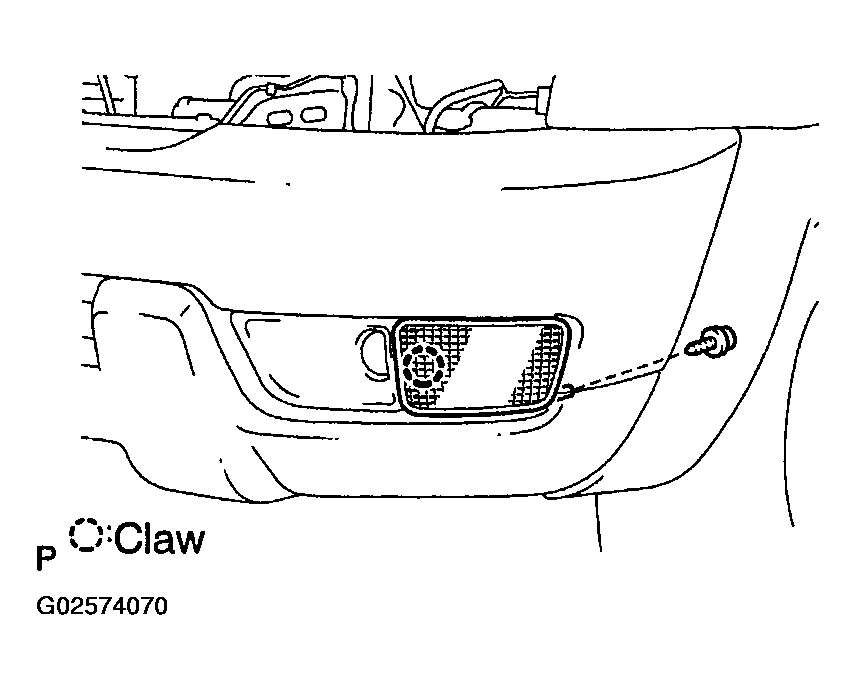

    Fig 1: Removing Front Turn Signal Lamp LH
    G02574070Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE FRONT TURN SIGNAL LAMP BULB
    1. Remove the front turn signal lamp plug assy and front turn signal lamp bulb as shown in Fig 2 .
    2. Remove the front turn signal lamp bulb from the front turn signal lamp plug assy.

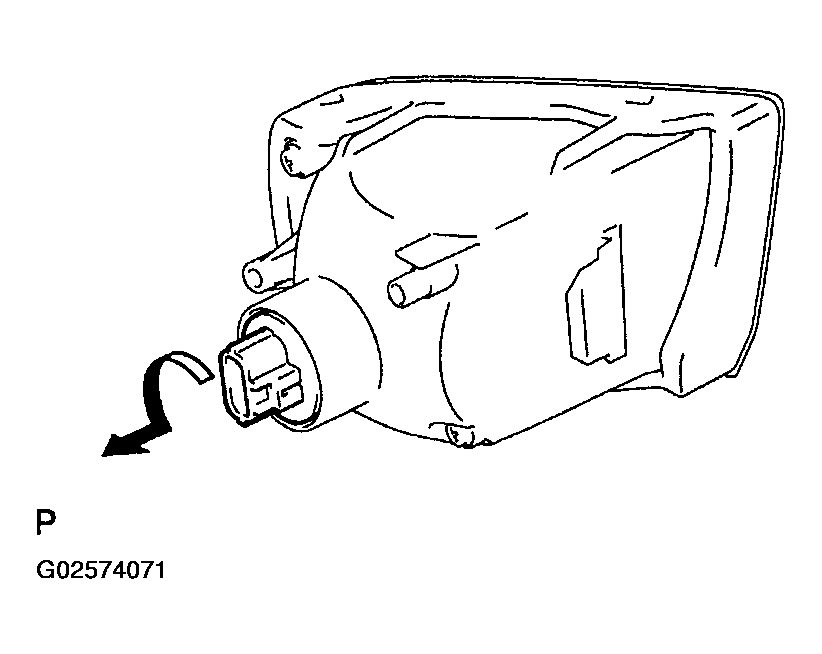

    Fig 2: Removing Front Turn Signal Lamp Bulb
    G02574071Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE FRONT TURN SIGNAL LAMP PLUG ASSY
  4. REMOVE FRONT TURN SIGNAL LAMP LENS LH
