Headlamp Protector Retainer Upper LH: Replacement

WARNING: This page is about a different car, the 2005 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE RADIATOR GRILLE LOWER (See REPLACEMENT )
REMOVE FRONT BUMPER FILLER LH (See REPLACEMENT )
REMOVE LH HEADLAMP ASSY (See REPLACEMENT )
INSTALL HEADLAMP PROTECTOR RETAINER UPPER LH
HINT:

When only the installation part of the headlamp unit assy LH is damaged, it can be repaired inexpensively by using a headlamp protector retainer upper LH. In this case, however, the headlamp unit assy LH itself should not be damaged.
1. Cut off the part shaded in Fig 1 and sand smooth with sandpaper.
  NOTE: After cutting off the part roughly, place the headlamp protector retainer upper LH against the bosses and gradually file any interfering part until the proper condition for installation is made.

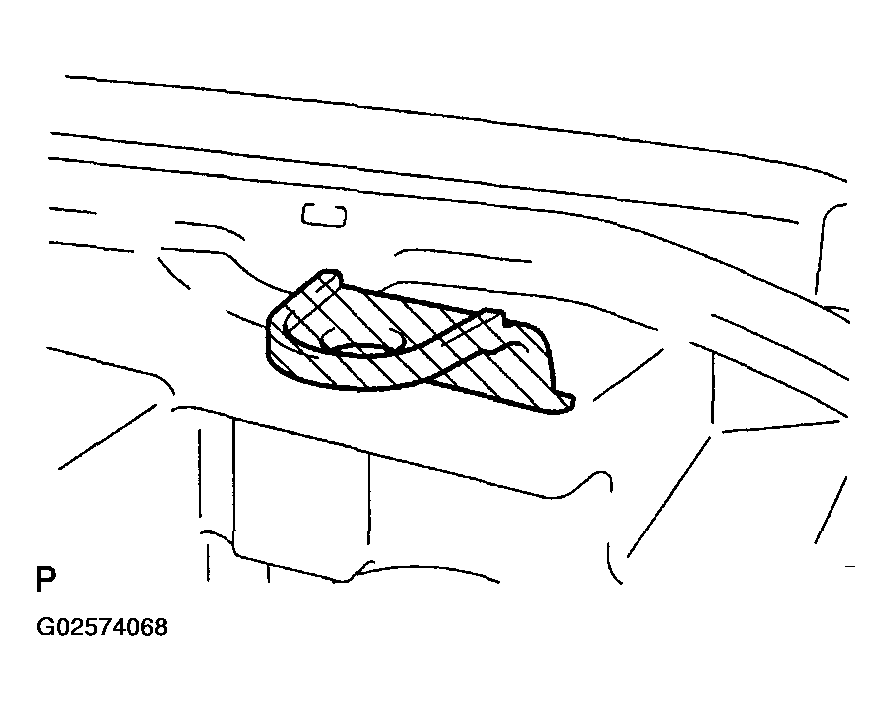

  Fig 1: Cutting Off Shaded Part And Smooth With Sandpaper
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the headlamp protector retainer upper LH with the 2 screws.

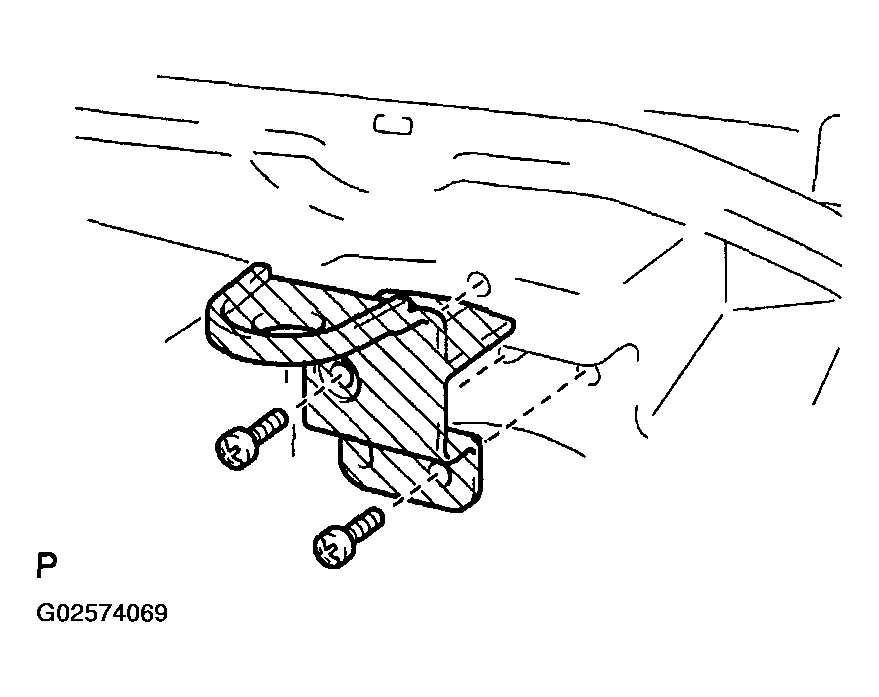

Fig 2: Installing Headlamp Protector Retainer Upper LH
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
HEADLIGHT AIM ONLY (See ADJUSTMENT )
