Lighting System: Inspection

WARNING: This page is about a different car, the 2005 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.
  1. HEADLAMP DIMMER SWITCH ASSY
    1. Inspect the light control switch continuity.
      1. Check that there is continuity between terminals at each switch position as shown in HEADLAMP DIMMER SWITCH  .

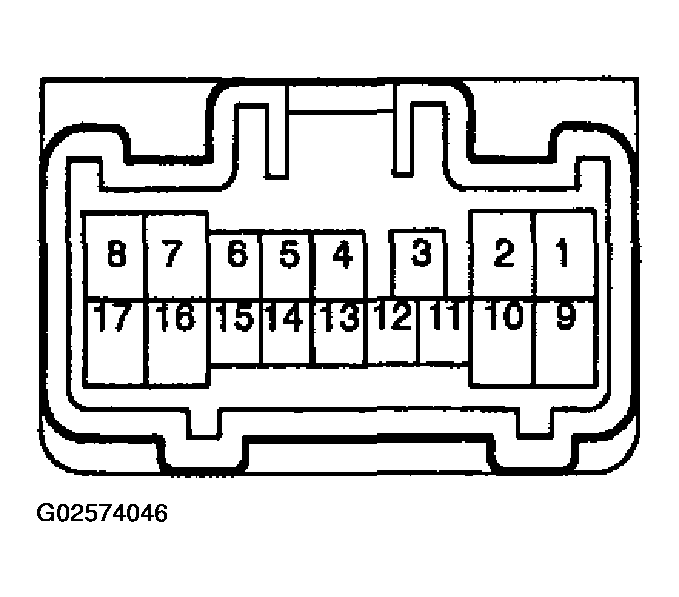

      Fig 1: Identifying Headlamp Dimmer Switch Assy
      G02574046Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      HEADLAMP DIMMER SWITCH (1 OF 2)

      Switch operation Tester connection Specified condition
      OFF - No continuity
      TAIL 14 - 16 Continuity
      HEAD 13 - 16 - 14 Continuity
      AUTO 16 - 12 Continuity
    2. Inspect the headlamp dimmer switch continuity.
      1. Check that there is continuity between terminals at each switch position as shown in HEADLAMP DIMMER SWITCH (2 OF 2)  .
      HEADLAMP DIMMER SWITCH (2 OF 2)

      Switch operation Tester connection Specified condition
      FLASH 7 - 8 - 16 Continuity
      LOW BEAM 16 - 17 Continuity
      HI BEAM 7 - 16 Continuity
    3. Inspect the turn signal switch continuity.
      1. Check that there is continuity between terminals at each switch position as shown in TURN SIGNAL SWITCH  .
      TURN SIGNAL SWITCH

      Switch operation Tester connection Specified condition
      Right turn 2 - 3 Continuity
      Neutral - No continuity
      Left turn 1 - 2 Continuity
    4. Inspect the front fog lamp switch continuity.
      1. Check that there is continuity between terminals at each switch position as shown in FOG LAMP SWITCH  .
      FOG LAMP SWITCH

      Switch operation Tester connection Specified condition
      OFF - No continuity
      ON 10 - 11 Continuity
  2. HAZARD WARNING SIGNAL SWITCH ASSY
    1. Check that there is continuity between terminals at each switch position as shown in HAZARD WARNING SIGNAL SWITCH  .

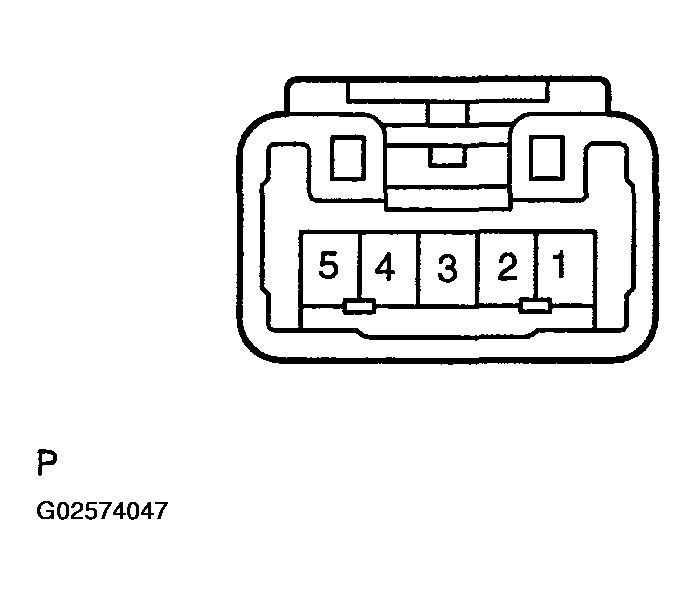

      Fig 2: Identifying Hazard Warning Signal Switch Assy
      G02574047Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      HAZARD WARNING SIGNAL SWITCH

      Switch operation Tester connection Specified condition
      OFF 2 - 3 No continuity
      ON 2 - 3 Continuity
      Illumination circuit 4 - 5 Continuity
    2. Inspect illumination operation.
      1. Connect the battery positive (+) lead to terminal 4 and the battery negative (-) lead to terminal 5, then check that the illumination lights up.
  3. FOG LAMP RELAY
    1. Inspect the relay continuity.

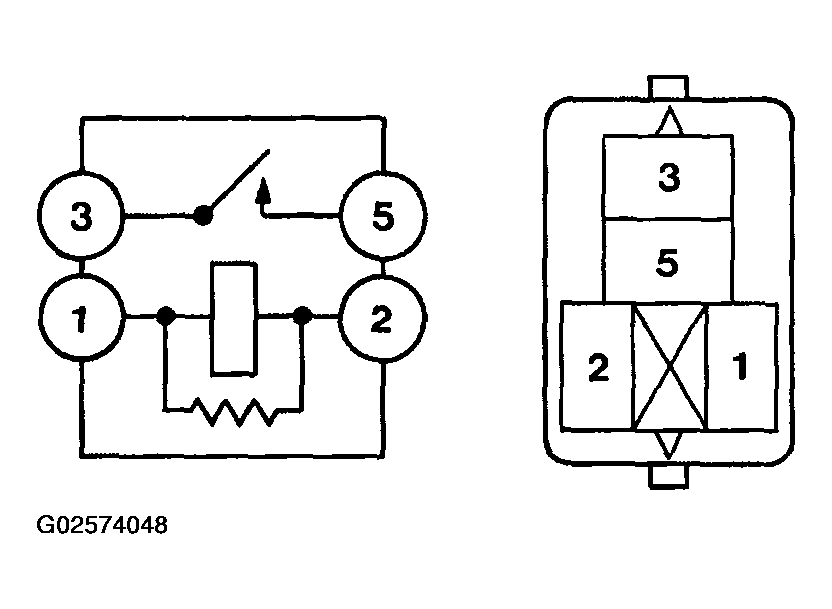

    Fig 3: Identifying Fog Lamp Relay
    G02574048Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    FOG LAMP RELAY

    Condition Tester connection Specified condition
    Constant 1 - 2 Continuity
    Constant 3 - 5 No Continuity
    Apply B+ between terminals 1 and 2 3 - 5 Continuity
  4. ROOF CONSOLE BOX ASSY
    1. Inspect the map lamp continuity.
      1. Check that there is continuity between terminals 1 and 5 when the switch is operated.

    Standard:

    • ON: Continuity
    • OFF: No continuity

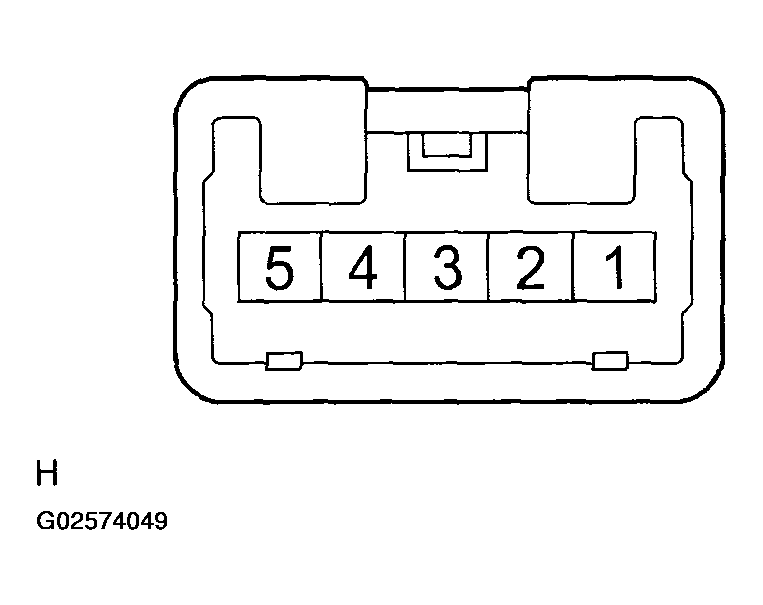

    Fig 4: Inspecting Map Lam Continuity
    G02574049Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. ROOM LAMP ASSY NO. 1
    1. Inspect the room lamp assy No. 1 continuity.
      1. Check that there is continuity between terminals at each switch position as shown in ROOM LAMP ASSY NO. 1  .

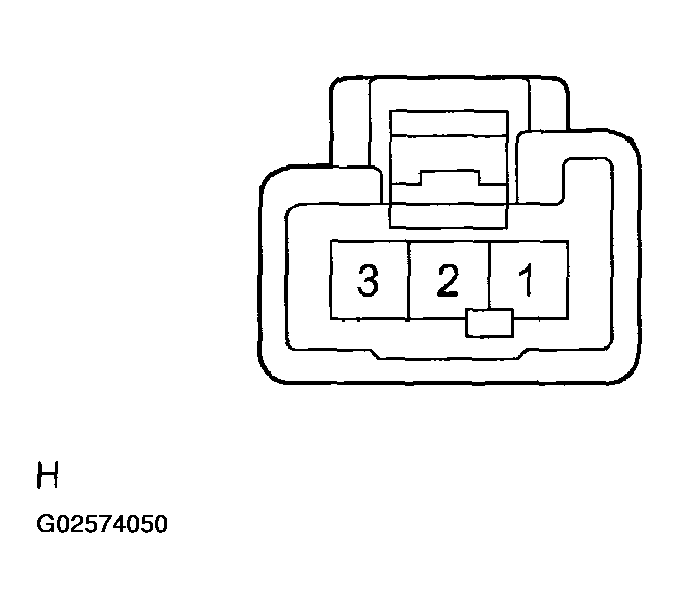

    Fig 5: Inspecting Room Lamp Assy No. 1 Continuity
    G02574050Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Standard:

    ROOM LAMP ASSY NO. 1

    Switch operation Tester connection Specified condition
    OFF - No continuity
    DOOR 1 - 2 Continuity
    ON 1 - 3 Continuity
  6. ROOM LAMP ASSY NO. 2
    1. Inspect the room lamp assy No. 2 continuity.
      1. Check that there is continuity between terminals at each switch position as shown in ROOM LAMP ASSY NO. 2  .
    Fig 6: Inspecting Room Lamp Assy No. 2 Continuity
    G02574051Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Standard:

    ROOM LAMP ASSY NO. 2

    Switch operation Tester connection Specified condition
    OFF - No continuity
    DOOR 1 - 2 Continuity
    ON 1 - 3 Continuity
  7. COURTESY LAMP ASSY
    1. Inspect the courtesy lamp assy continuity.
      1. Check that there is continuity between terminals when the switch is operated.

    Standard:

    • ON (When shaft is pressed): No continuity
    • OFF (When shaft is not pressed): Continuity
  8. GLOVE BOX LAMP ASSY
    1. Inspect the glove box lamp assy continuity.
      1. Check that there is continuity between terminals when the switch is operated.

    Standard:

    ON (When shaft is pressed): No continuity

    OFF (When shaft is not pressed): Continuity

  9. LH STEP SUB-ASSY
    1. Inspect the side step lamp assy.
      1. Check that there is continuity between terminals when the courtesy lamp switch is operated.

      Standard:

      • ON: Continuity
      • OFF: No Continuity
    2. Inspect the rear wheel lamp assy.
      1. Check that there is continuity between terminals when the courtesy lamp switch is operated.

    Standard:

    • ON: Continuity
    • OFF: No continuity
  10. TAIL LAMP RELAY
    1. Inspect relay continuity.

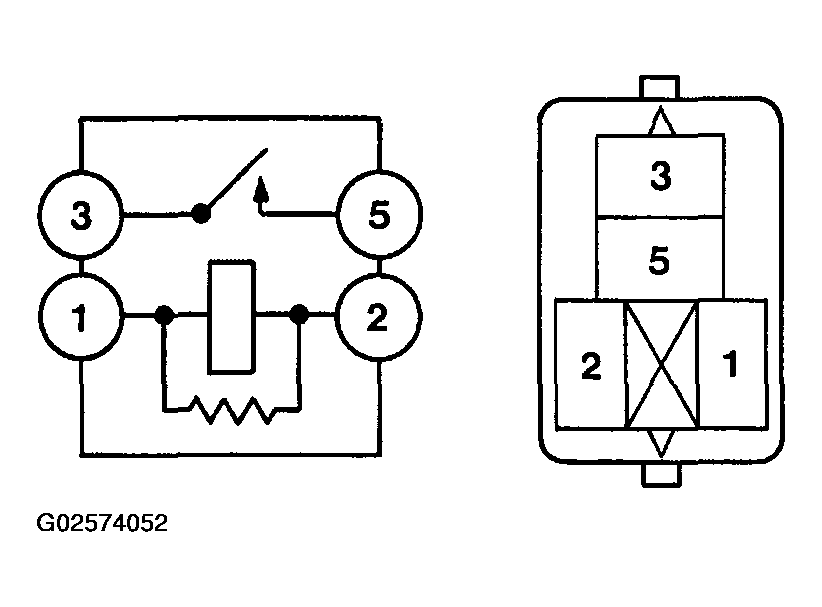

    Fig 7: Identifying Tail Lamp Relay
    G02574052Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Standard:

    TAIL LAMP RELAY

    Condition Tester connection Specified condition
    Constant 1 - 2 Continuity
    Constant 3 - 5 No continuity
    Apply B+ between terminal 1 and 2 3 - 5 Continuity
  11. HEADLAMP RELAY
    1. Inspect relay continuity.

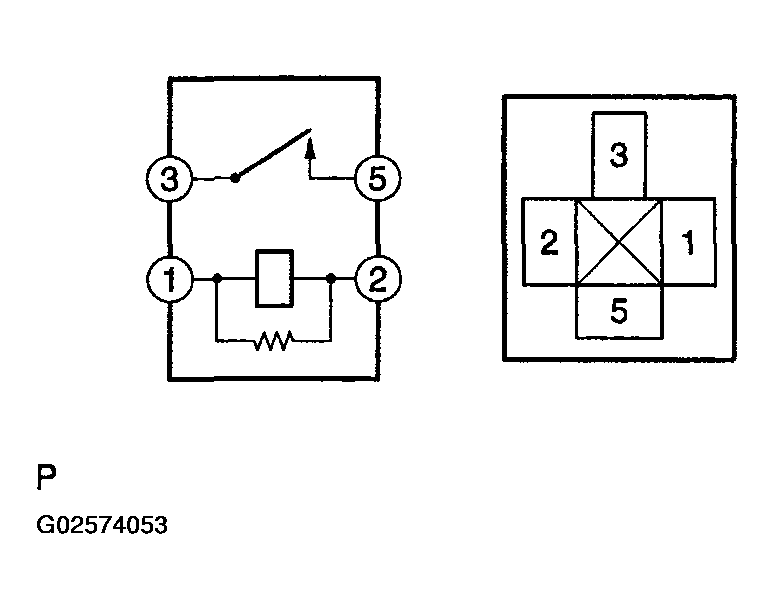

    Fig 8: Identifying Headlamp Relay
    G02574053Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Standard:

    HEADLAMP RELAY

    Condition Tester connection Specified condition
    Constant 1 - 2 Continuity
    Constant 3 - 5 No continuity
    Apply B+ between terminal 1 and 2 3 - 5 Continuity
  12. STOP LAMP SWITCH ASSY
    1. Check that the continuity between terminals at each switch position, as shown in the chart.

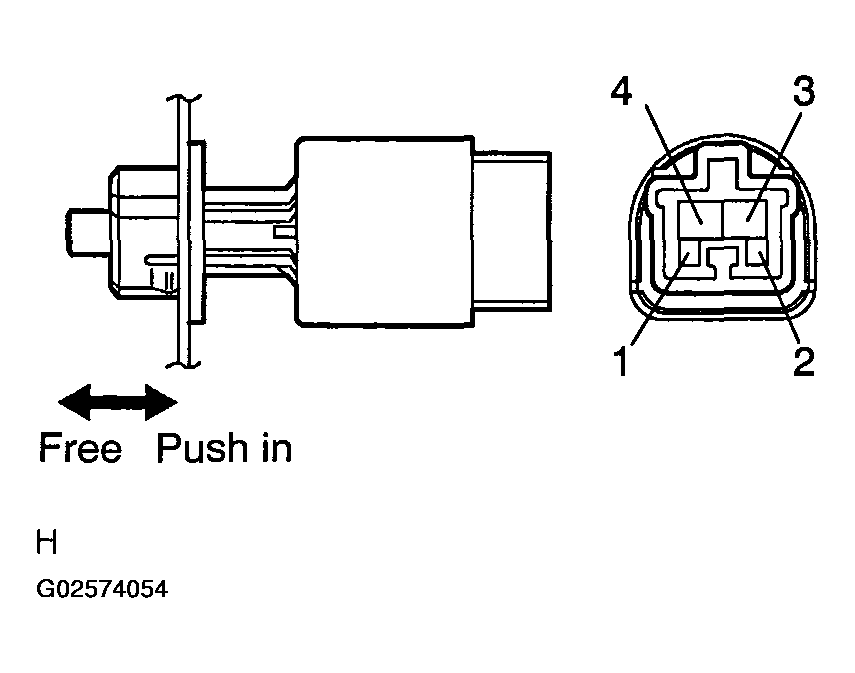

    Fig 9: Identifying Stop Lamp Switch Assy
    G02574054Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Standard:

    STOP LAMP SWITCH

    Switch position Tester connection Specified condition
    Switch pin free 1 - 2 No continuity
    Switch pin free 3 - 4 Continuity
    Switch pin pushed in 1 - 2 Continuity
    Switch pin pushed in 3 - 4 No continuity
