No. 3 Wire Frame: Replacement

WARNING: This page is about a different car, the 2005 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE NO. 3 WIRE FRAME
    1. Disconnect the connector.
    2. Release the clamp and remove the 2 bolts and No.3 wire frame.

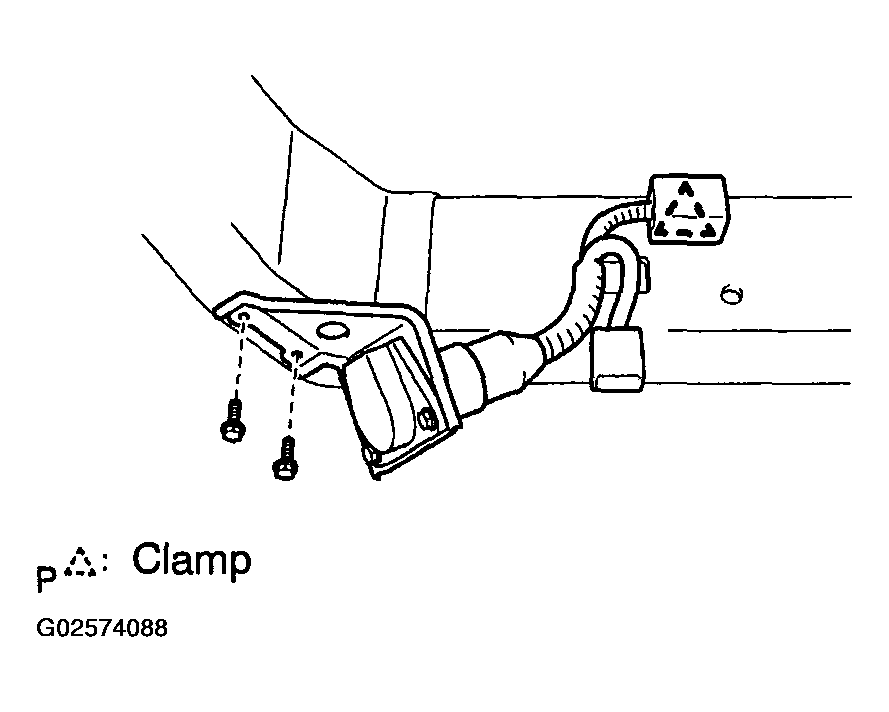

    Fig 1: Removing No. 3 Wire Frame
    G02574088Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
