Disc Player ASSY: Replacement

WARNING: This page is about a different car, the 2005 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

COMPONENTS

REMOVE INSTRUMENT PANEL UNDER COVER SUB-ASSY NO. 2 (See REPLACEMENT )
REMOVE GLOVE COMPARTMENT DOOR STOPPER SUB-ASSY (See REPLACEMENT )
REMOVE GLOVE COMPARTMENT DOOR SUB-ASSY (See REPLACEMENT )
REMOVE INSTRUMENT PANEL FINISH PANEL LOWER NO. 2 (See REPLACEMENT )
REMOVE DISC PLAYER ASSY
1. Remove the 4 bolts.
2. Disengage the 4 claws of disc player assy.
3. Disconnect the connectors and remove the disc player assy.

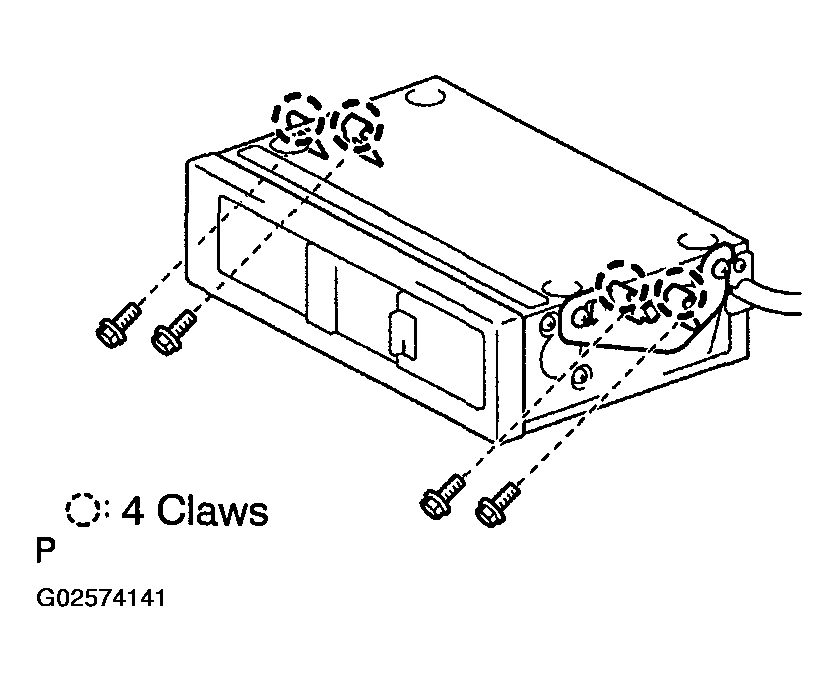

Fig 1: Removing Disc Player Assy
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL DISC PLAYER ASSY
1. Connect the connectors.
2. Engage the 4 claws of disc player assy and install the disc player assy with the 4 bolts.
