Navigation Antenna ASSY: Replacement

WARNING: This page is about a different car, the 2005 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

COMPONENTS

REMOVE INSTRUMENT PANEL SAFETY PAD SUB-ASSY(See REPLACEMENT )
HINT:

Refer to the instructions for removal of the instrument panel safety pad sub-assy.
REMOVE NAVIGATION ANTENNA ASSY
1. Remove the 3 clamps.
2. Remove the 2 screws and navigation antenna assy.

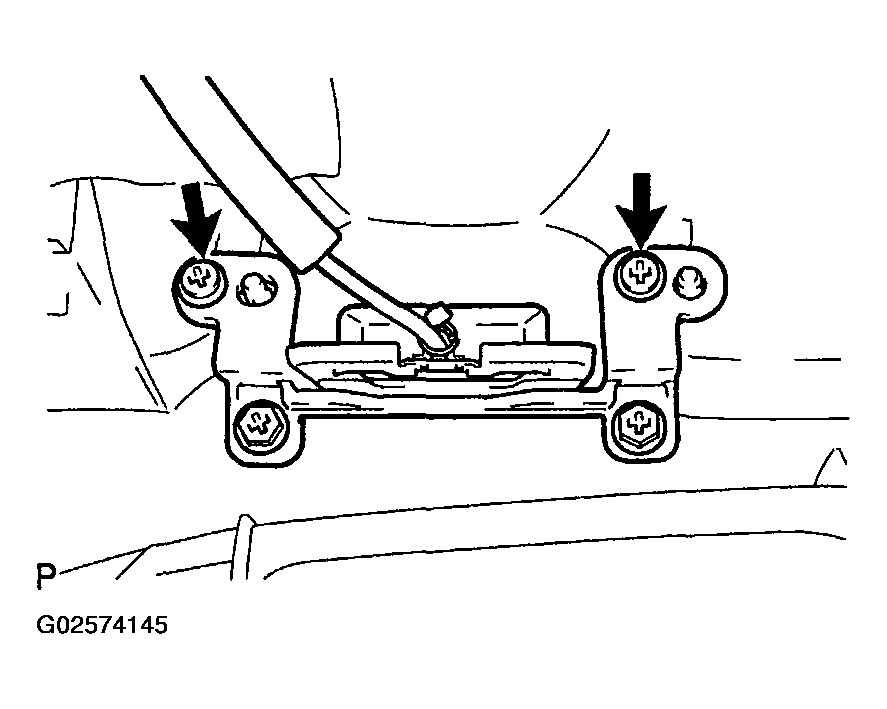

Fig 1: Removing Screws And Navigation Antenna Assy
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL INSTRUMENT PANEL SAFETY PAD SUB-ASSY(See REPLACEMENT )
