Power Point Socket ASSY: Replacement

WARNING: This page is about a different car, the 2005 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

COMPONENTS

REMOVE CONSOLE UPPER REAR PANEL SUB-ASSY (See REPLACEMENT )
REMOVE POWER POINT SOCKET ASSY

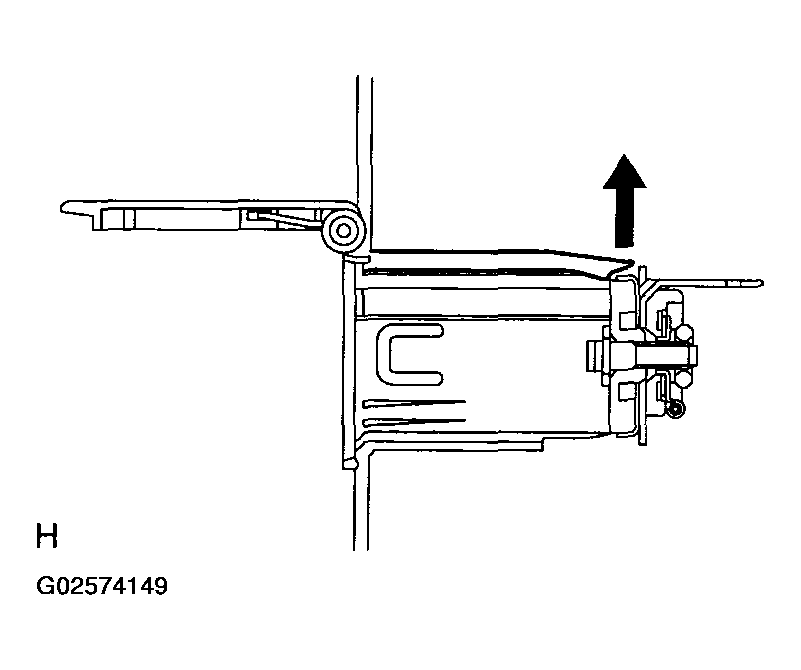

1. Pressing the claw of the power point socket assy in the direction of the arrow, push the power point socket assy toward the inside of the chamber and remove it.
Fig 1: Removing Console Upper Rear Panel Sub-Assy Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL POWER POINT SOCKET ASSY
1. Align the claw of the power point socket assy with the cutout of the power point socket cover and fully push it to install.
