Radio Receiver ASSY: Replacement

WARNING: This page is about a different car, the 2005 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

COMPONENTS

REMOVE INSTRUMENT PANEL FINISH PLATE (See REPLACEMENT )
REMOVE INSTRUMENT PANEL FINISH PANEL SUB-ASSY LOWER (See REPLACEMENT )
REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSY (See REPLACEMENT )
REMOVE CONSOLE UPPER REAR PANEL SUB-ASSY (See REPLACEMENT )
REMOVE CONSOLE PANEL SUB-ASSY UPPER (See REPLACEMENT )
REMOVE AIR CONDITIONING CONTROL ASSY (See REPLACEMENT )
REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSY CENTER (See REPLACEMENT )
REMOVE RADIO RECEIVER ASSEMBLY W/BRACKET
1. Remove the 2 bolts.
2. Disconnect the connectors and remove the radio receiver assembly w/bracket.

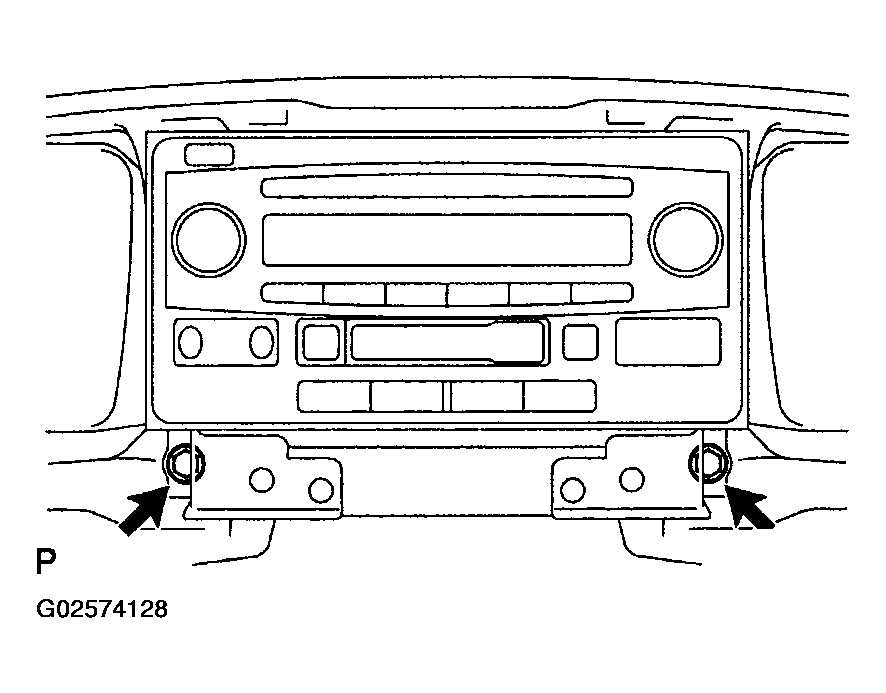

Fig 1: Removing Radio Receiver Assembly
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE RADIO BRACKET NO. 1
1. Remove the 4 screws and radio bracket No. 1.

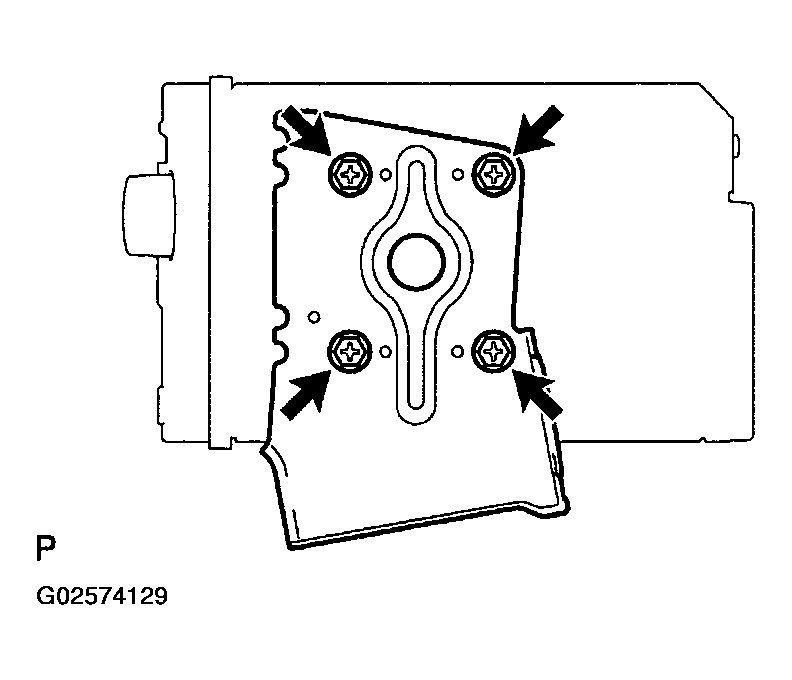

Fig 2: Removing 4 Screws And Radio Bracket No. 1
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE RADIO BRACKET NO. 2
1. Remove the 4 screws and radio bracket No. 2.

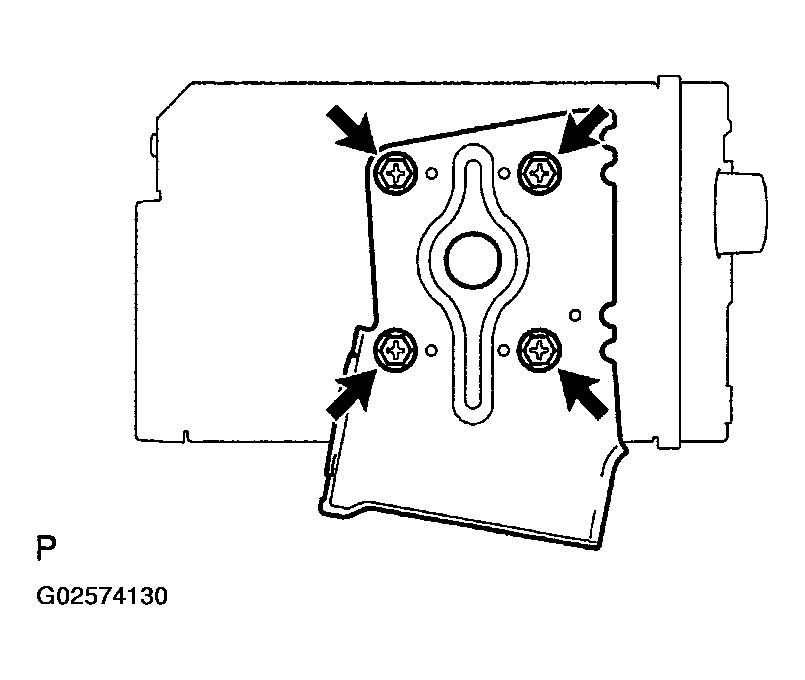

Fig 3: Removing 4 Screws And Radio Bracket No. 2
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
