Steering Pad Switch LH: Replacement

WARNING: This page is about a different car, the 2005 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

COMPONENTS

SEPARATE BATTERY NEGATIVE TERMINAL (See REPLACEMENT )
REMOVE STEERING WHEEL COVER LOWER NO. 2 (See REPLACEMENT )
REMOVE STEERING WHEEL COVER LOWER NO. 3 (See REPLACEMENT )
REMOVE HORN BUTTON ASSY (See REPLACEMENT )
REMOVE STEERING PAD SWITCH LH
1. Disconnect the connector.
2. Disconnect the connector of cruise control main switch.
3. Remove the screw.

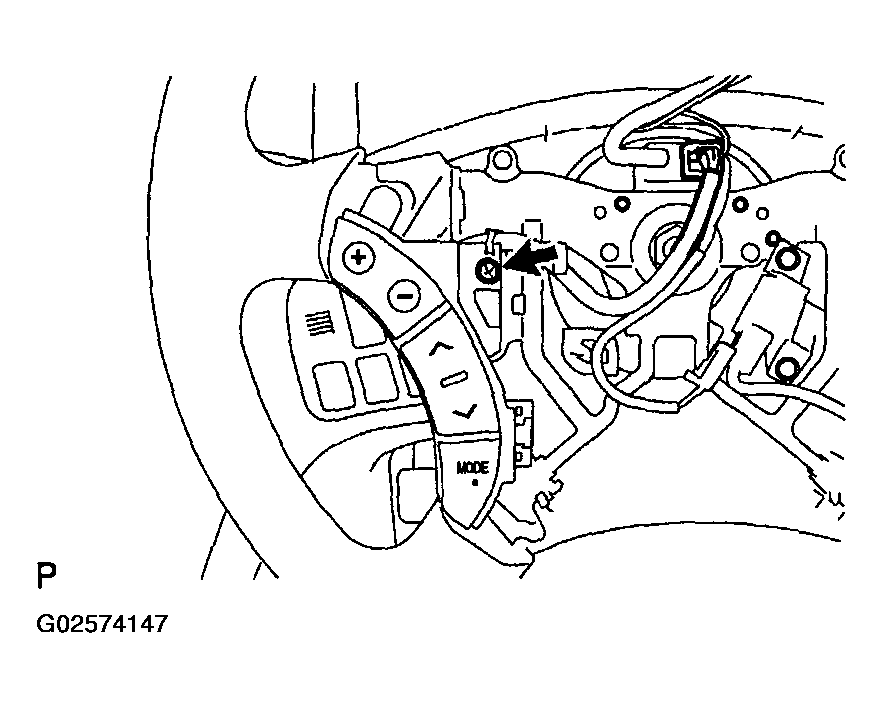

  Fig 1: Disconnecting Connector Of Cruise Control Main Switch
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Disengage the meshing of 2 pins and remove the steering pad switch LH.

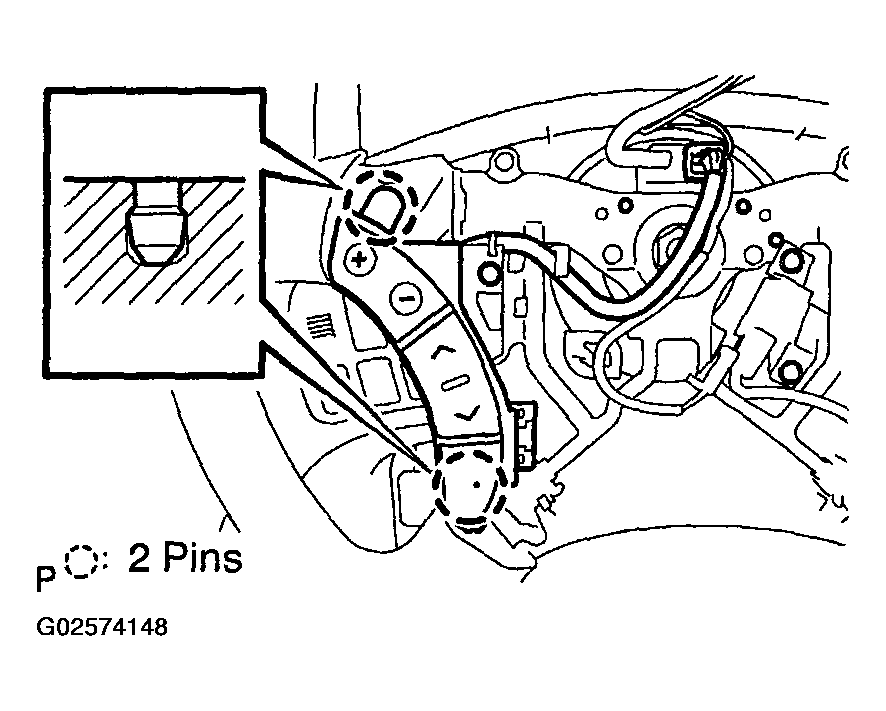

Fig 2: Removing Steering Pad Switch LH
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL HORN BUTTON ASSY (See REPLACEMENT )
INSPECT HORN BUTTON ASSY (See REPLACEMENT )
INSPECT SRS WARNING LIGHT (See REPLACEMENT )
