Stereo Component Controller ASSY: Replacement

WARNING: This page is about a different car, the 2005 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

COMPONENTS

REMOVE ROOM LAMP ASSY NO. 1 (See REPLACEMENT )
REMOVE STEREO COMPONENT CONTROLLER ASSY
1. Remove the 2 screws and stereo component controller assy.

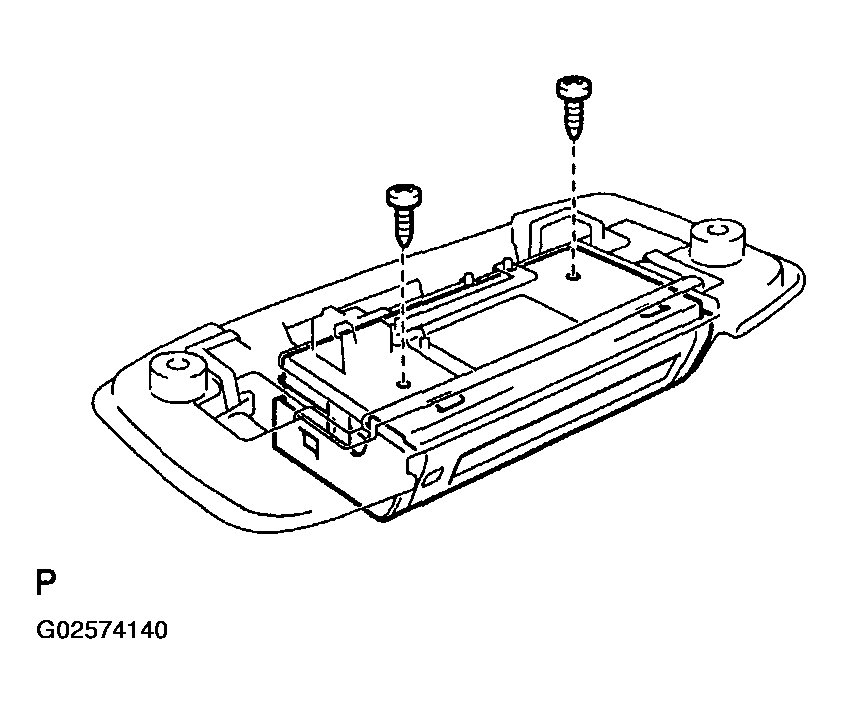

Fig 1: Removing Screws And Stereo Component Controller Assy
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
