Television Camera ASSY: Replacement
WARNING: This page is about a different car, the 2005 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.
- REMOVE BACK DOOR TRIM BOARD(See OVERHAUL
)
- REMOVE BACK DOOR SERVICE HOLE COVER LH(See OVERHAUL
)
- REMOVE TELEVISION CAMERA ASSY
- Disconnect the connector and remove the connector clamp.

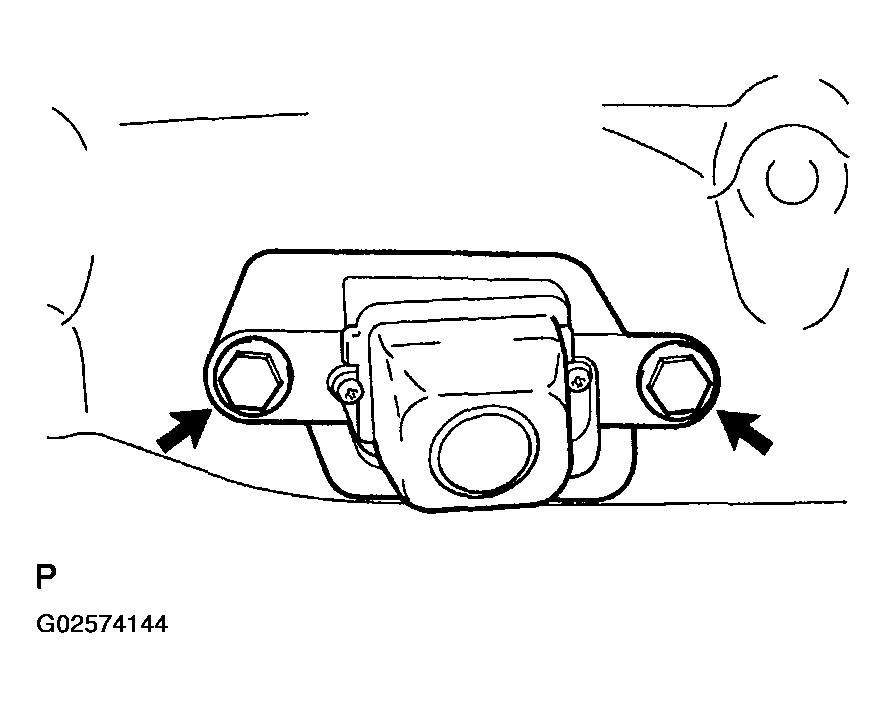

- Remove the 2 screws and television camera assy.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
- INSTALL BACK DOOR SERVICE HOLE COVER LH(See OVERHAUL
)
