On-Vehicle Inspection

WARNING: This page is about a different car, the 2005 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSPECT SPEEDOMETER
    1. Check the operation.
      1. Using a speedometer tester, check the speedometer indication according to the table below.

        Reference: mph (U.S.A.)

        REFERENCE: MPH (U.S.A.) CHART

        Standard indication Acceptable range
        20 mph 20 to 23 mph
        40 mph 40 to 43.5 mph
        60 mph 60 to 64 mph
        80 mph 80 to 84.5 mph
        100 mph 100 to 105 mph

        Reference: km/h (Canada, Mexico)

        REFERENCE: KM/H (CANADA, MEXICO) CHART

        Standard indication Acceptable range Data in ( ) are for reference
        20 km/h (17.5 to 21.5) km/h
        40 km/h 38 to 42 km/h
        60 km/h 58 to 63 km/h
        80 km/h 78 to 84 km/h
        100 km/h 98.5 to 104.5 km/h
        120 km/h 119 to 125 km/h
        140 km/h 139 to 146 km/h
        160 km/h 159 to 167 km/h
        NOTE: Tire wear and tire over or under pressure will cause indication error.
      2. Check the deviation from the acceptable value of the speedometer indication.

      Reference: Below 0.3 km/h (0.19 mph)

  2. INSPECT TACHOMETER
    1. Check the operation.
      1. Connect a tune-up test tachometer, and start the engine.
        NOTE:
        • Reversing the connection of the tachometer will damage the transistors and the insides of the diodes.
        • When removing or installing the tachometer, be careful not to drop or subject it to heavy shocks.
      2. Compare the result of the test with the standard indication.

      DC 13.5 V, at 25°C (77°F)

      Reference: 2UZ-FE

      REFERENCE: 2UZ-FE CHART

      Standard indication (RPM) Acceptable range (RPM) Data in ( ) are for reference
      700 630 to 770
      1,000 (900 to 1,100)
      2,000 (1,850 to 2,150)
      3,000 2,800 to 3,200
      4,000 (3,800 to 4,200)
      5,000 4,800 to 5,200
      6,000 (5,750 to 6,250)

      Reference: 1GR-FE

      REFERENCE: 1GR-FE CHART

      Standard indication (RPM) Acceptable range (RPM) Data in ( ) are for reference
      700 630 to 770
      1,000 (900 to 1,100)
      2,000 (1,850 to 2,150)
      3,000 2,800 to 3,200
      4,000 (3,800 to 4,200)
      5,000 4,800 to 5,100
      6,000 (5,750 to 6,250)
  3. INSPECT FUEL RECEIVER GAUGE
    1. Inspect the circuit.
      1. Disconnect the connector from the sender gauge.
      2. Turn the ignition switch to ON, then check the position of the receiver gauge needle.

        OK:

        Needle position is in EMPTY

      3. Connect terminals 2 and 3 on the wire harness side connector and turn the ignition switch ON, then check the position of the receiver gauge needle.

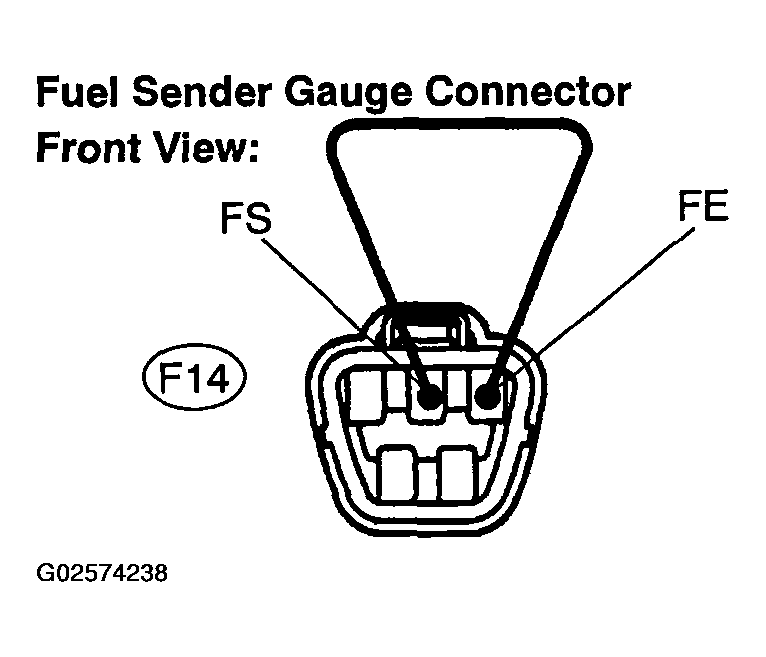

      Fig 1: Identifying Fuel Sender Gauge Connector
      G02574238Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      OK:

      Needle position is in FULL

  4. INSPECT FUEL LEVEL WARNING LIGHT
    1. Inspect the circuit.
      1. Disconnect the connector from the sender gauge.
      2. Turn the ignition switch to ON, and check that the fuel level needle indicates EMPTY and the fuel level warning light comes on.
  5. INSPECT SEAT BELT WARNING LIGHT (DRIVER SIDE)
    1. Check the operation.
      1. Turn the ignition switch to ON, and check that the warning light blinks.
      2. Fasten the outer belt to the inner belt and check that the warning light goes off.
      3. Disconnect the connector from the front seat inner belt assy (driver side), and connect the terminal on the wire harness side connector to body ground.
      4. Turn the ignition switch to ON, and check that the warning light blinks.
  6. INSPECT OIL PRESSURE WARNING LIGHT
    1. Inspect the circuit.
      1. Disconnect the connector from the oil pressure switch.
      2. Turn the ignition switch to ON.
      3. Connect the terminal of the wire harness side connector and body ground, then check the condition of the oil pressure warning light.

      OK:

      Oil pressure warning light comes on

  7. INSPECT BRAKE WARNING LIGHT
    1. Inspect the parking brake warning light.
      1. Disconnect the connector from the parking brake switch, and connect the terminal on the wire harness side connector to body ground.
      2. Turn the ignition switch to ON, and check that the warning light comes on.
    2. Inspect the brake fluid level warning light.
      1. Disconnect the connector from the brake fluid level warning switch, and connect the terminals on the wire harness side connector.
      2. Turn the ignition switch to ON, and check that the warning light comes on.
  8. INSPECT BRAKE FLUID LEVEL WARNING SWITCH
    1. Inspect the resistance.
      1. Remove the reservoir tank cap and the strainer.
      2. Disconnect the connector.
      3. Measure the resistance between the terminals.

        OK:

        Float up (switch off): 10 kΩ or higher

      4. Use a syphon, etc. to take fluid out of the reservoir tank.
      5. Measure the resistance between the terminals.

        OK:

        Float down (switch on): Below 1 Ω

      6. Pour the fluid back in the reservoir tank.
  9. INSPECT SEAT BELT WARNING BUZZER (DRIVER SIDE)
    1. Check the warning buzzer function.
      1. Turn the ignition switch to ON, and check that the driver's seat belt warning sounds if the driver's seat belt is not fastened.
      2. Check that the buzzer stops in about 4 to 8 seconds.
  10. INSPECT KEY REMINDER WARNING BUZZER
    1. Check the warning buzzer function.
      1. Turn the ignition switch off, and check that the key reminder warning sounds when the ignition key is inserted in the key cylinder and the front driver side door is opened.
  11. INSPECT TRIP METER
    1. Check the operation.
      1. Turn the ignition switch to ON, and check that the mode indication changes in the order of "ODO" --> "TRIP A" --> "TRIP B" --> "ODO" by pressing the trip switch.

        HINT:

        When turning the ignition switch to the ON position, the first mode that appears on the display is the previously indicated mode.

      2. Check that the indicated data in "TRIP A" and "TRIP B" is reset by pressing the trip switch for more than 0.5 seconds.

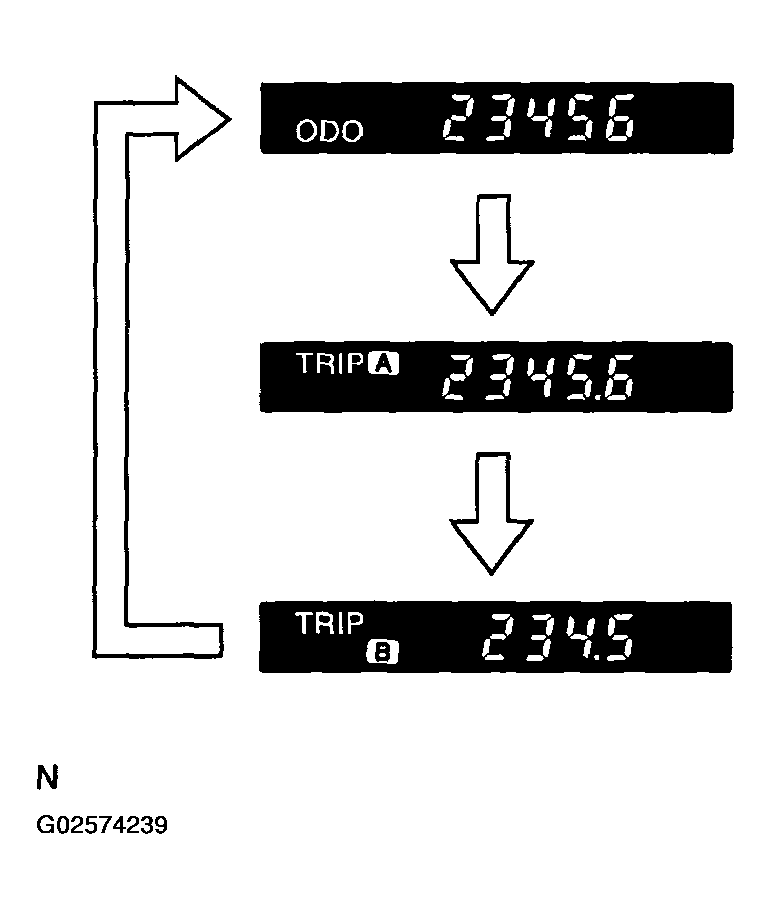

      Fig 2: Inspecting Trip Meter
      G02574239Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. INSPECT WASHER LEVEL WARNING SWITCH
    1. Inspect the circuit.
      1. Disconnect the connector from the washer level warning switch.
      2. Turn the ignition switch to ON.
      3. Connect the terminal of the wire harness side connector and body ground, then check the condition of the washer level warning light.
  13. MAINTENANCE LIQUID RESETTING PROCEDURE

    Indicator Condition:

    INDICATOR CONDITION CHART

    State Condition Specified State
    Blinking The vehicle runs 4,500 to 5,000 miles after the previous setting The indicator blinks for 12 seconds after the ignition switch is turned on (including 3 seconds for a bulb check).
    Continuously Illuminated The vehicle runs over 5,000 miles after the previous setting The indicator is continuously illuminated after the ignition switch is turned on.
    1. Set the display window to ODO.
    2. Turn the ignition switch off.
    3. While pressing the reset switch, turn the ignition switch to ON. Keep pressing the reset switch for at least 5 seconds to complete the reset procedure. Check that the "Maint Reqd" indicator light goes off.

    HINT:

    • If the ignition switch is turned off during the reset procedure:

      LCD: off

      IND: off

    • If the reset switch is not pressed for at least 5 seconds during the reset procedure:

      LCD: return to ODO

      IND: previous state
