ACTIVE TEST

HINT: Performing the ACTIVE TEST using the hand-held tester allows the relay, VSV, actuator and so on to operate without parts removal. Performing the ACTIVE TEST as a first step of troubleshooting is one of the method to shorten the labor time.

It is possible to display the DATA LIST during the ACTIVE TEST.
a. Connect the hand-held tester to the DLC3.
b. Turn the ignition switch ON.

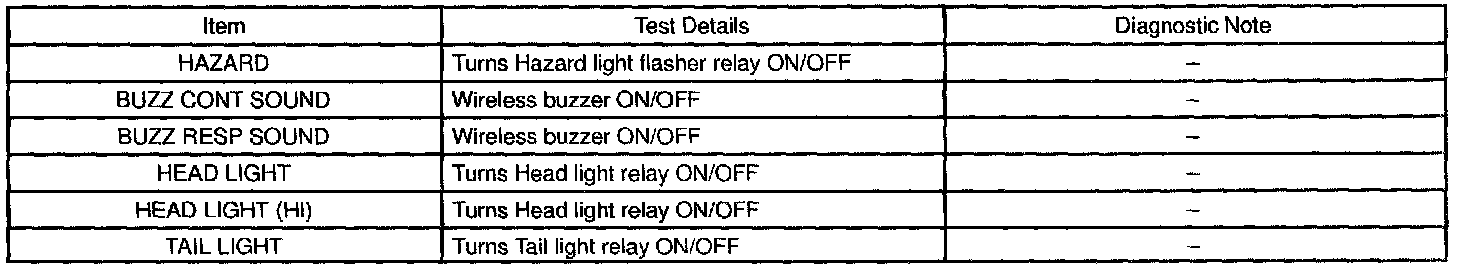

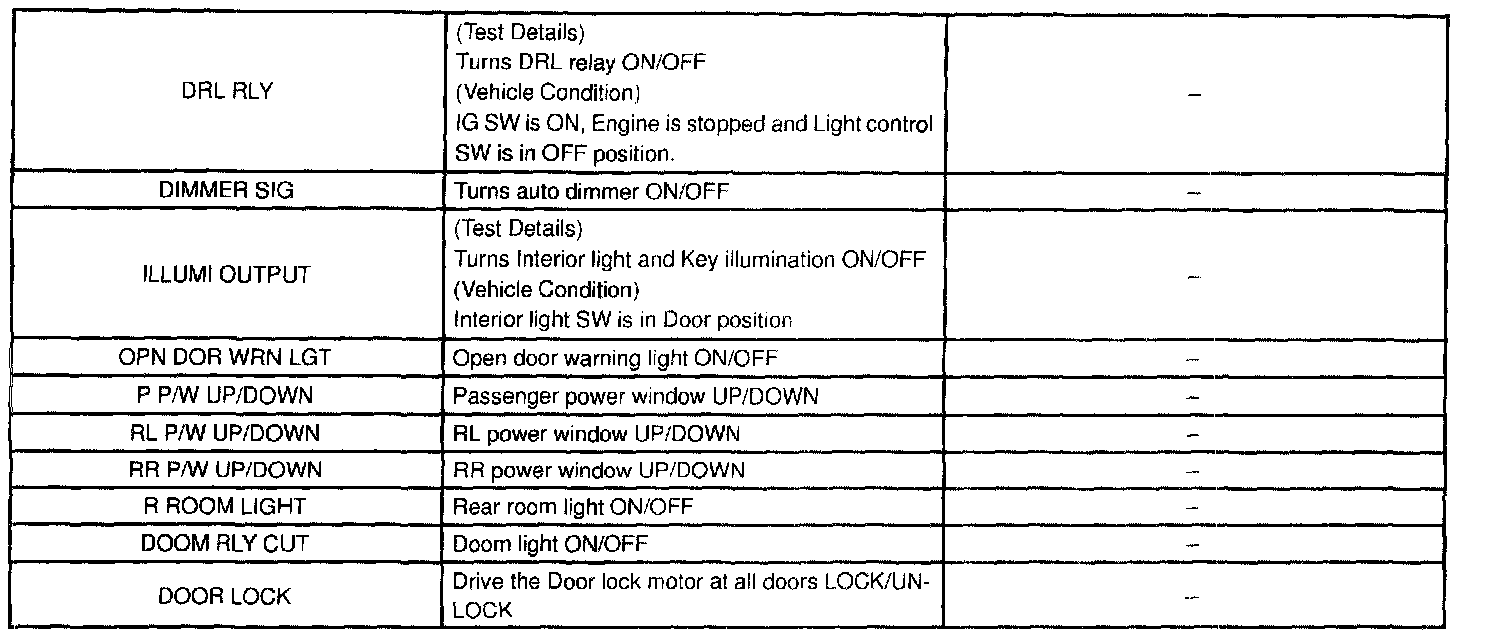

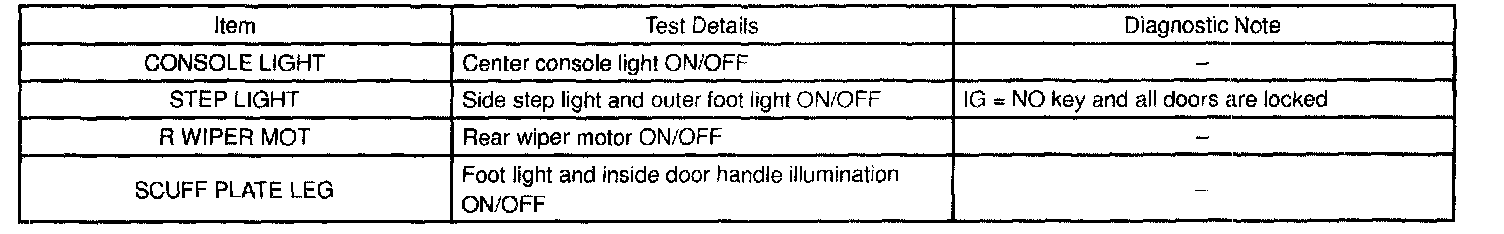

c. According to the display on tester, perform the "ACTIVE TEST".

Part 1:

Part 2:

1. Body ECU (Main)




2. Body ECU (Sub)
