Normal Scan Data Values

DATA LIST

HINT: By the DATA LIST displayed on the hand-held tester, you can read the value of the switch, sensor, actuator and so on without removing any parts. Reading the DATA LIST as a first step of troubleshooting is one of the method to shorten the labor time.

a. Connect the hand-held tester to DLC3.
b. Turn the ignition switch ON.
c. According to the display on tester, read the "DATA LIST".

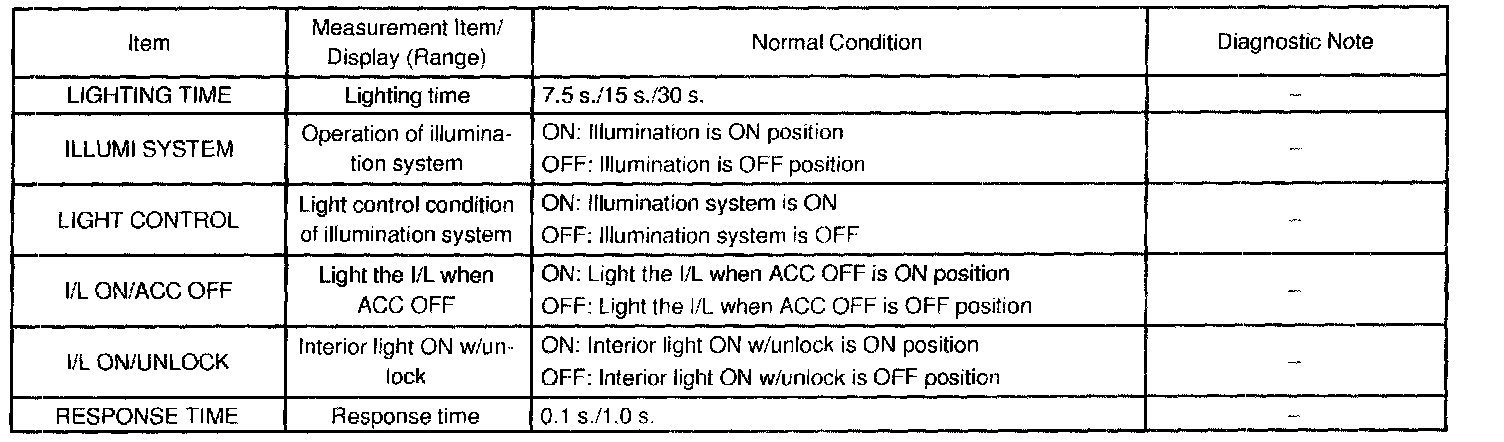

1. Body ECU (Main)

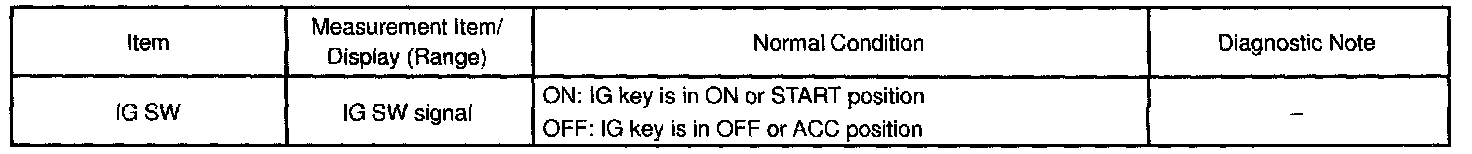

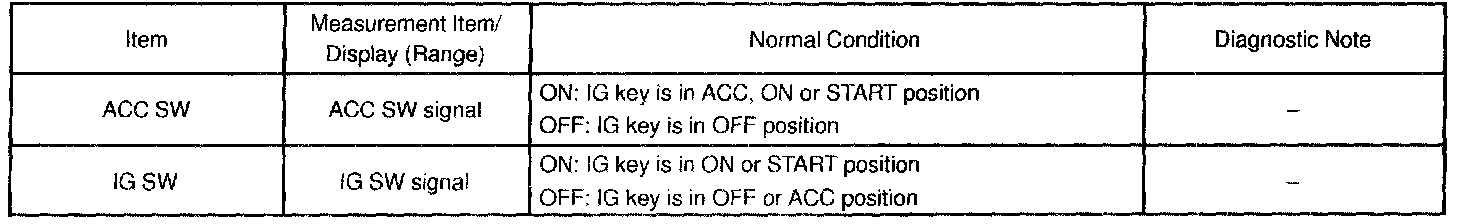

Power Source & Ignition Switch

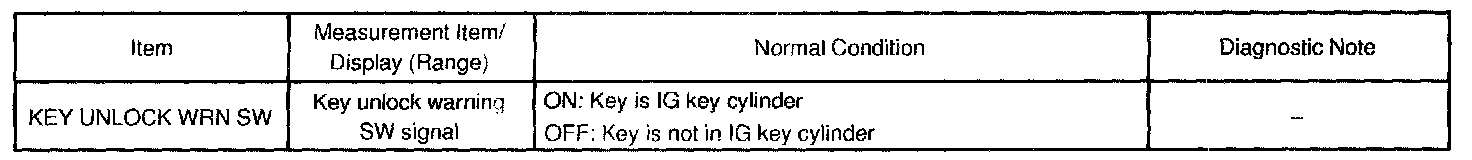

Key Unlock Warning Switch

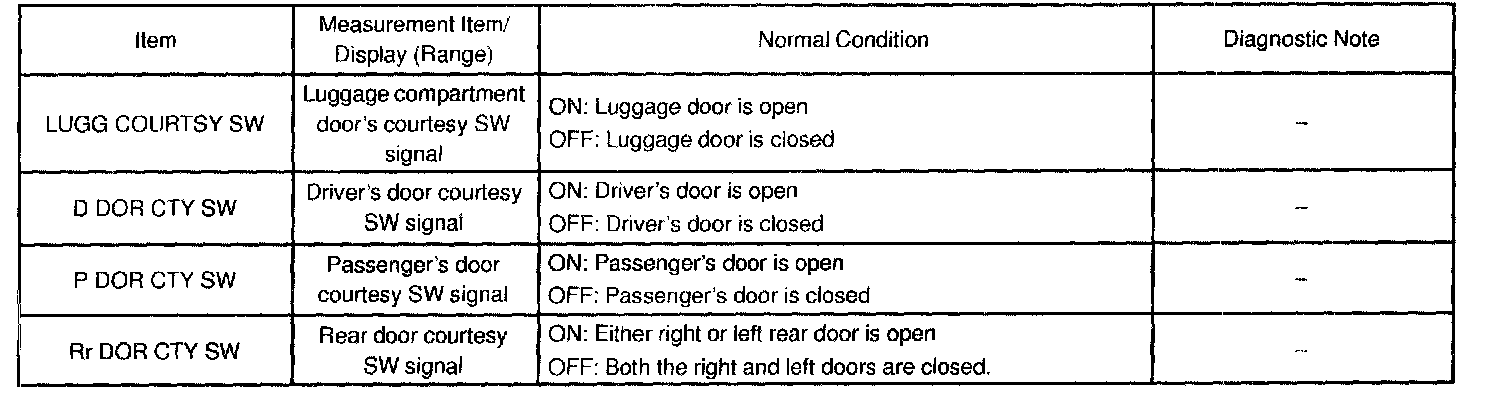

Door Courtesy Switch

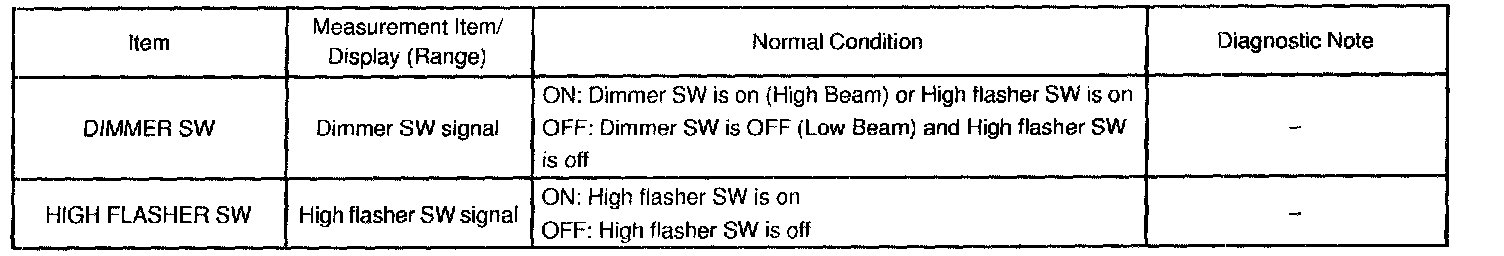

Headlight Dimmer Switch

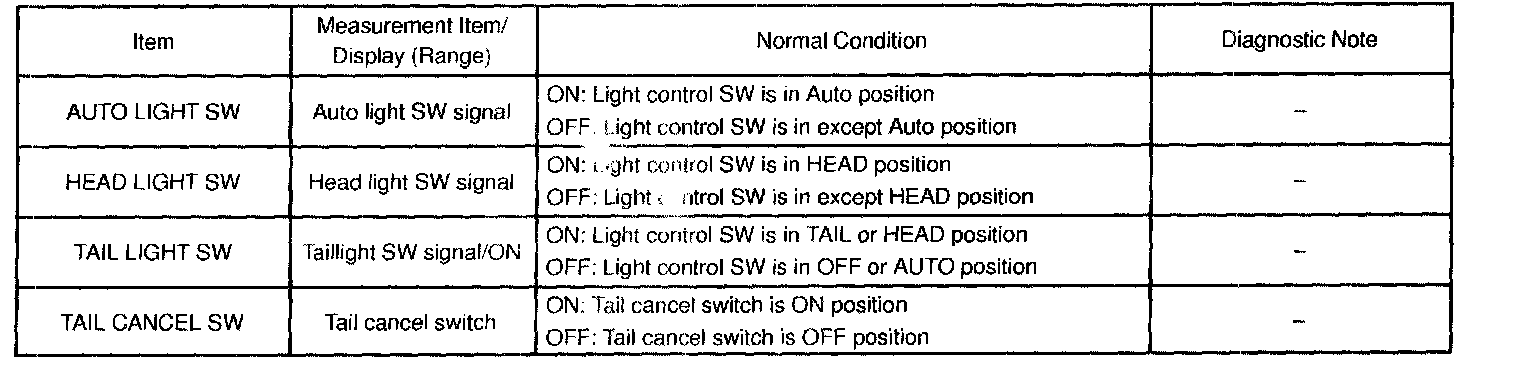

Light Control Switch

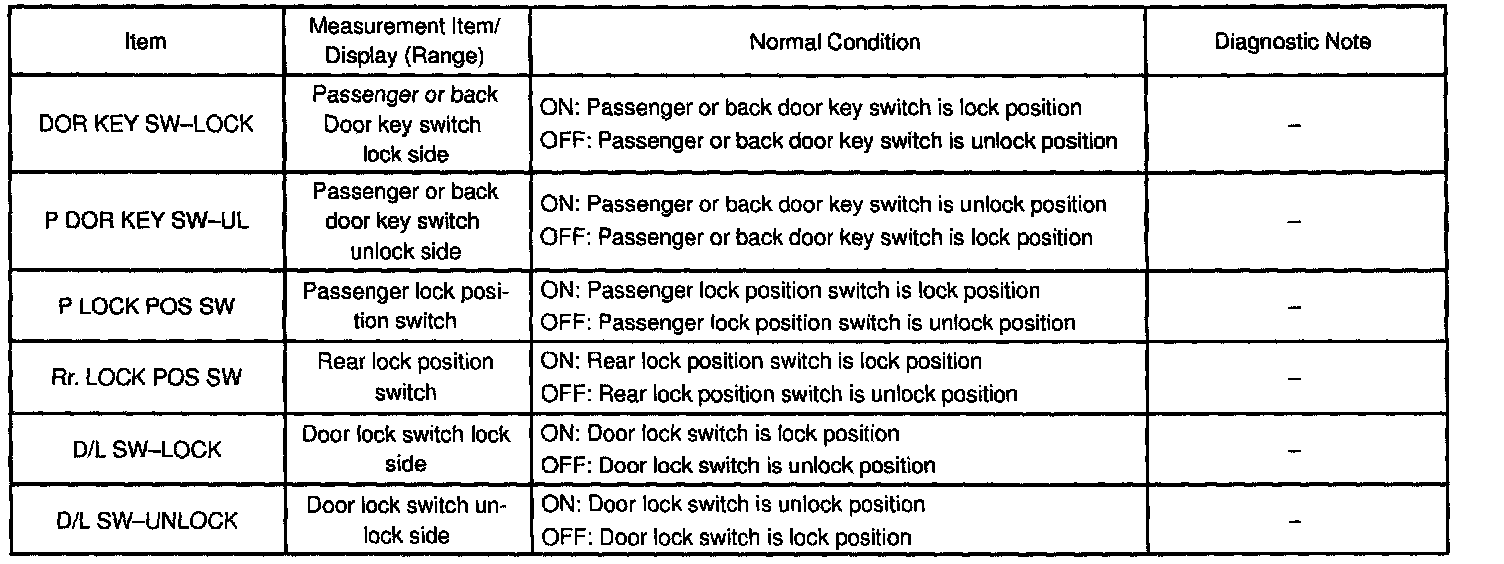

Door key lock and unlock switch

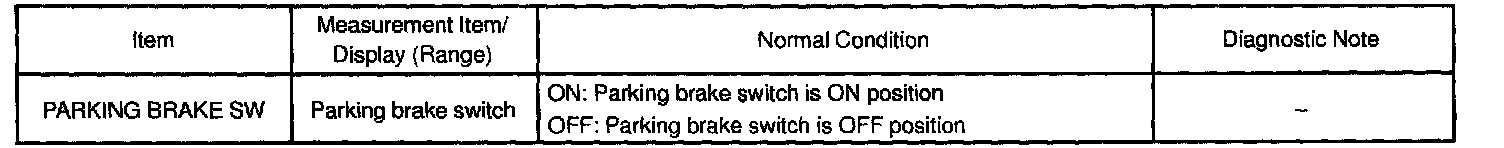

Parking brake switch

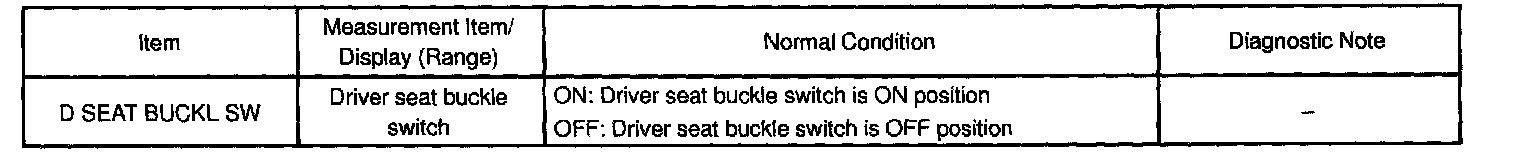

Driver seat buckle switch

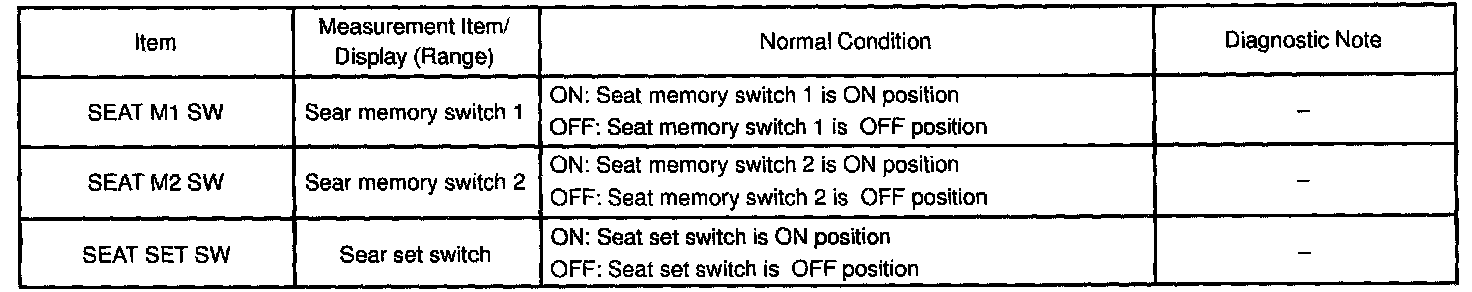

Seat memory switch

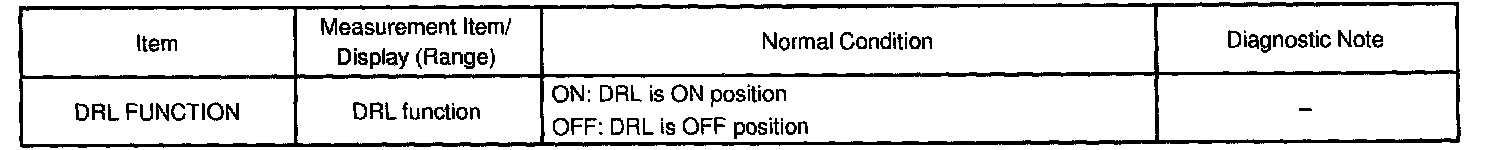

DRL relay circuit

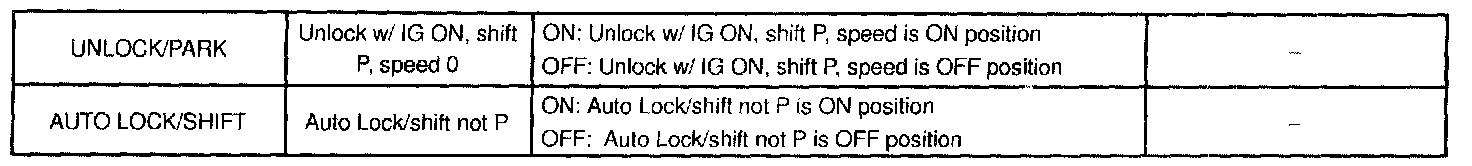

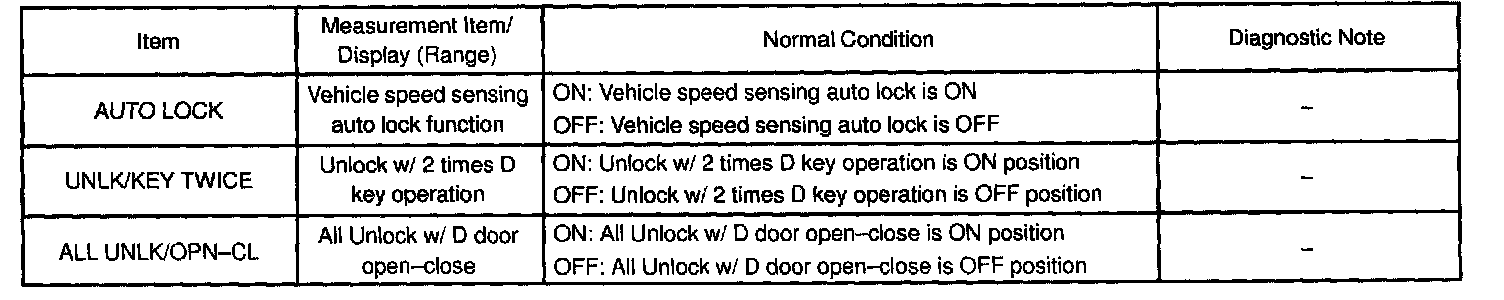

Door lock control

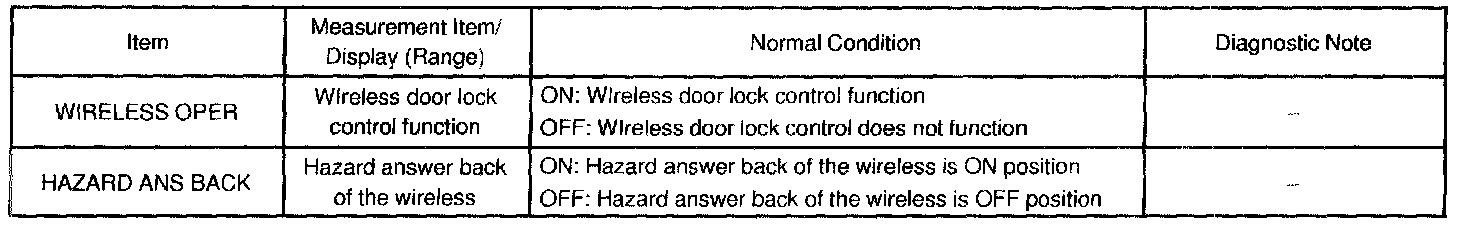

Wireless door lock control

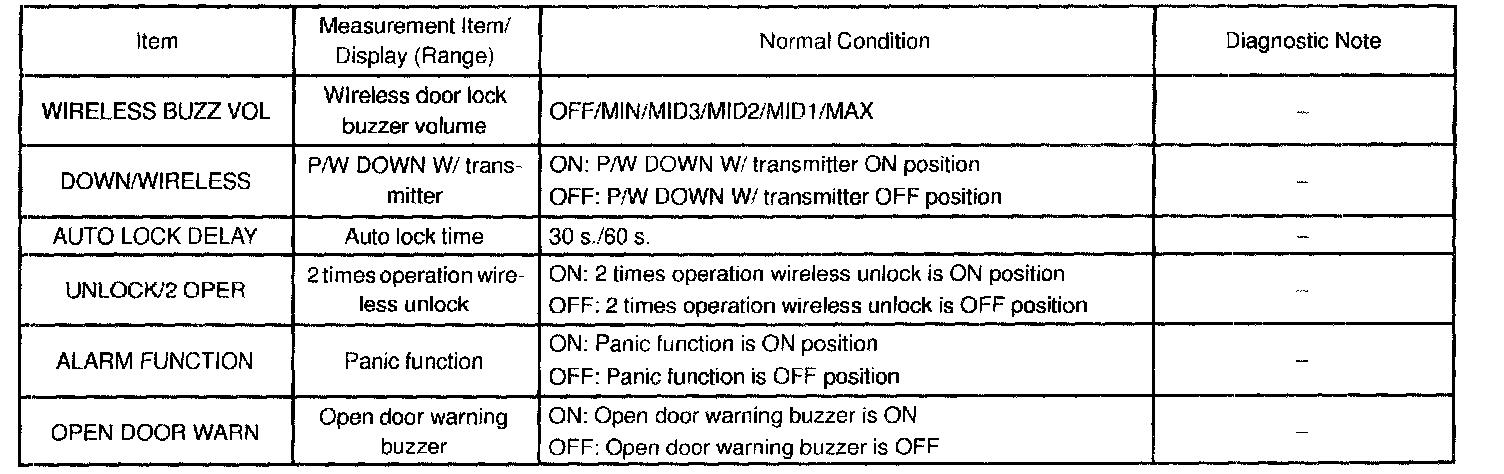

Wireless door lock buzzer

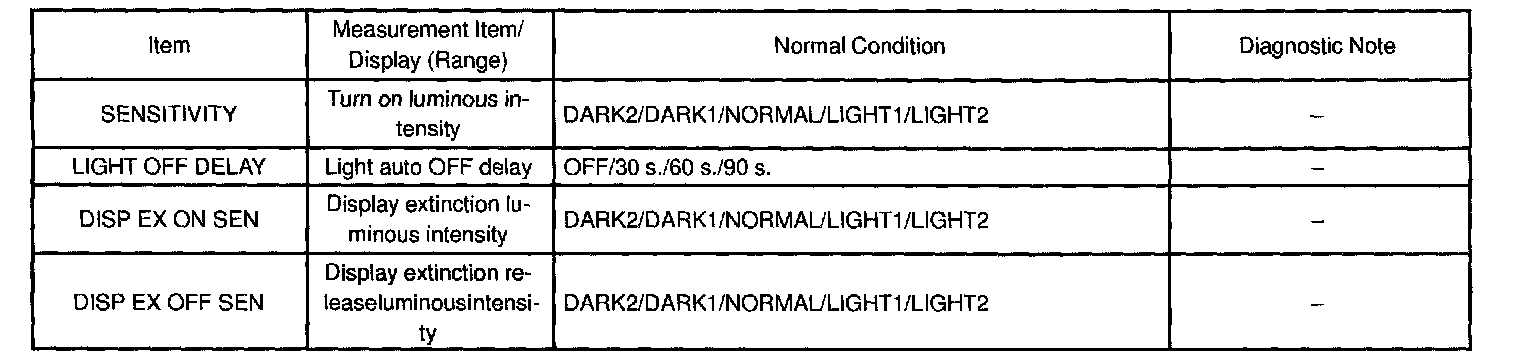

Light control sensor

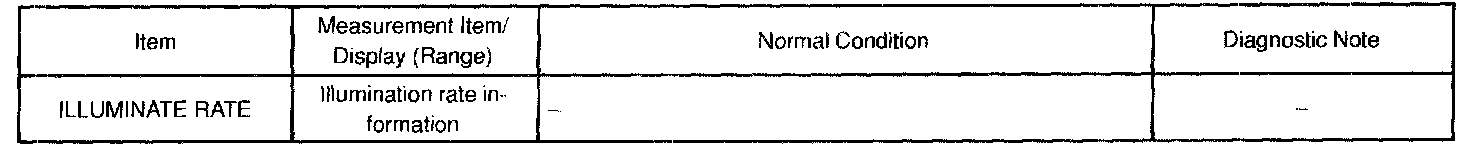

Illumination

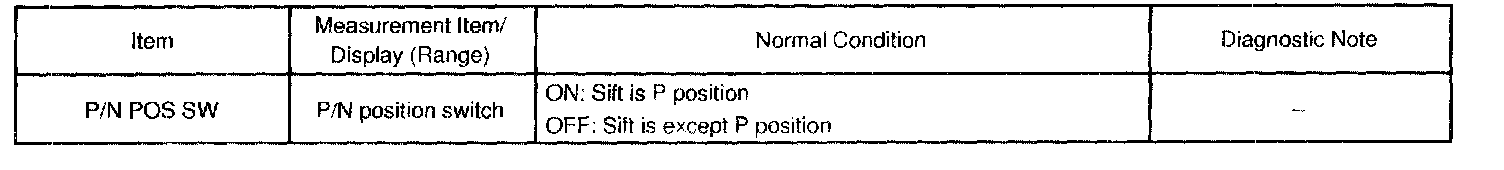

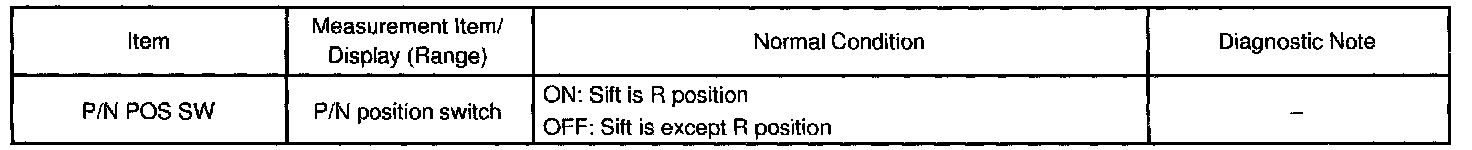

Park/Neutral Position Switch

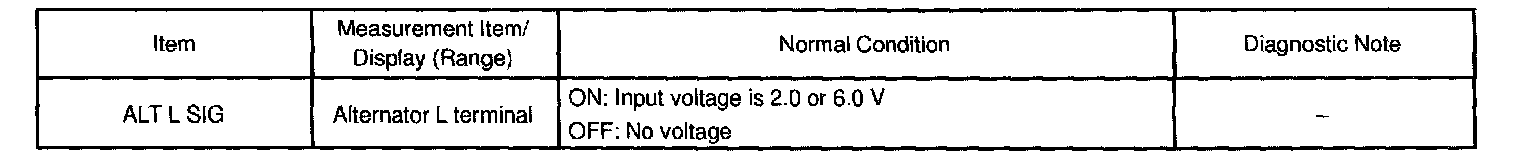

Alternator Signal




Others

2. Body ECU (Sub)




Power Source & Ignition Switch




Park/Neutral Position Switch

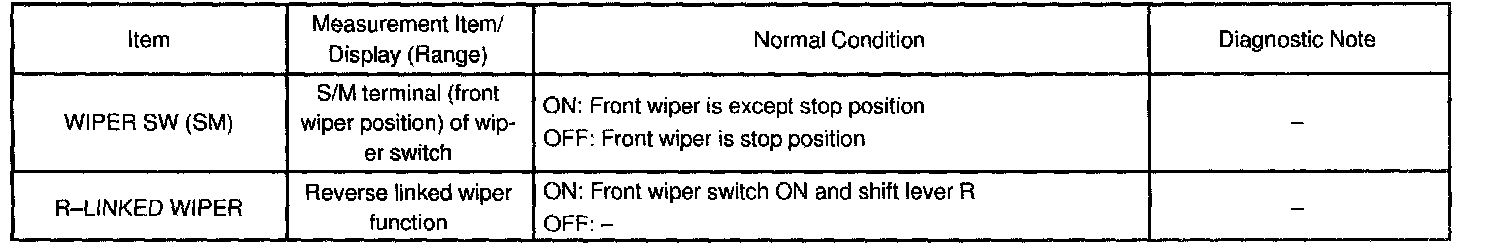

Wiper Switch
