Normal Scan Data Values

DATA LIST

HINT: By the DATA LIST displayed on the hand-held tester, you can read the value of the switch, sensor, actuator and so on without removing any parts. Reading the DATA LIST as a first step of troubleshooting is one of the method to shorten the labor time.

a. Connect the hand-held tester to DLC3.
b. Turn the ignition switch ON.
c. According to the display on tester, read "DATA LIST".

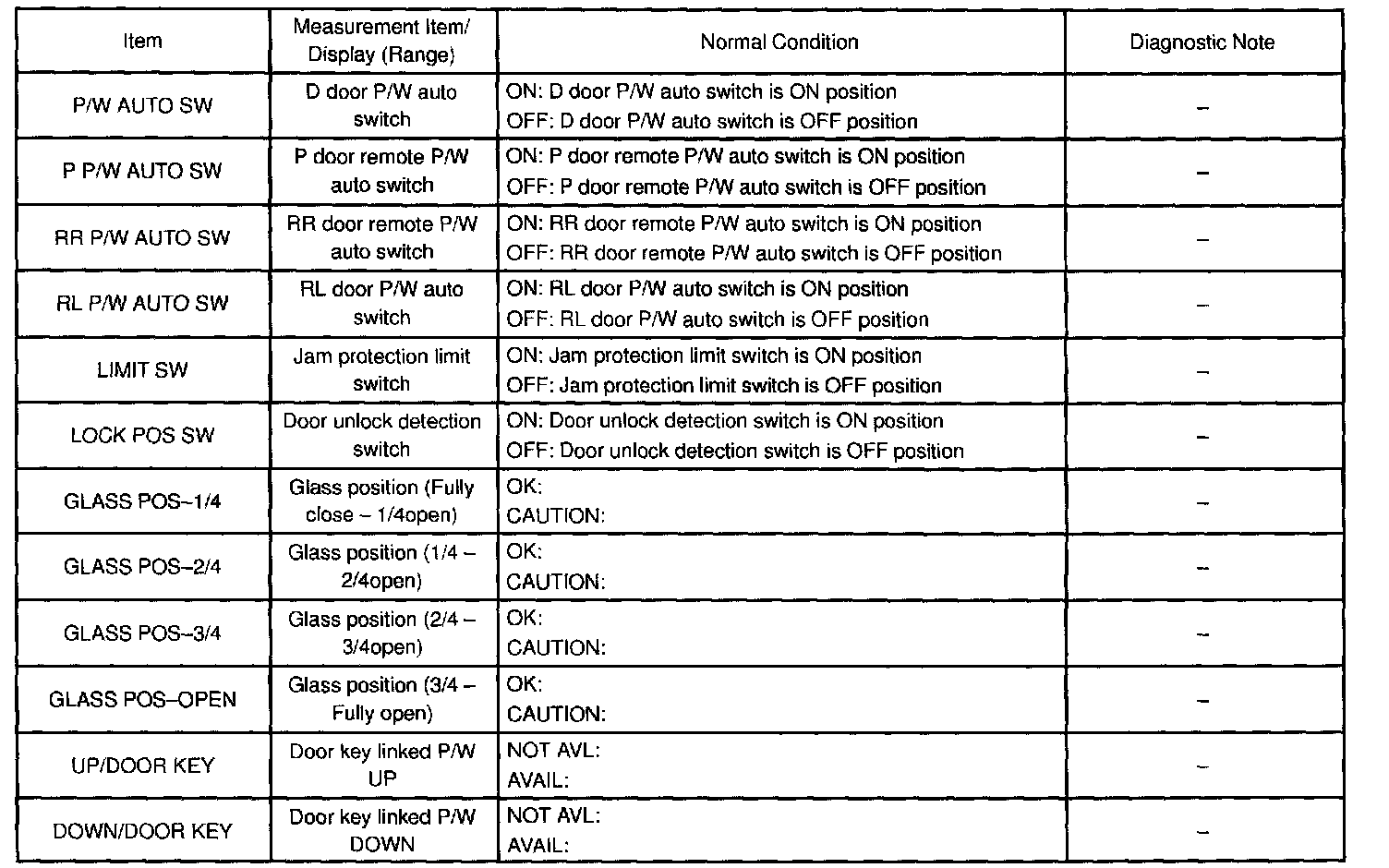

Power window master switch

Part 1:

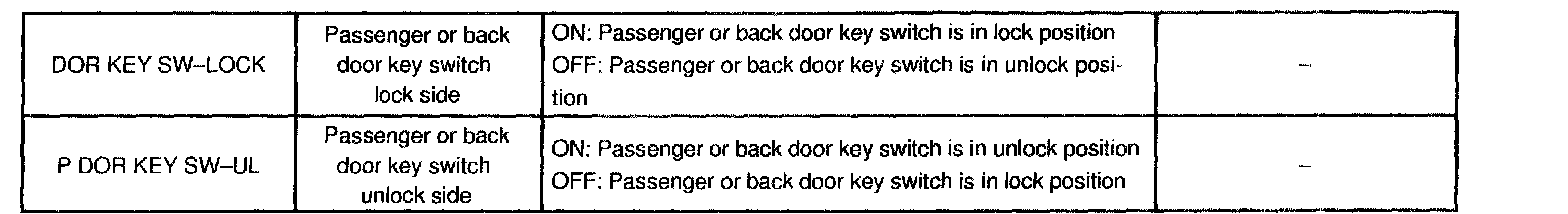

Part 2:

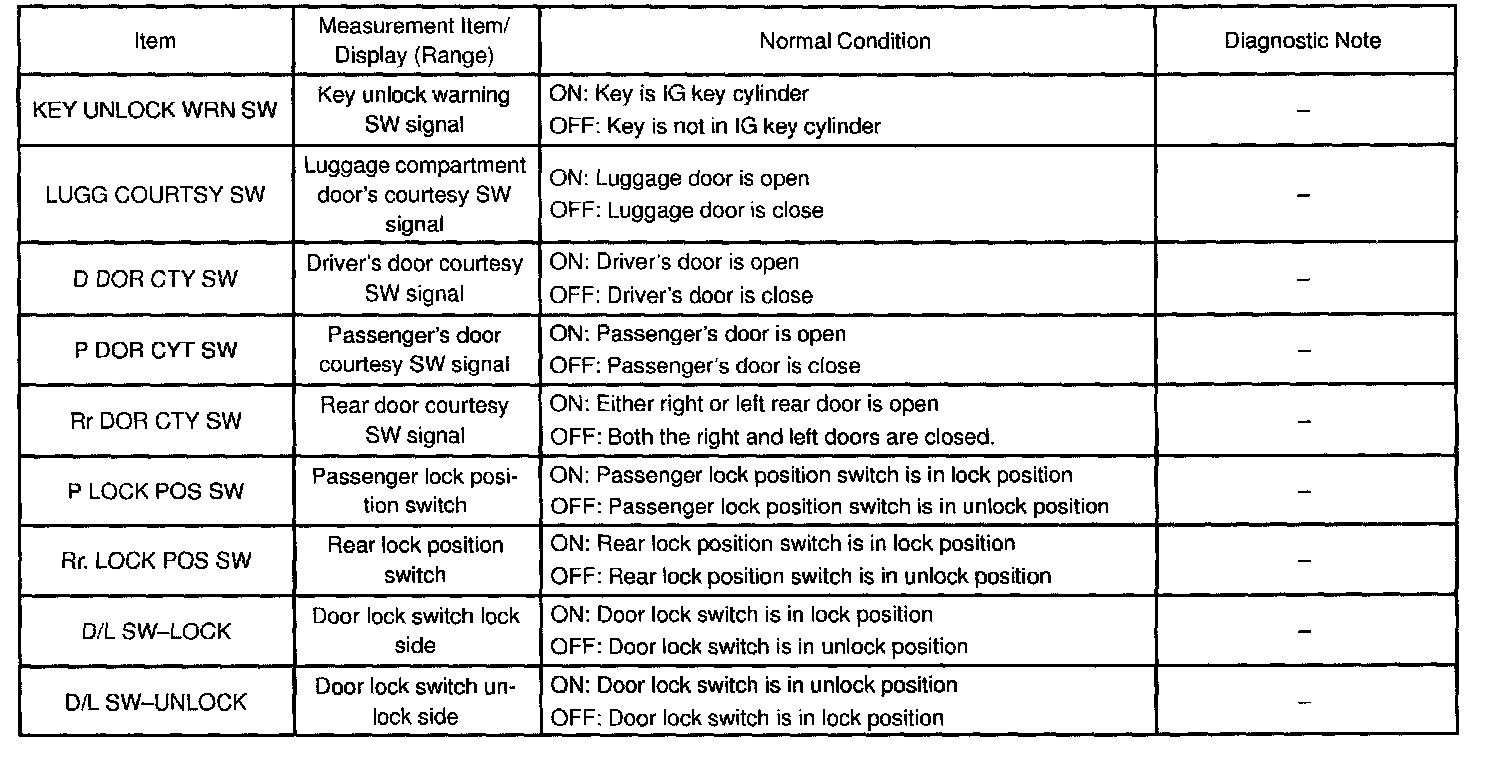

Body ECU (Main)
