Front

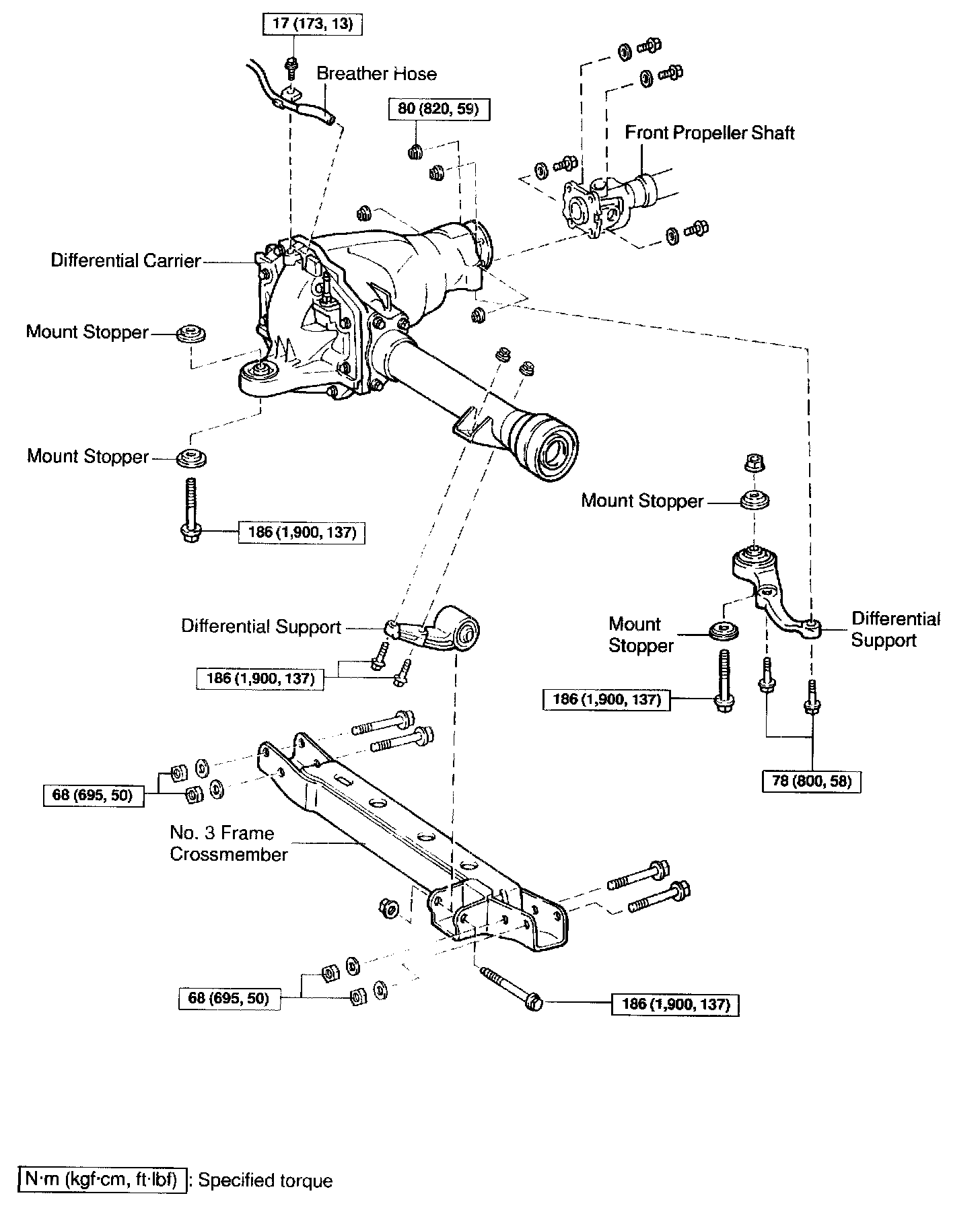

Part 1 Of 3:
Part 2 Of 3:

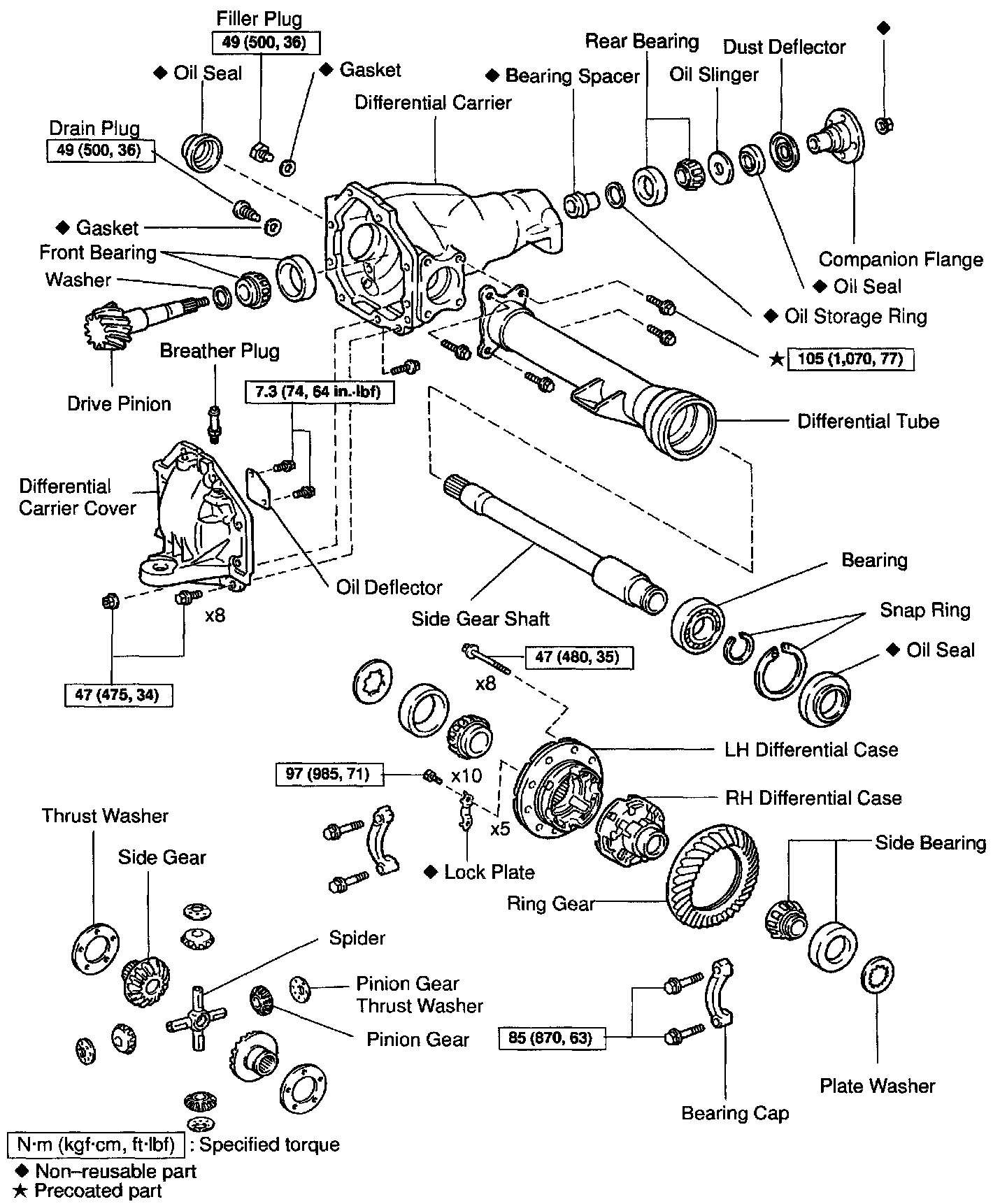

Part 3 Of 3:
DIFFERENTIAL CARRIER
REPLACEMENT AND OVERHAUL W/ RELATED COMPONENTS
