Engine Control Module: Locations

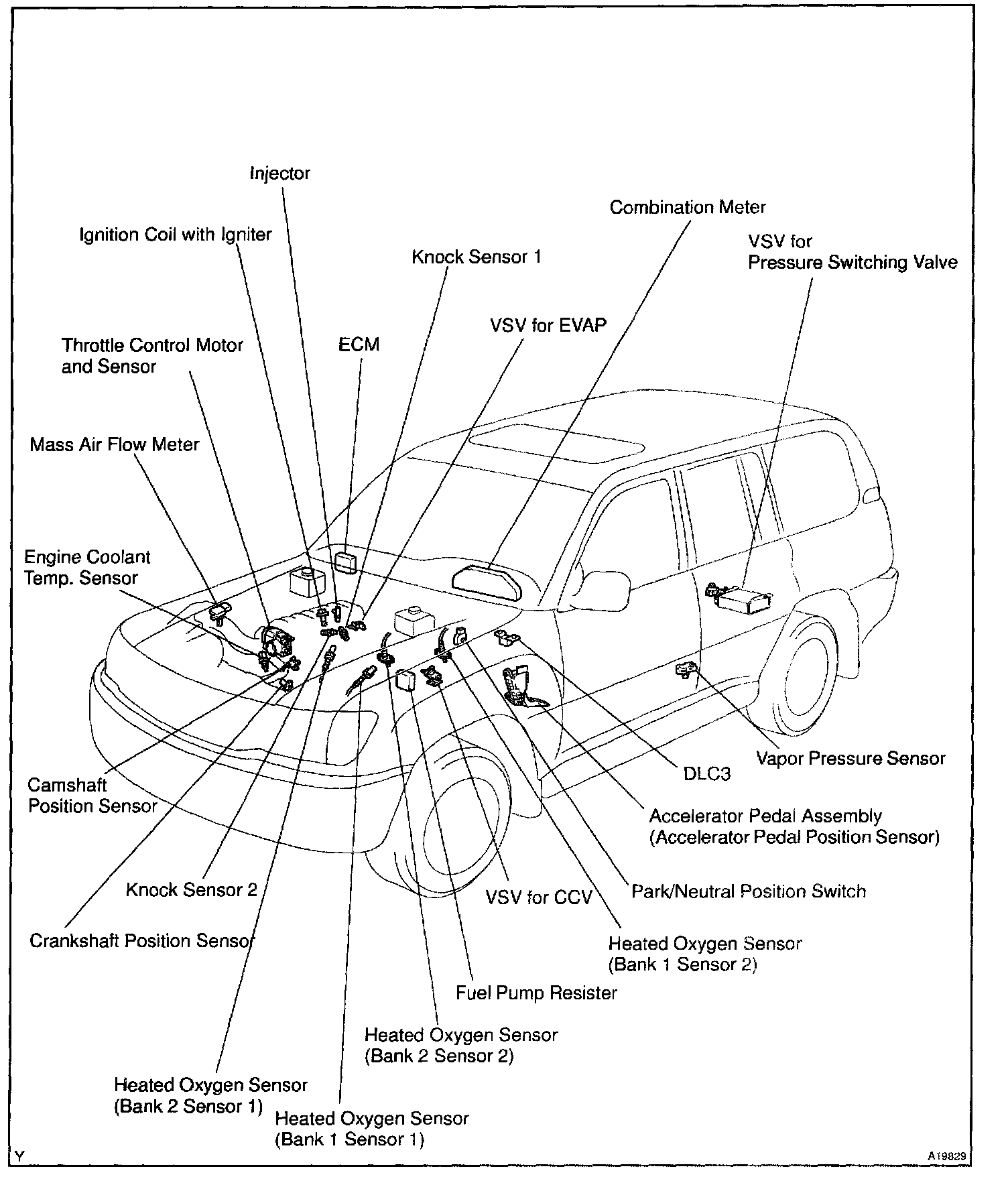

Engine:

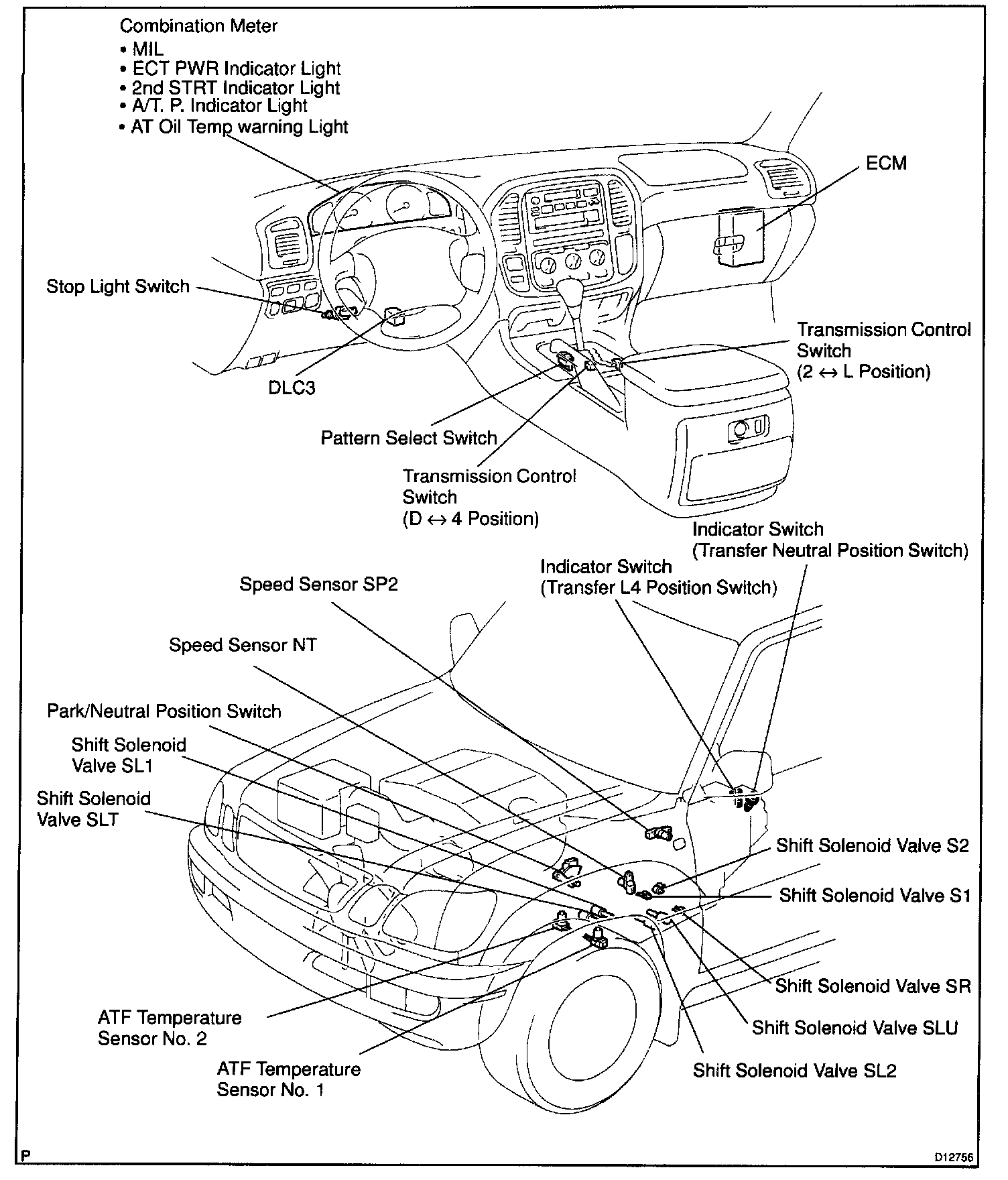

Automatic Transmission:

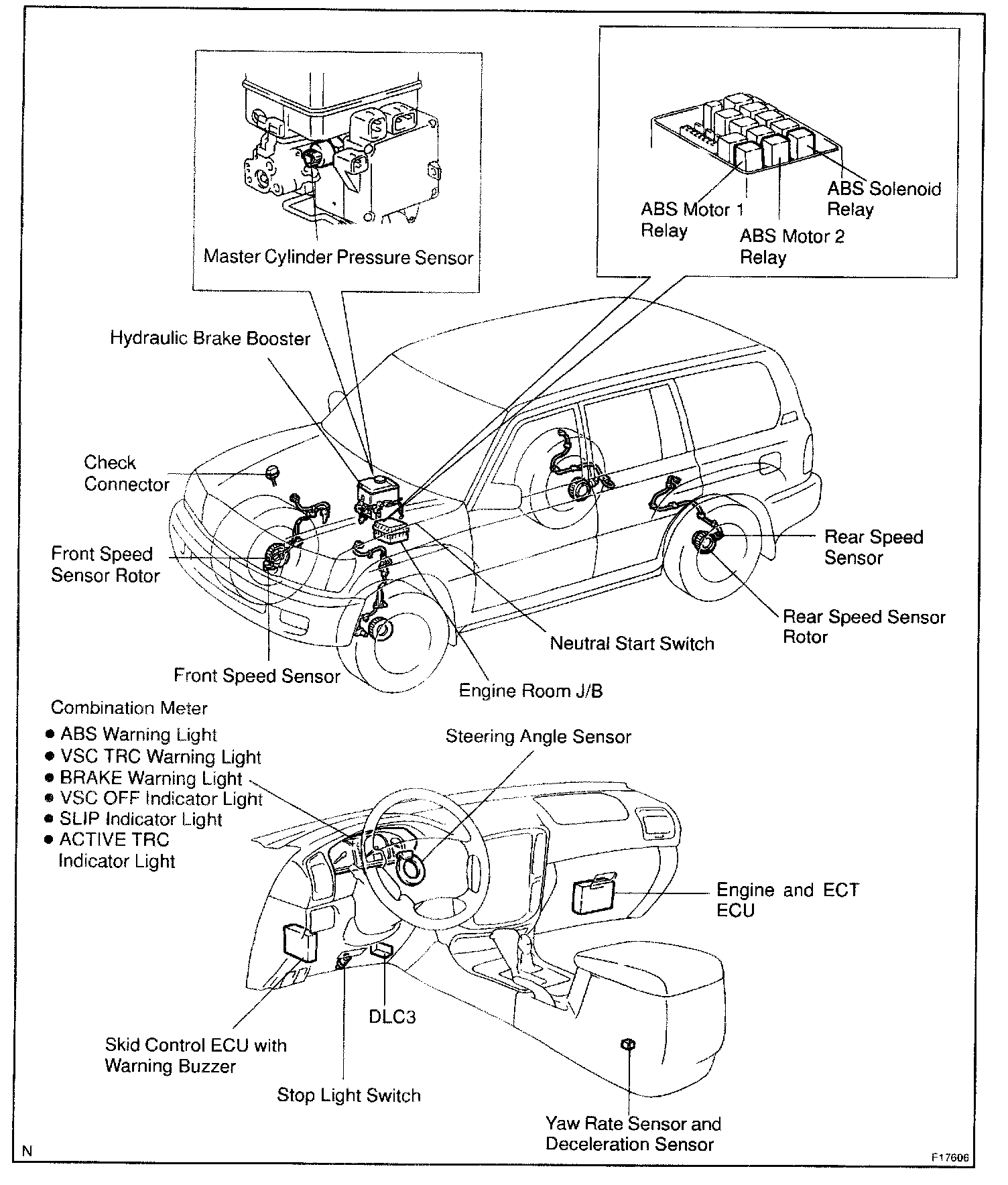

With EBD & BA & TRAC & VSC System:

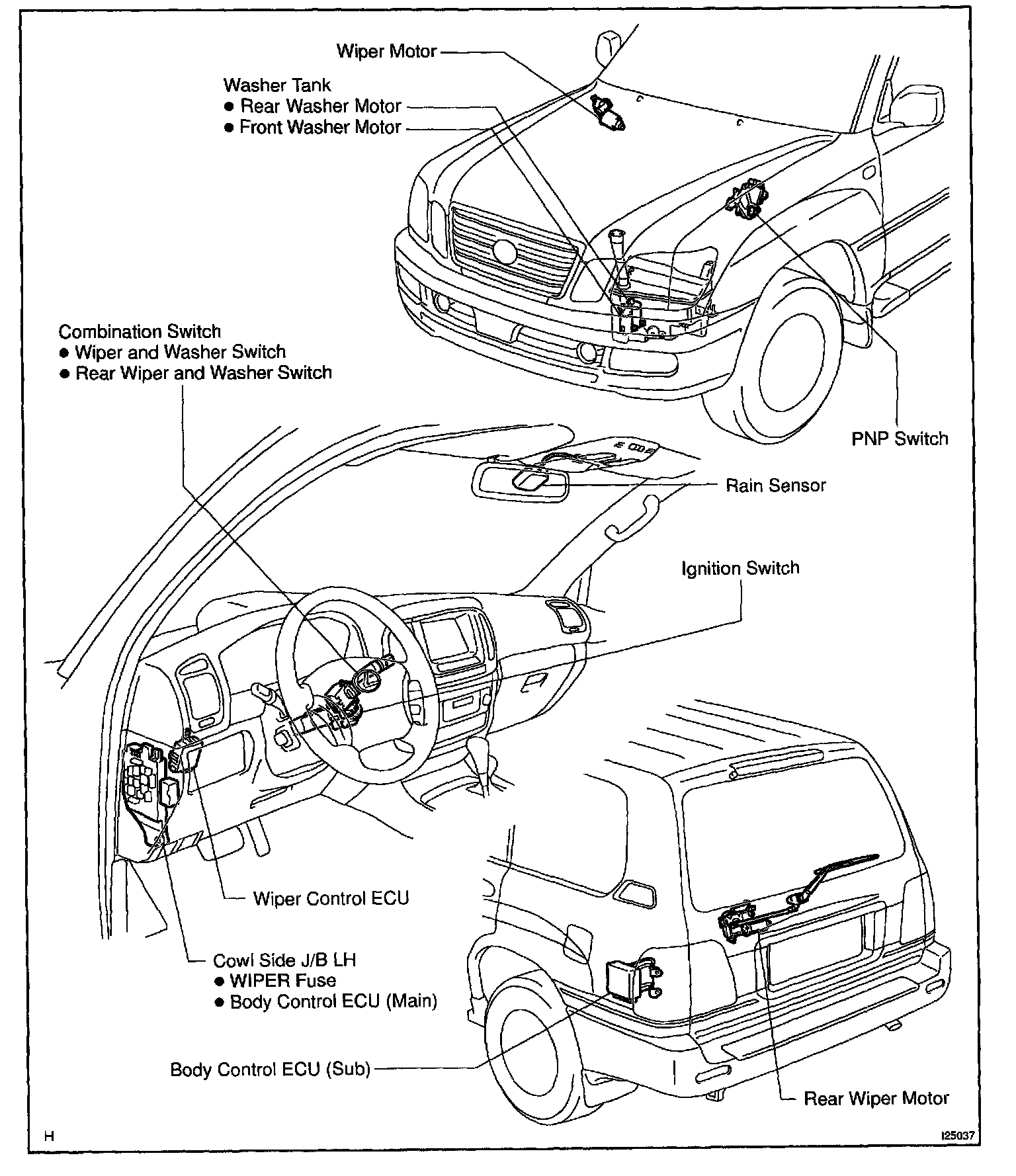

Rain Sensor System:

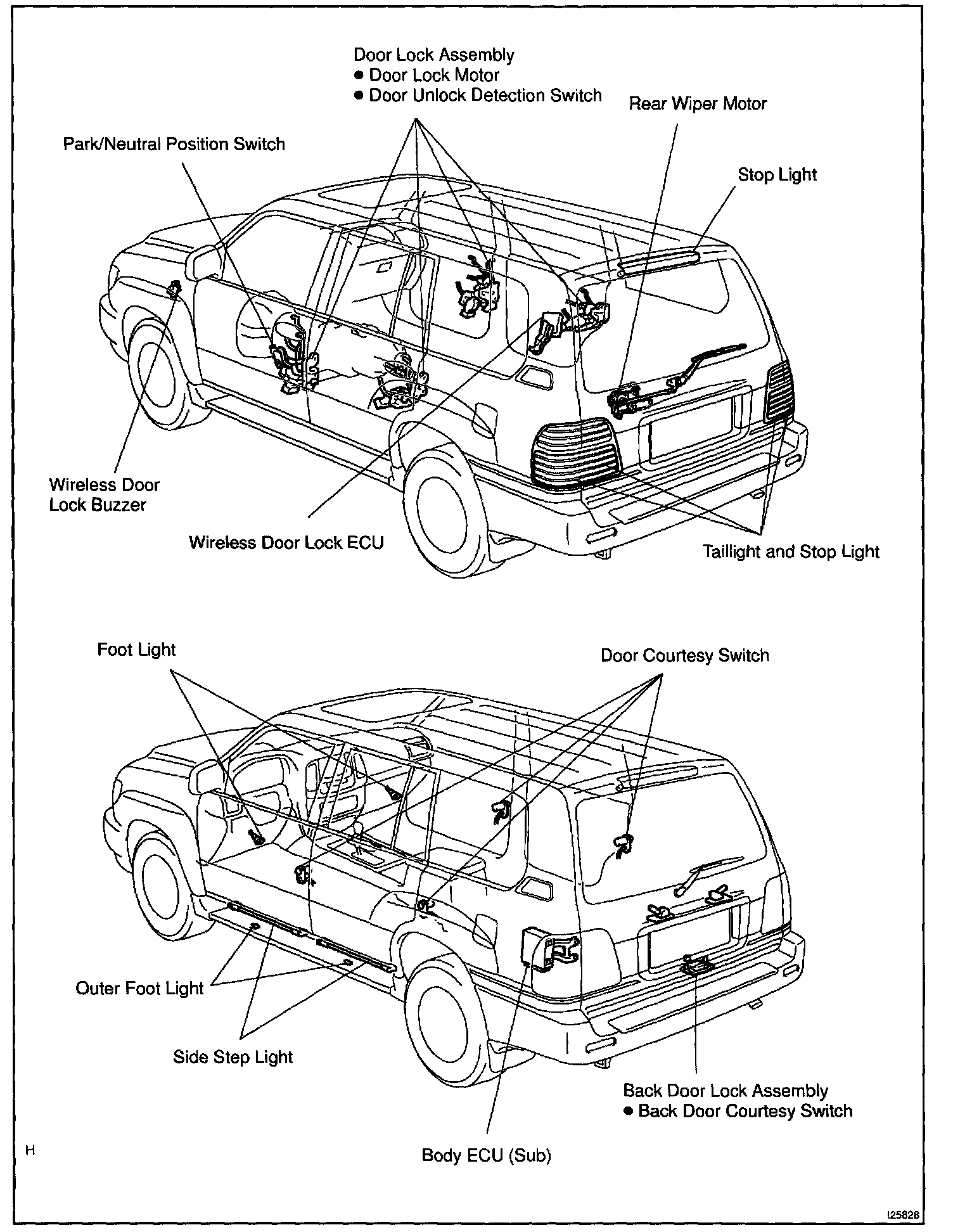

Body Control System Part 2:

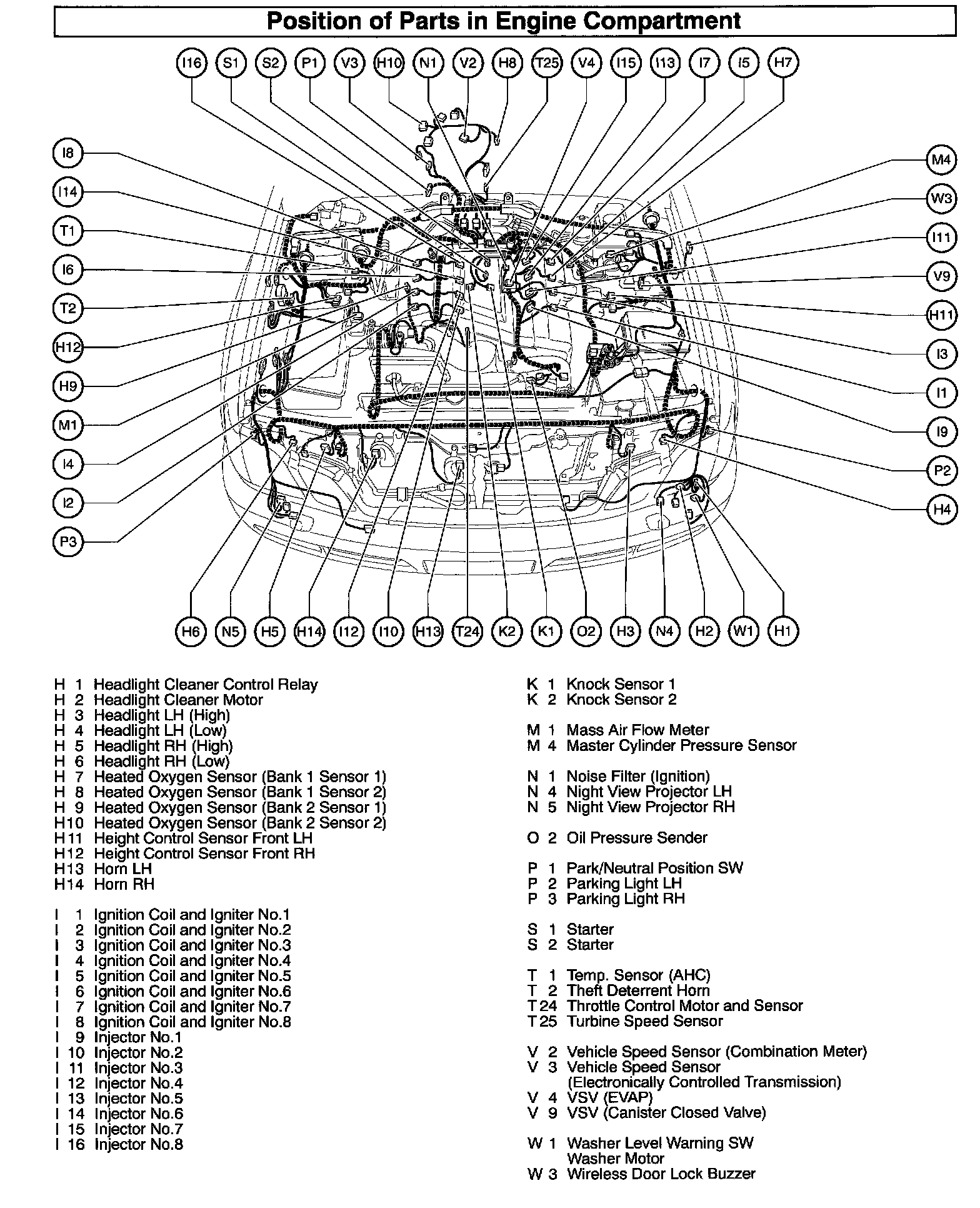

He - Wi:
