Flex Plate

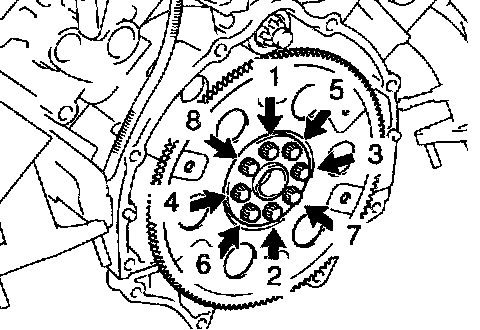

Drive plate x Crankshaft
1st 49 Nm (500 kgf-cm, 36 ft. lbs.)
2nd Turn 90°
Drive plate runout
Maximum 0.20 mm (0.0079 inch)
