Power Seat Control System: Location

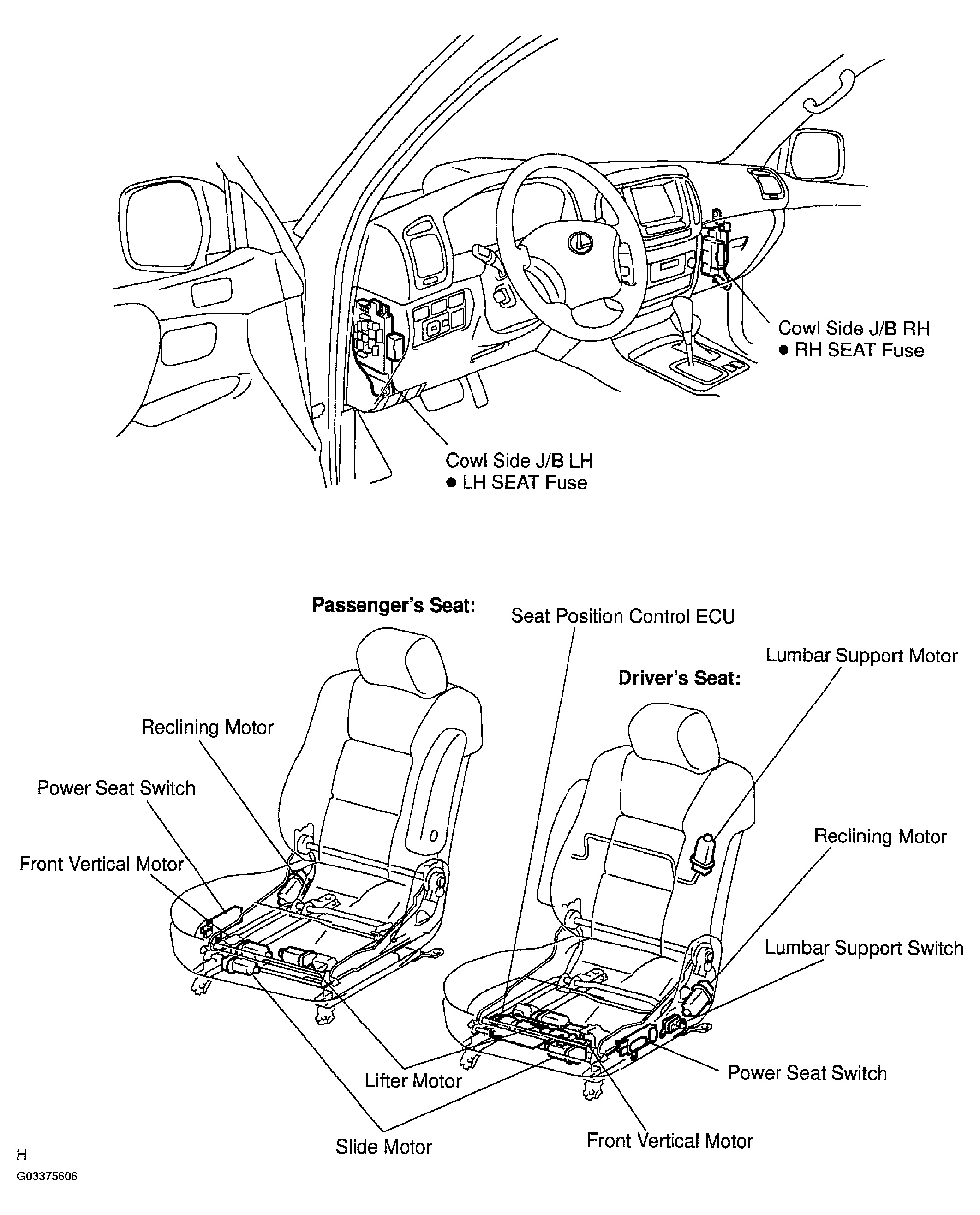

Fig 1: Identifying Power Seat Control System Components
G03375606Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
