Power Rear Quarter Window System: Inspection

INSPECT POWER QUARTER WINDOW SWITCH CONTINUITY

CONTINUITY SPECIFICATION

Switch position	Tester connection	Specified condition
CLOSE	3-4 5-6	Continuity
OFF	-	Continuity
OPEN	3-6 4-5	Continuity
Illumination Circuit	1 - 2	Continuity

If continuity is not as specified, replace the switch.

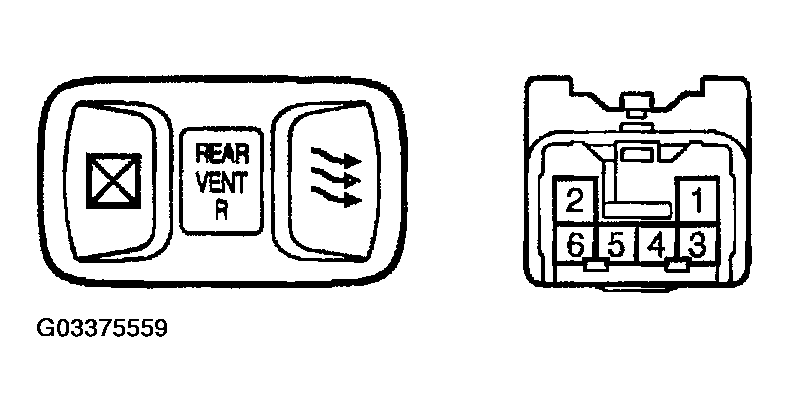

Fig 1: Inspecting Power Quarter Window Switch Continuity

G03375559

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

left side: INSPECT POWER VENT WINDOW MOTOR OPERATION
1. Connect the battery positive (+) lead to terminal 1 and the battery negative (-) lead to terminal 2, and check that the window link moves to OPEN position.

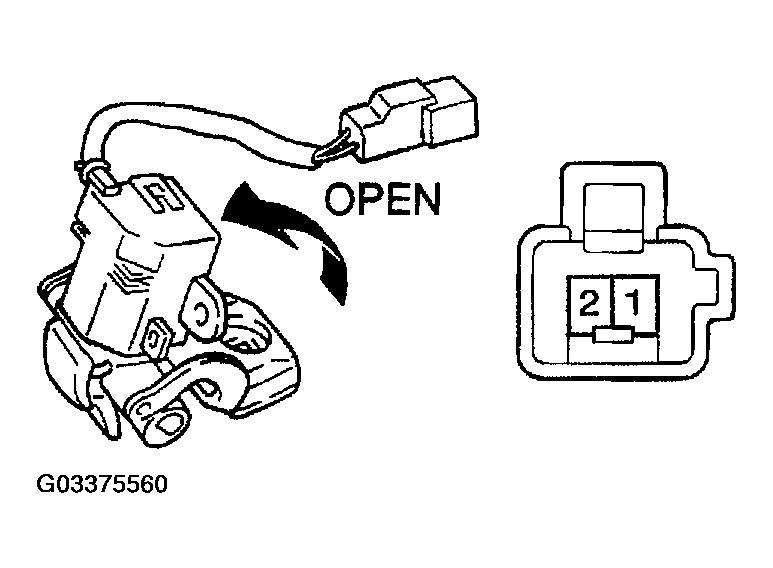

  Fig 2: Checking Window Link Moves To Open Position
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the polarity and check that the window link moves to CLOSE position.
If operation is not as specified, replace the window motor.

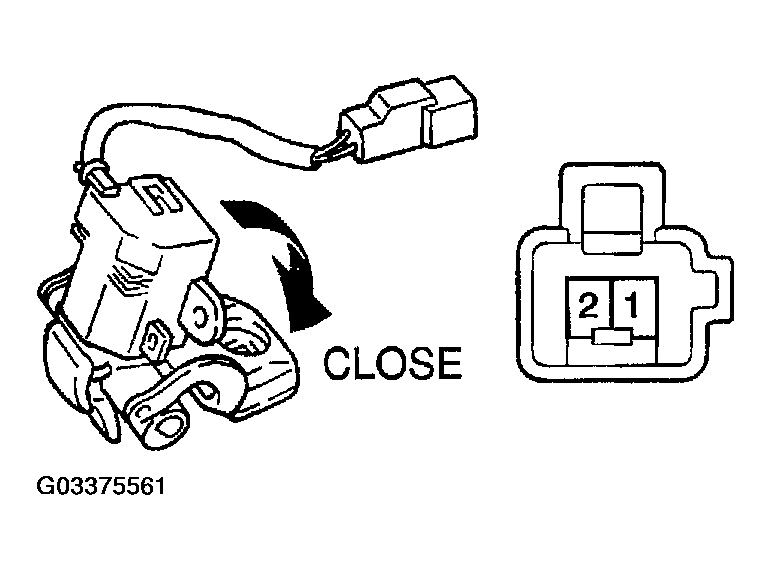

Fig 3: Removing Polarity & Check That Window Link Moves To Close Position
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Right side: INSPECT POWER VENT WINDOW MOTOR OPERA-
1. Connect the battery positive (+) lead to terminal 2 and the battery negative (-) lead to terminal 1, and check that the window link moves to OPEN position.

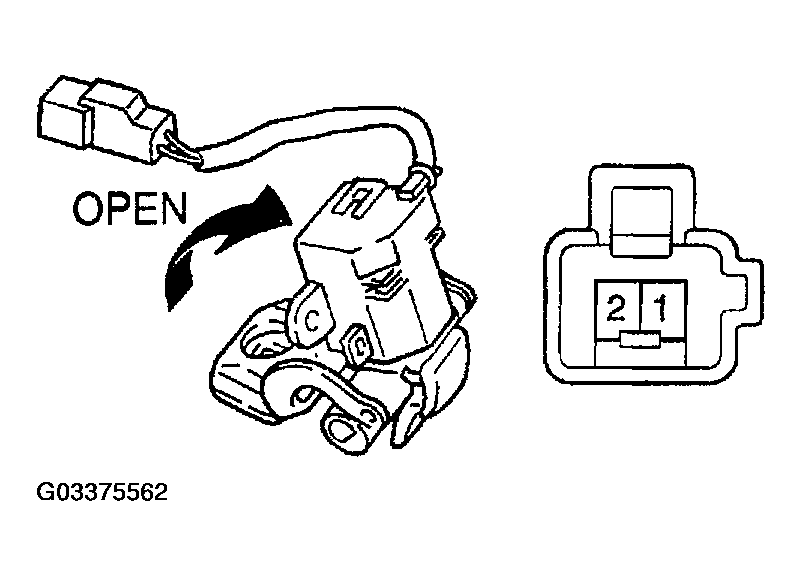

  Fig 4: Checking Window Link Moves To Open Position
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the polarity and check that the window link moves to CLOSE position.

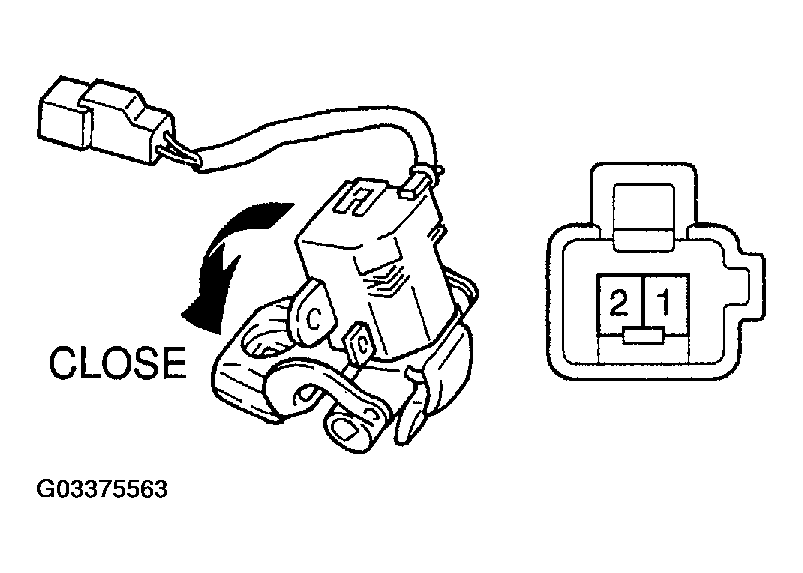

Fig 5: Removing Polarity & Check That Window Link Moves To Close Position
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
