Power Rear Quarter Window System: Location

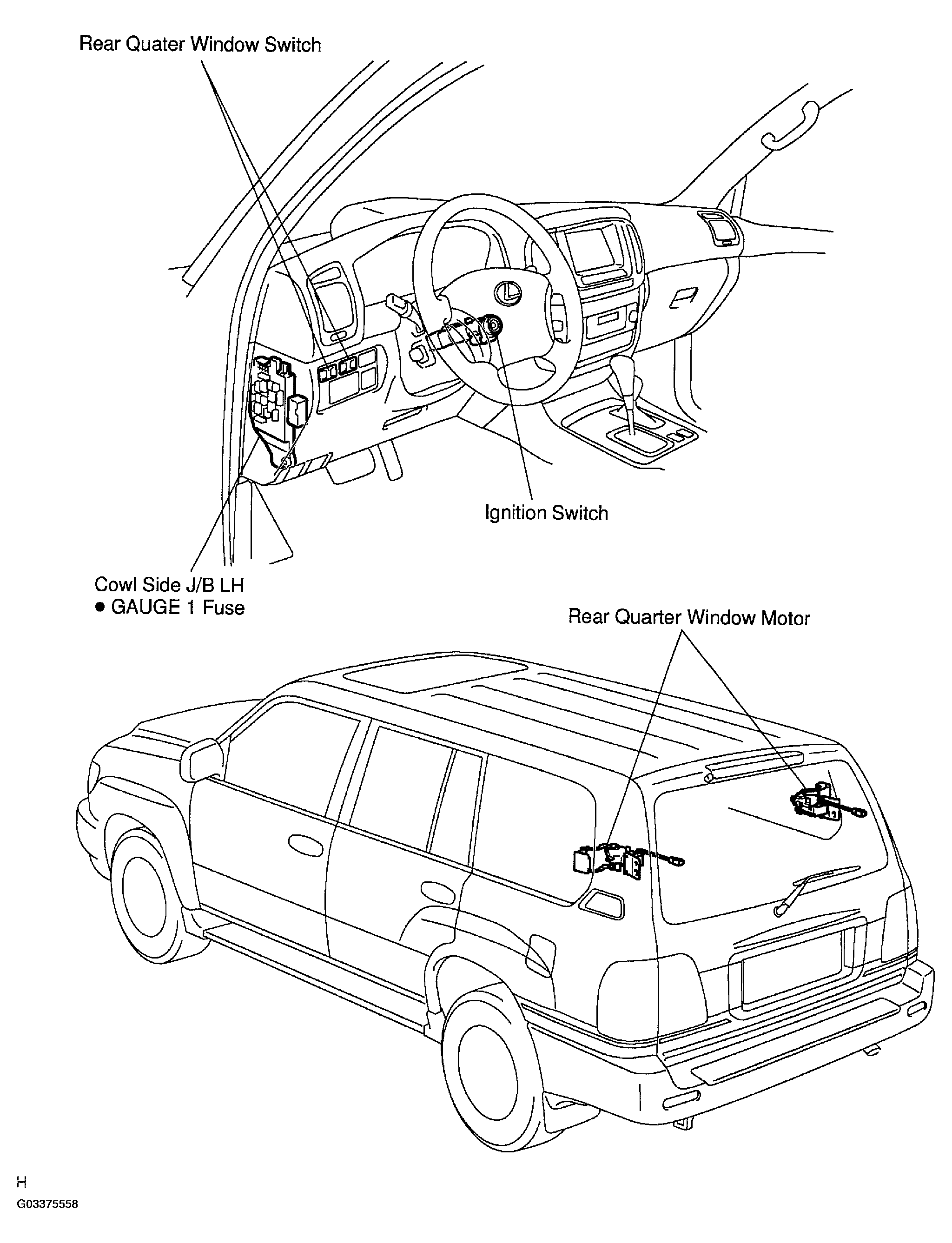

Fig 1: Identifying Component Location Of Power Rear Quarter Window System
G03375558Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
