Electrical Component Locator: Switches
SWITCHES LOCATION
| Component | Component Location |
|---|---|
| Accel Position Switch | Under left side of dash, above accelerator pedal. |
| Buckle Switch (2) | In respective front seat belt buckle. |

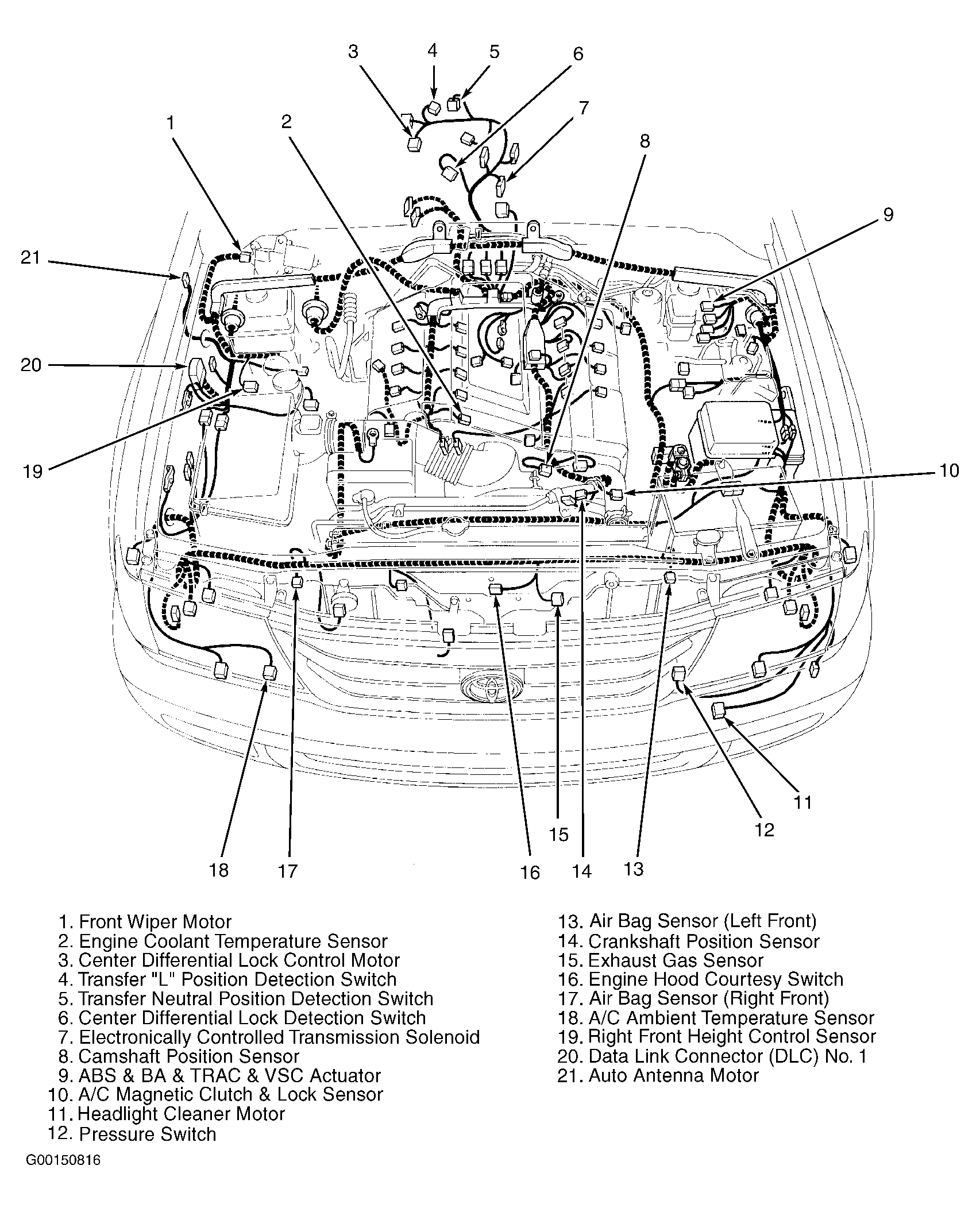

| Center Differential Lock Detection Switch | On center of differential. See Figure. |
| Engine Hood Courtesy Switch | On top center of radiator support. See Figure. |
| Fuel Control Switch | Behind center of dash. |
| Parking Brake Switch | On base of park brake lever. |

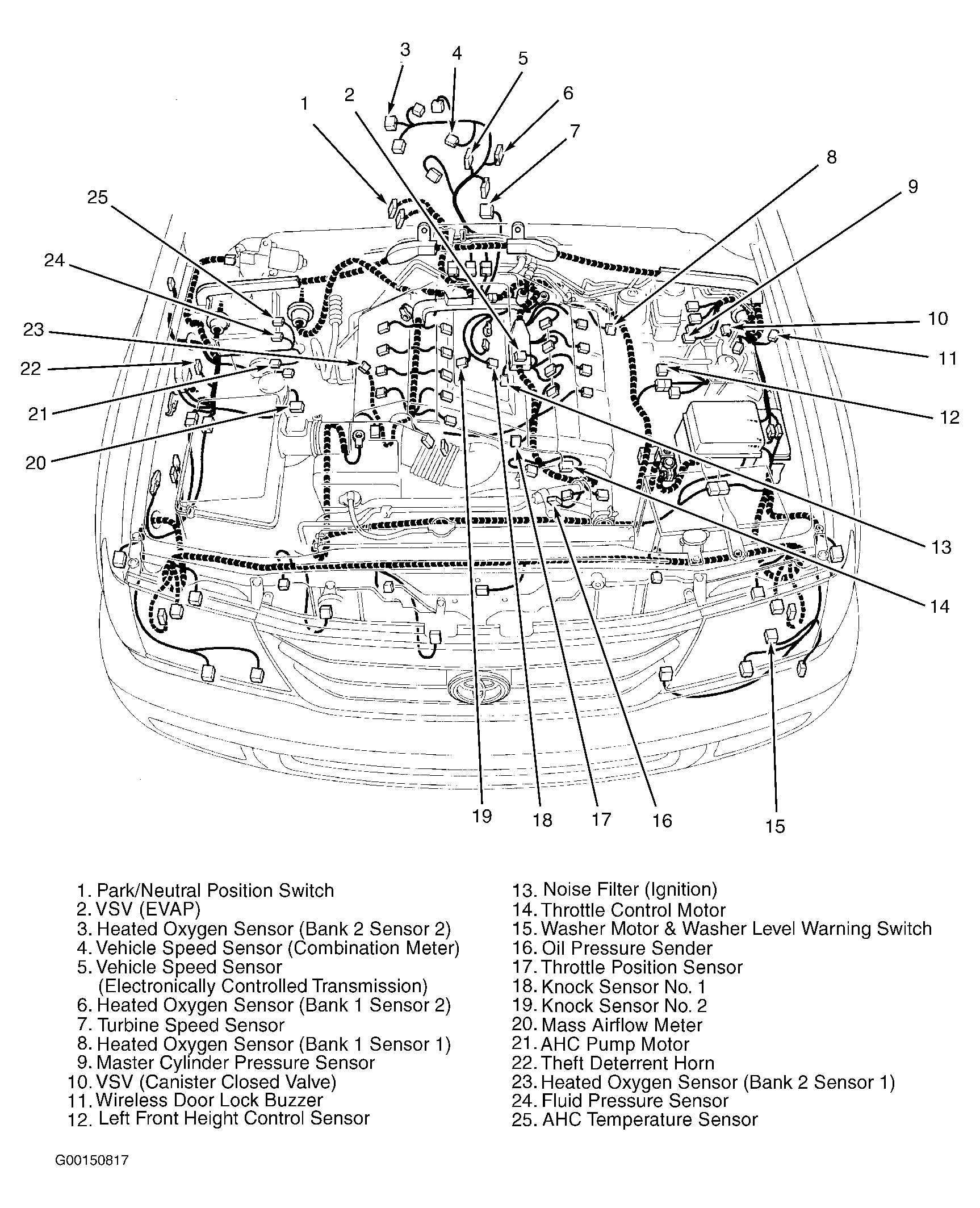

| Park/Neutral Position Switch | On right side of transmission. See Figure. |
| Pressure Switch | At left front of engine compartment, near headlight assembly. See Figure. |
| Stoplight Switch | On bracket, above brake pedal. |
| Transfer "L" Position Detection Switch | On right side of transmission. See Figure. |
| Transfer Neutral Position Detection Switch | On right side of transmission. See Figure. |
| Washer Level Warning Switch | At left front of engine compartment, below headlight. See Figure. |
