Combination Meter: Location

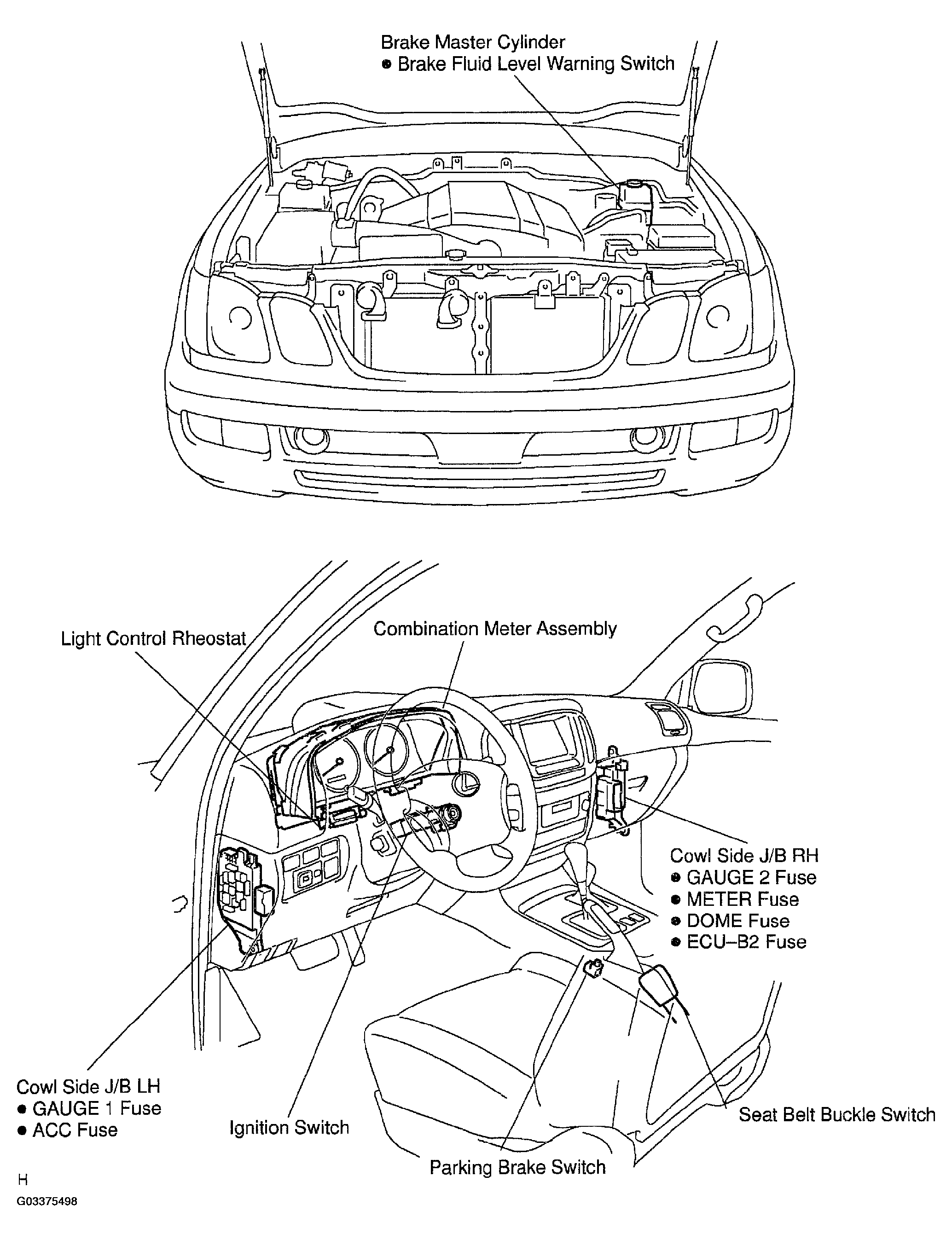

Fig 1: Identifying Component Location Of Combination Meter
G03375498Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

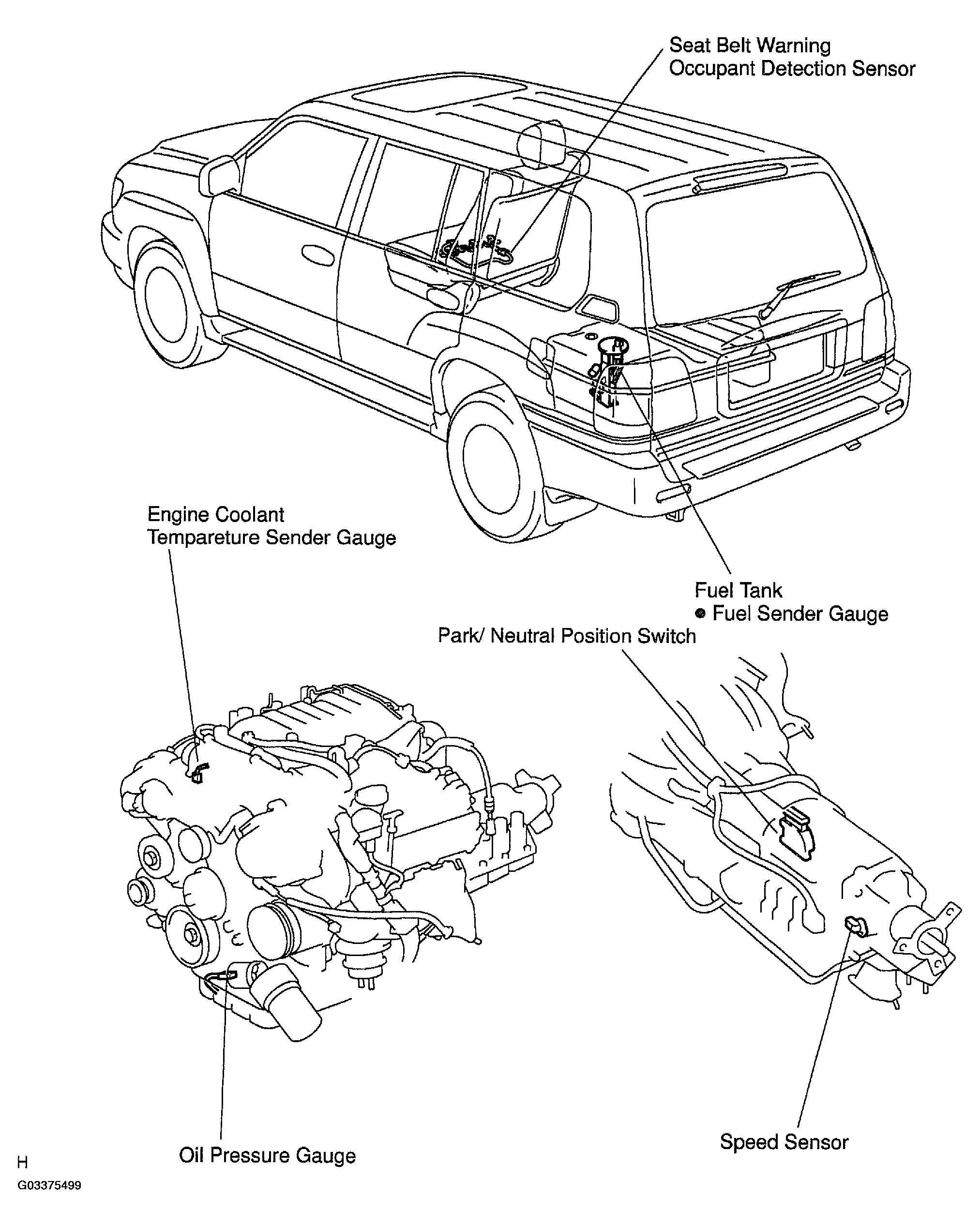

Fig 2: Identifying Component Location Of Fuel Tank & Engine Coolant Temperature Sender Gauge
G03375499Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
