Instrument Panel: Installation

  1. INSTALL REINFORCEMENT
  2. w/Night View:

    INSTALL NIGHT VIEW BATTERY ECU

    Install the night view battery ECU with the 2 screws.

  3. INSTALL NO. 1 BRACE
  4. INSTALL FLOOR BRACE
  5. INSTALL GLOVE COMPARTMENT DOOR DAMPER
  6. INSTALL NO. 4 HEATER TO REGISTER DUCT
  7. INSTALL NO. 3 HEATER TO REGISTER DUCT
  8. INSTALL ECM (See  ENGINE CONTROL MODULE (ECM)  )
  9. INSTALL INSTRUMENT PANEL

    HINT:

    • Install the airbag connector between the No. 5 heater to, register duct and the center bracket temporarily, then install the instrument panel.
    • Remove the airbag connector before installing the lower No. 2 panel.
    1. install the 6 bolts, the 2 nuts and the instrument panel, then connect the connectors.
    2. Install the 2 bolts to the front passenger airbag assembly.

      Torque: 20 N.m (204 kgf.cm, 15 ft.lbf)

    3. Connect the junction connectors.

    HINT:

    The connectors can be connected by tightening the bolts.

  10. INSTALL TRANSCEIVER FINISH PLATE NO. 2 ASSEMBLY

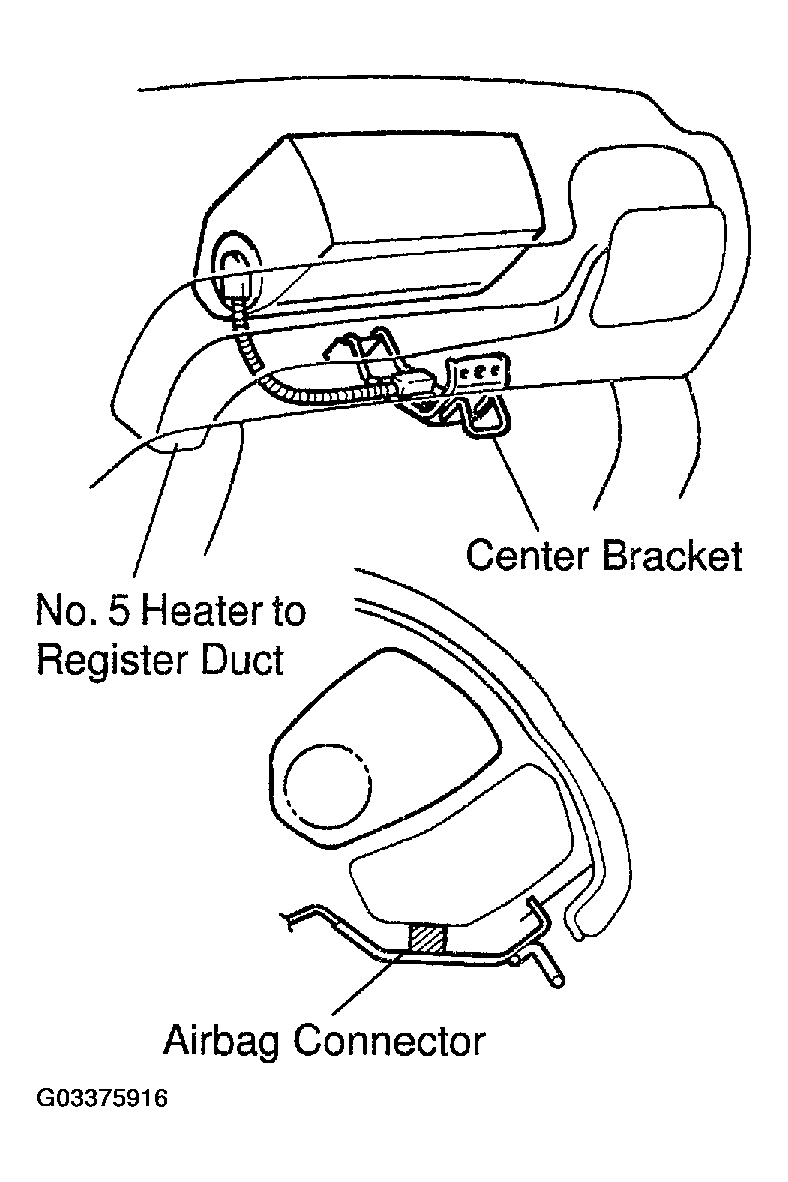

    Fig 1: Installing Airbag Connector Between No. 5 Heater To Register Duct & Center Bracket
    G03375916Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. w/ Night View:

    INSTALL NIGHT VIEW DISPLAY

    Install the night view display with the 4 screws.

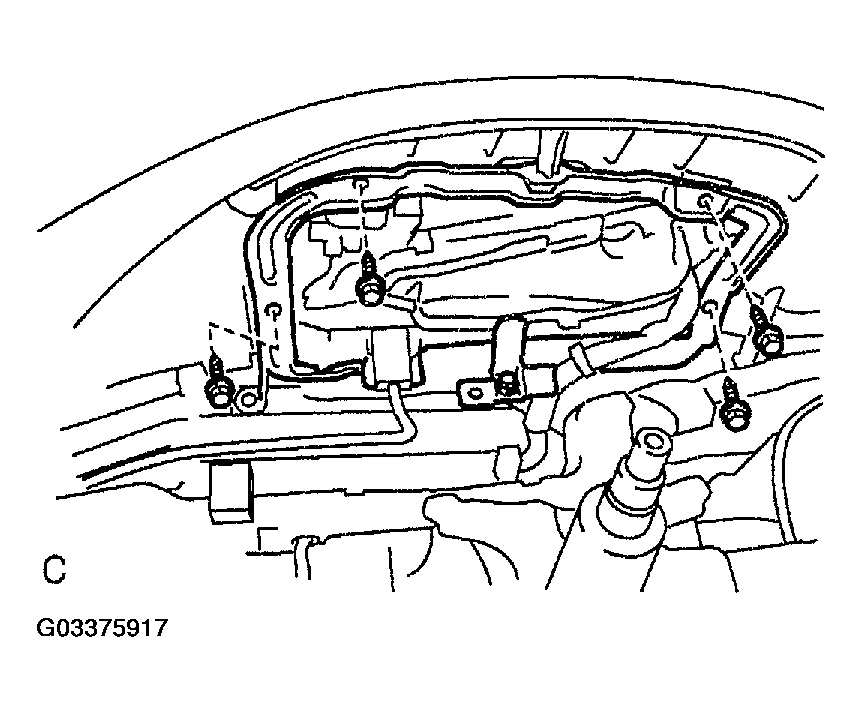

    Fig 2: Installing Night View Display - W/ Night View
    G03375917Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. w/ Night View:

    INSTALL NIGHT VIEW ECU

    1. Connect the connectors to the night view ECU.
    2. Install the night view ECU with the 3 bolts.

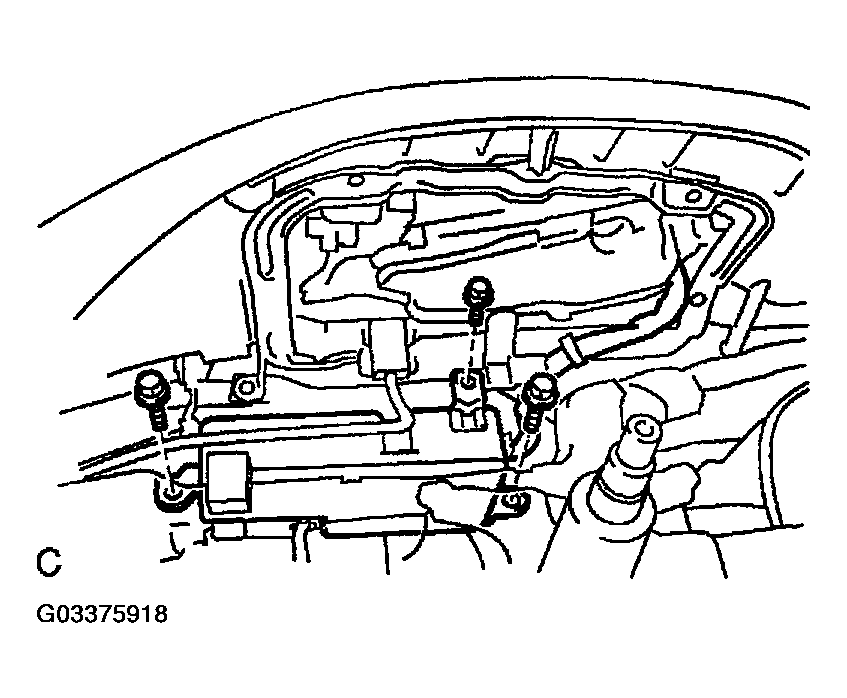

    Fig 3: Installing Night View ECU - W/ Night View
    G03375918Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. INSTALL FRONT CONSOLE BOX AND CONSOLE BOX MOUNTING BRACKET NO. 4

    Install the front console box and the console box mounting bracket No. 4 with the 4 bolts.

  14. INSTALL FRONT ASH RECEPTACLE RETAINER
    1. Install the front ash receptacle retainer with the 2 screws.
    2. Install the front ash receptacle box.

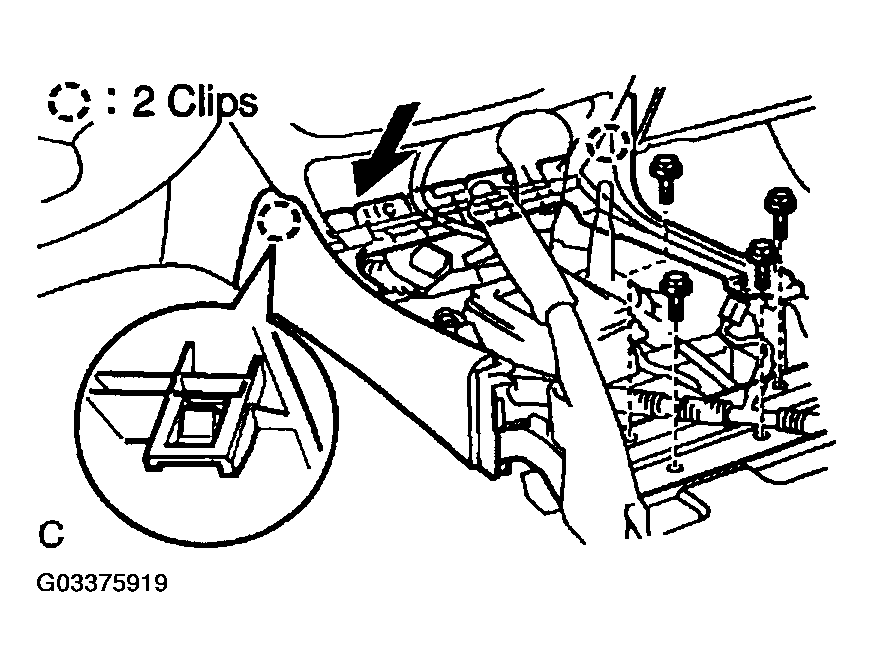

    Fig 4: Installing Front Console Box & Console Box Mounting Bracket No. 4
    G03375919Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. INSTALL CENTER LOWER CLUSTER FINISH PANEL

    Connect the connectors, then install the center lower cluster finish panel.

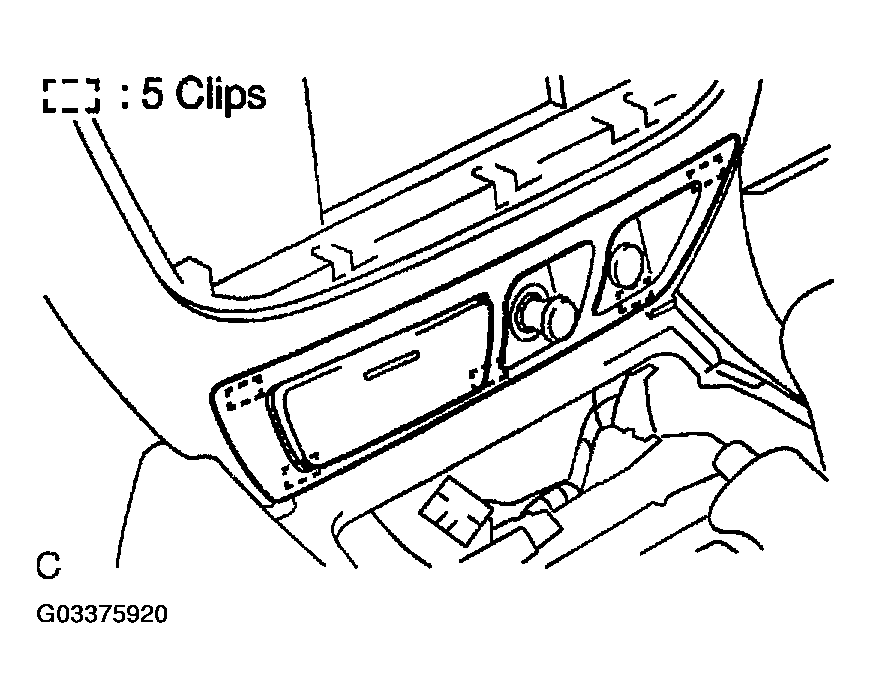

    Fig 5: Installing Center Lower Cluster Finish Panel
    G03375920Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. w/(c) Disc Player Changer, LEXUS Link System:

    INSTALL REAR CONSOLE BOX

    Install the rear console box with the 4 bolts and the 4 screws.

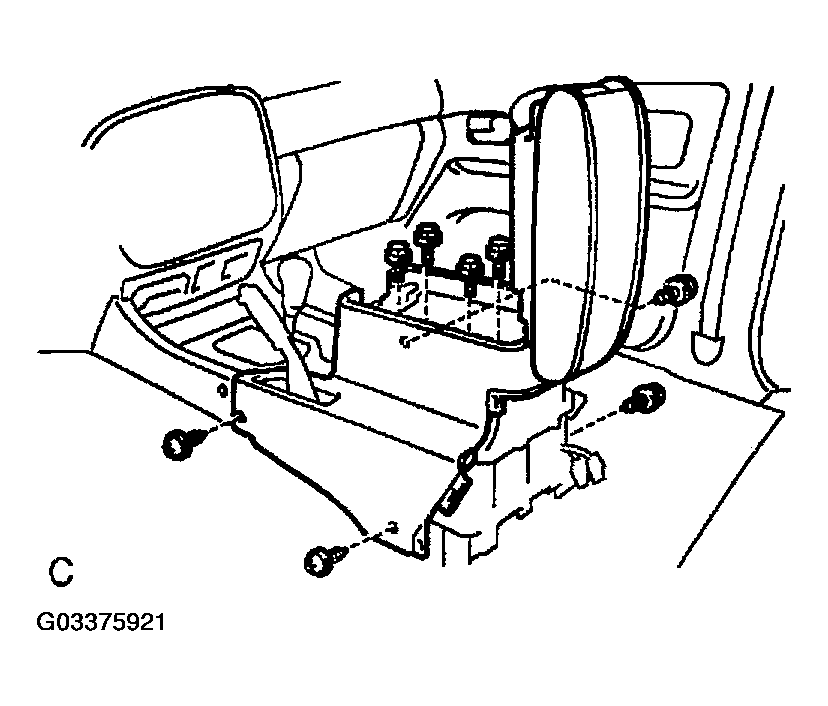

    Fig 6: Installing Rear Console Box - W/(C) Disc Player Changer, Lexus Link System
    G03375921Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. w/ Disc Player Changer:

    INSTALL REAR CONSOLE BOX

    Install the rear console box with the 2 bolts and the 6 screws.

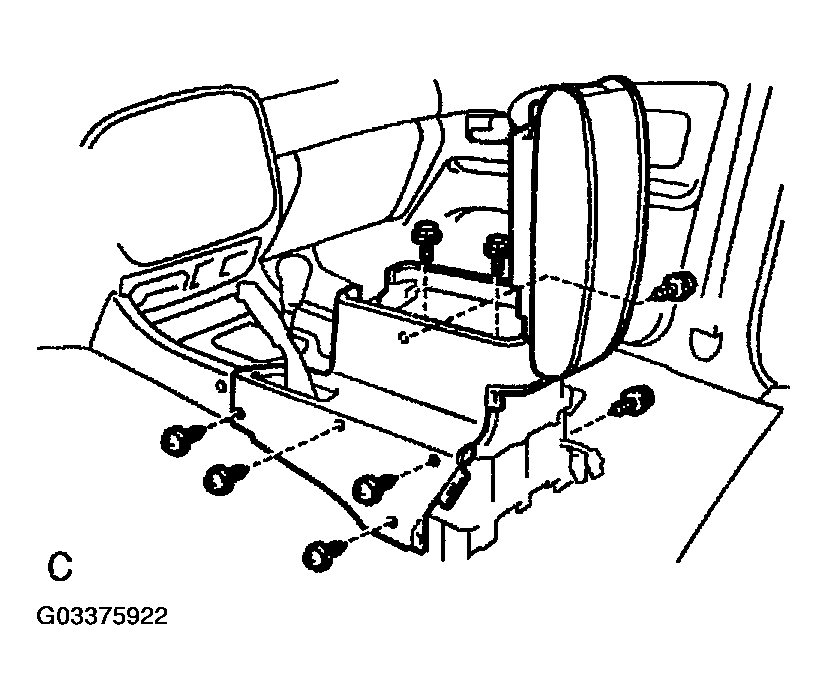

    Fig 7: Installing Rear Console Box - W/Disc Player Changer
    G03375922Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. w/LEXUS Link System:

    INSTALL REAR CONSOLE BOX

    Install the rear console box with the 2 nuts, the 6 screws.

  19. INSTALL REAR RADIO CONTROL PANEL

    Install the rear radio control panel with the 3 screws, and connect the connector.

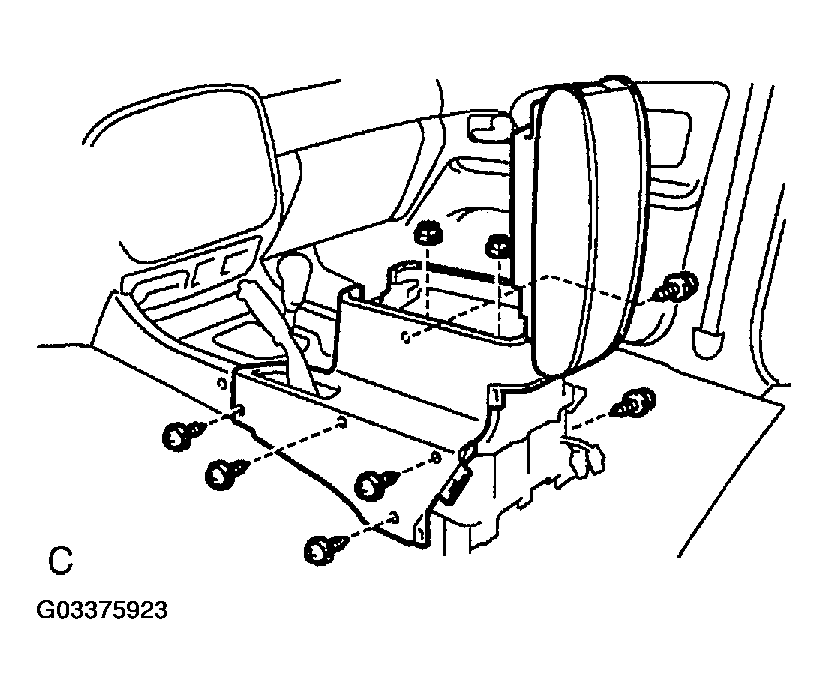

    Fig 8: Installing Rear Console Box - W/Lexus Link System
    G03375923Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  20. INSTALL CONSOLE REAR END PANEL
    1. Install the console rear end panel with the 2 screws.
    2. Install the console cup holder box.
  21. INSTALL UPPER CONSOLE PANEL

    Install the upper console panel, then install the transfer shift lever knob.

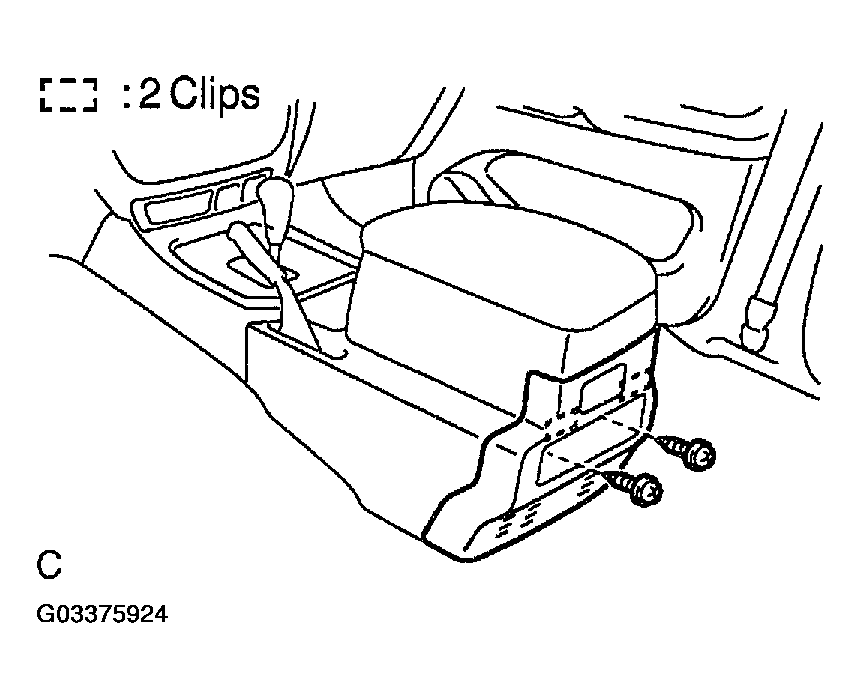

    Fig 9: Installing Console Rear End Panel
    G03375924Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  22. INSTALL RADIO WITH A/C CONTROL ASSEMBLY

    Install the radio with A/C control with the 4 bolts.

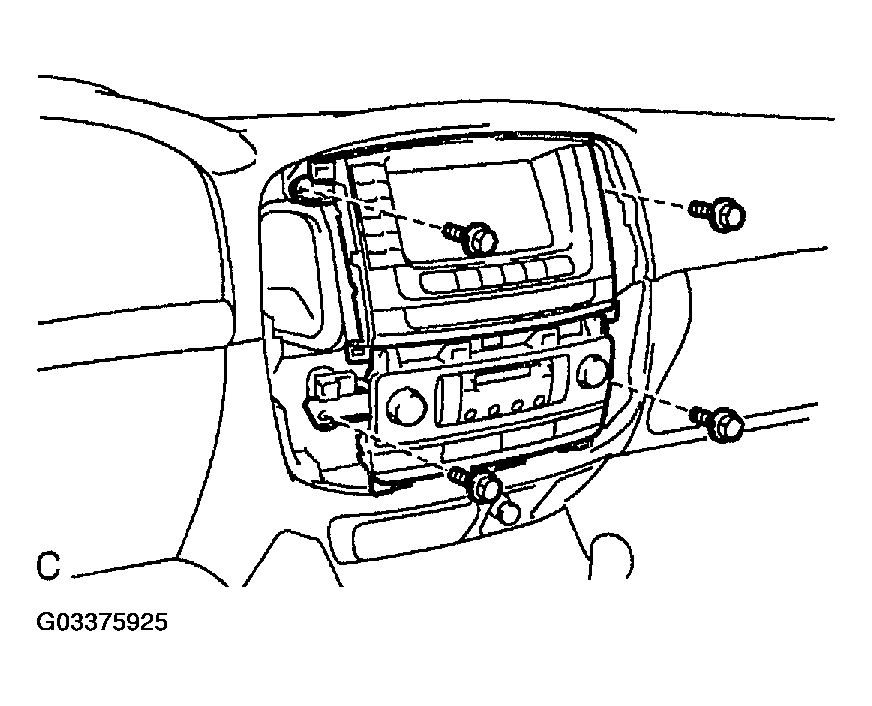

    Fig 10: Installing Radio With A/C Control Assembly
    G03375925Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  23. INSTALL INSTRUMENT CLUSTER FINISH PANEL

    Connect the connectors, then install the instrument cluster finish panel.

  24. INSTALL CENTER RESISTER

    Install the center resister.

  25. INSTALL LOWER NO. 2 PANEL

    Install the lower No. 2 panel with the 3 screws.

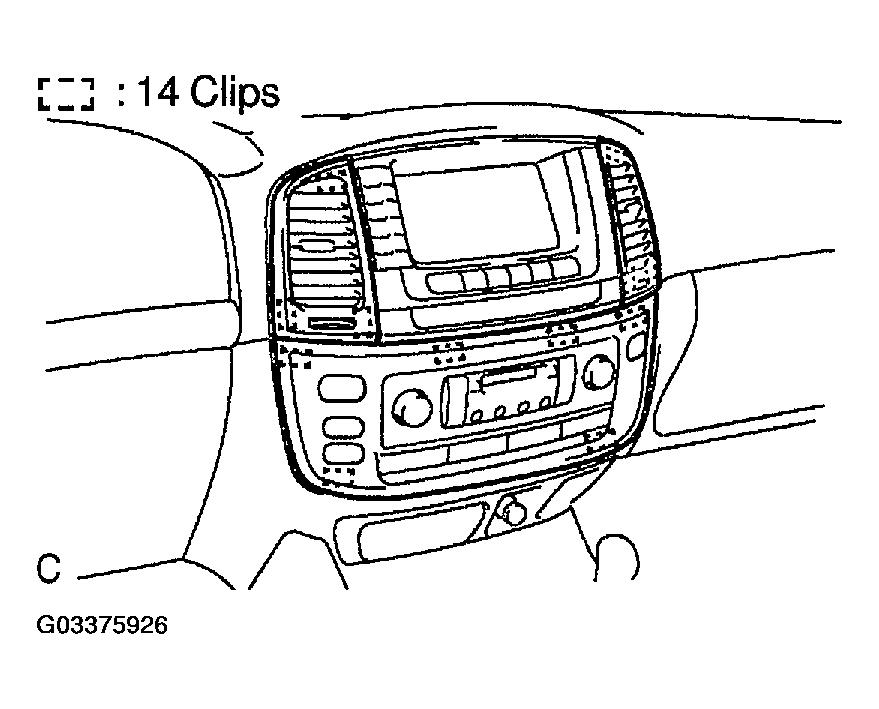

    Fig 11: Installing Instrument Cluster Finish Panel
    G03375926Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  26. CONNECT AIRBAG CONNECTOR (See  DISABLING & ACTIVATING AIR BAG SYSTEM  )
  27. INSTALL GLOVE COMPARTMENT DOOR
    1. Connect the glove compartment door damper clip, then install the glove compartment door.
    2. Install the 2 screws.

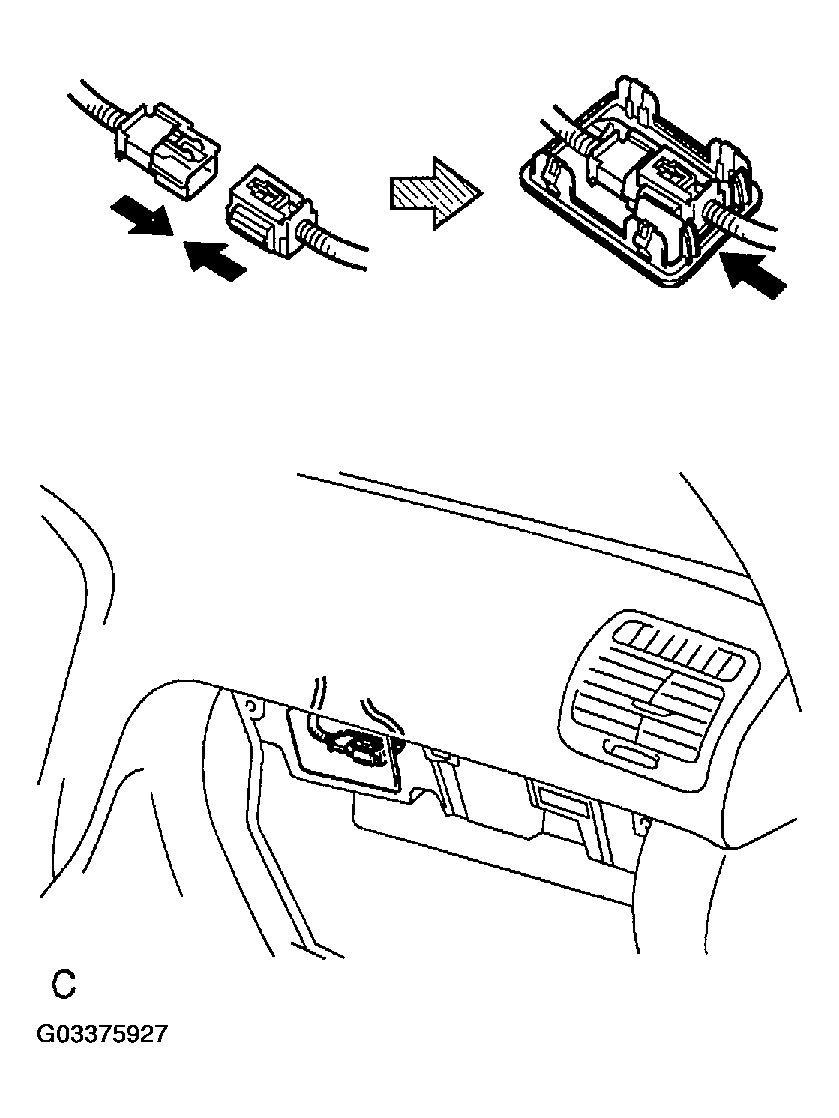

    Fig 12: Installing Glove Compartment Door
    G03375927Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  28. INSTALL COMBINATION METER
    1. Check that the set-in connectors are connected in the installation holes on the instrument panel securely.
    2. Place the combination meter on the instrument panel.
    3. Install the combination meter by tightening the screws, A, B and C in the order.

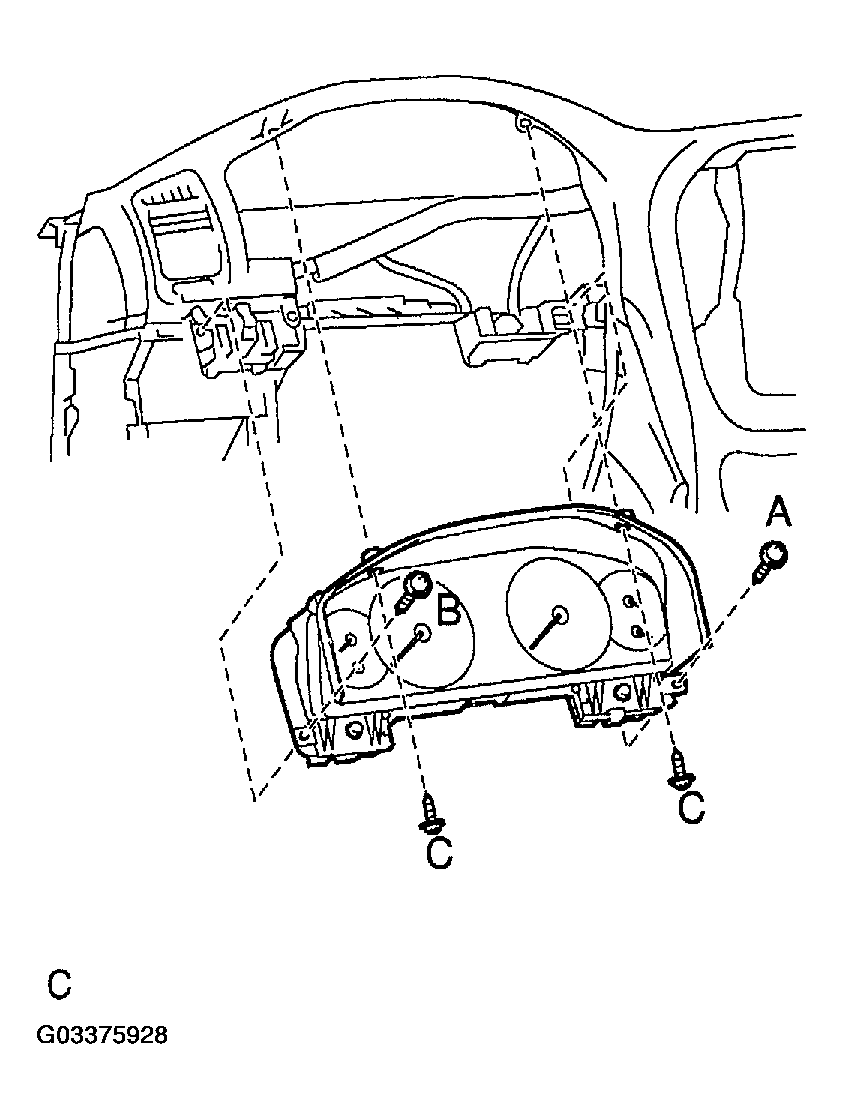

      Fig 13: Installing Combination Meter
      G03375928Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Tighten the connection bolts.

    HINT:

    • When the connection is completed, the bolts should turn vainly, causing turning noise.
    • Check that the connection check pins protrude from the lower side of the connection bolts.
    NOTE: Follow the procedures in the order of (c) and (d). Otherwise, the set-in connectors on the wire harness side and on the meter side might not be connected properly.

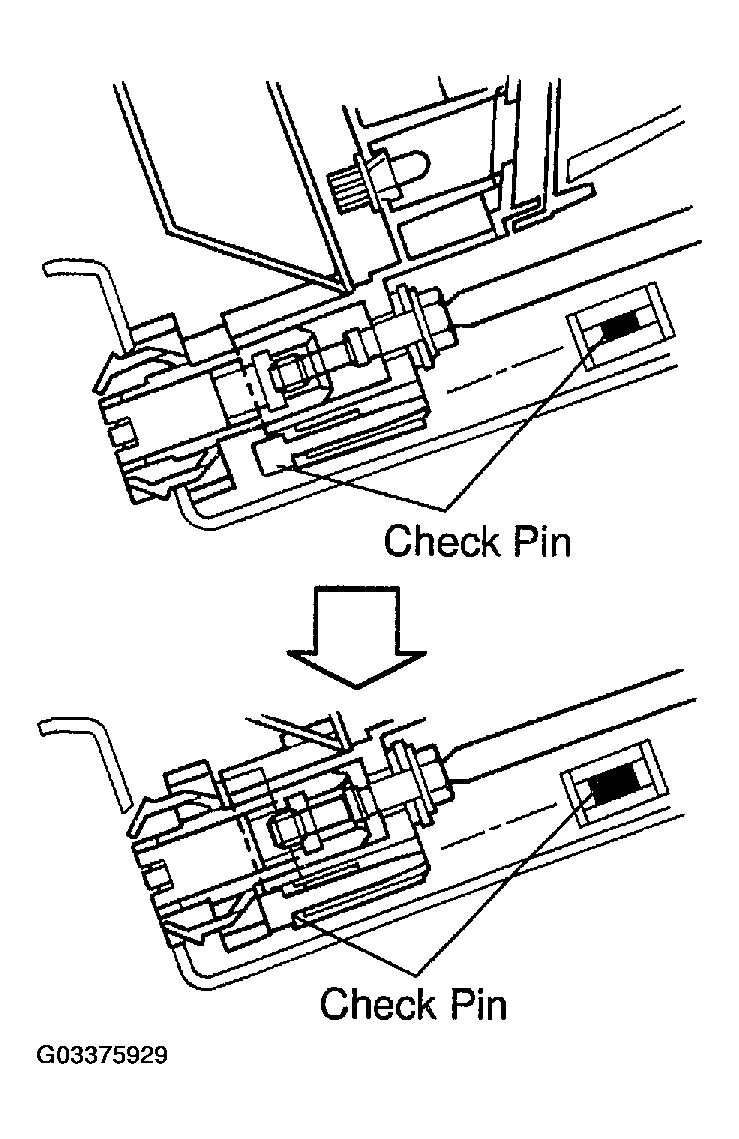

    Fig 14: Identifying Check Pins Protrude From Lower Side Of Connection Bolts
    G03375929Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  29. INSTALL NO. 2 HEATER TO REGISTER DUCT
    1. Install the No. 2 heater to register duct with the screw.
    2. Install the transceiver finish plate No. 1 assembly with the screw, and connect the connector.

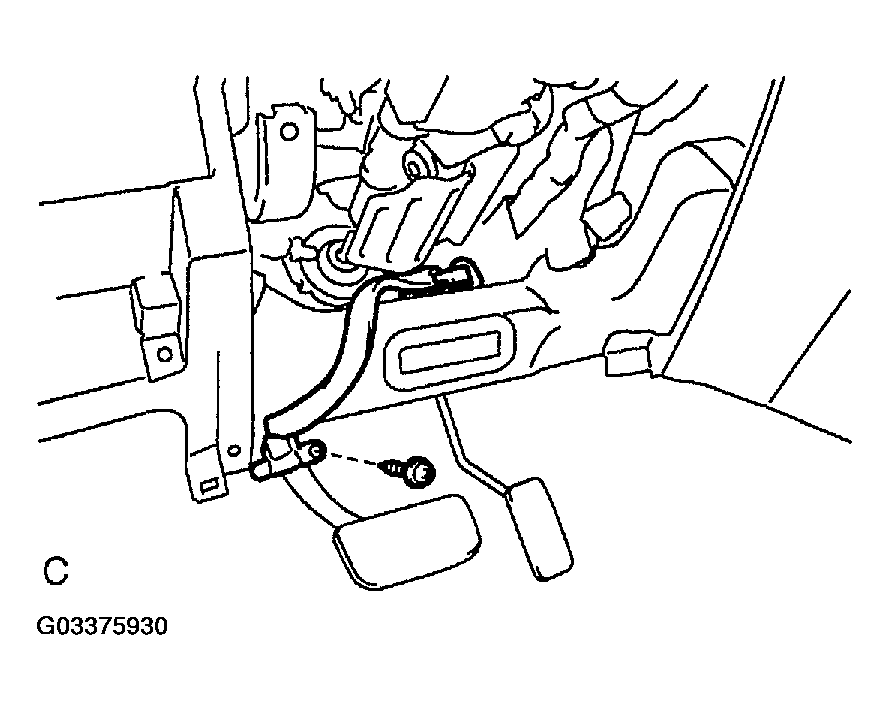

    Fig 15: Installing No. 2 Heater To Register Duct
    G03375930Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  30. INSTALL COMBINATION SWITCH
    1. Install the combination switch with the 4 screws.
    2. Install the clump, then connect the connectors.
  31. INSTALL COLUMN COVERS

    Install the column covers with the 3 screws.

  32. INSTALL LH LOWER PANEL

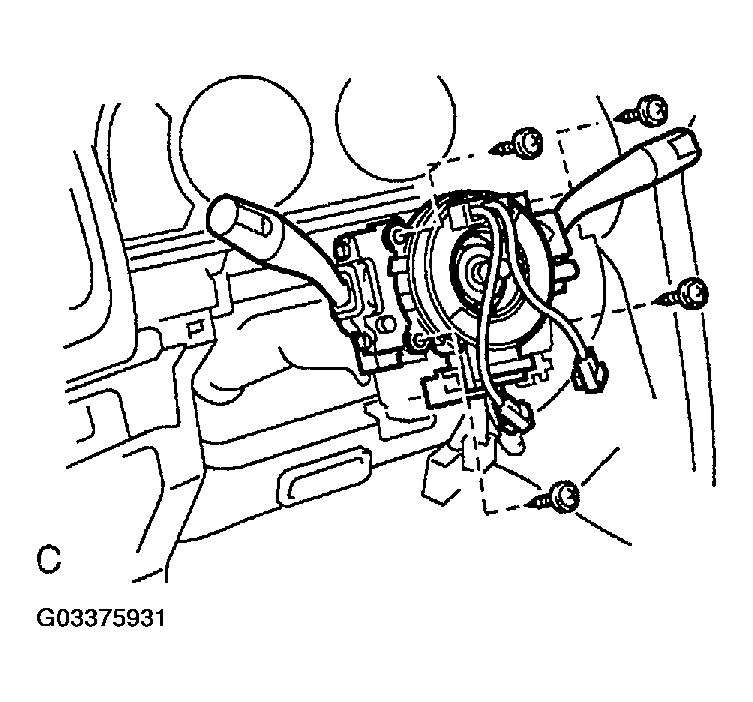

    Fig 16: Installing Combination Switch With 4 Screws
    G03375931Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  33. INSTALL LOWER NO. 1 PANEL

    Connect the connector, then install the lower No. 1 panel with the screw.

  34. INSTALL HOOD LOCK AND FUEL LID CONTROL CABLE LEVER
    1. Install the fuel lid control cable lever with the 2 screws.
    2. Install the hood lock control cable with the 2 screws.

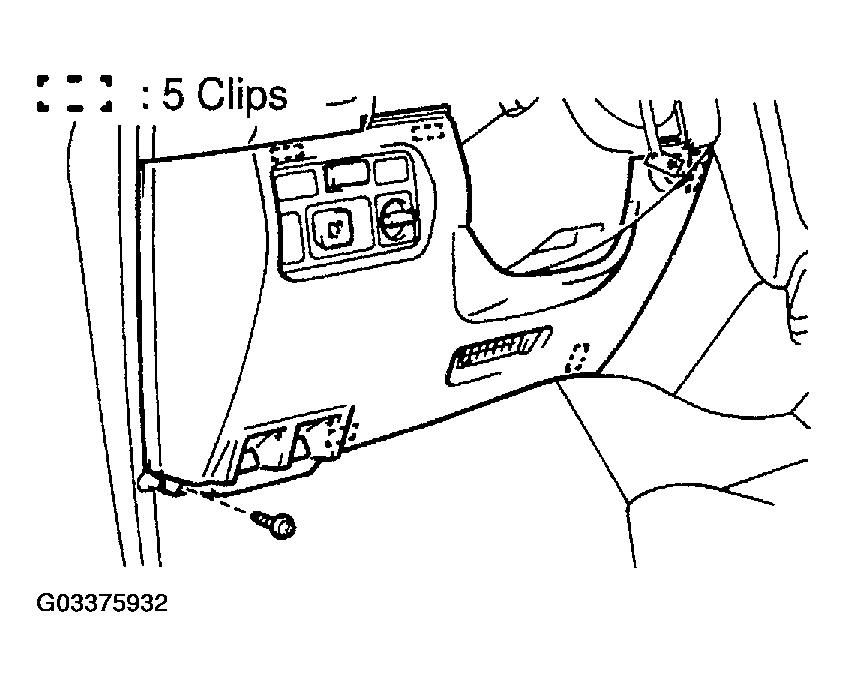

    Fig 17: Installing Lower No. 1 Panel With Screw
    G03375932Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  35. INSTALL CLUSTER FINISH PANEL

    Connect the connector and the cluster finish panel.

  36. INSTALL STEERING WHEEL (See  STEERING WHEEL  )
  37. INSTALL STEERING WHEEL PAD (See  STEERING WHEEL  )

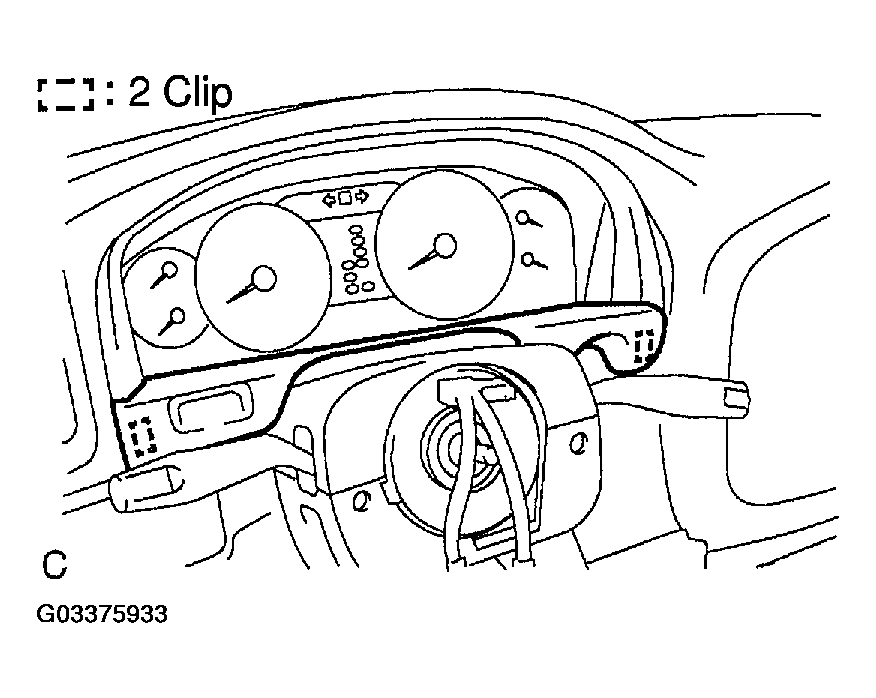

    Fig 18: Installing Cluster Finish Panel
    G03375933Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  38. INSTALL FRONT PILLAR GARNISH
    1. Install the front pillar garnish.
    2. Use the same manner described above to the other side.
    3. Install the assist grip with the 2 screws, then install the 2 assist grip plugs.
    4. Use the same manner described above to the other side.
  39. INSTALL FRONT DOOR OPENING TRIMS
  40. INSTALL COWL SIDE TRIMS
  41. INSTALL FRONT DOOR SCUFF PLATES
Fig 19: Installing Front Pillar Garnish
G03375934Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
