Fuel Pump Relay

Ensure ignition is off. Remove F/PUMP relay from relay box at driver's side front corner of engine compartment, near battery.
To test F/PUMP relay continuity, use ohmmeter to check for continuity and no continuity between specified terminals on F/PUMP relay. See Fig 1.
Apply battery positive voltage across terminals No. 1 and 2. See Fig 2.
Using an ohmmeter, check that there is continuity between terminals No. 3 and 5.
If continuity is not as specified, repair or replace as necessary.

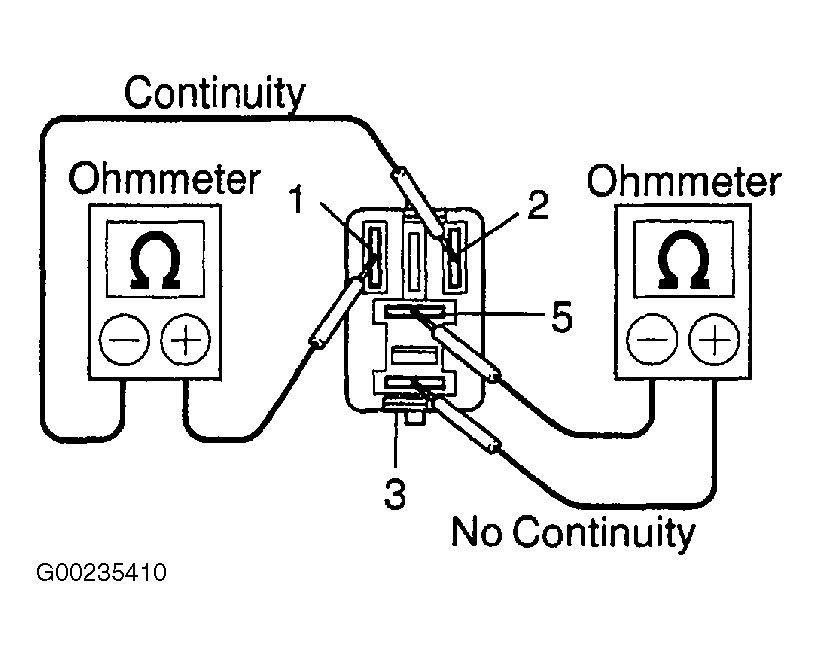

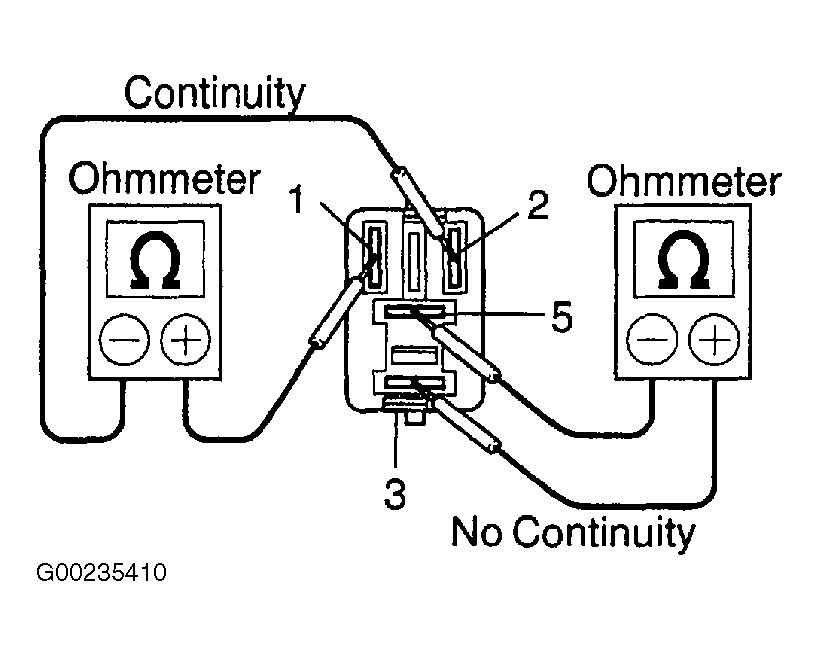

Fig 1: Inspecting Fuel Pump Relay Continuity

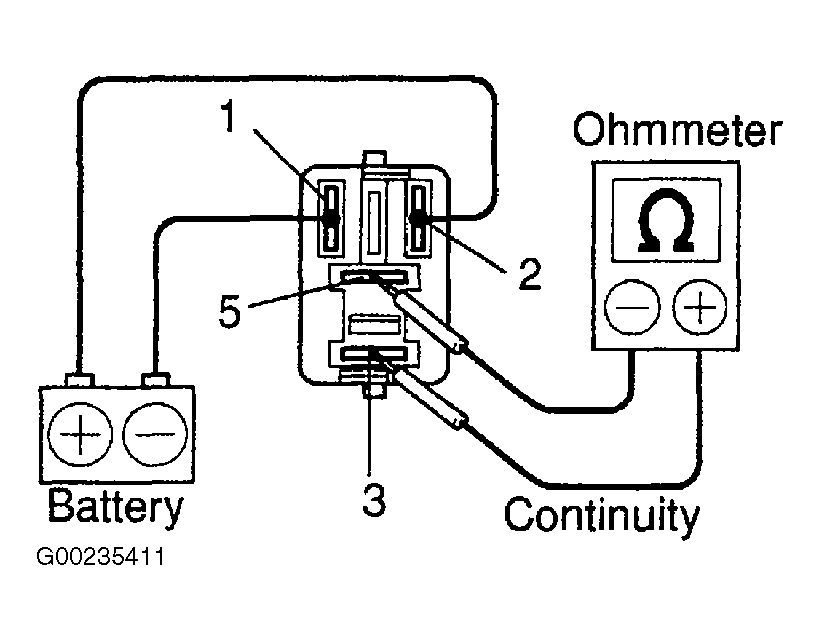

Fig 2: Inspecting Fuel Pump Relay Operation
