Park/Neutral Position Switch

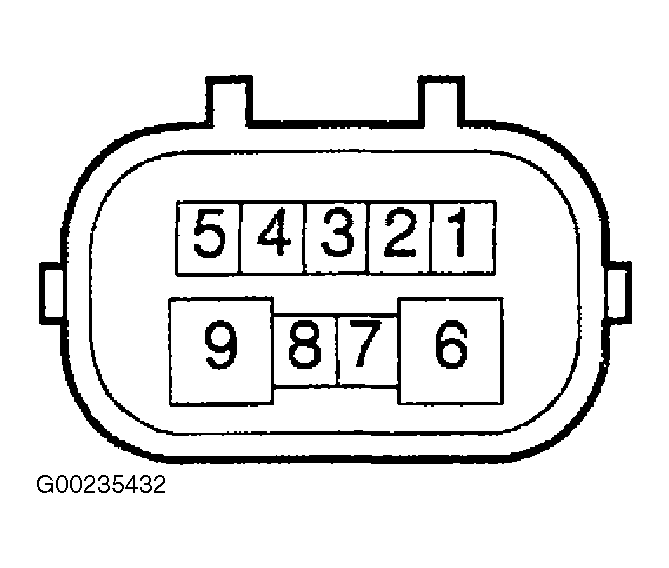

- Disconnect electrical connector at Park/Neutral Position (PNP) switch. PNP switch is mounted on side of transmission. Note terminal identification. See Fig 1.
- Using ohmmeter, check for continuity between specified terminals with shift lever in proper positions. See PARK/NEUTRAL POSITION SWITCH SPECIFICATIONS table. If proper continuity cannot be obtained, adjust or replace PNP switch as necessary.
PARK/NEUTRAL POSITION SWITCH SPECIFICATIONS
| Gear Position | Terminals No. |
|---|---|
| Park | 1-3 & 6-9 |
| Reverse | 2-3 |
| Neutral | 3-5 & 6-9 |
| Drive | 3-7 |
| 2 | 3-4 |
| Low | 3-8 |
