LEXUS LINK SYSTEM ERROR DETECTED

TECHNICAL SERVICE BULLETIN

Reference Number(s): EL009-03, Date of Issue: August 21, 2003

LEXUS:	2003 LX 470
SECTION:	ELECTRICAL
COPYRIGHT:	© 2018 Lexus, a division of Toyota Motor Sales, USA License Agreement TMS1002

Introduction

If an owner pauses while turning the ignition key and the ignition switch is between the ACC position and the ON position (IG1 is ON and IG2 is OFF), the Lexus Link ECU will start up but the SRS system will not have power. The Lexus Link system receives its start-up signal from IG1 and the SRS system receives its power supply from IG2. The Lexus Link ECU will assume that there is a fault in the connection between the Lexus Link ECU and the SRS system and the Lexus Link ECU will announce: "A Lexus Link system error has been detected." Also, an automatic emergency call or service call may be made to the Lexus Link call center. To address this issue, an additional wiring harness has been developed.

Applicable Vehicle

2003 model year LX 470 vehicles produced BEFORE the Production Change Effective VIN shown below.

PRODUCTION CHANGE INFORMATION

MODEL	PRODUCTION CHANGE EFFECTIVE VIN
LX 470	JTJHT00W#33533323

Parts Information

PARTS INFORMATION

PREVIOUS PART NUMBER	CURRENT PART NUMBER	PART NAME	QTY
N/A	82989-60020	Wire, Connecting Repair	1

WARRANTY INFORMATION

OP CODE	DESCRIPTION	TIME	OFP	T1	T2
EL3001	Lexus Link Wire Installation	0.5	86710-0W050	72	99

NOTE: Applicable Warranty*:
This repair is covered under the Lexus Comprehensive Warranty. This warranty is in effect for 48 months or 50,000 miles, whichever occurs first, from the vehicle's in-service date.

* Warranty application is limited to correction of a problem based upon a customer's specific complaint.

Repair Procedure

HINT: For details about removal of each part, refer to the Technical Information System (TIS): 2003 LX 470 Repair Manual: Body (Mechanical): Instrument Panel: Removal

How to Check if the Lexus Link System Is Functioning
1. Performing the check when the ignition switch is turned ON (Reference):
  1. Turn the ignition switch OFF and turn it ON again. Start the engine. Three possible audio messages can be output from the vehicle depending on the status of the Lexus Link system.
    1. If the customer has a current Lexus Link subscription (Active Mode), an English message will play:
      "The Lexus Link system is active."
    2. If the customer has an expired Lexus Link subscription (Dealer Mode), an English message will play:
      "The Lexus Link system is not active. To activate your Lexus Link system, press the Service button now."
    3. If the Lexus Link system is initial mode* (Factory Mode), a Japanese message (with a female voice) will play:
      (You will hear a Japanese message with female voice.)

      * Mode has not been switched yet.
  2. Wait for 30 seconds. Listen for error messages.
2. Performing the diagnosis check (check before and after servicing the Lexus Link system).
  1. Turn the ignition switch OFF.
  2. Press and hold the "play" button or the "volume up" button. With the button pressed, turn the ignition switch ON, OFF, ON, OFF and then ON within 15 seconds.
    - If the voice message, "System OK," is confirmed, there is no problem with the Lexus Link system.
    - If an error message is heard, refer to the service manuals.
3. Turn the ignition switch to LOCK.
  NOTE: CAUTION BEFORE DISCONNECTING THE NEGATIVE BATTERY TERMINAL: Turn the ignition switch to the LOCK position and wait for approximately 30 seconds. Then, disconnect the negative (-) terminal cable from the battery and wait for 90 seconds. Then you may start working on the vehicle. Disconnecting the negative (-) terminal cable within 10 seconds after the ignition switch is turned to the LOCK position will activate the Lexus Link system using the back-up battery and cause the system to make an emergency call. Working on the vehicle within 90 seconds after the negative (-) terminal cable is disconnected may deploy the SRS using the SRS's back-up power source.
4. Disconnect the negative (-) terminal cable from the battery.
Remove Front Door Scuff Plate RH

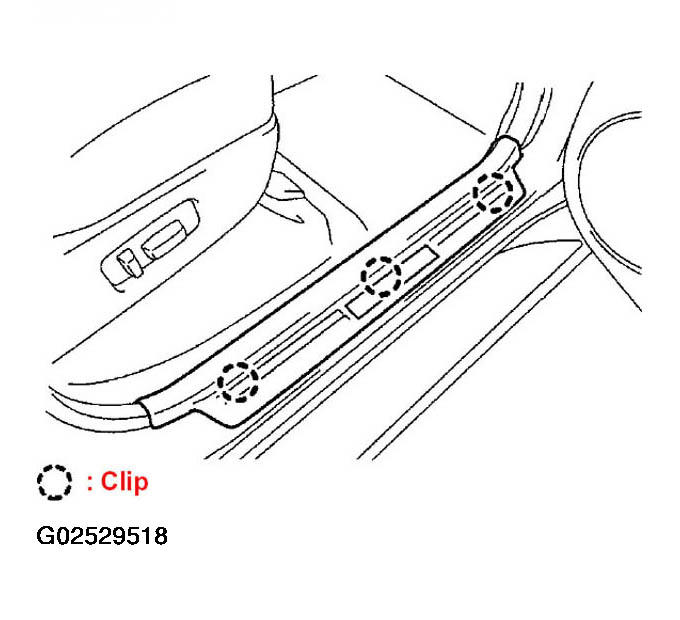

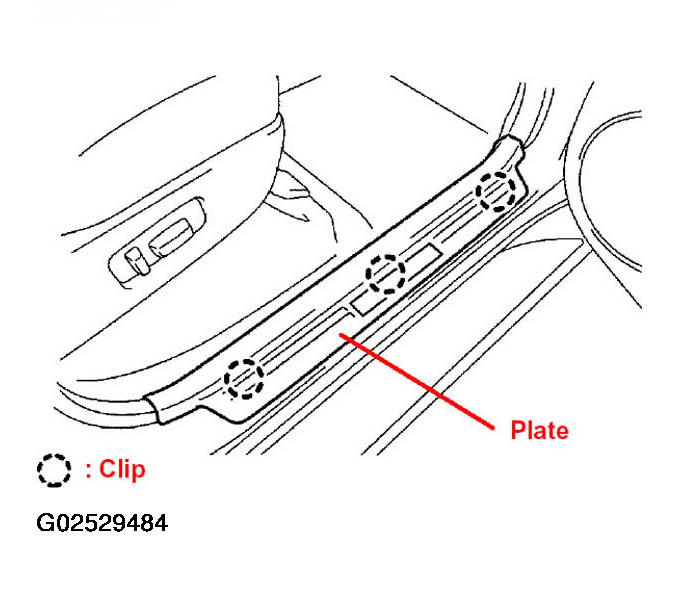

Using a screwdriver, disengage the 3 clips and remove the plate as shown in Fig 1.

HINT: Tape the screwdriver tip before use.

Fig 1: Locating Front Door Scuff Plate Clip (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

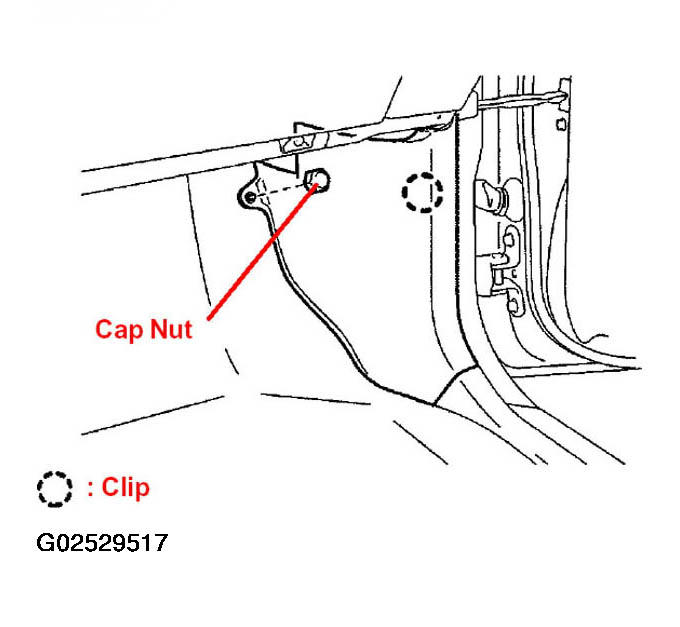

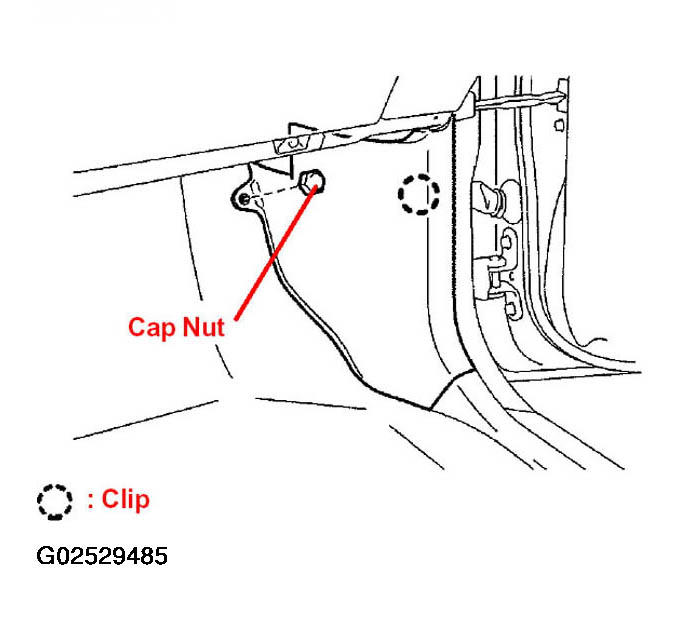

Remove Cowl Side Trim RH
- Remove the cap nut as shown in Fig 2.
- Using the taped screwdriver, disengage the claw and remove the trim as shown in Fig 2.

  Fig 2: Removing Claw Side Trim
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

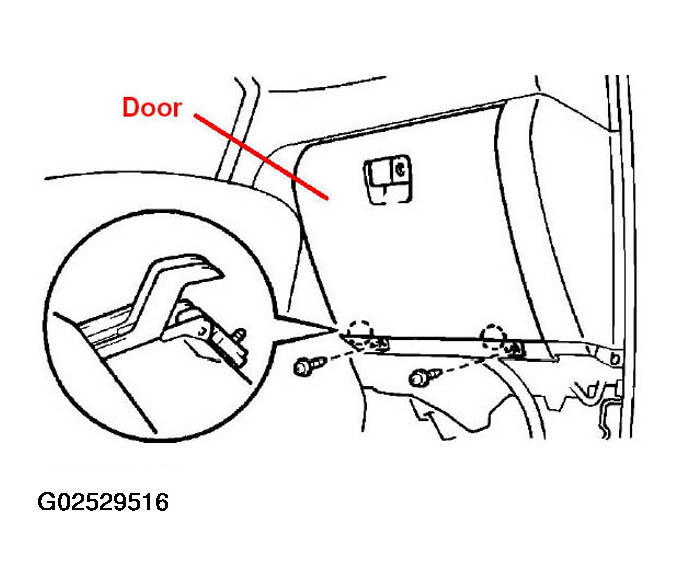

Remove Glove Compartment Door

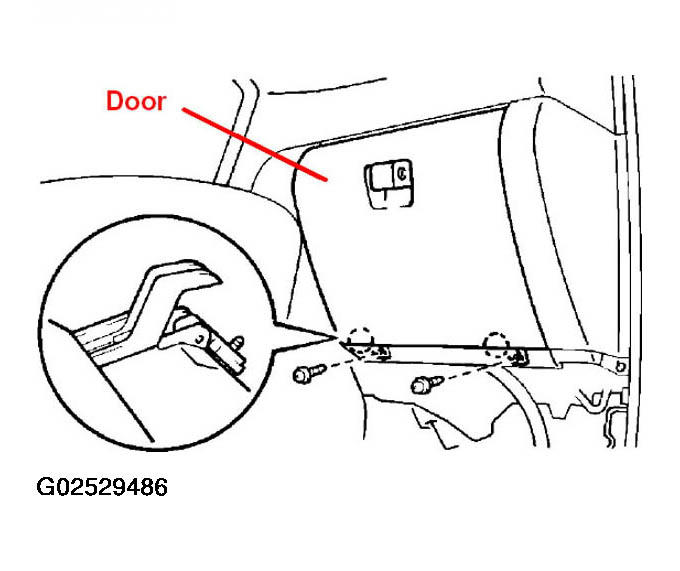

- Remove the 2 screws and door as shown in Fig 3.
- Remove the door, then disconnect the glove compartment door damper clip.

  Fig 3: Removing Glove Compartment Door
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Remove Rear Console Panel
- Remove the transfer shift lever knob.
- Remove the shift lever knob.

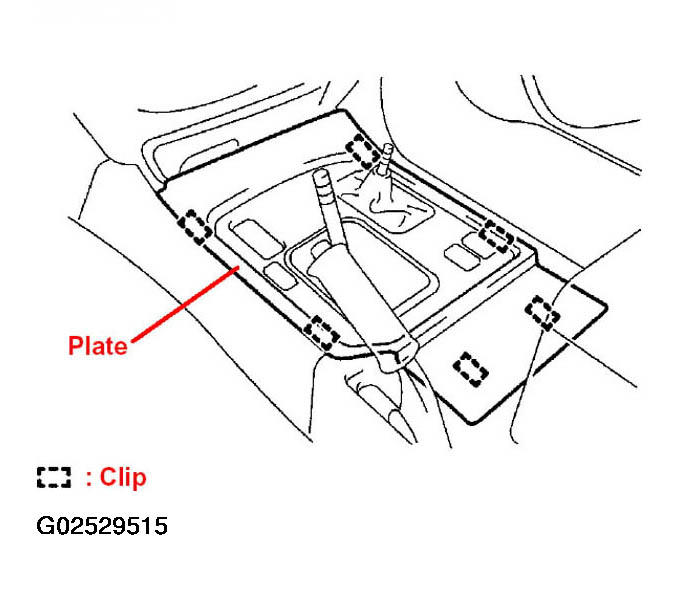

- Using the taped screwdriver, disengage the 6 clips and remove the panel as shown in Fig 4.

  Fig 4: Locating Rear Console Panel Clip (1 Of 2)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

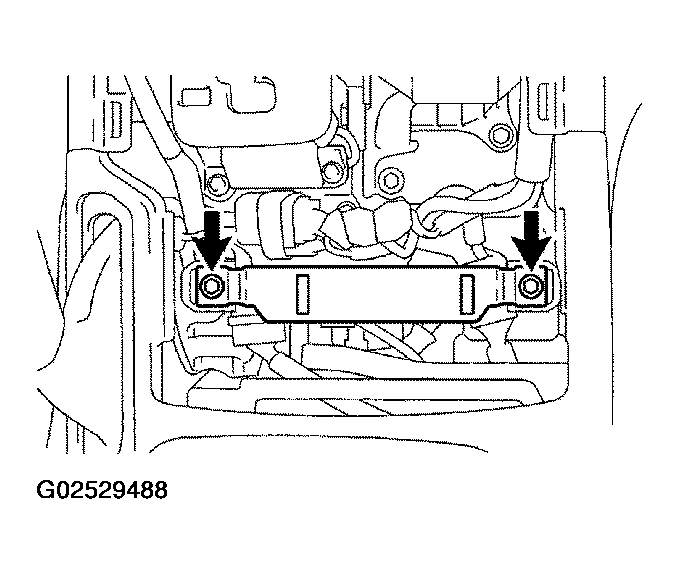

Remove Rear Console Panel Bracket No. 4
- Remove the 2 bolts and bracket as shown in Fig 5.

  Fig 5: Locating Repair Wiring (1 Of 4)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Route Repair Wire

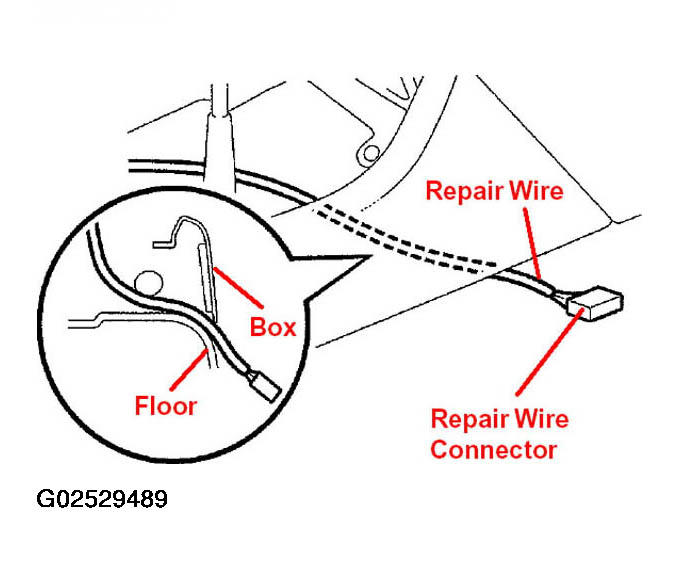

- Run the repair wire connector below the front console box to the passenger seat, as shown in Fig 6.

  Fig 6: Routing Repair Wiring (1 Of 4)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

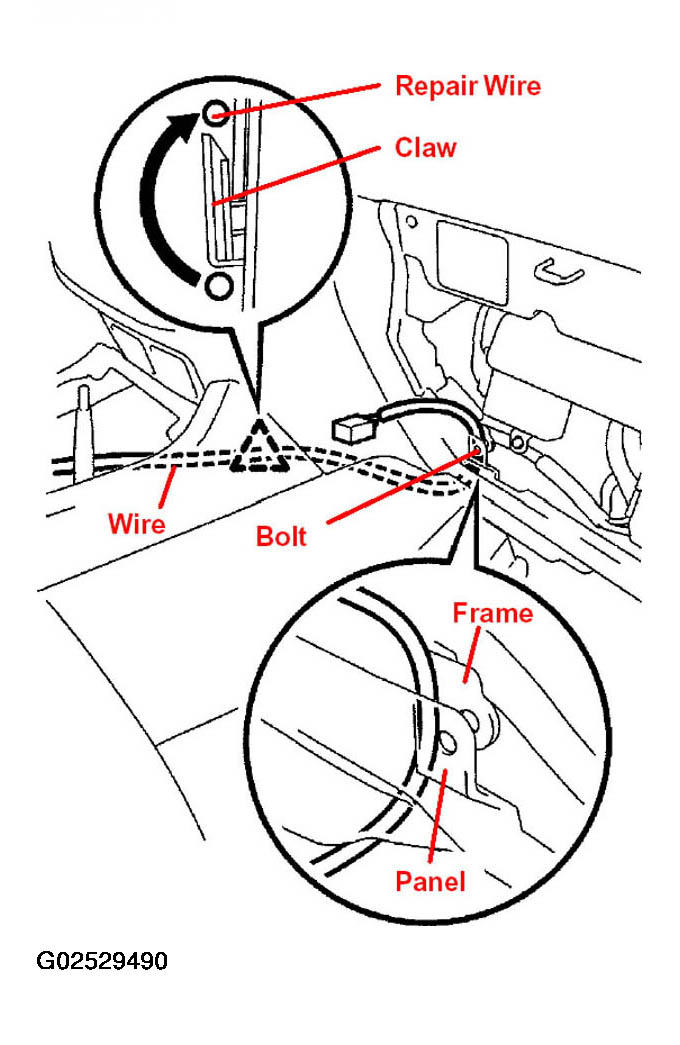

- Remove the bolt.
- Run the repair wire connector from the bottom area of the instrument panel through the glove compartment door, as shown in Fig 7.
  NOTE:
  - The repair wire should pass between the instrument panel and instrument frame.
  - The repair wire should run above the console box's claw.
  Fig 7: Routing Repair Wiring (2 Of 4)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

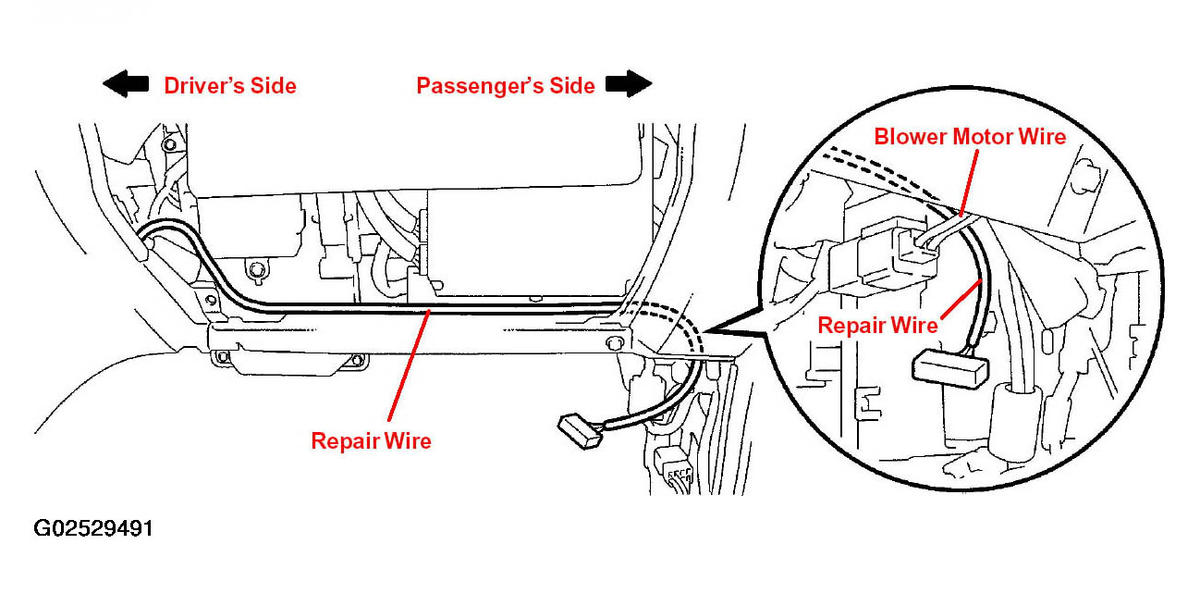

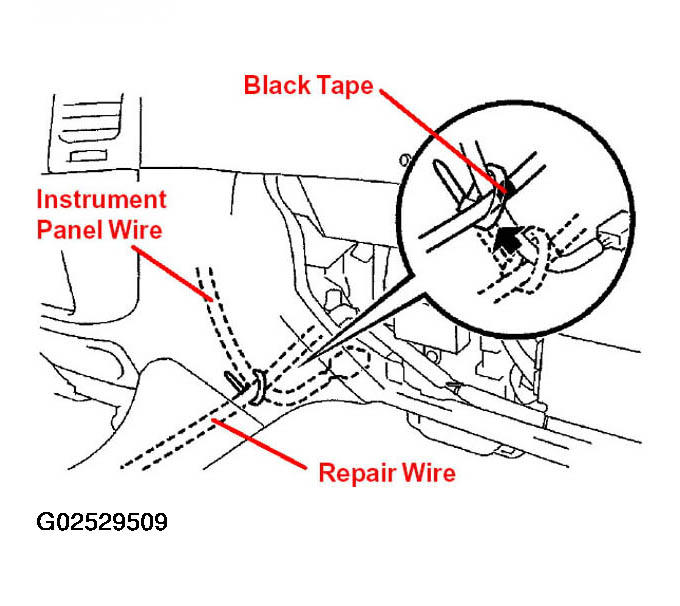

- Run the repair wire along the existing instrument panel wires, as shown in Fig 8.
  HINT:
  - Fig 8 is the area behind the glove compartment door.
  - The repair wire should run above the blower motor wire.
  Fig 8: Routing Repair Wiring (3 Of 4)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

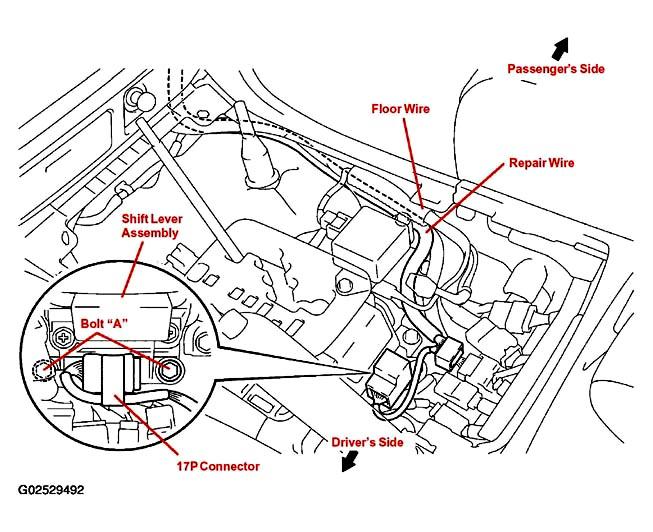

- Run the repair wires through the inside of the front console box.
  HINT:
  - The repair wire should run below the floor wire.
  - The repair wire 17P connector should be placed between the 2 shift lever assembly bolts labeled "A" in Fig 9.
  Fig 9: Routing Repair Wiring (4 Of 4)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Install Repair Wire

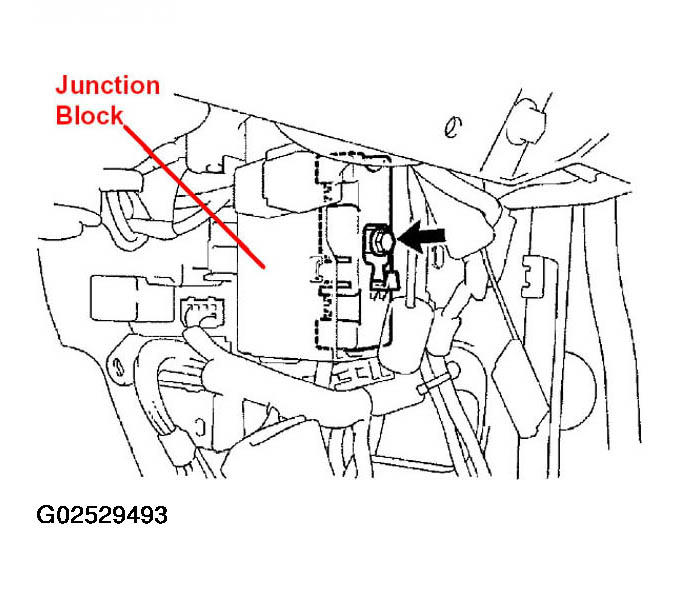

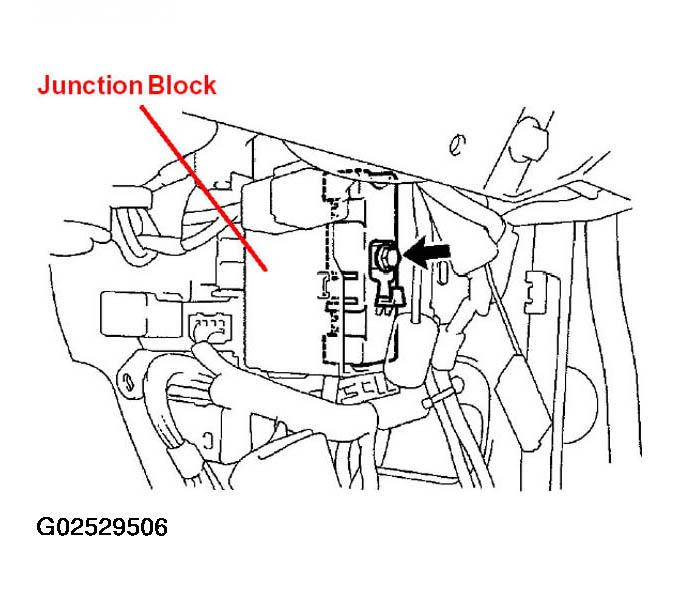

1. Remove the bolt and connector block from the Junction Block.

  Fig 10: Locating Connector Block Bolt (1 Of 2)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

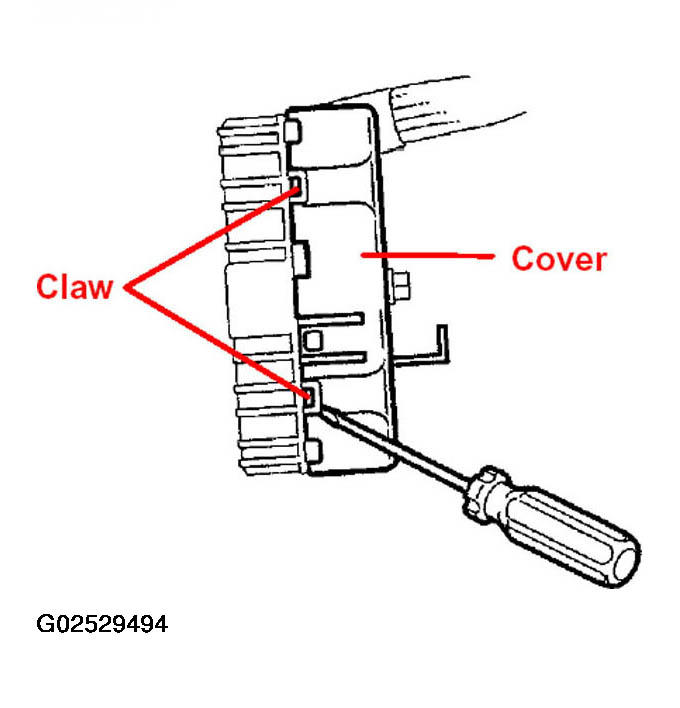

2. Using the taped screwdriver, remove the 4 claws and remove the connector block cover.

  Fig 11: Removing Connector Block Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the tape.

  Fig 12: Removing Tape From Harness
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

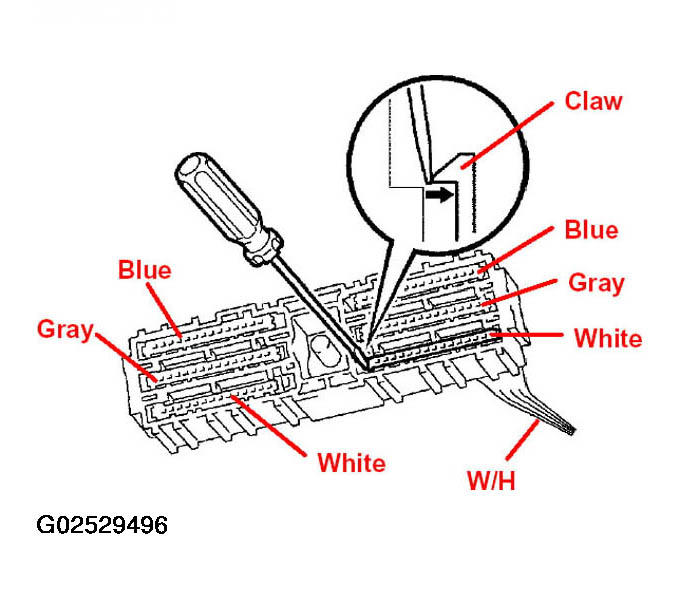

4. Using the taped screwdriver, disengage the claw on the wire harness side of the white block connector.

  Fig 13: Disengaging White Block Connector Claw
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

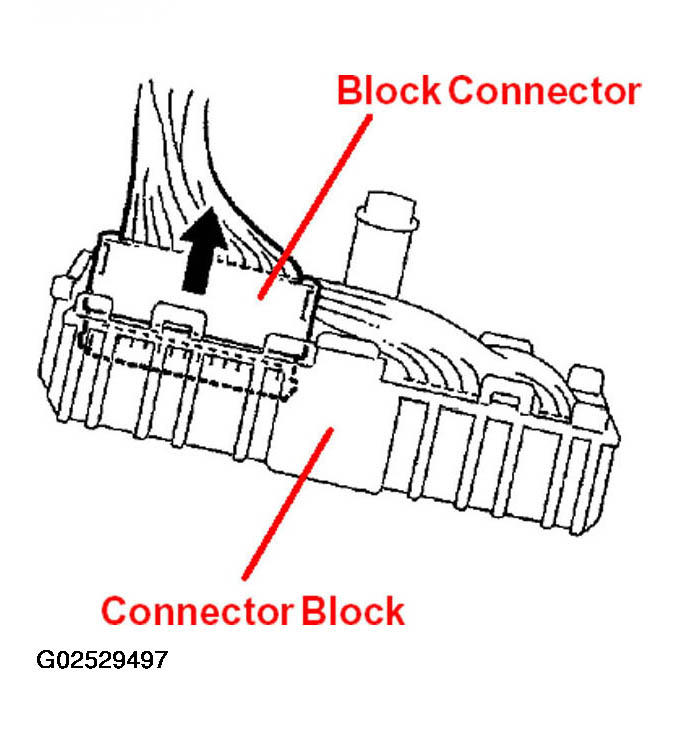

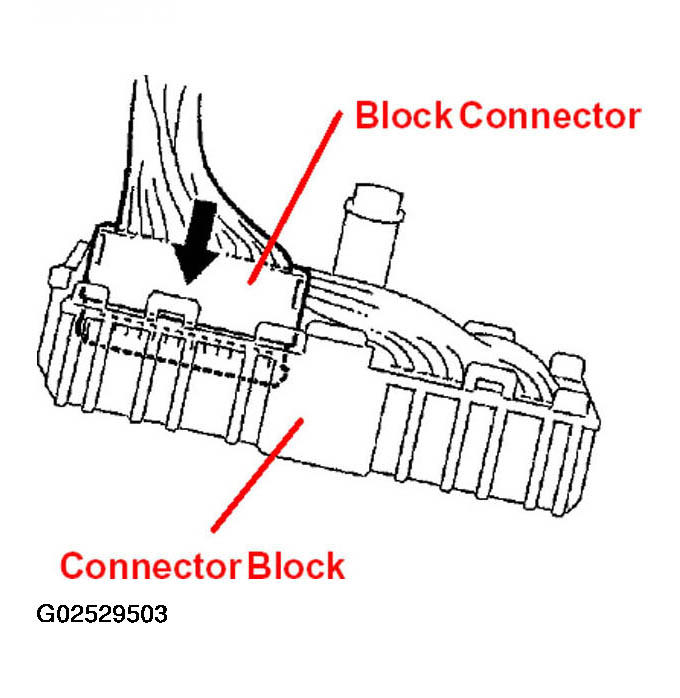

5. Remove the block connector from the connector block.
  NOTE: Do not remove any connector other than the connector shown in Fig 14.

  Fig 14: Removing Block Connector From Connector Block
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

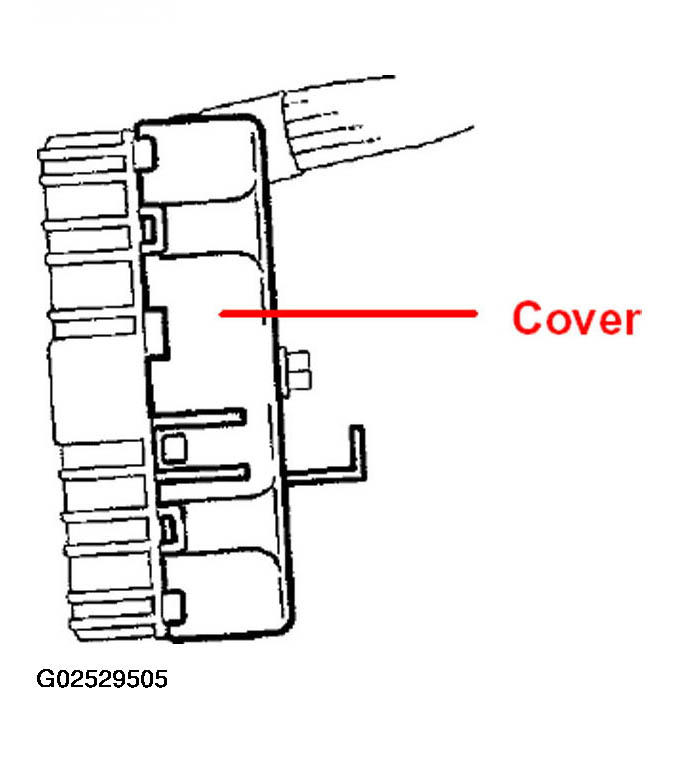

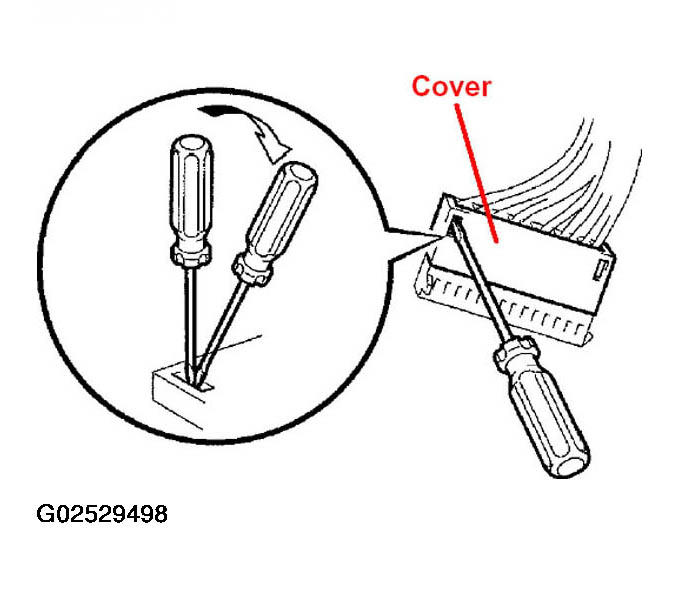

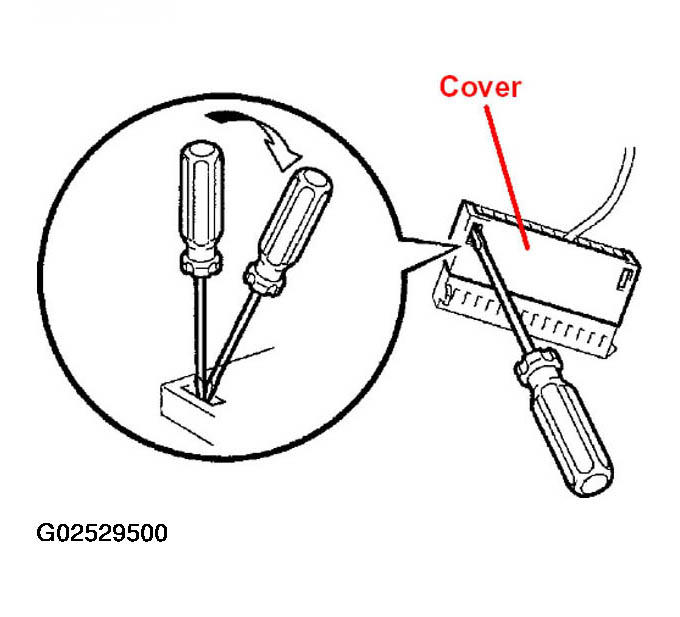

6. Using the taped screwdriver, remove the block connector cover as shown in Fig 15.

  Fig 15: Removing Block Connector Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

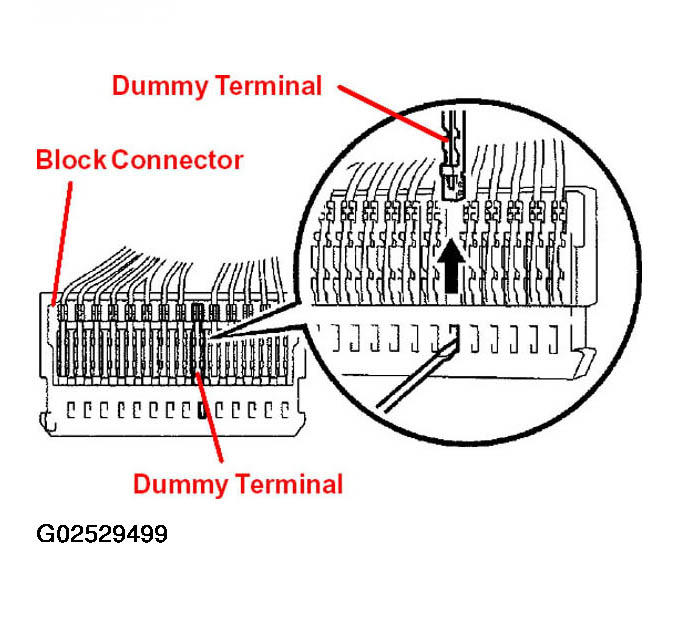

7. Using the taped screwdriver, remove the sixth dummy terminal from the right, as shown in Fig 16.
  NOTE: Do not remove any terminal other than the connector shown in Fig 16.

  HINT: Insert the taped screwdriver as shown in Fig 16 . By pushing the screwdriver up, the terminal can be removed.

  Fig 16: Removing Dummy Terminal
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
8. Using the taped screwdriver, remove the repair wire connector cover from the repair wire connector, as shown in Fig 17.

  Fig 17: Removing Repair Wire Connector Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
9. Using the taped screwdriver, remove the terminal from the repair wire connector, as shown in Fig 17.
  NOTE: Do not remove any terminal other than the connector shown in Fig 18.

  Fig 18: Removing Repair Terminal
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  HINT: Insert the taped screwdriver as shown in Fig 18 . By pushing the screwdriver up, the terminal can be removed.

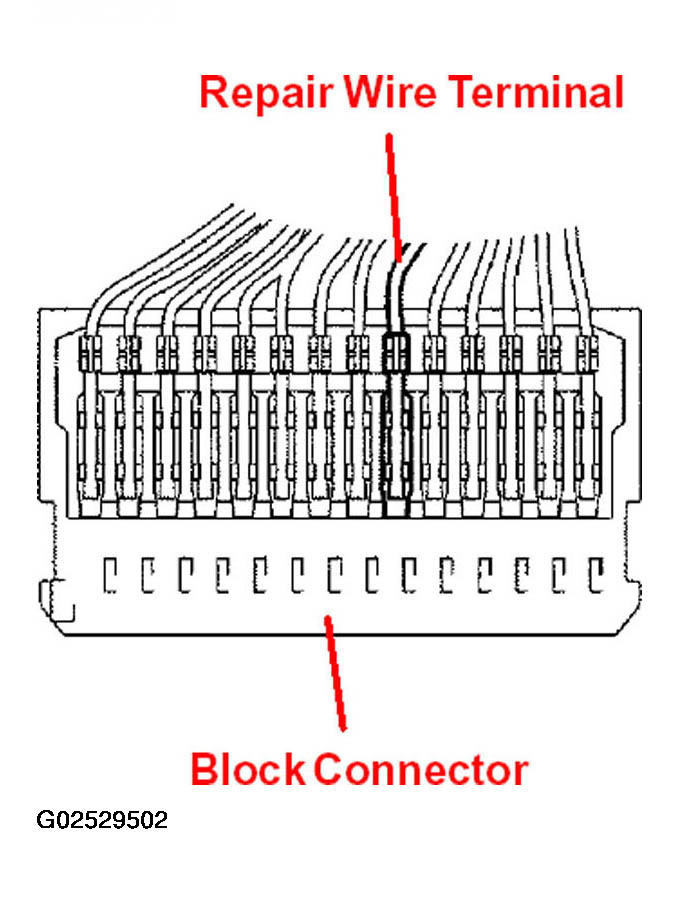

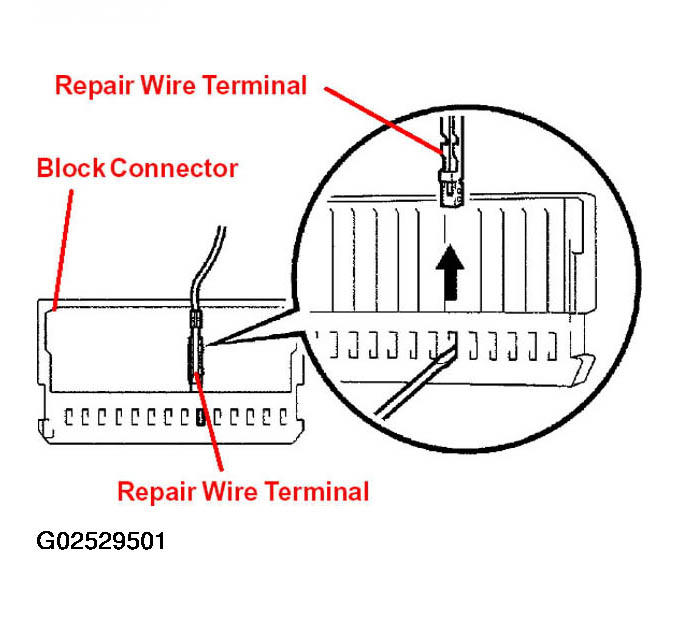

10. Insert the repair wire terminal to the block connector, as shown in Fig 19.
  NOTE: Check if the repair wire terminal is securely inserted.
11. Install the block connector cover.

  Fig 19: Inserting Repair Wire Terminal To Block connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
12. Install the connector to the connector block.

  Fig 20: Installing Connector To Connector Block
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

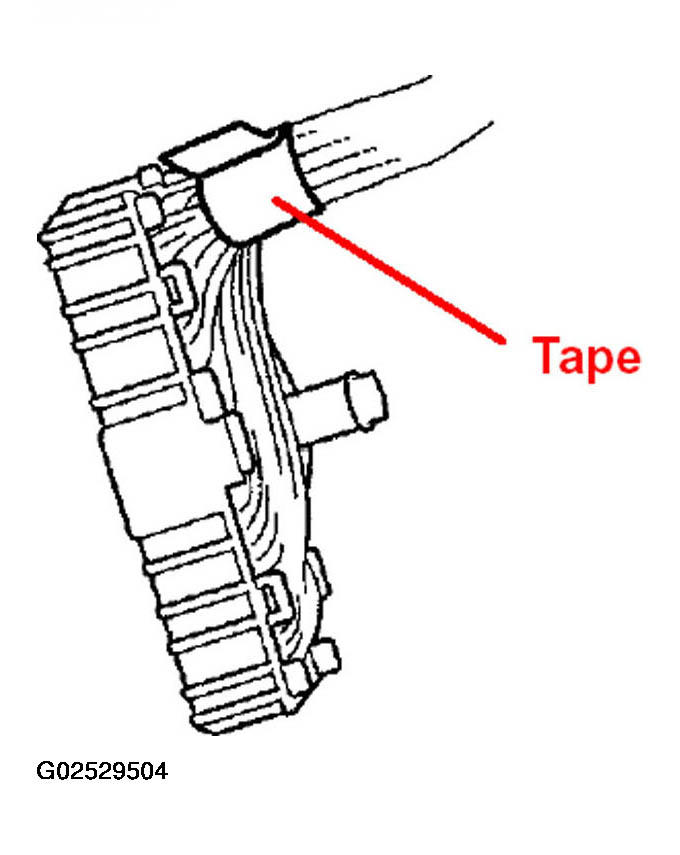

13. Tape the wire as shown in Fig 21.

  Fig 21: Taping Wire
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
14. Install the connector block cover.

  Fig 22: Installing Connector Block Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
15. Install the connector block with the bolt as shown in Fig 23.
  HINT: The bolt should be tightened very firmly.

  Fig 23: Locating Connector Block Bolt (2 Of 2)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Connect Repair Wire

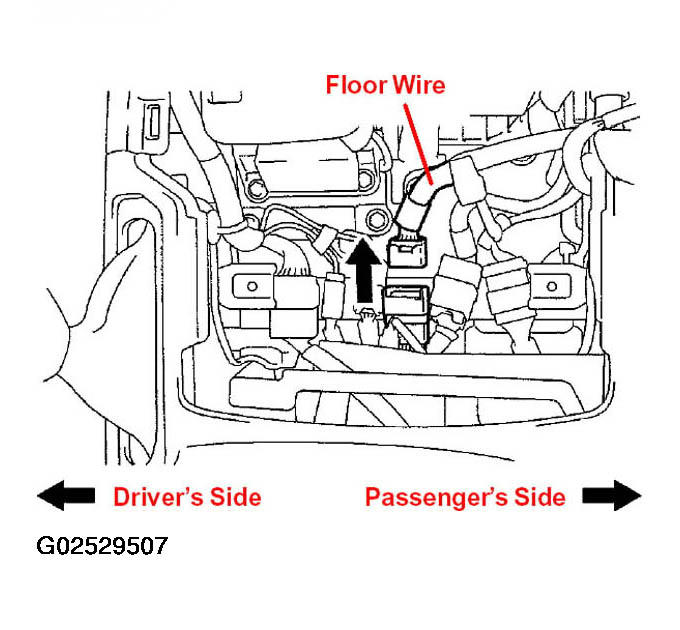

1. Disconnect the 17P connector as shown in Fig 24.

  Fig 24: Disconnecting 17P Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

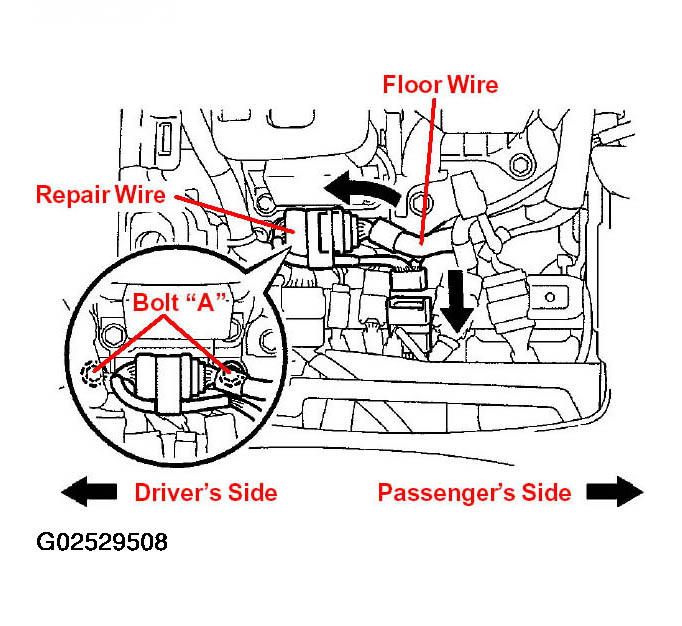

2. Connect the floor wire 17P connector (male and disconnected in step A) to the repair wire 17P connector (female), as shown in Fig 25.
3. Connect the repair wire 17P connector (male) to the floor wire 17P connector (male and disconnected in step A), as shown in Fig 25.

  Fig 25: Connecting Floor Wire 17P Connector And Repair Wire 17P Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  HINT: The repair wire 17P connector should be placed between the 2 shift lever assembly bolts labeled "A" in Fig 26 .

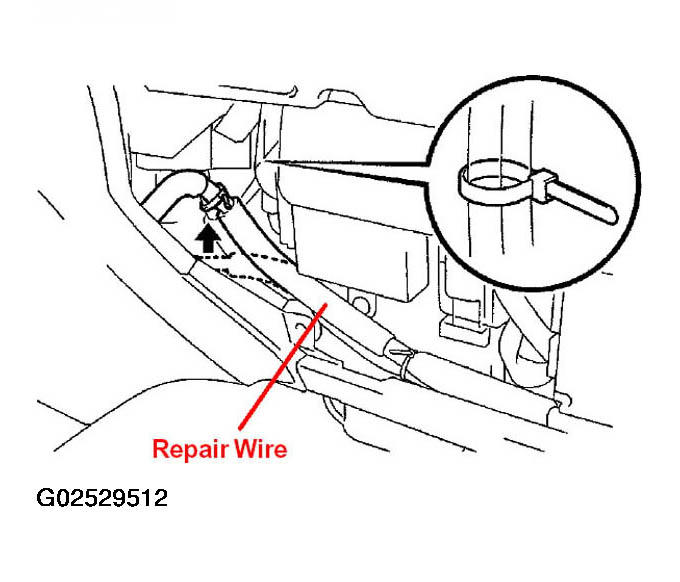

4. Raise the repair wire as much as possible and affix the repair wire to the instrument panel wire with cable ties. Attach the cable ties to the black tape parts of the repair wire.

  Fig 26: Attaching Cable Tie To Repair Wire
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

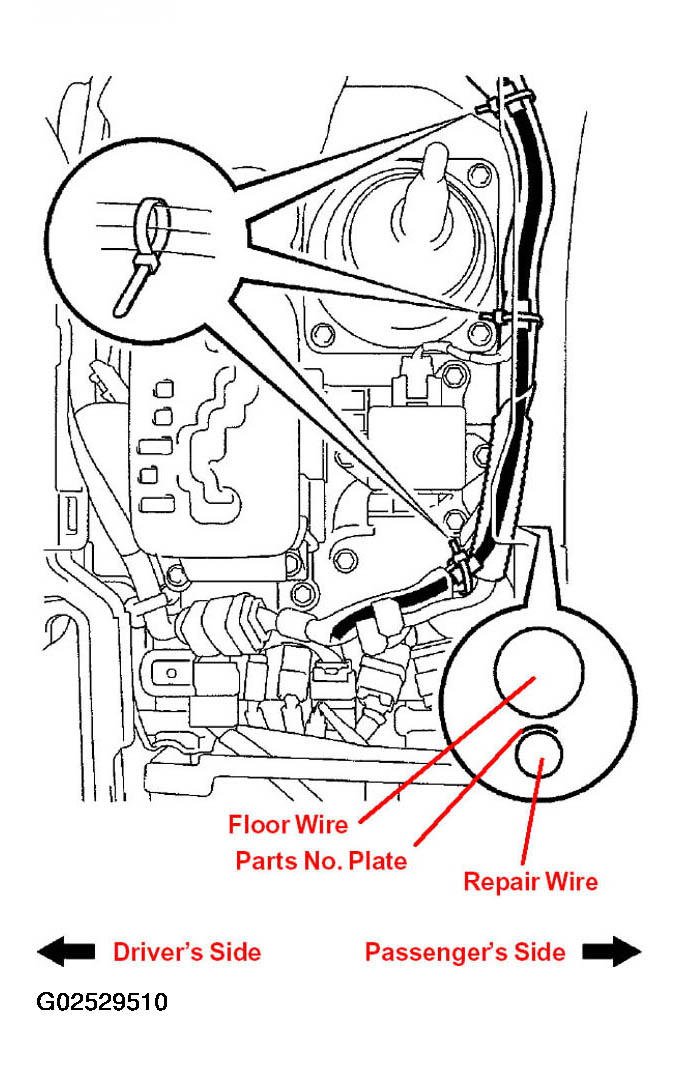

5. Inside the console box, affix the repair wire and the floor wire together with cable ties. Attach the cable ties. Attach the cable ties to white tape parts of the repair wire, as shown in Fig 27.
  NOTE: When affixing the repair wire and the floor wire together:
  - The repair wire should be put under the floor wire.
  - The repair wire's part number plate should be facing the floor wire to prevent interior noise.
  Fig 27: Attaching Repair Wire And Floor Wire With Cable Tie
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

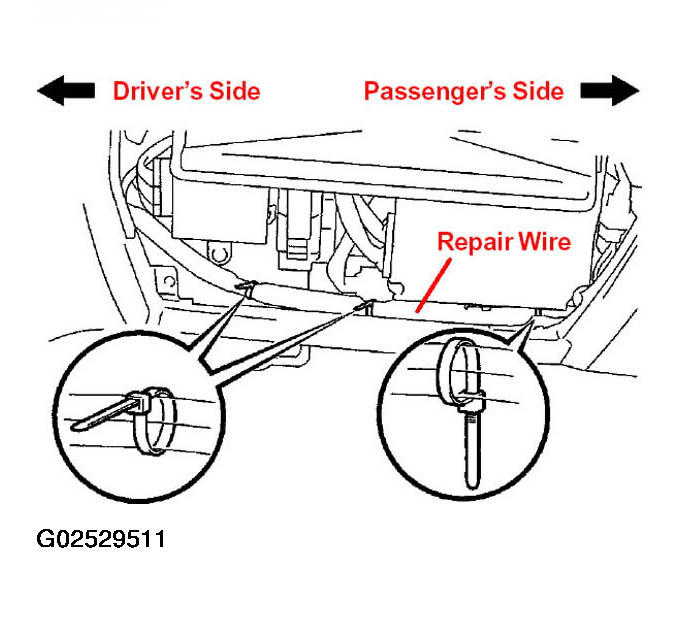

6. In the area behind the glove compartment door, affix cable ties on the white tape parts of the repair wire, as shown in Fig 28.

  Fig 28: Attaching Cable Ties On White Parts Of Repair Wire
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
7. Raise the repair wire as much as possible and affix the repair wire to the glove compartment door wire with cable ties. Attach the cable ties to the white tape parts of the repair wire.
  NOTE: Set the repair wire so that it does not fall out of the bottom area of the instrument panel.
Fig 29: Affixing Repair Wire To Glove Compartment Door Wire With Cable Ties
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Cut Cable Tie

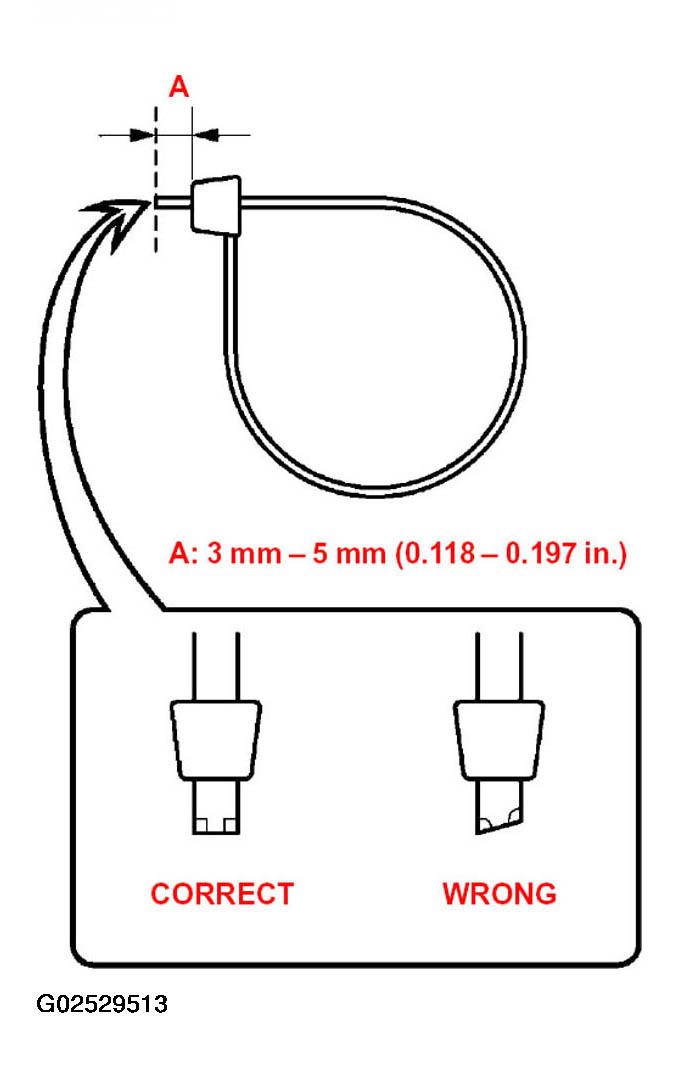

1. Cut off the cable tie, as shown in Fig 30.
Check Lexus Link System
1. Connect the negative (-) terminal cable to the battery.
2. Check the Lexus Link system. (See step 1)
Check SRS Diagnosis
About 6 seconds after turning the ignition switch ON, check that the SRS warning light in the combination meter turns off.

If the SRS warning light flashes or stays ON, the connector could be disconnected or a wire in the wire harness could be broken or short circuited. Check the applicable circuit for the DTC reading (refer to Repair Manual).

Fig 30: Cutting Cable Tie
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

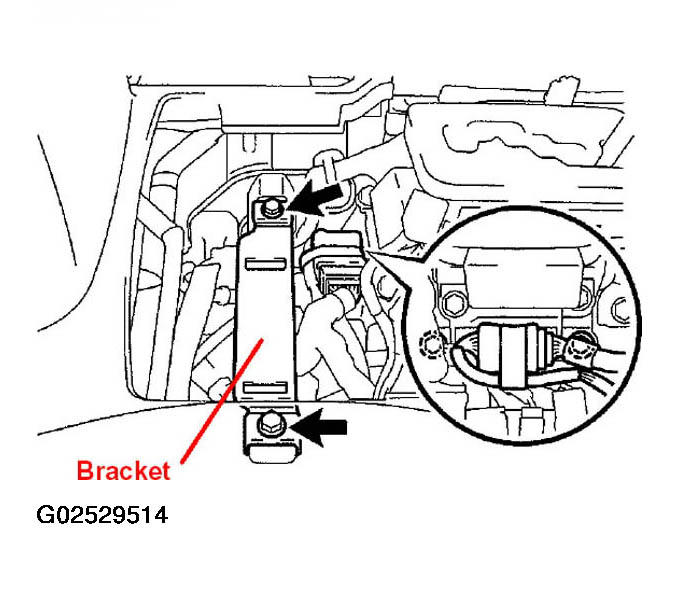

Install Rear Console Panel Bracket No. 4
Install the bracket with the 2 bolts.
1. Torque: 5.5 N.m (56 kgf.cm, 49 in.lbf)
NOTE:
- The repair wire 17P connector should be placed between the 2 shift lever assembly bolts as shown in Fig 31.
- The 17P connector should not be above the bracket.
Fig 31: Locating Console Panel Bracket Bolt
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Install Rear Console Panel

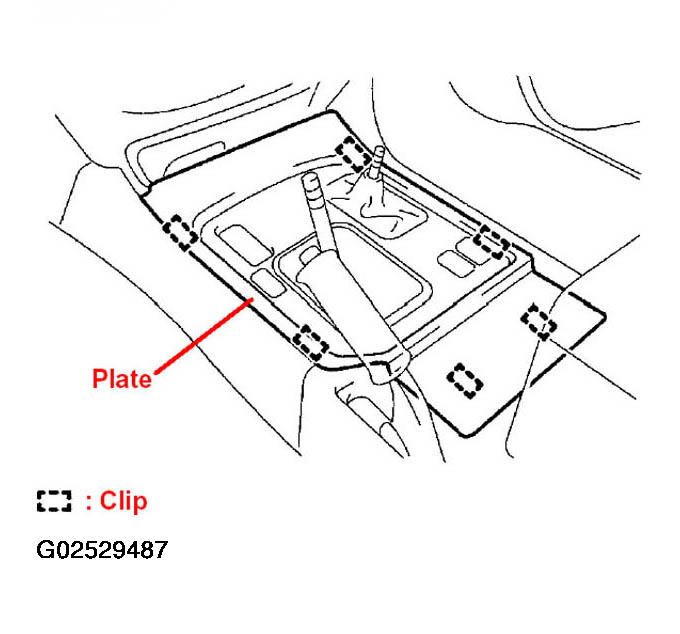

1. Install the panel as shown in Fig 32.
2. Install the transfer shift lever knob.
3. Install the shift lever knob.
Fig 32: Locating Rear Console Panel Clip
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Install Glove Compartment Door
1. Install the glove compartment door damper clip to the door.
2. Install the door with the 2 screws as shown in Fig 33.

  Fig 33: Installing Glove Compartment Door
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Install Cowl Side Trim RH
1. Install the trim as shown in Fig 34.
2. Install the cap nut as shown in Fig 34.

  Fig 34: Installing Cowl Side
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Install Front Door Scuff Plate RH
Install the plate as shown in Fig 35.
Initialize Body System
When disconnecting the negative (-) battery terminal, initialize all the systems after the terminal is reconnected. (refer to the Technical Information System [TIS], 2003 Lexus LX 470 Repair Manual.)

Fig 35: Locating Front Door Scuff Plate Clip
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
