On-Vehicle Repair

  1. REMOVE ENGINE No. 2 UNDER COVER
  2. DISCONNECT PARK/NEUTRAL POSITION SWITCH CONNECTOR

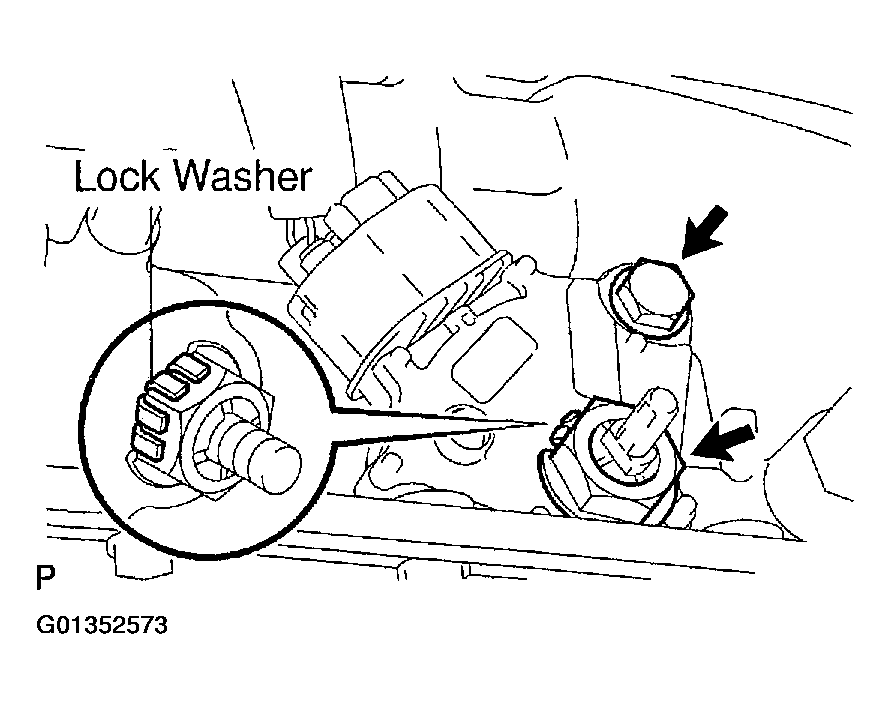

    Fig 1: Removing Park/Neutral Position Switch
    G01352573Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE PARK/NEUTRAL POSITION SWITCH
    1. Pry off the lock washer and remove the nut.
    2. Remove the bolt and park/neutral position switch.
  4. INSTALL PARK/NEUTRAL POSITION SWITCH
    1. Install the park/neutral position switch with the bolt.

      Torque: 13 N.m (130 kgf.cm, 9 ft.lbf)

    2. Install a new lock washer and the nut.

      Torque: 6.9 N.m (70 kgf.cm, 62 in.lbf)

    3. Bent the claws on the lock washer to stake the nut.
    4. Adjust the park/neutral position switch (See PARK/NEUTRAL POSITION SWITCH ).
  5. CONNECT PARK/NEUTRAL POSITION SWITCH CONNECTOR
  6. INSTALL ENGINE No. 2 UNDER COVER
