Floor Shift Assembly: Installation

INSTALL FLOOR SHIFT LEVER ASSEMBLY
1. Install the floor shift lever assembly with the 6 bolts.
  Torque: 8.3 N.m (85 kgf.cm, 73 in.lbf)
2. Connect the connector to the floor shift lever assembly.

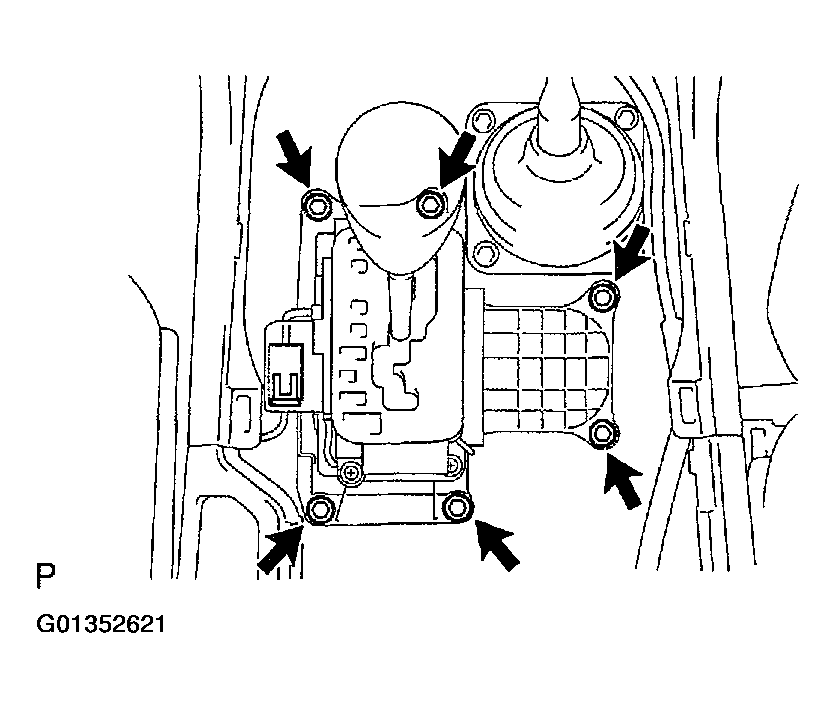

  Fig 1: Installing Floor Shift Lever Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL NO. 1 FLOOR SHIFT GEAR SHIFTING ROD
1. Shift into the N position.
2. Connect the No. 1 floor shift gear shifting rod and the connecting rod swivel with the nut.
  Torque: 13 N.m (130 kgf.cm, 9 ft.lbf)
INSTALL UPPER CONSOLE PANEL (See COMPONENTS )

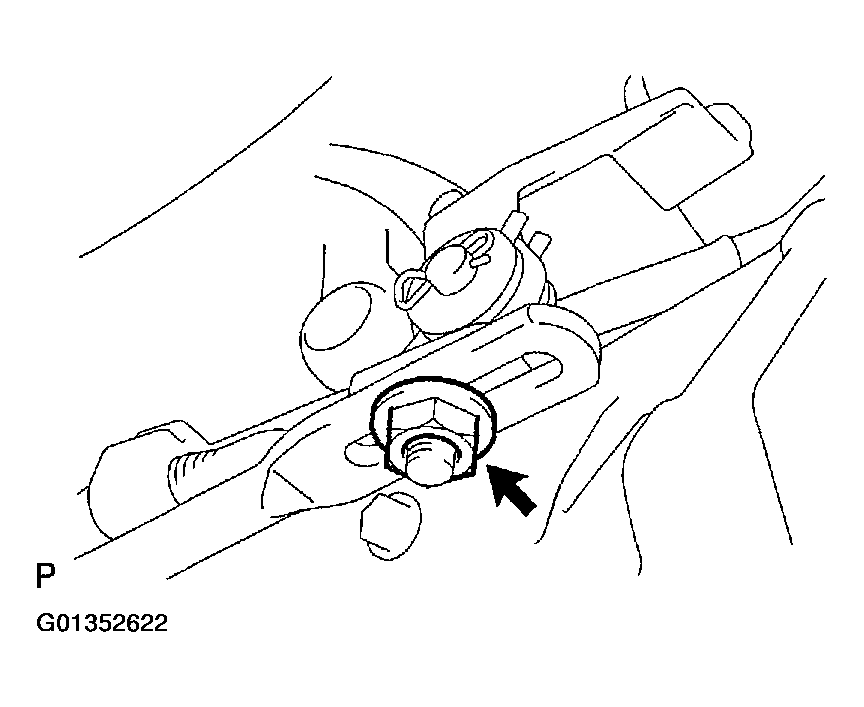

Fig 2: Connecting Floor Shift Gear Shifting Rod & Connecting Rod Swivel With Nut
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL TRANSFER SHIFT LEVER KNOB
