Air Cooled Oil Cooler: Components

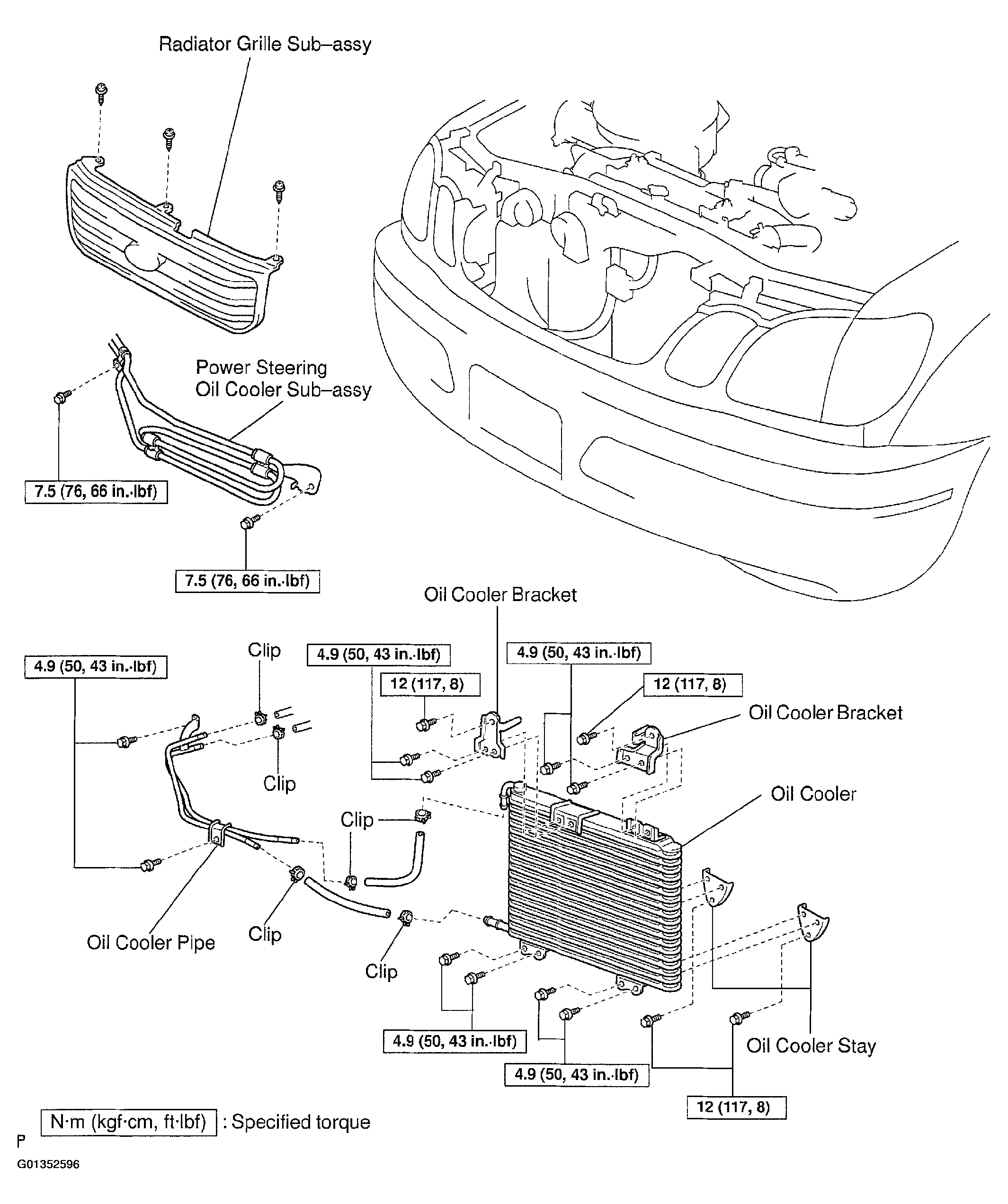

Fig 1: Identifying Air Cooled Oil Cooler Components
G01352596Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
