Front Extension Housing: Reassembly

HINT:

Coat all of the sliding and rotating surfaces with gear oil before reassembly.

1. INSTALL DUST DEFLECTOR

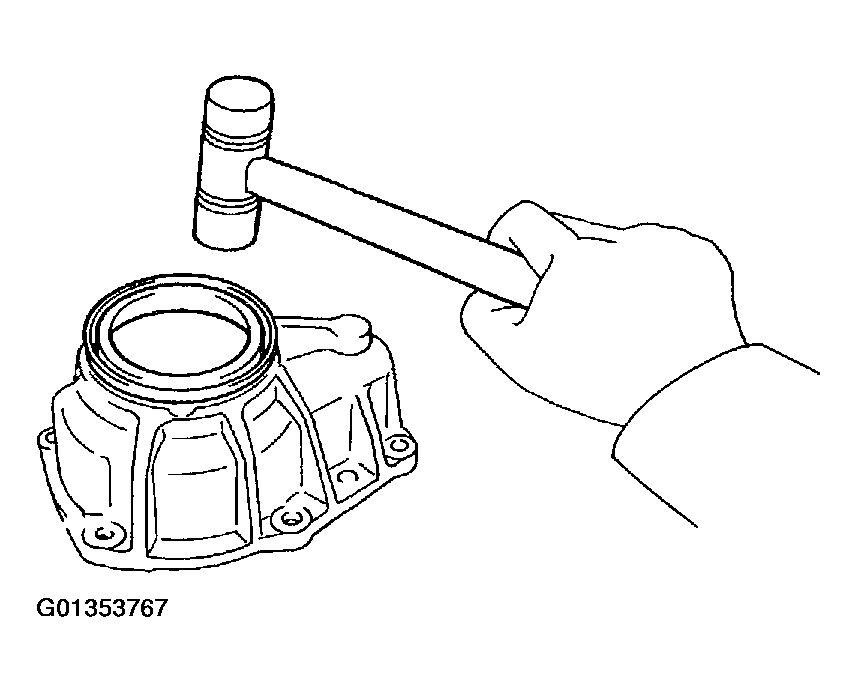

   1. Using a plastic hammer, install a new dust deflector to the front extension housing.
      Fig 1: Installing Dust Deflector To Front Extension Housing

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

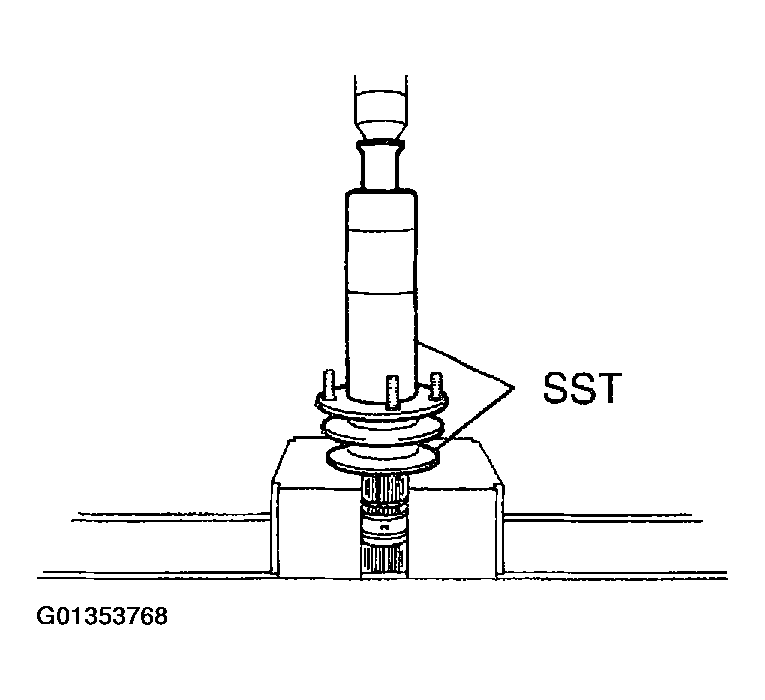

   2. Using SST and a press, install a new dust deflector to the front output shaft.

      SST 09316-20011, 09316-60011 (09316-00011)

      Fig 2: Installing Dust Deflector To Front Output Shaft

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. INSTALL BALL BEARING

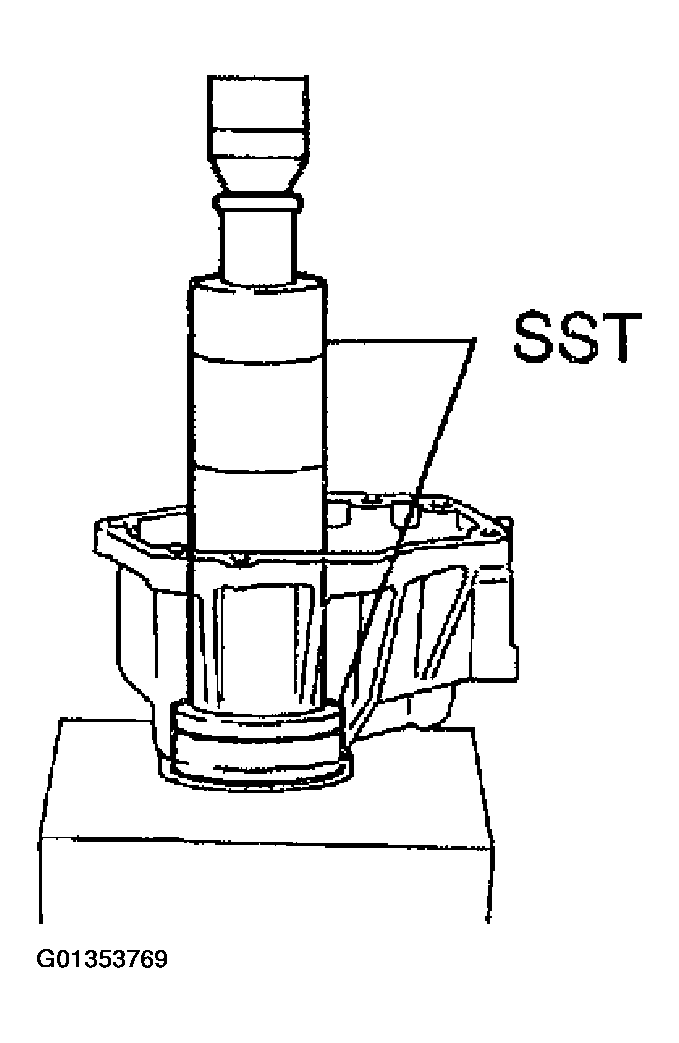

   1. Using SST and a press, install the ball bearing to the front extension housing.

      SST 09316-60011 (09316-00011, 09316-00031)

      Fig 3: Installing Ball Bearing To Front Extension Housing

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Select a snap ring that will allow the minimum axial play.

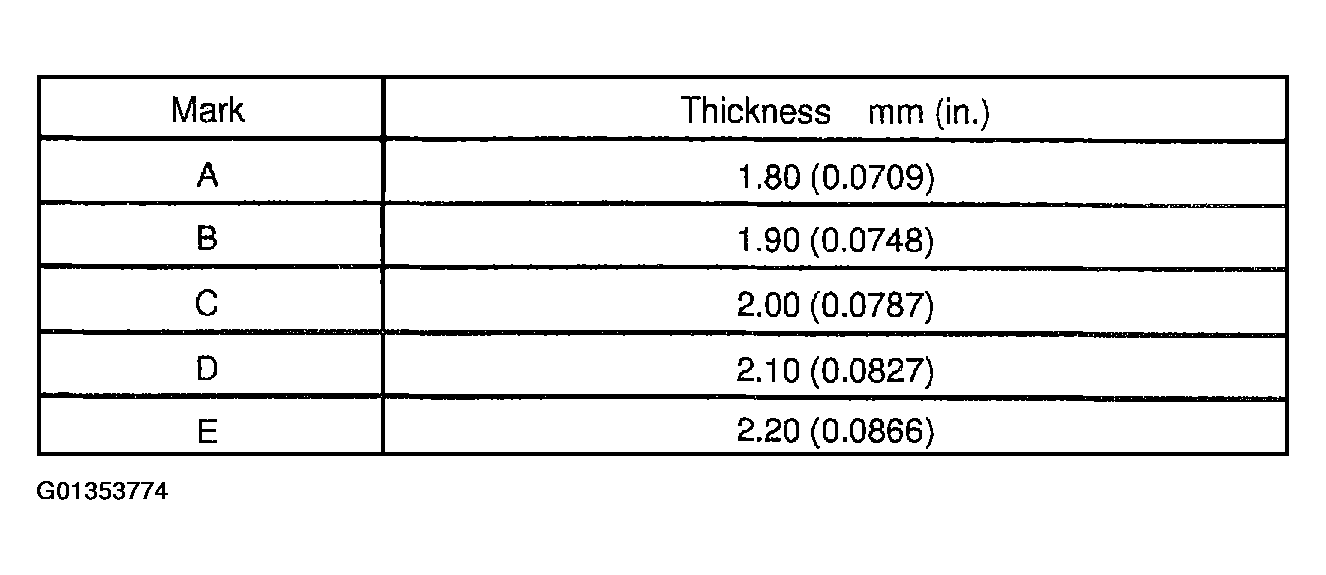

      Fig 4: Snap Ring Specification Table

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   3. Using a screwdriver, install a new snap ring.

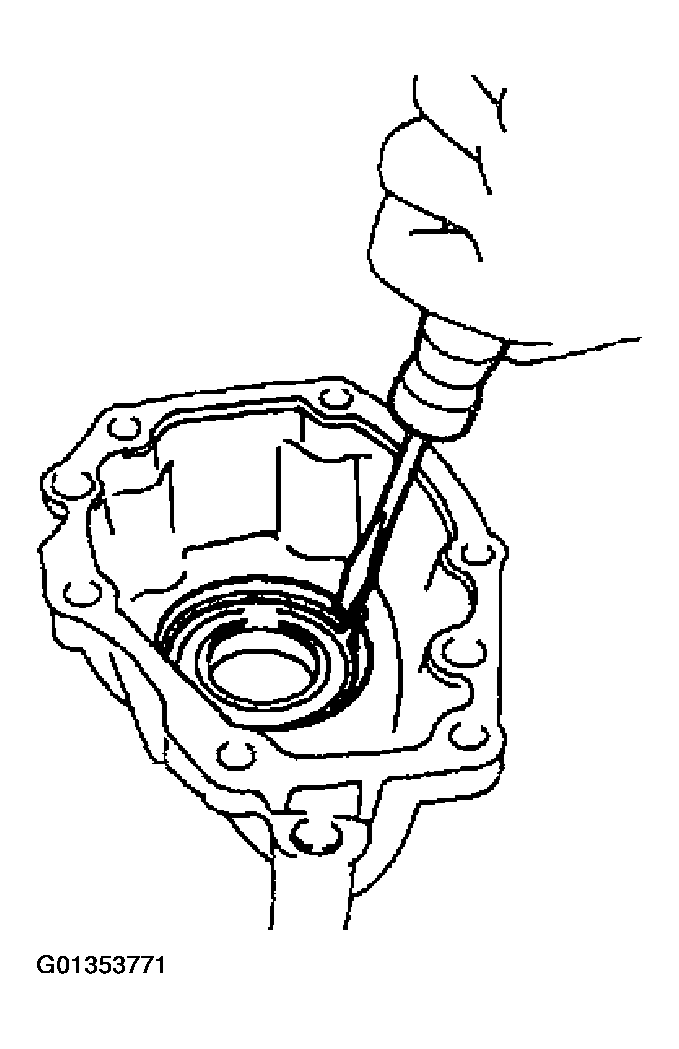

      Fig 5: Installing Snap Ring Using Screwdriver

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. INSTALL OIL SEAL
   1. Apply MP grease to the lip of a new oil seal.

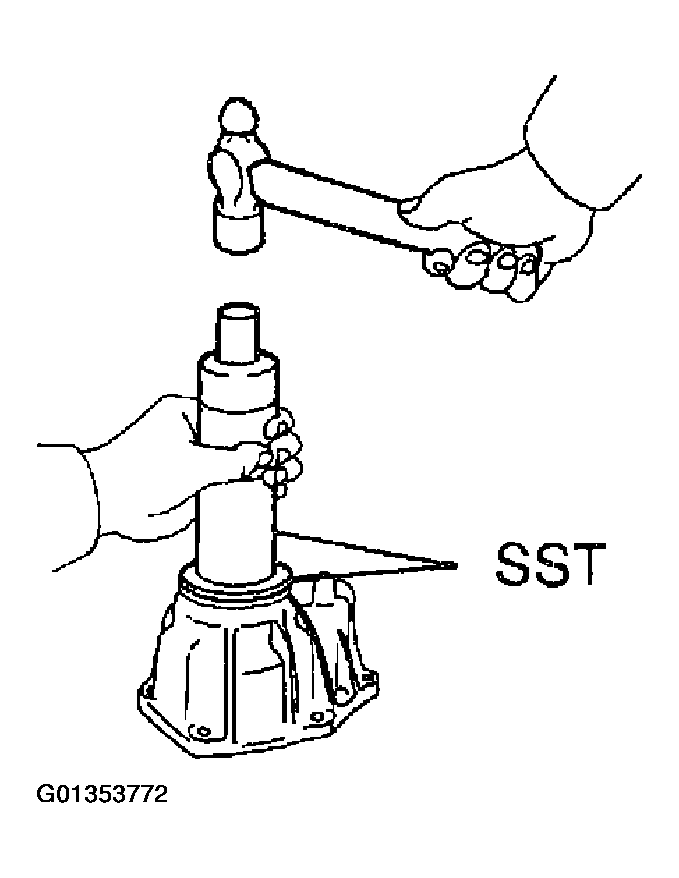

   2. Using SST and a hammer, drive in a new oil seal to the front extension housing.

      SST 09316-60011 (09316-00011, 09316-00061)

      Fig 6: Installing Oil Seal To Front Extension Housing

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. INSTALL FRONT OUTPUT SHAFT AND DRIVE CLUTCH HUB

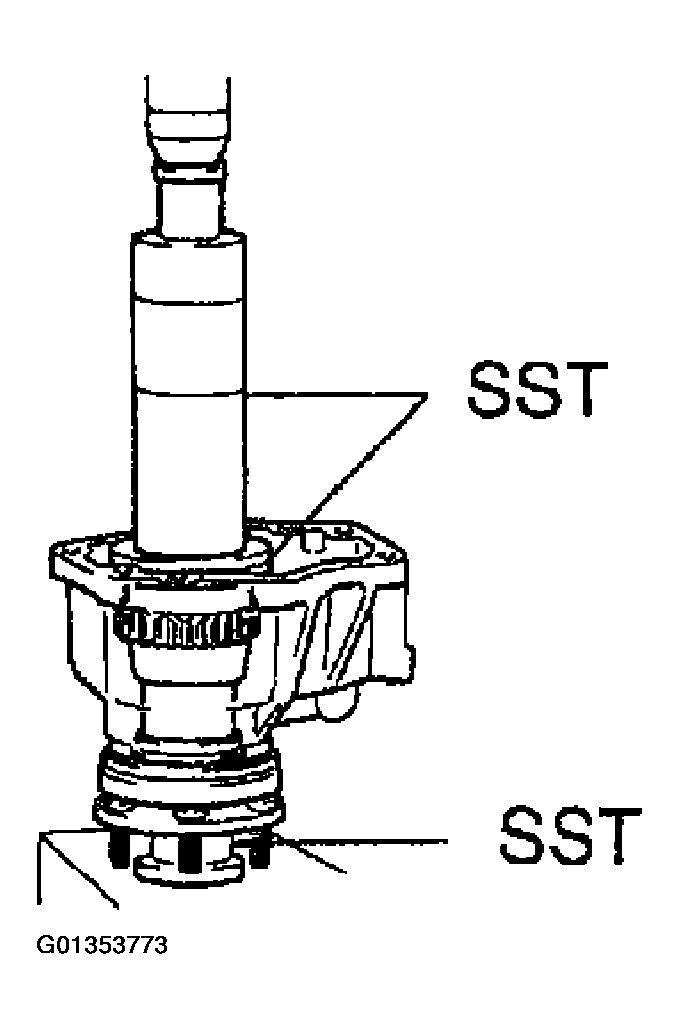

   1. Using SST and a press, install the front output shaft and drive clutch hub.

      SST 09316-20011, 09316-60011 (09316-00011, 09316-00041, 09316-00071)

      Fig 7: Installing Front Output Shaft And Drive Clutch Hub

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Select a snap ring that will allow the minimum axial play.

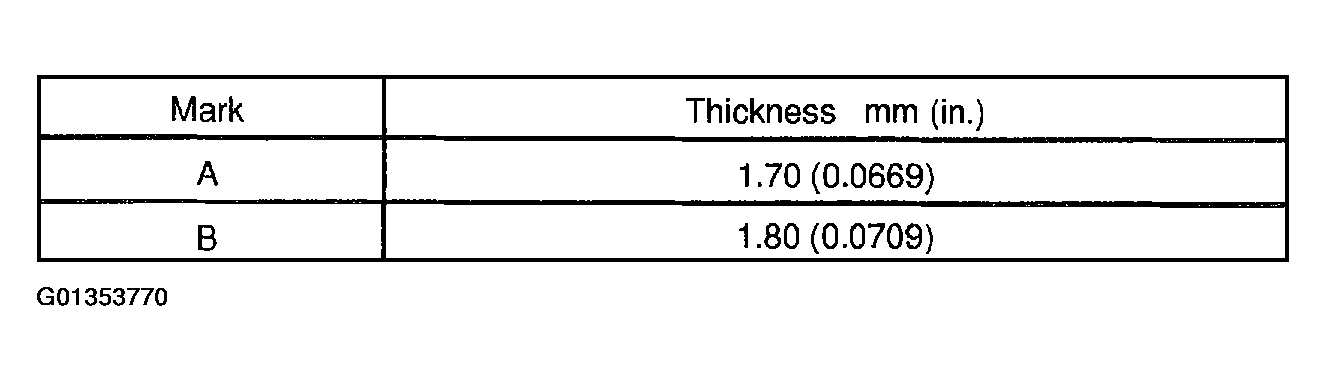

      Fig 8: Snap Ring Specification Table

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

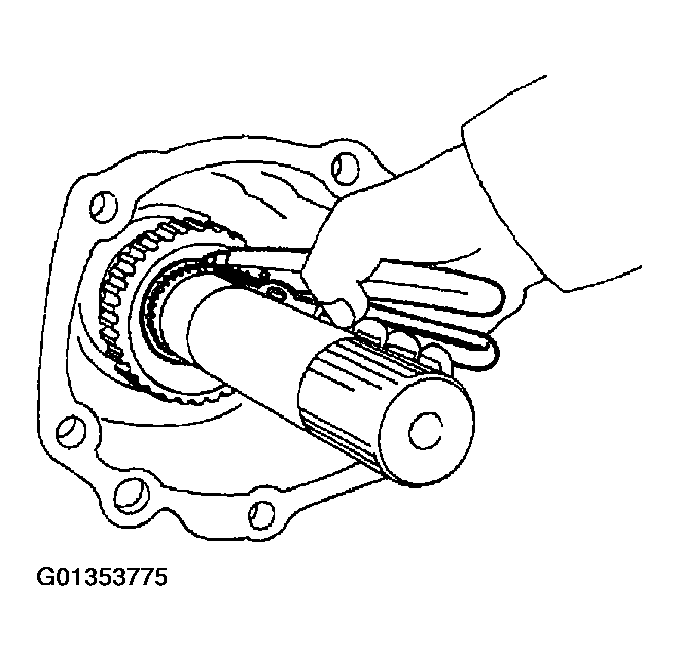

   3. Using a snap ring expander, install a new snap ring.
      Fig 9: Installing Snap Ring

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
