Air Flow Meter/Sensor: Service and Repair

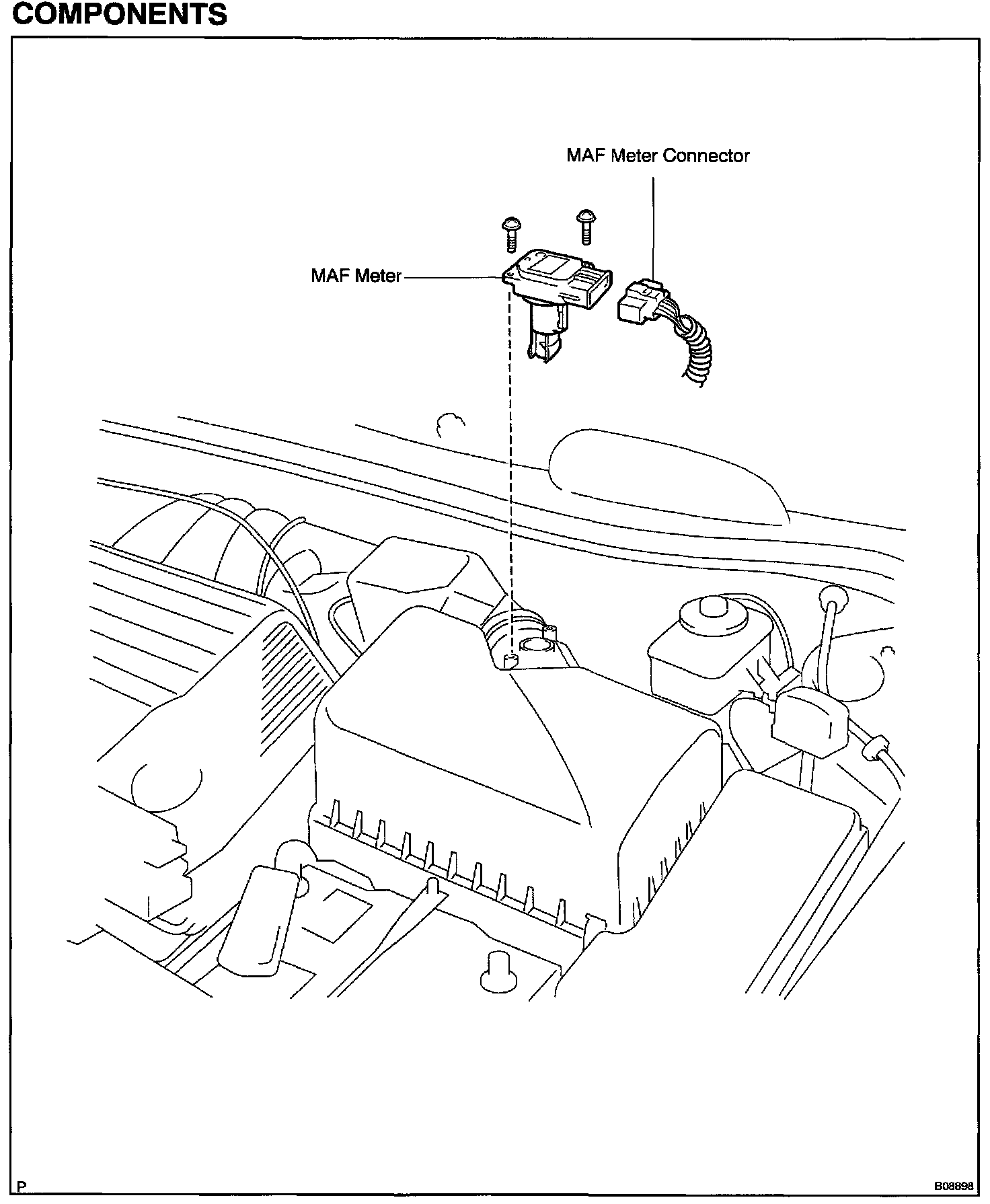

Mass Air Flow (MAF) Meter:

REMOVAL

REMOVE MAF METER




a. Disconnect the MAP meter connector.

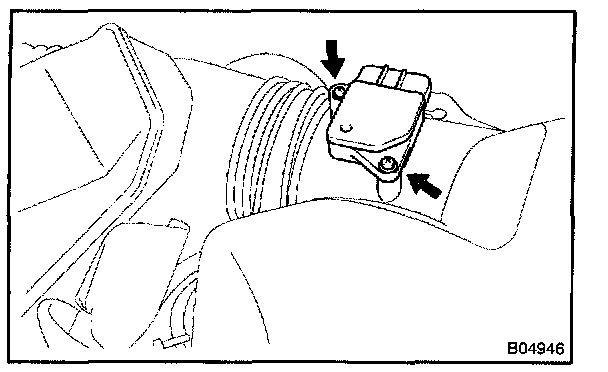

b. Remove the 2 screw, MAF meter and gasket.

HINT: At the time of installation, please refer to the following items.

Use a new gasket.

INSTALLATION
Installation is in the reverse order of removal.
